| Quantity: | |
|---|---|
Ringlock Scaffolding Standard
EK
730890000
48.3x3.2mm
Q235
Hot-Dip Galvanized
10.45kg
The Ringlock scaffolding system is composed of parts with ringlock standard, and the standard length of Ringlock is 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m. Ring locks are welded to the pipe in 0.50 m increments. Diagonal Brackets: Made from OD 48.3mm scaffolding pipe.
Ringlock Standards are divided into three styles: Fixed Spigot Ringlock Standards, Bolted Spigot Ringlock Standard and Open End Ringlock Standards. Among them, the Bolted Spigot Ringlock Standard is the most commonly used, and this bolted standard spot is detachable. The Ringlock Standard can be used with scaffolding adjustable U-head jacks or fixed U-heads to support concrete slabs and beams while you remove bolts and nuts and connecting pins. Ringlock Standards can also be used with the base Jack when the ground is uneven.
Type | HDG Ringlock Scaffolding Standard |
Length | 2000mm(6'7") |
Weight | 10.45kg |
Main Material | Q235 or Q345 |
Surface treatment | Painted, galvanized, HDG, powder coated |
Advantages | Competitive price, High-quality products, 24-hour after-sales service |
Port | Nanjing/XINGANG |
Currency | USD, RMB |
Payment | L/C, T/T, 30% in advance |

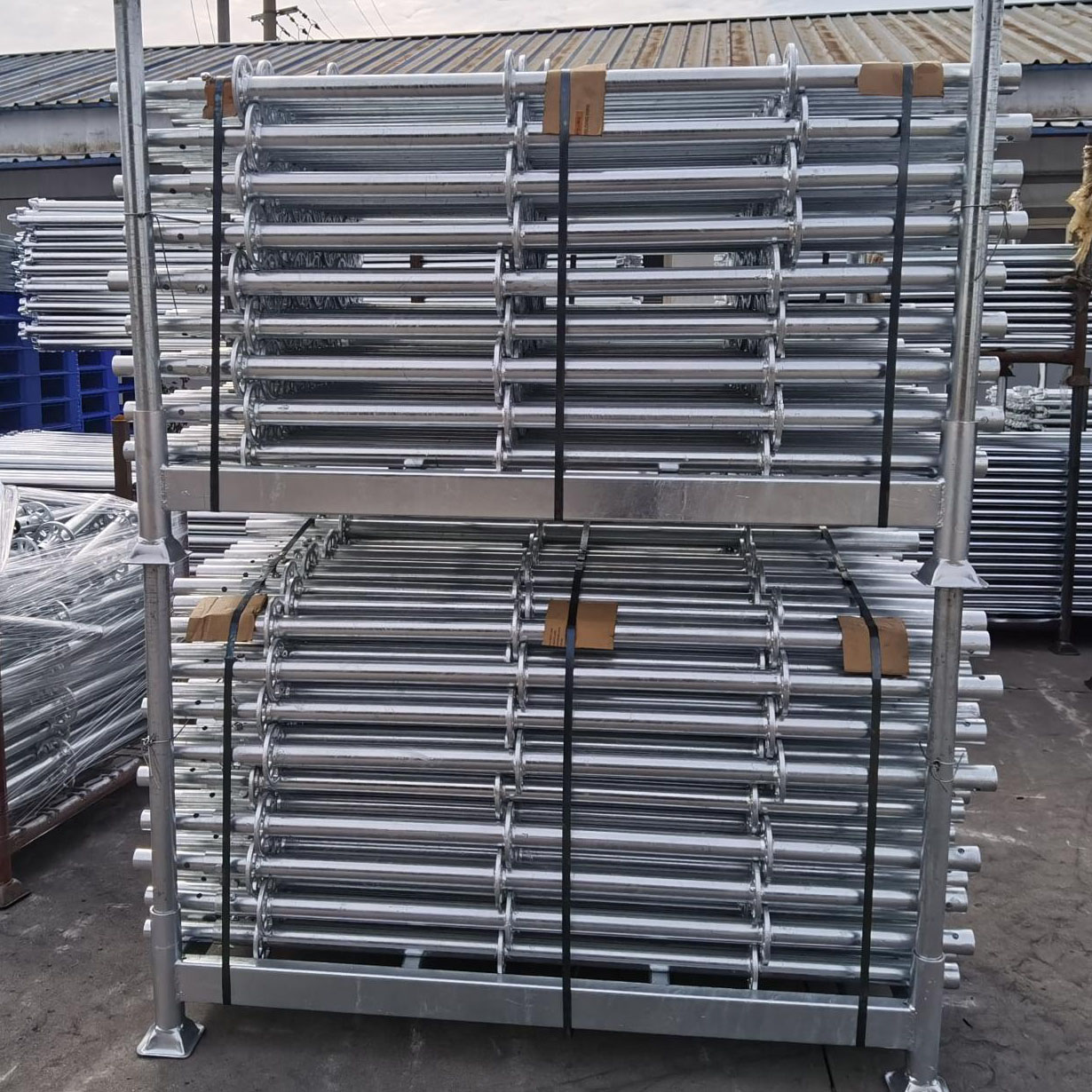

Package | Steel Pallet or Customized |
Weight & Length
Code | Description | Length (mm) | Weight (kg) |
EK-RLS050 | Standard (Vertical) with Hot Dip Galvanized steel tube 48.3x3.2mm | 500 (1’8”) | 3.19 |
EK-RLS100 | 1000 (3’3”) | 5.66 | |
EK-RLS150 | 1500 (4’11”) | 8.07 | |
EK-RLS200 | 2000 (6’7”) | 10.45 | |
EK-RLS250 | 2500 (8’2”) | 12.87 | |
EK-RLS300 | 3000 (9’10”) | 15.29 | |
EK-RLS400 | 4000 (13’1”) | 20.11 |
Ringlock Scaffolding Ultimate Guide 2023
Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffolding couplers and fittings to fix. Ringlock scaffolding systems include prefabricated parts of ringlock standard, ringlock ledgers, ringlock diagonal braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ledgers, braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ringlock ledger and ringlock diagonal brace heads by rivets. It is used to fix ringlock system horizontals and braces between ringlock standards.
More than ringlock system scaffolding, cuplock system scaffolding, kwikstage system scaffolding, quick lock scaffold, crab shoring systems, and frame system scaffolding are modular scaffolds too.
The Ringlock scaffolding system is composed of parts with ringlock standard, and the standard length of Ringlock is 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m. Ring locks are welded to the pipe in 0.50 m increments. Diagonal Brackets: Made from OD 48.3mm scaffolding pipe.
Ringlock Standards are divided into three styles: Fixed Spigot Ringlock Standards, Bolted Spigot Ringlock Standard and Open End Ringlock Standards. Among them, the Bolted Spigot Ringlock Standard is the most commonly used, and this bolted standard spot is detachable. The Ringlock Standard can be used with scaffolding adjustable U-head jacks or fixed U-heads to support concrete slabs and beams while you remove bolts and nuts and connecting pins. Ringlock Standards can also be used with the base Jack when the ground is uneven.
Type | HDG Ringlock Scaffolding Standard |
Length | 2000mm(6'7") |
Weight | 10.45kg |
Main Material | Q235 or Q345 |
Surface treatment | Painted, galvanized, HDG, powder coated |
Advantages | Competitive price, High-quality products, 24-hour after-sales service |
Port | Nanjing/XINGANG |
Currency | USD, RMB |
Payment | L/C, T/T, 30% in advance |
Package | Steel Pallet or Customized |
Weight & Length
Code | Description | Length (mm) | Weight (kg) |
EK-RLS050 | Standard (Vertical) with Hot Dip Galvanized steel tube 48.3x3.2mm | 500 (1’8”) | 3.19 |
EK-RLS100 | 1000 (3’3”) | 5.66 | |
EK-RLS150 | 1500 (4’11”) | 8.07 | |
EK-RLS200 | 2000 (6’7”) | 10.45 | |
EK-RLS250 | 2500 (8’2”) | 12.87 | |
EK-RLS300 | 3000 (9’10”) | 15.29 | |
EK-RLS400 | 4000 (13’1”) | 20.11 |
Ringlock Scaffolding Ultimate Guide 2023
Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffolding couplers and fittings to fix. Ringlock scaffolding systems include prefabricated parts of ringlock standard, ringlock ledgers, ringlock diagonal braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ledgers, braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ringlock ledger and ringlock diagonal brace heads by rivets. It is used to fix ringlock system horizontals and braces between ringlock standards.
More than ringlock system scaffolding, cuplock system scaffolding, kwikstage system scaffolding, quick lock scaffold, crab shoring systems, and frame system scaffolding are modular scaffolds too.
