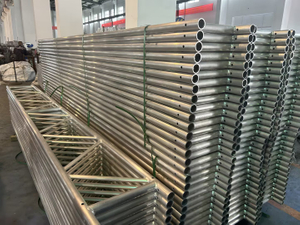

What is Aluminum Scaffolding Beam?

Alloy Scaffold Beams are prefabricated and essential scaffolding components, which are required to carry out certain operations, such as: Forming a bridge in a scaffold structure. Creating suspended platforms. Erecting temporary roofs.

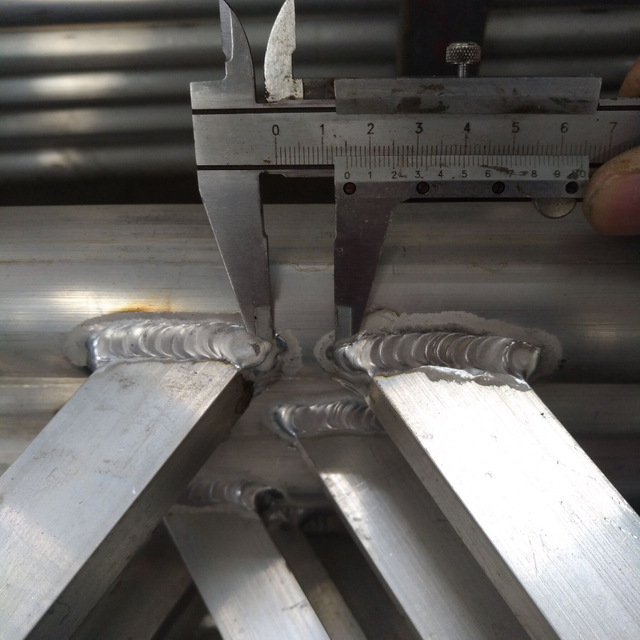

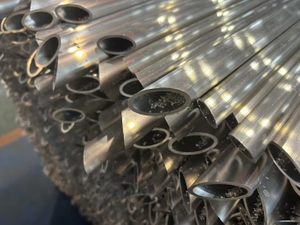

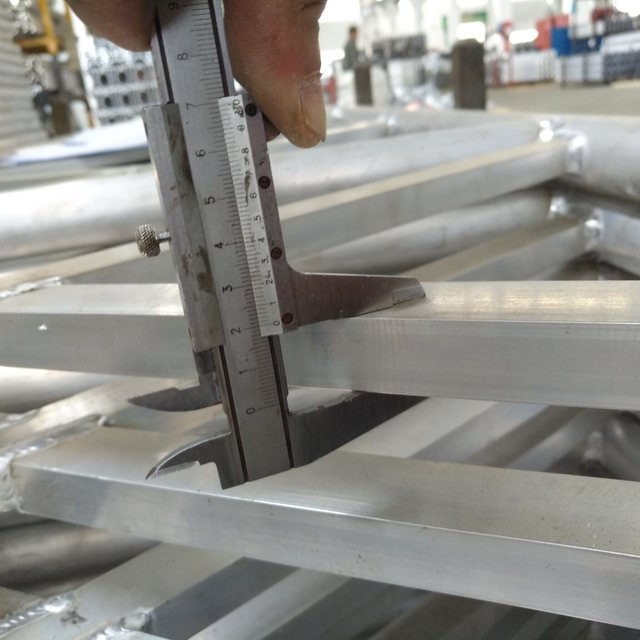

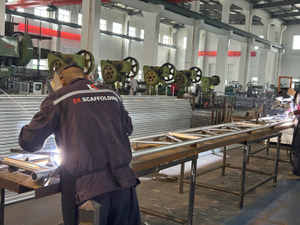

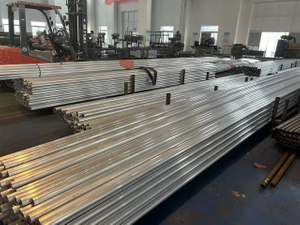

All aluminum beam raw materials are cut, punched, and R-arc cut by laser processing equipment to ensure that the tolerance of the parts is less than 0.2mm; each weld is welded simultaneously by two welders with 16 years of experience in aluminum beam welding to ensure the quality of the weld and the greatest possible reduction in distortion.
The aluminum products produced by EK are favored by customers in Australia, Britain, Ireland and other countries.













Type of aluminum beam

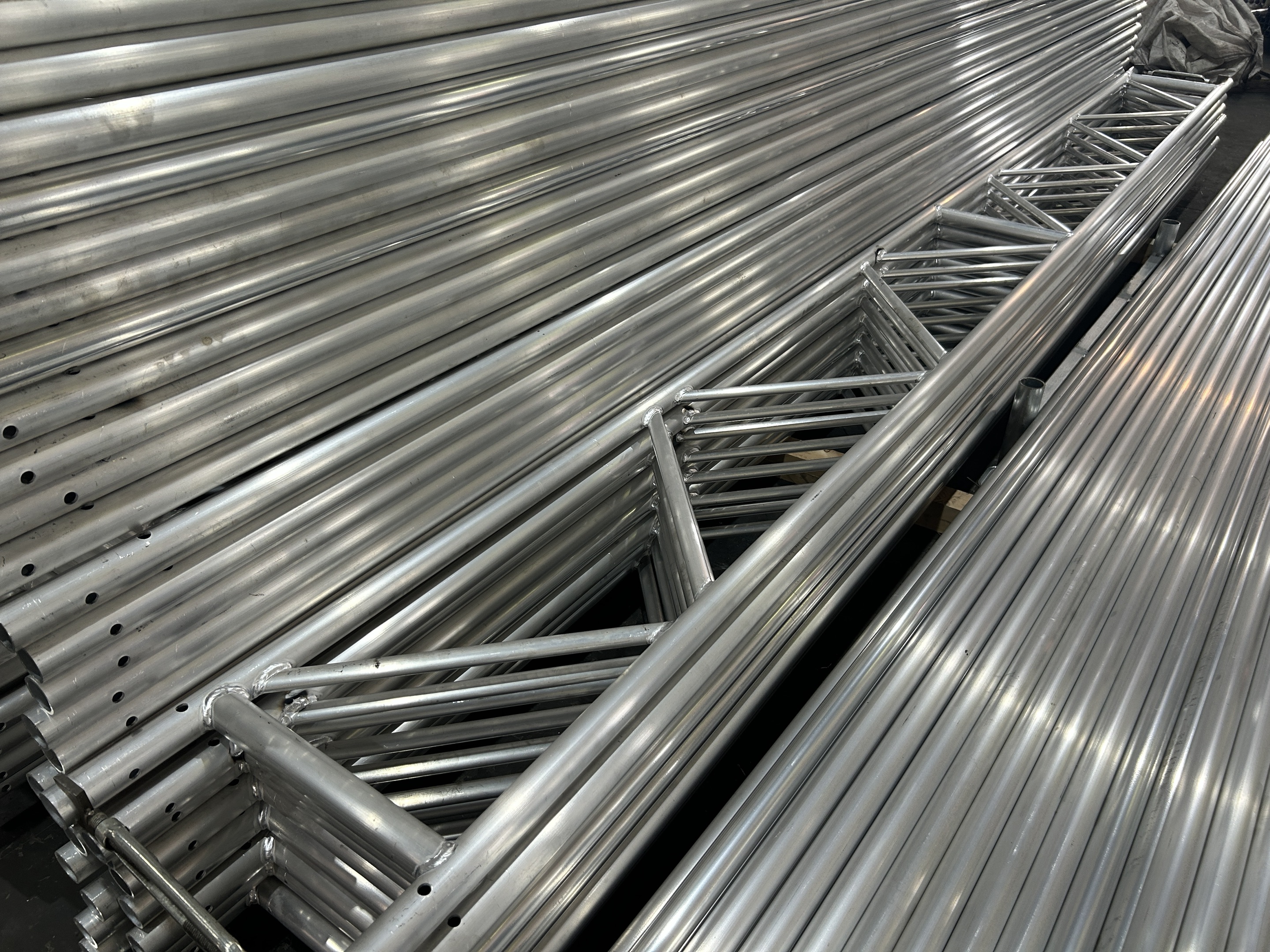

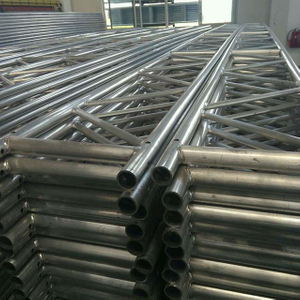

aluminum lattice beam


High grade aluminium beams for use with 48.3mm tube and fitting scaffolding. Without any compromise in performance, aluminium beams offer significant savings on alternative materials. Considerably lighter than steel, aluminium beams are faster and easier to erect, thereby saving construction time.

Length

Weight

Width

2M

8.5

450mm

3M

12.5

450mm

4M

16.5

450mm

5M

21.0

450mm

6M

22.5

450mm

8M

32.5

450mm



Key features include:

Design enables easy connection with fittings to any scaffolding structure.

Less than half the weight of a steel beam.

1.5 times stronger than a steel beam.

Tested to and complies with European Standards.

Connection by 4 bolt spigot system.

Alloy Tube also available in 1m, 2m, 3m, 4m and 6m lengths.



Our Aluminium Scaffold Beams are lightweight, high performance, high quality and can be used in all types of scaffold designs. Our Aluminium scaffold beams which are often referred to as lattice beams are lightweight and designed to have a low to mid-level load capacity. Commonly used for simple bridging and cantilever scaffolding solutions.

Our Aluminium scaffold beams has the smallest depth and are the lightest to handle of our aluminium beams weighing approx. 5.0Kg/m, they can be connected to form longer spans using our beam connection spigots and quick release spring pins.

Fully compatible with regular outer diameter scaffolding tube and fittings along with other  aluminium beams.

aluminum scaffolding beam-X

aluminum scaffolding beam-X are a lightweight alternative to traditional style scaffolding beams. They possess an unsurpassed weight to strength ratio thanks to their unique frame design that means fewer beams per job.

Thealuminum scaffolding beam-X's quick fit connecting system using spring clips and spigots also means easy assembly, providing another advantage over traditional style scaffolding.

aluminum transom truss


TRUSS TRANSOM, Heavy duty transom, Transom Truss

Aluminum Ringlock scaffolding Trusses are horizontal members of Ringlock scaffolding that allow more load compared to ledgers.use for build on walk wall.

Code

Length

Weight

Material

Package

EK-ARTT30

3.0m

13.8

Aluminum Alloy Extrusions

Pallets

EK-ARTT24

2.4m

11.1

Aluminum Alloy Extrusions

Pallets

EK-ARTT18

1.8m

9.2

Aluminum Alloy Extrusions

Pallets

aluminum truss


A quick and easy-to-use aluminum truss system for a variety of needs. Truss offers significantly reduced assembly/breakdown time and trouble-free installation. Solid conical connectors and tapered pins ensure ease of use and secure connections. Custom designs upon request.



Key benefits

1.Compact display series system

2.Connection kit supplied with every truss length or junction

3.Lightweight, modular construction

4.Compatible with cell 100 series

5.Fast connection for quick, simple and secure assembly

6.Compatible with Xtruss accessories

7.Impressive free-span characteristics for its size

8.Powder coat colour finish available on request

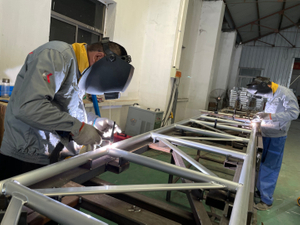

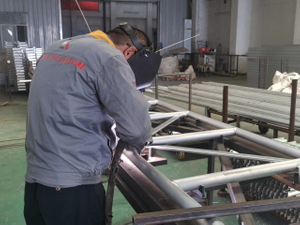

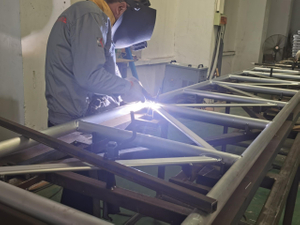

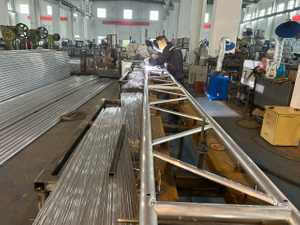

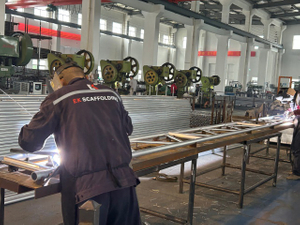

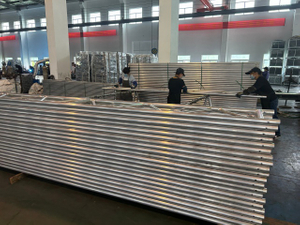

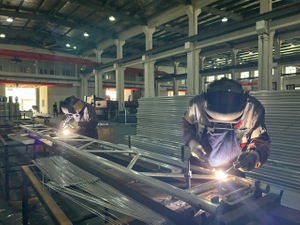

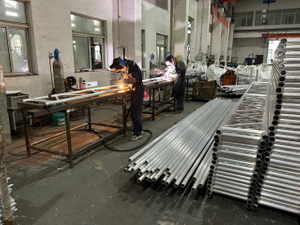

Automatic welding of Aluminum Beam

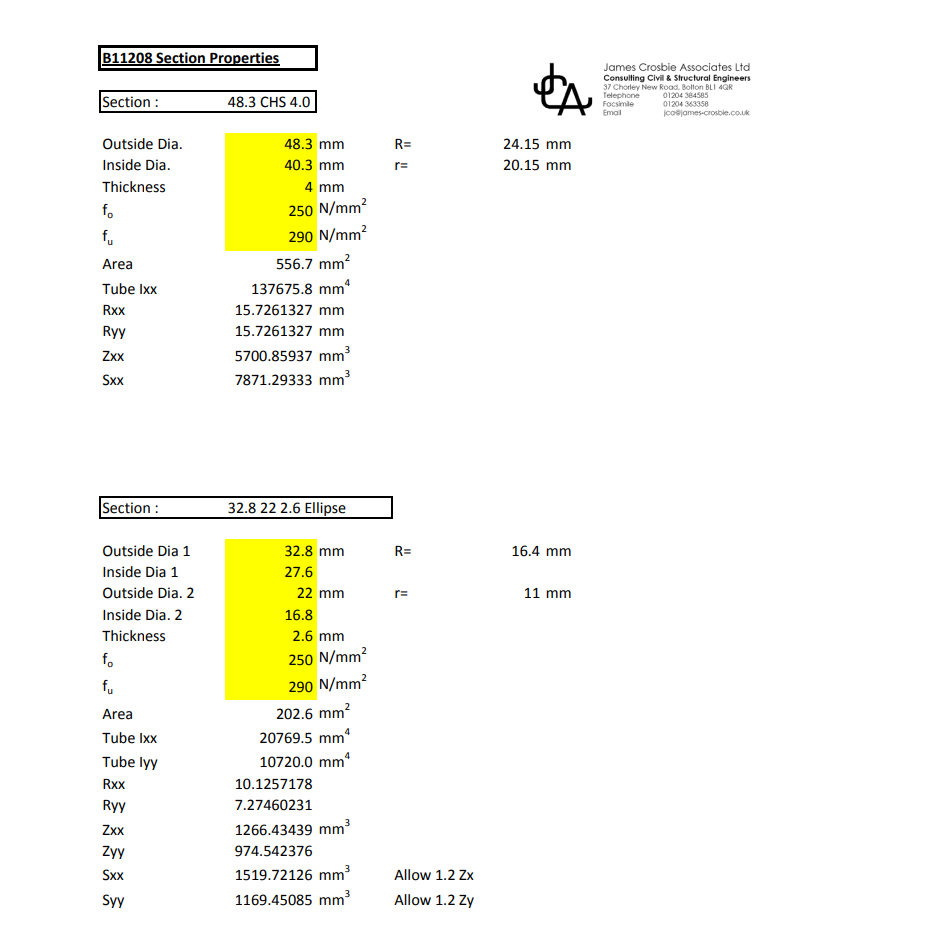

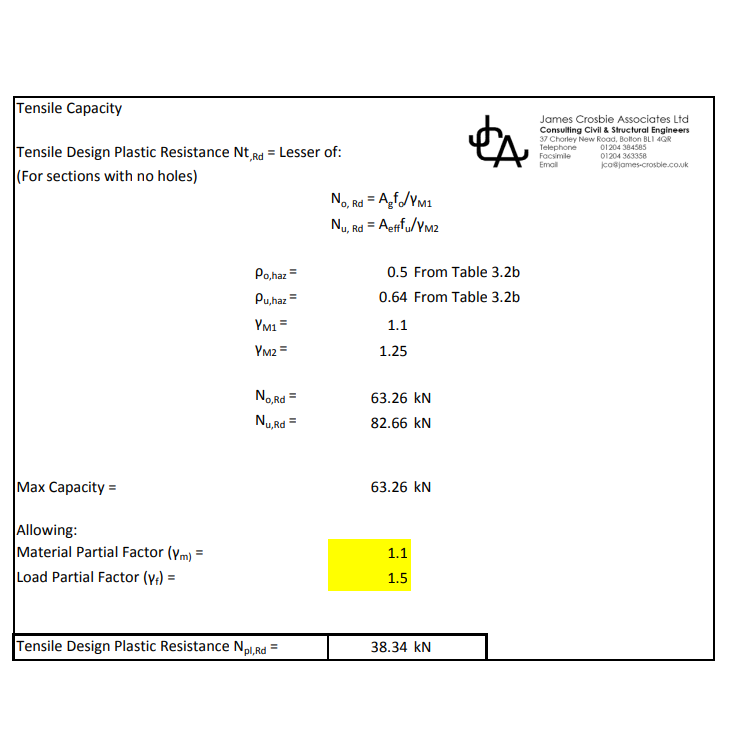

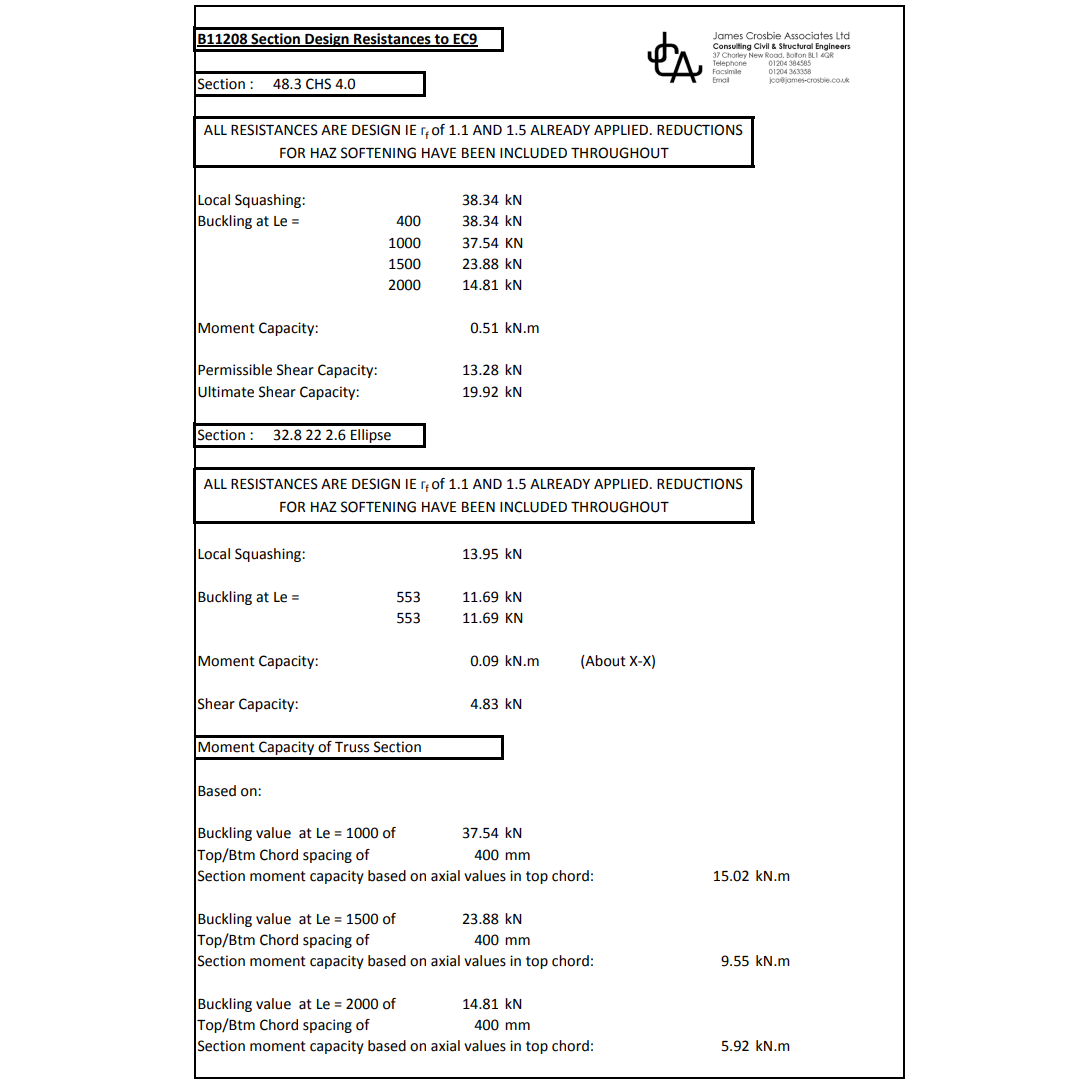

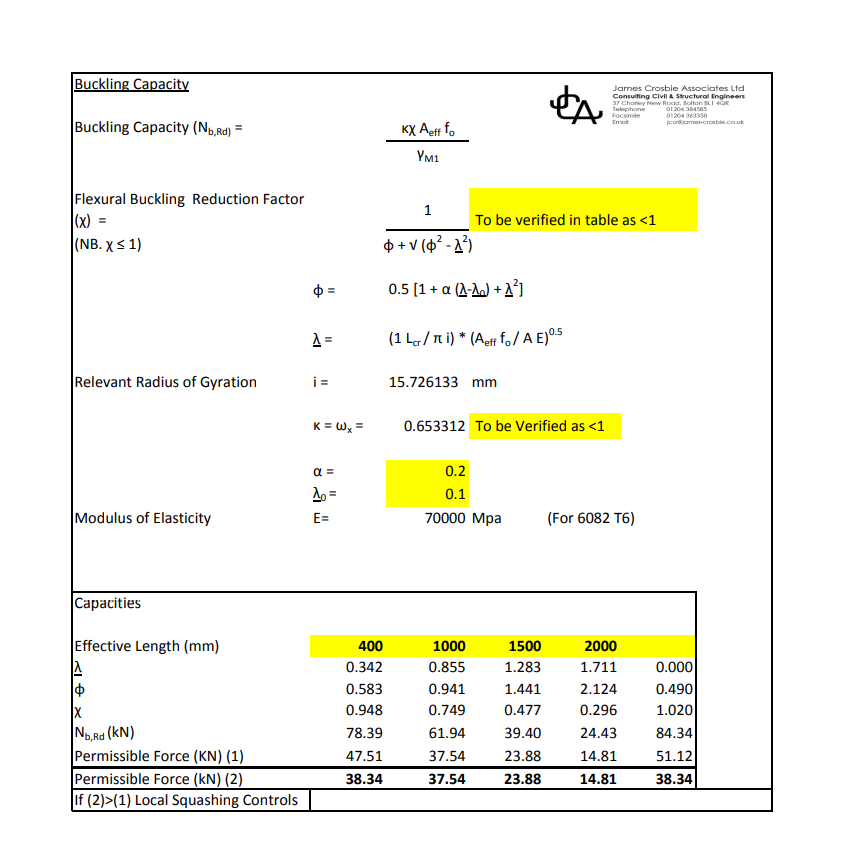

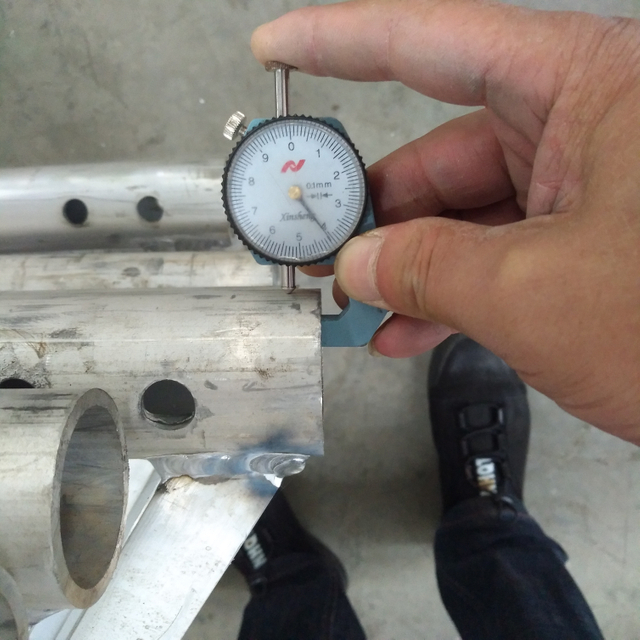

Test Report

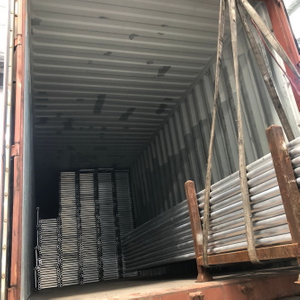

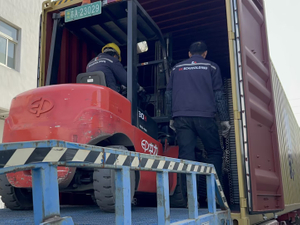

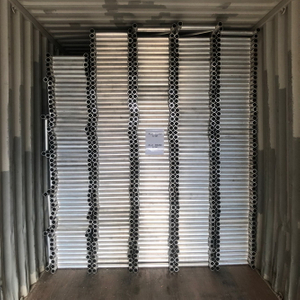

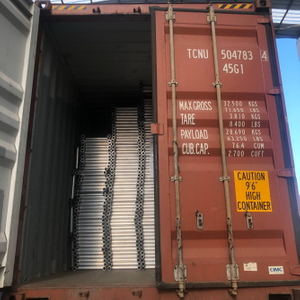

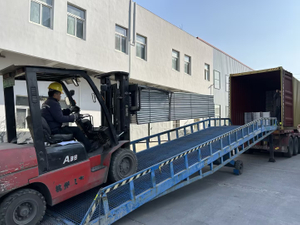

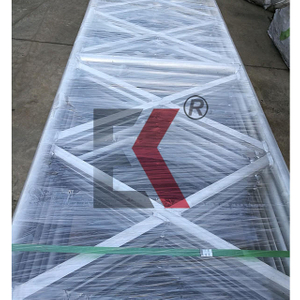

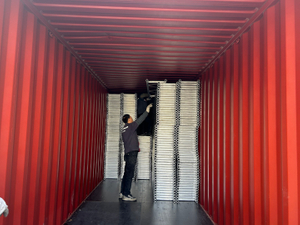

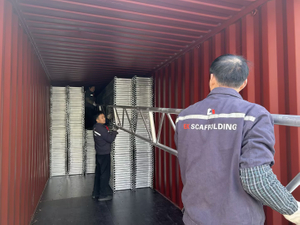

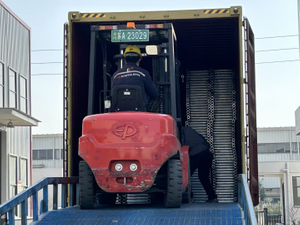

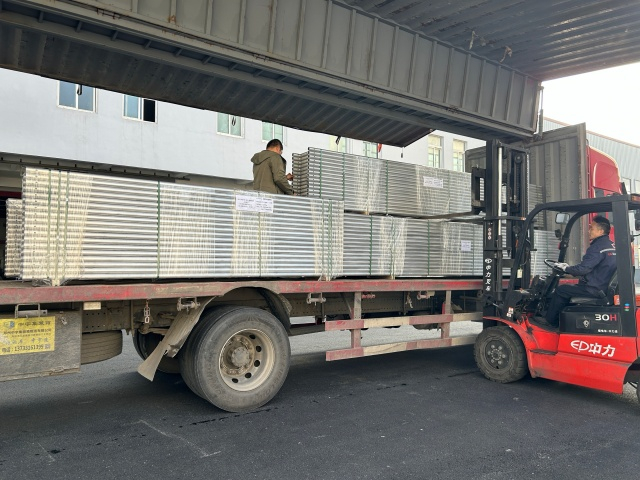

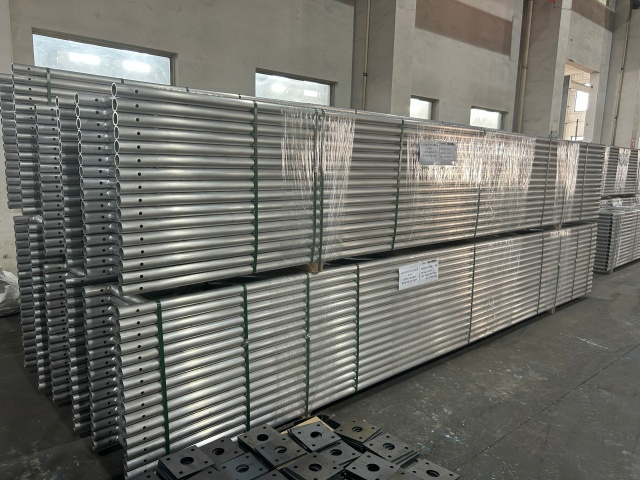

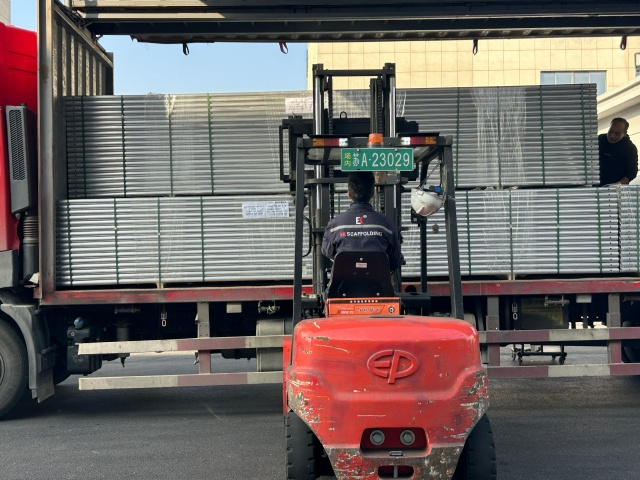

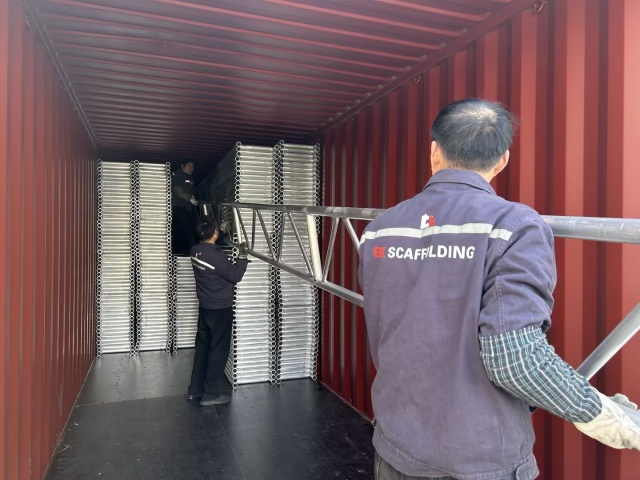

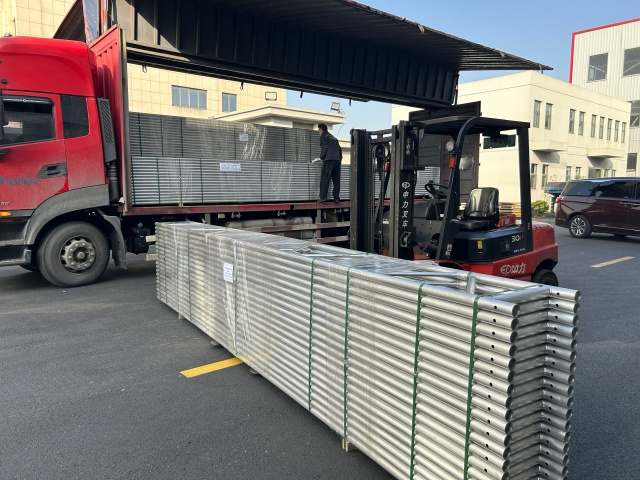

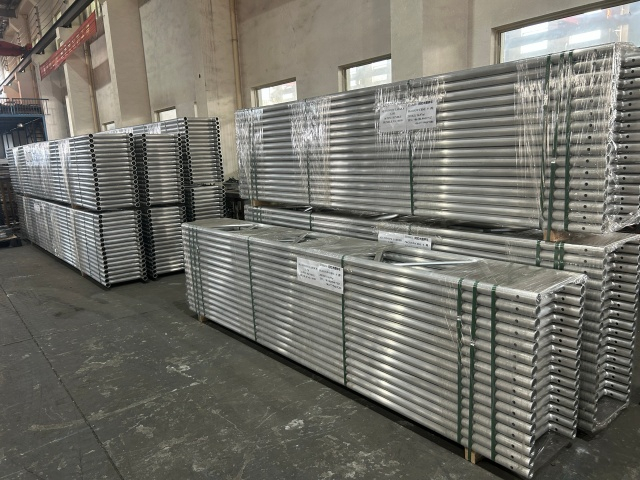

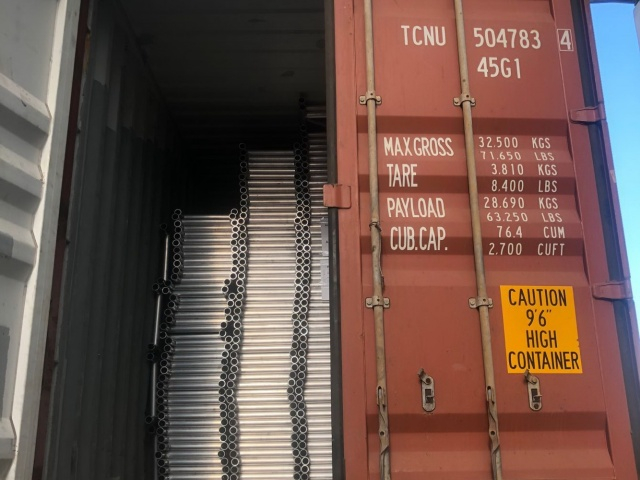

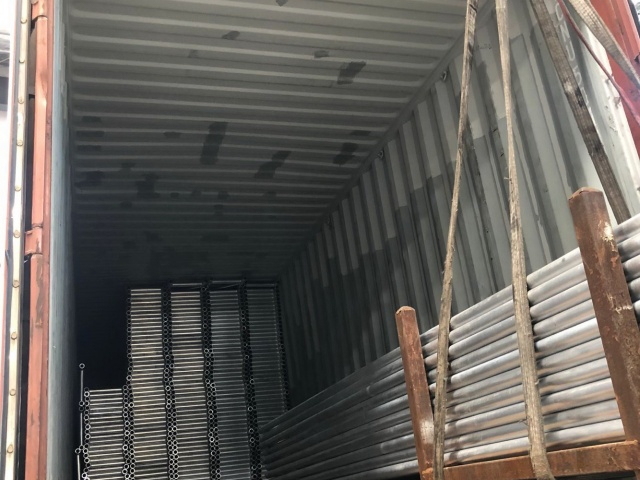

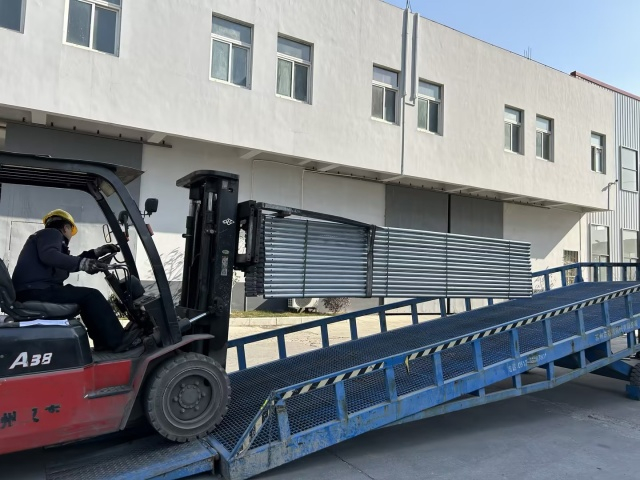

Aluminum Beam Pack and Ship
Aluminum beam VS Steel beam

The advantage of aluminum beam

1.Design enables easy connection with fittings to any scaffolding structure.

2.Less than half the weight of a steel beam.

3.1.5 times stronger than a steel beam.

4.Tested to and complies with European Standards.

5.Connection by 4 bolt spigot system.

6.Alloy Tube also available in 1m, 2m, 3m, 4m and 6m lengths.
