Frame Scaffolding

EK Metalwork has the professional sales team and excellent after sales service, who supplies stable quality scaffolding frame conforming with BS/EN standard.

To meet the different market needs, EK Metalwork exports electro-galvanized, painted and hot dipped galvanized walk-through frame, step ladder frame, on the account of the reasonable price, on-time delivery and flexible payment, we won the good reputation from the oversea clients.

Keywords:

The Definition of Frame Scaffolding

Frame scaffolding is also called tubular steel frame scaffolding, portal frame scaffolding, door style frame scaffolding, is a long established modular frame scaffolding system serving as working platform for construction and decoration purposes, which is composed of main frames, catwalk or walk board, braces or cross braces, brackets, coupling pins of spigot, guardrails and sometimes casters, etc.
Frame scaffoldings have different styles such as walk through frame, open end frame, step frame, ladder frame, H frame, shoring Frame.
In order to cater clients’ demands in different countries and areas, American type galvanized, pre-galvanized walk-through frame, Mason single and double ladder frame, light weight Italian painted ladder frame, powder coated Korean type steel frame scaffold, etc.

Fabricated tubular metal frame scaffolding is the most common type of scaffolds, because they are versatile, economical, and easy to use. The modular frame scaffolding systems are frequently used in these areas:
 Used for building, hall, bridge, viaduct, inside support roof of tunnel light template, or as flying die support main frame;
 For the inside and outside of high-rise building grid scaffolding;
 As mobile working platform for electromechanical installation, ship body repair and other decoration works;
 For the erection of temporary viewing platforms and stages.


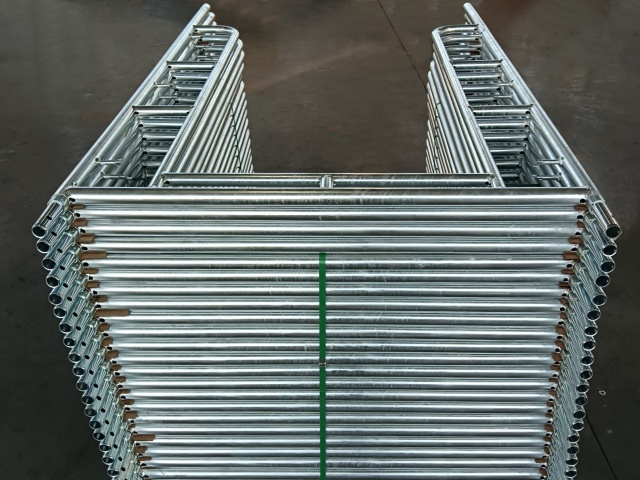

Types of Frame Scaffolding

Frame scaffoldings have different styles such as walk through frame, mason frame, open end frame, step frame, ladder frame, H frame, shoring Frame.

In order to cater clients’ demands in different countries and areas, American type galvanized, pre-galvanized walk-through frame, Mason single and double ladder frame, light weight Italian painted ladder frame, powder coated Korean type steel frame scaffold, etc.

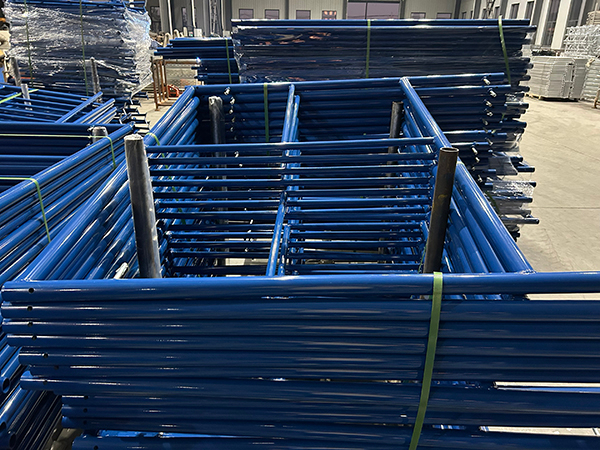

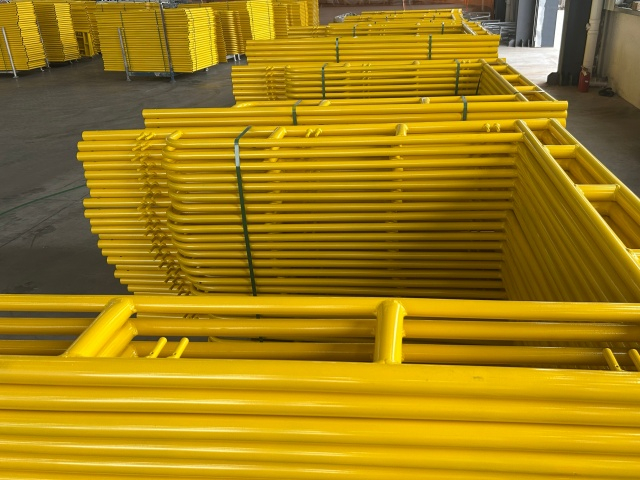

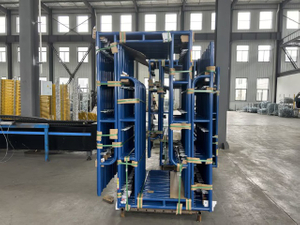

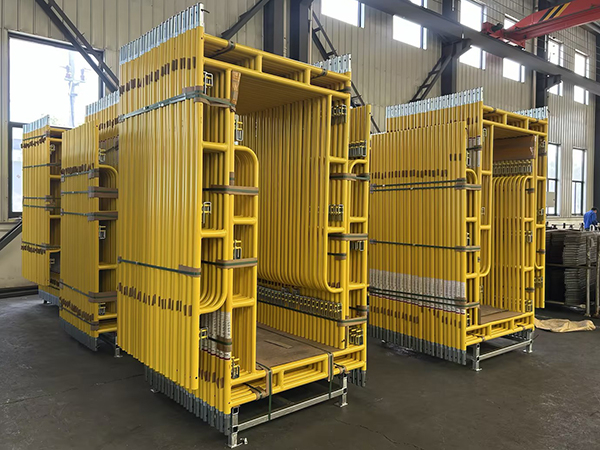

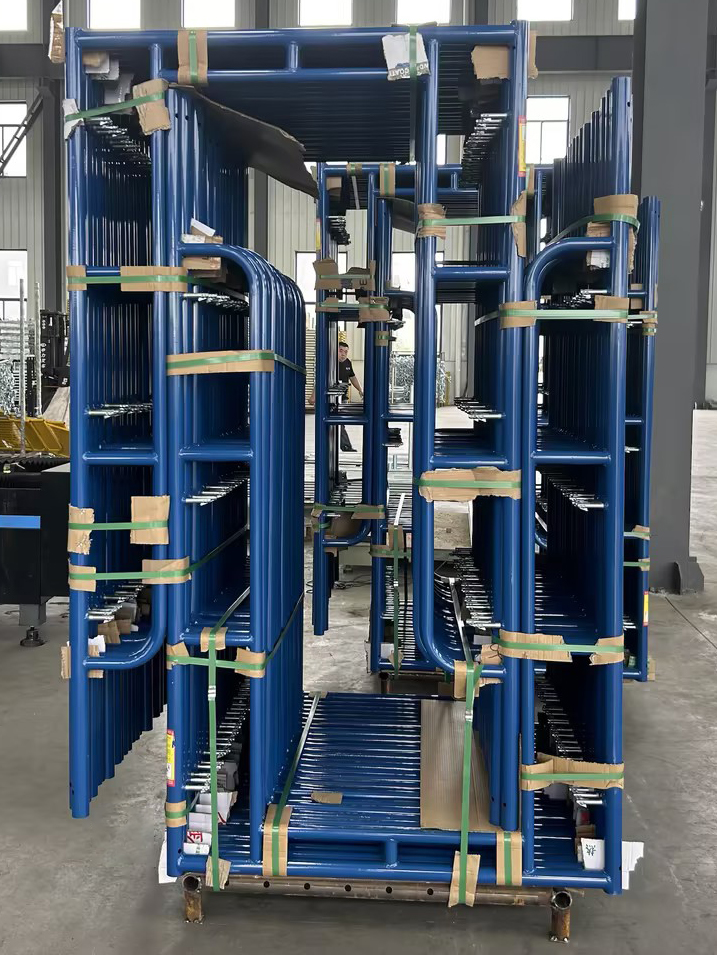

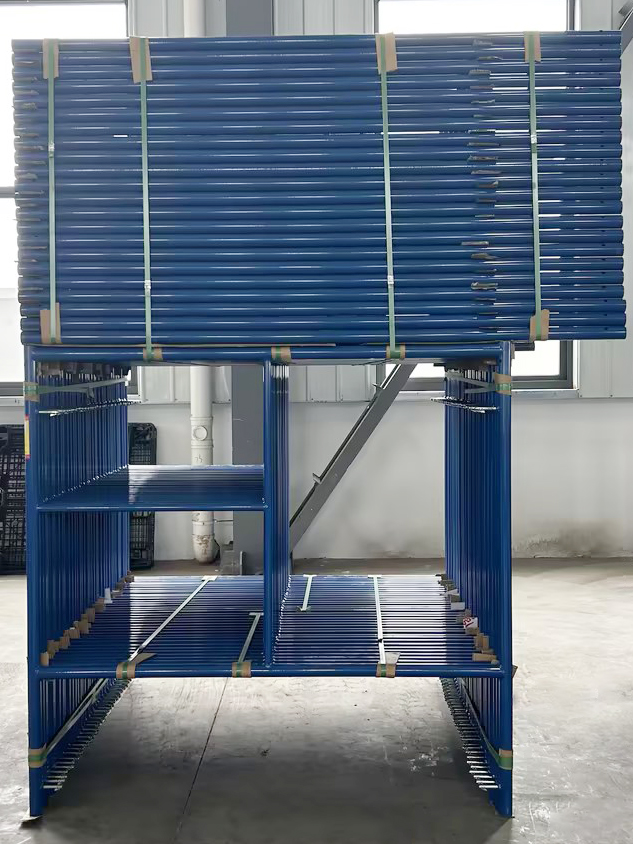

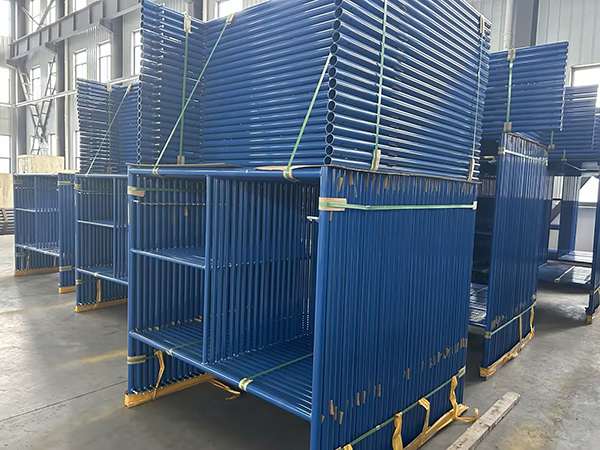

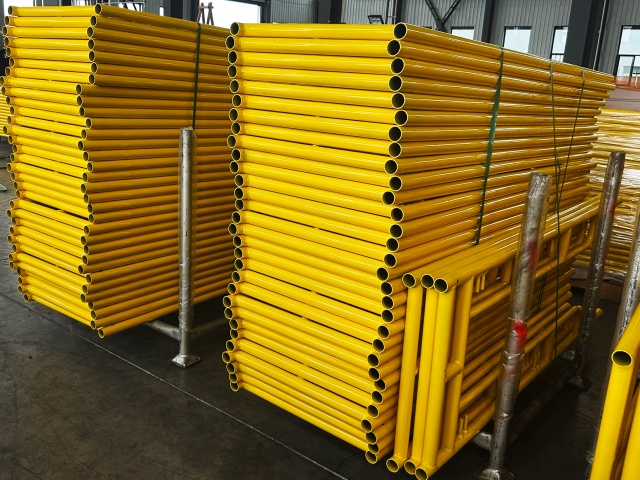

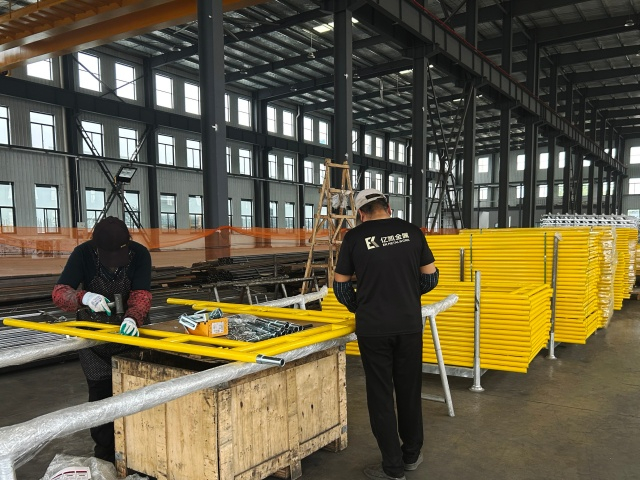

Walk-through Frame Scaffolding

Walk-through frames are used to create an unimpeded walkway along the entire length of a structure and at intermediate levels of a scaffold configuration. At 6'4", a man of average height has no threat of bumping his head as he passes underneath these frames. Other than the main horizontal support at the top, there are no additional horizontal beams to impede transition between sets.



No.

Description

Width

Height

OD

Surface

EKF-W01

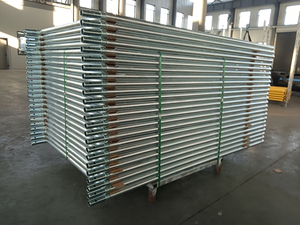

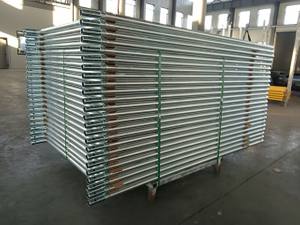

Walk through frame

3’

4’

1.625”

Pre-gal;

HDG;

Painted;

Powder Coating

EKF-W02

Walk through frame

3’

5’

EKF-W03

Walk through frame

3’

6’8”

EKF-W04

Walk through frame

5’

6’8”

EKF-W05

Walk through frame

3’

5’

1.69”

EKF-W06

Walk through frame

3’

6’4”

EKF-W07

Walk through frame

42’

6’4”

EKF-W08

Walk through frame

5’

6’4”

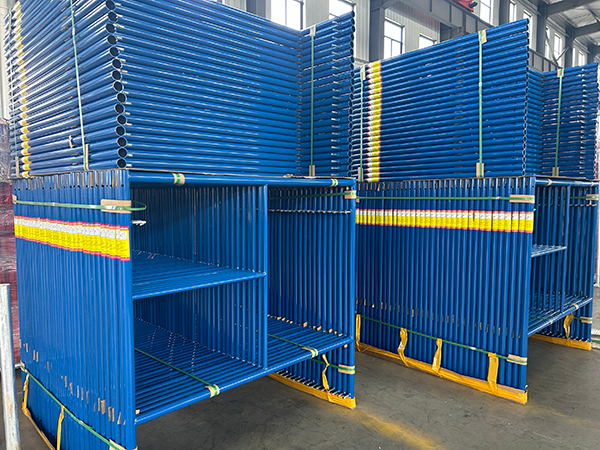

Mason Step Frame H Frame Scaffolding

Mason Frame Scaffolding meet all scaffolding industry standards. The Mason Frame can handle any Commercial & Residential construction project and are compatible with most common frame scaffolds in the scaffolding market. This makes Mason Box Frames the most used and recognized scaffolding for sale on the scaffolding market today.

 High Tensile Strength Steel Frame Scaffolding

 Highest Quality Powder Coated Finishes & Galvanized Finishes for Durability

 Traceability Imprinted Code on All Scaffold Frames & Scaffolding Components for Quality Assurance



No.

Description

Width

Height

OD

Surface

EKF-M01

Mason frame

5’

3’

1.625”;

1.69”



Pre-gal;

HDG;

Painted;

Powder Coating



EKF-M02

Mason frame

5’

4’

EKF-M03

Mason frame

5’

5’

EKF-M04

Mason frame

5’

6’4”



Italian Type Frame Scaffolding





No.

Description

Size (mm)

Material

OD

Surface

EKF-IA

Italian ladder frame

990*2000

Q235;

Q345



1.5”



Pre-gal;

HDG;

Painted;

Powder Coating



EKF-IB

Italian arch frame

990*2000

EKF-IC

Italian arch frame

990*2000

Steel Box Single and Double Ladder Frame Scaffolding





No.

Description

Width

Height

OD

Surface

EKF-S01

Single box ladder frame

2’

3’

1.69”



Pre-gal;

HDG;

Painted;

Powder Coating



EKF-S02

Single box ladder frame

2’

5’

EKF-S03

Single box ladder frame

2’

6’4”

EKF-D01

Double box ladder frame

5’

3’

EKF-D02

Double box ladder frame

5’

4’

EKF-D03

Double box ladder frame

5’

5’

EKF-D04

Double box ladder frame

5’

6’4”

Apartment Frame Scaffolding

No.

Description

Width

Height

OD

Surface

EKF-A01

Apartment frame

3’

8’8”

1.625”



Pre-gal;

HDG;

Painted;

Powder Coating



EKF-A02

Apartment frame

3’

10’8”

EKF-A03

Apartment frame

3’

11’8”



H Frame Scaffolding

No.

Description

Width (mm)

Height (mm)

OD (mm)

Surface

EKF-H01

H frame

1040

1450

48.3



Pre-gal;

HDG;

Painted;

Powder Coating



EKF-H02

H frame

1040

1450



Punch Hole Scaffolding Cross Brace

No.

Description

Size A

Size B

Size C (mm)

Surface

EKF-CB01

Cross Brace

5’

2’

1642

Pre-gal;

HDG;

Painted;

Powder Coating



EKF-CB02

Cross Brace

7’

2’ 2219

EKF-CB03

Cross Brace

8’

2’ 2513

EKF-CB04

Cross Brace

10’

2’ 3108

EKF-CB05

Cross Brace

5’

3’ 1777

EKF-CB06

Cross Brace

7’

3’ 2321

EKF-CB07

Cross Brace

8’

3’

2604

EKF-CB08

Cross Brace

10’

3’

3182

EKF-CB09

Cross Brace

5’

4’

1952

EKF-CB010

Cross Brace

6’

4’

2198

EKF-CB011

Cross Brace

7’

4’

2458

EKF-CB012

Cross Brace

8’

4’

2726

EKF-CB013

Cross Brace

10’

4’

3283



Punch Hole Scaffolding Guardrail

No.

Description

Length

OD

Surface

EKF-GR01

Guardrail

2’

1”

Pre-gal;

HDG;

Painted;

Powder Coating



EKF-GR02

Guardrail

3’

1”

EKF-GR03

Guardrail

4’

1”

EKF-GR04

Guardrail

5’

1”

EKF-GR05

Guardrail

6’

1”

EKF-GR06

Guardrail

7’

1”

EKF-GR07

Guardrail

8’

1.25”

EKF-GR08

Guardrail

10’

1.25”




Lock and Pin

The Systems of Frame Scaffolding

Frame Scaffolding Brochure

Name Introduction Size Downloads Update Category Thumbnail Copy Link Download
Frame Scaffolding.pdf 1.23MB 115 2020-11-17 download Copy Link Download

What are Frame Scaffolding Techniques?

As a professional scaffold manufacturer, EK carries out a complete set of advanced production processes:

  • Raw Material Inspection
  • Mechanical Processing
  • Welding
  • Surface Treatment
  • Surface Repair
  • Packing and Loading
  • The incoming raw materials are carefully inspected.

    1) We check the material appearance to see if any loss or missing pieces, the types and specifications are to be verified as well.

    2) We check the quality certificates and inspection report to compare them with the actual materials.

    3) We check the numbers of materials.

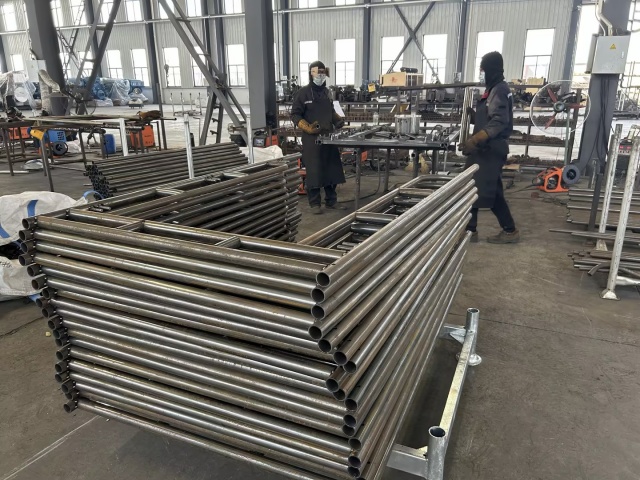

  • Before processing, we run all the components of scaffolds through certain mechanical processes, strictly following the instructions of blueprints. Mechanical processes include pipe cutting, punching, squashing and grinding etc.

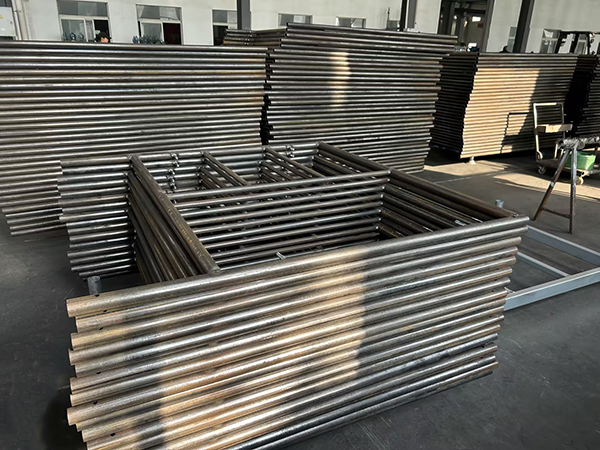

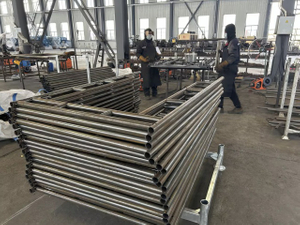

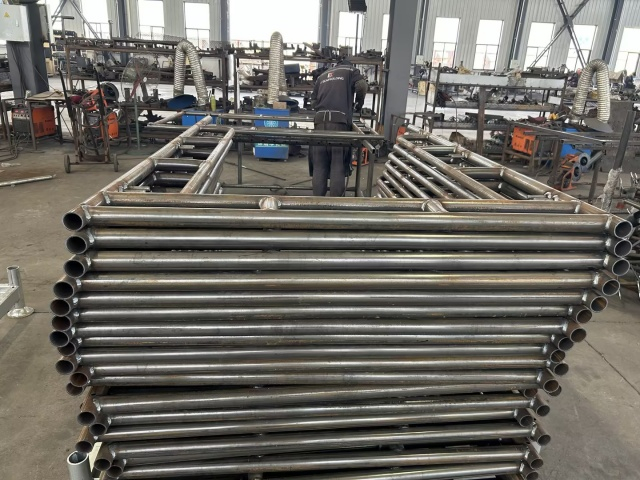

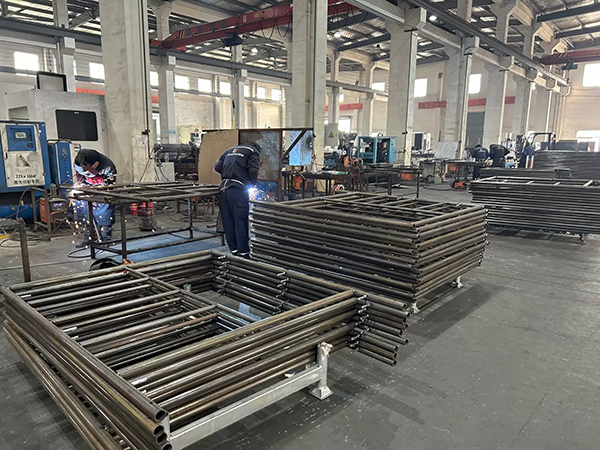

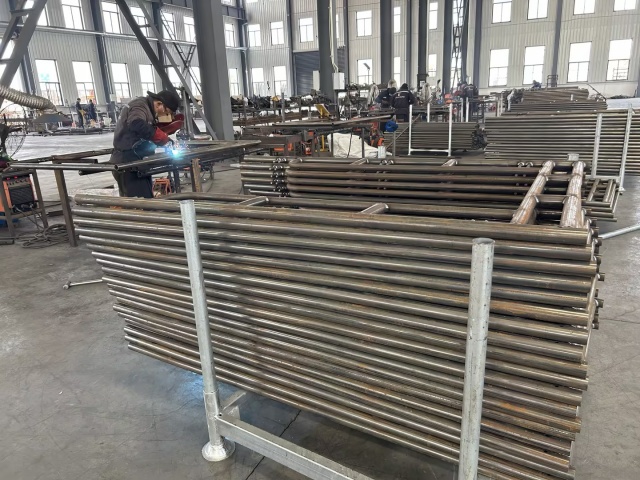

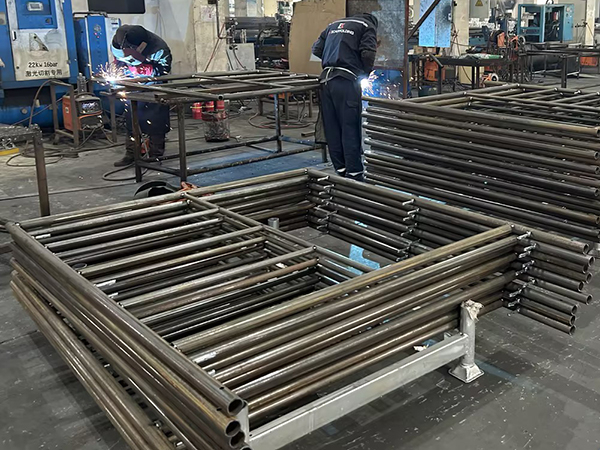

  • After the pre-welding preparation, we weld the components together while assuring the shapes and quality of products strictly comply with blueprints. Any welding defects are not accepted, including undercut, concave defects, deformation, porosity, slag, cracks, incomplete penetration and weld leakage etc.

  • Common surface treatments: hot-dip galvanizing, electro-galvanizing, power spray, spray painting etc.

  • After surface treatment, there may be some deviations in shape and size and surface repair is needed. Common processes: sizing, disposal of zinc slag, deburring, repair coating etc.

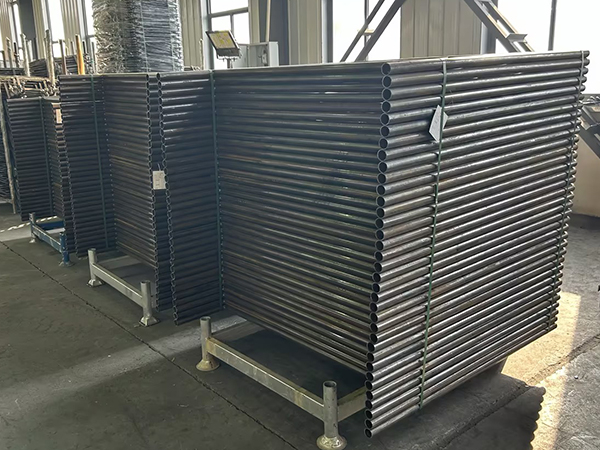

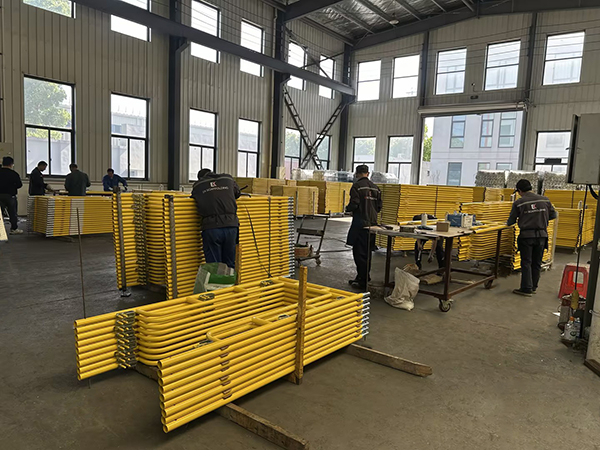

  • Dependable Packing and Loading Help Putting your goods in someone else's care is a big deal.

Checklist Of Assembling Frame Scaffolding

Begin the checklist by capturing general information about the structure.

Ensure the foundation and base of the scaffolding is secure and check that the height is within safe dimensions. Inspect the platforms, bracing, tubes and standards for proper installation and capture any defects. Check the load capacity and access points for the scaffolding.

Finally update the scaffolding tag and capture a photo as a record.

Preview sample scaffold inspection report.
