What is cuplock scaffolding

Cuplock Scaffolding System, is a scaffold system that uses the "Cup" and "Blade" to lock the vertical/standard and horizontal/ledger together, and lock the blades by twisting the cup. This Cuplock Scaffold System uses no nut, bolt or wedge. Cuplock’s Scaffolding System node-point is revolutionary, and makes it faster and easier than any other scaffolding system.

Why Choose Cuplock?

 Cuplock Scaffolding System joint structure is reasonable, simple production process, easy operation, wide range of use, compared with traditional scaffolding, Cuplock Scaffolding System has the following remarkable features:
Cuplock Features Details
Easy to Stand No nut and bolt or wedge, just lock the blade into cup at
each node on the standard.
Sample Fast and simple to erect with only four component
fastenings.
Light Weight Manufactured using 3.2mm thickness high grade steel,
Cuplock Scaffolding System is 20% lighter than standard
4mm thickness scaffolding tube.
Economical Cuplock Scaffolding System with only three maincomponents.
Fast 30%-50% faster than traditional scaffolding.
Durable Hot-Dip-Galvanized provides a low maintenance, long life.
Versatile With 500mm cup intervals on the verticals, Cuplock
Scaffolding System is extremely versatile Facade, Shoring
Structures, Circular, Birdcages, Staircases, Mobile Towers
and etc.
 Flexible 0.6m to 3.0m bays using boards or battens.

Cup-Locking Procedure:

Here below are pictures showing how to install the Cuplock Scaffolding System:

Locate the ledger blade into the bottom cup 1、Locate the ledger blade into the bottom cup
Slide the top cup down the standard and rotate 2、Slide the top cup down the standard and rotate
Tighten with a hammer blow  3、Tighten with a hammer blow

A cuplock’s node-point completed 4、A cuplock’s node-point completed


Cuplock Scaffolding Systems Parts

EK Scaffolding provides a high quality range of Cuplock Scaffolding System to customers with needs. The entire range of Cuplock Scaffolding System is perfectly manufactured using high grade raw materials, in compliance with the international quality standards. Moreover, EK Scaffolding EK can provide a variety of specifications for these products, in order to meet different requirements of customers. Our product range includes Cuplock Vertical/Standard, Cuplock Ledger/Horizontal, Cuplock Transom, Cuplock Hop-Up Bracket and Cuplock accessories etc.

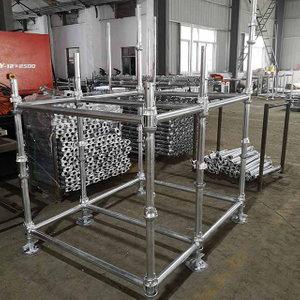

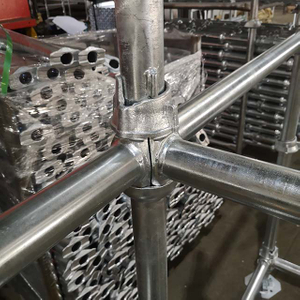

cuplock-ledger
22da1d15b492f60b8f80a8c44194dc6
Core Cuplock Scaffolding Systems Parts manufactured by EK scaffolding are as follow:

spigoted standard/vertical

Spigoted Standard / Vertical



These cuplock scaffolding standards are used in conjunction with integral spigots, 150mm long, are provided at the top of each for making vertical connections. The spigots are drilled to receive locking pins, when it is necessary to resist minor tensile forces between standard members.



Cuplock Scaffolding Spigoted Standard / Vertical

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLS001 Cuplock Spigot Standard 0.5 M 1’8” 3.40 KG 7.50 LBS
EK-CLS002 Cuplock Spigot Standard 1.0 M 3’3” 6.10 KG 13.45 LBS
EK-CLS003 Cuplock Spigot Standard 1.5 M 4’11” 8.72 KG 19.22 LBS
EK-CLS004 Cuplock Spigot Standard 2.0 M 6’6” 11.34 KG 25.00 LBS
EK-CLS005 Cuplock Spigot Standard 2.5 M 8’2” 13.95 KG 30.75 LBS
EK-CLS006 Cuplock Spigot Standard 3.0 M 9’10” 16.57 KG 36.53 LBS
Specifications can be customized according to requirements.

Spigotless Standard / Vertical


These standards have no spigot, this combination of components will cater for all extended soffit heights, but for lower heights just spigotless design allows the insertion of jacks with various head components to meet the requirements of differing support applications such as aluminum beam support or decking systems.


Cuplock Scaffolding Spigotless Standard / Vertical

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLS007 Cuplock Spigotless Standard 0.8 M 2’7” 4.56 KG 10.05 LBS
EK-CLS008 Cuplock Spigotless Standard 1.3 M 4’3” 7.18 KG 15.83 LBS
EK-CLS009 Cuplock Spigotless Standard 1.8 M 6’ 9.79 KG 21.58 LBS
EK-CLS010 Cuplock Spigotless Standard 2.3 M 7’6” 12.41 KG 27.36 LBS

EK-CLS011

Cuplock Spigotless Standard

3.0 M

9’9’’

15.70 KG

34.61 LBS
Specifications can be customized according to requirements.
spigotless standard/vertical
cuplock ledger/horizontal

Cuplock Ledger / Horizontal


Cuplock Ledgers are manufactured from 48.3*3.0mm scaffolding tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid specification for scaffolding or formwork.


Cuplock Scaffolding Ledger / Horizontal

Steel Tube: 48.3*3.0mm
Code Item Length Weight
EK-CLL001

Cuplock Ledger

 0.6 M 2’ 2.35 KG

5.18 LBS
EK-CLL002

Cuplock Ledger

 1.0 M 3’3” 3.75 KG

8.27 LBS
EK-CLL003

Cuplock Ledger

 1.5 M 4’11” 5.47 KG

12.06 LBS
EK-CLL004

Cuplock Ledger

 2.0 M 6’6” 7.21 KG 15.90 LBS
EK-CLL005

Cuplock Ledger

 2.5 M 8’2” 8.93 KG 19.69 LBS
Specifications can be customized according to requirements.

Cuplock Transom



Cuplock transoms are manufactured from 48.3*3.2mm scaffolding tube and designed to provide intermediate support for standard scaffold walk boards by spanning between the inner and outer ledgers.


Cuplock Scaffolding Transom

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLT001

Cuplock Transom

 0.56 M 1’10’’ 3.79 KG 8.36 LBS
EK-CLT002

Cuplock Transom

 0.80 M 2’7” 4.67 KG 10.30 LBS
EK-CLT003

Cuplock Transom

 1.30 M 4’3” 6.50 KG 14.33 LBS
EK-CLT004

Cuplock Transom

 1.80 M 6’ 8.33 KG 18.36 LBS
Specifications can be customized according to requirements.
cuplock transom
Cuplock Brace/diagonal

Cuplock Brace / Diagonal


Cuplock braces are manufactured from 48.3*3.2mm scaffolding tube and each brace has two swivel blade ends. Their function is to provide transverse and longitudinal bracing to scaffold structures.


Cuplock Scaffolding Brace / Diagonal

Steel Tube: 48.3*3.2mm
Code Item Length Weight
EK-CLB001

Cuplock Brace

 1.5*1.8M 4’11’’*6’ 8.70 KG 19.18 LBS
EK-CLB002

Cuplock Brace

 1.8*2.0M 6’*6’6’’ 9.80 KG 21.60LBS
EK-CLB003

Cuplock Brace

 1.5*2.5M 4’11”*8’2’’ 10.70 KG 23.59 LBS
EK-CLB004

Cuplock Brace

 2.0*2.5M 6’6”*8’2’’ 11.50 KG 25.35 LBS
EK-CLB005

Cuplock Brace

 2.0*3.0M 6’6’’*9’10’’ 13.00 KG 28.66 LBS
Specifications can be customized according to requirements.

EK Cuplock Scaffolding Inspection



EK Scaffolding's professional QC will make detailed measurements based on the drawings confirmed with customers after scaffold cuplock products come out, so as to ensure that the size of cuplock scaffolding products meets customer requirements.

EK Cuplock Scaffolding Inspection(1)

EK Cuplock Scaffolding Installation Test



EK Scaffolding - Before cuplock product packaging, professional quality inspection personnel will randomly extract components of Cuplock Scaffolding system from the products purchased by customers for installation and testing, so as to check whether the product can be used normally.





cuplock scaffolding system
EK Cuplock Scaffolding Installation Test
cuplock scaffolding system
EK Cuplock Scaffolding Installation Test
cuplock scaffolding system
EK Cuplock Scaffolding Installation Test
cuplock scaffolding system
EK Cuplock Scaffolding Installation Test

Bulk Cuplock Scaffolding System



When the production and packaging of a batch of cuplock scaffolding system products required by the customer are completed, we will take photos and keep files and send them to the customer, inform the loading time of this batch of scaffold cuplock and let the customer know the shipping schedule.

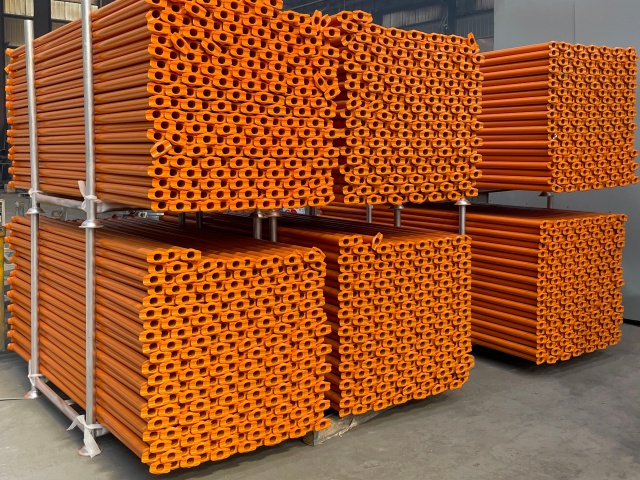

Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Painting Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
Bulk Cuplock Scaffolding System
