Outstanding Provider of Ringlock Scaffolding

Nanjing EK Metalwork Co., Ltd. is the leading supplier of Ringlock Scaffolding materials. With strict quality control, we have served more 100 customers in the worldwide for 10+ years, supplying high-quality scaffolding components for projects ranging from residential, industrial to commercial.

A full size range of components and related accessories are available to meet the needs of every project and application. The components of Ringlock scaffolding system are pre-engineered with high strength integrated connections which simplify assemble and reduce labors. All parts of Ringlock scaffolding system are fabricated to high-quality standards with using high grade steel.

Regardless of the regular or customized components you’re looking for, you’ll find the best solution for your needs.

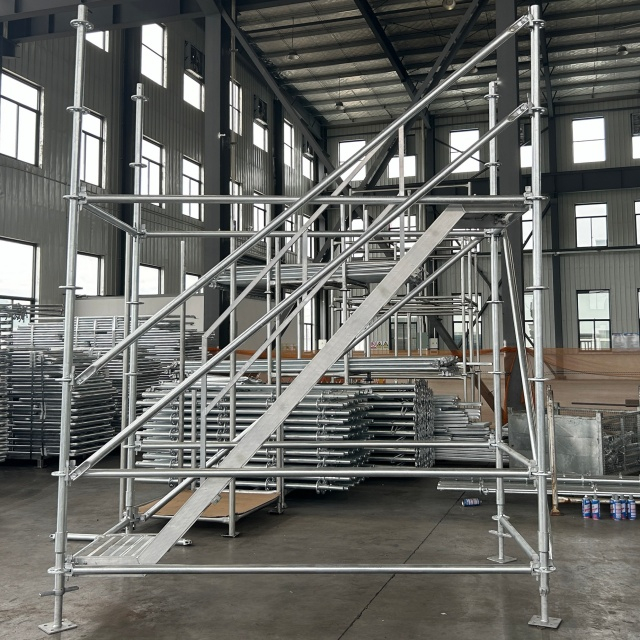

What Is Ringlock Scaffolding

Ringlock Scaffolding System

Ringlock scaffolding system is one of the most popular types of scaffolding systems in the world, also called Ring Lock Scaffolding, Disc Lock Scaffolding or All Round Scaffolding. As a modular scaffolding system, it is extremely versatile, highly economical, more convenient and faster to use.

Ringlock Scaffolding Parts

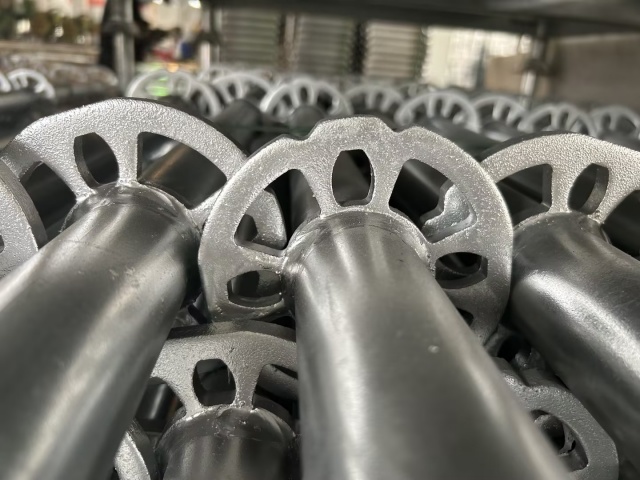

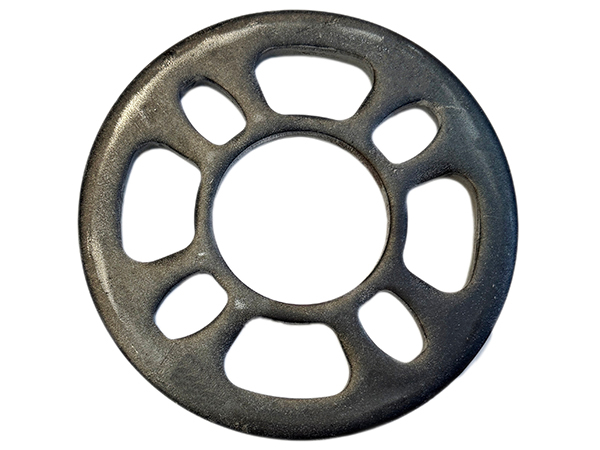

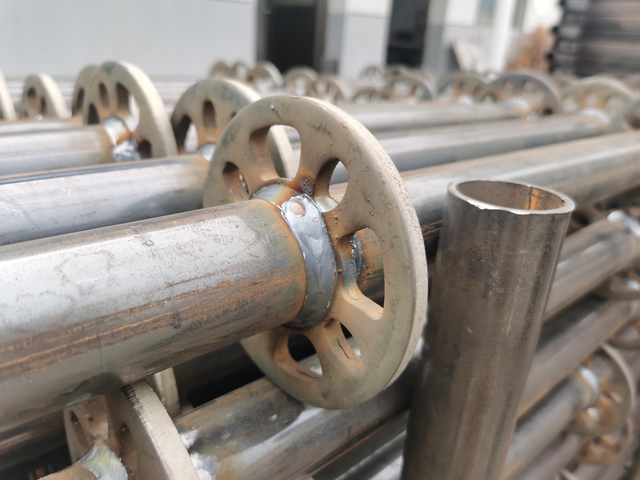

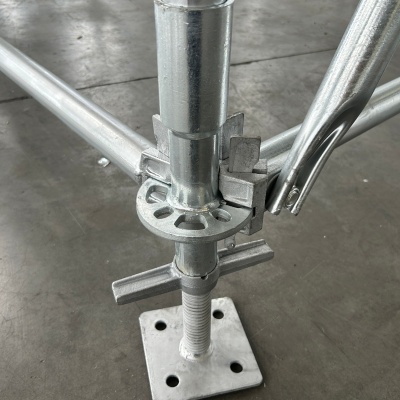

Ringlock scaffolding parts consist of Standards with rosettes every 0.5m, Ledgers with a cast end captive wedge and Braces with a swivel cast end captive wedge. When connected together the cast ends and rosettes create a very strong connection. It is this connection that transmits forces throughout the scaffold structure.

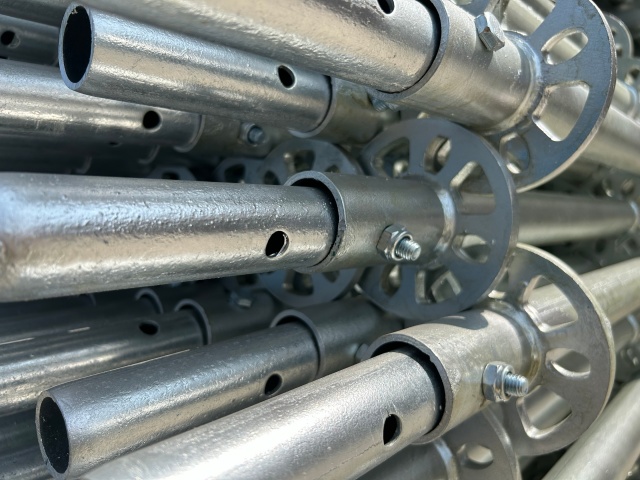

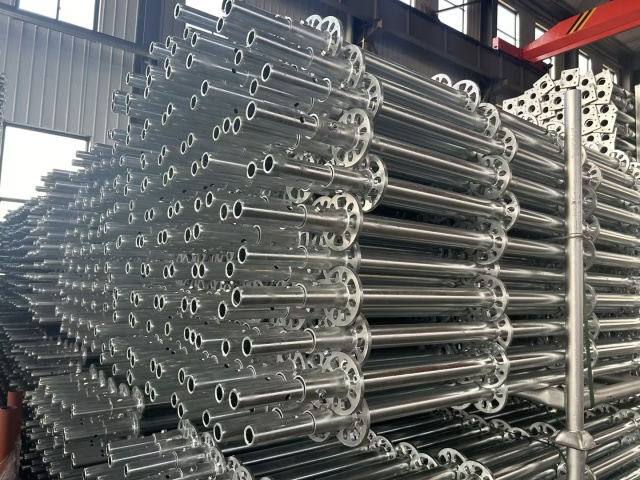

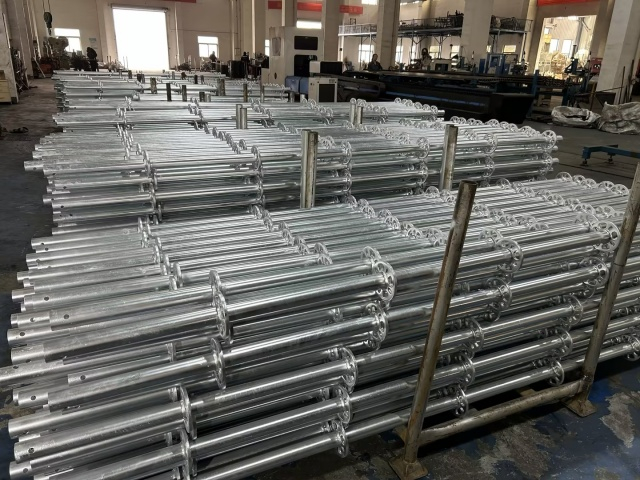

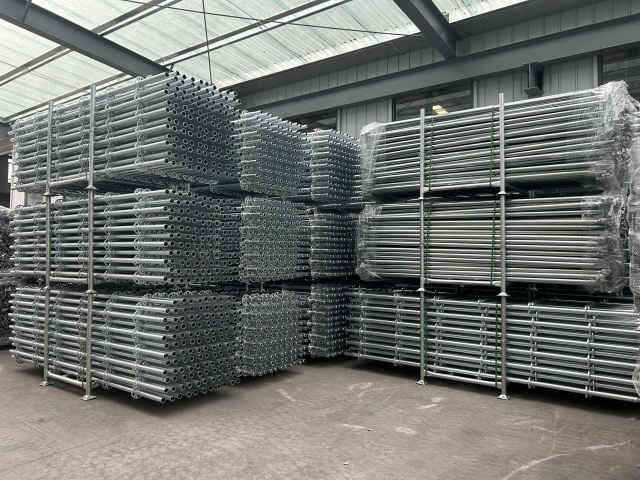

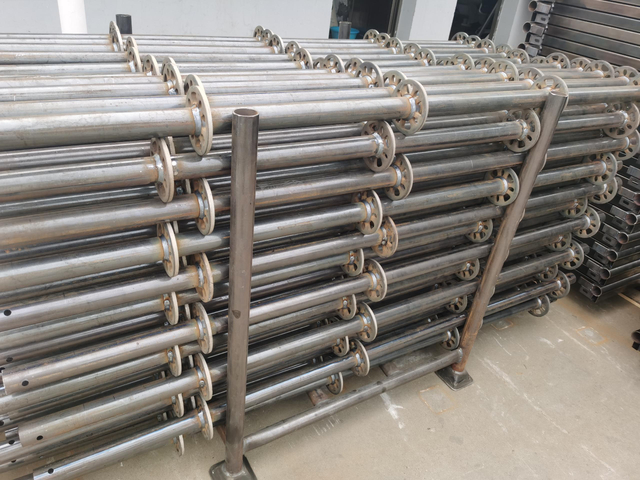

Ringlock Scaffolding Vertical / Standard – with Spigot

Q345 Steel Tubes 48.3 x 3.2mm

Code

Item

Length

Weight

EK-RLS001

Ringlock Standard 0.5M

0.5M

1’8”

3.2KG

7.1LBS

EK-RLS002

Ringlock Standard 1.0M

0.5M

3’3”

5.5KG

12.2LBS

EK-RLS003

Ringlock Standard 1.5M

1.5M

4’11”

7.0KG

15.5LBS

EK-RLS004

Ringlock Standard 2.0M

2.0M

6’7”

10.2KG

22.5LBS

EK-RLS005

Ringlock Standard 2.5M

2.5M

8’2”

11.7KG

25.8LBS

EK-RLS006

Ringlock Standard 3.0M

3.0M

9’10”

14.9KG

32.8LBS

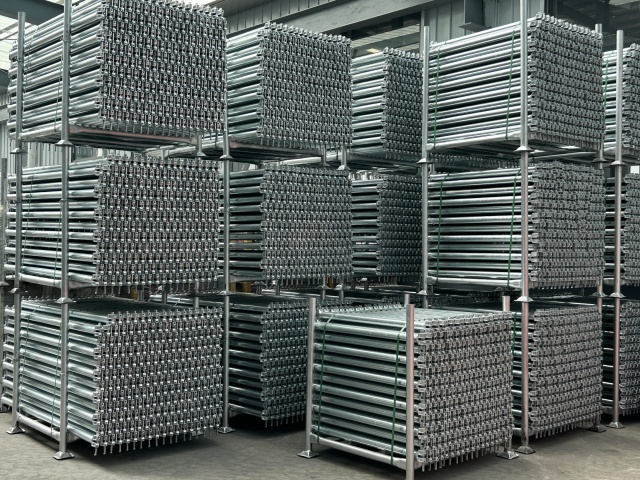

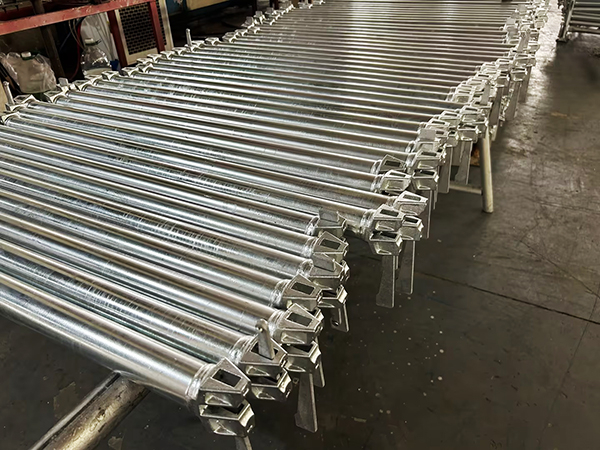

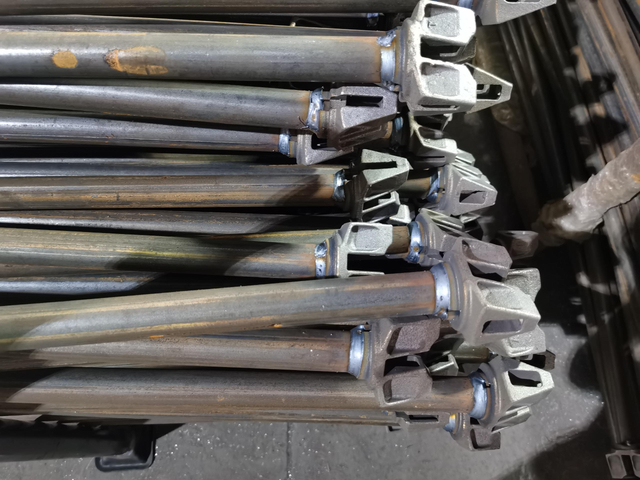

Ringlock Scaffolding Horizontal / Ledger

Q235 Steel Tubes 48.3 x 3.0mm

Code

Item

Length

Weight

EK-RLL001

Ringlock Ledger 0.65M

0.65M

2’2”

3.0KG

6.6LBS

EK-RLL002

Ringlock Ledger 1.07M

1.07M

3’6”

4.4KG

9.7LBS

EK-RLL003

Ringlock Ledger 1.57M

1.57M

5’2”

6.2KG

13.7LBS

EK-RLL004

Ringlock Ledger 2.13M

2.13M

7’

8.2KG

18.0LBS

EK-RLL005

Ringlock Ledger 2.44M

2.44M

8’

9.3KG

20.4LBS

EK-RLL006

Ringlock Ledger 3.05M

3.05M

10’

11.4KG

25.1LBS

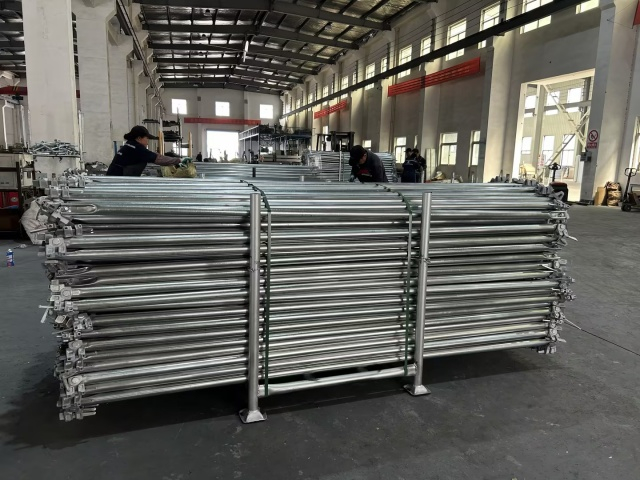

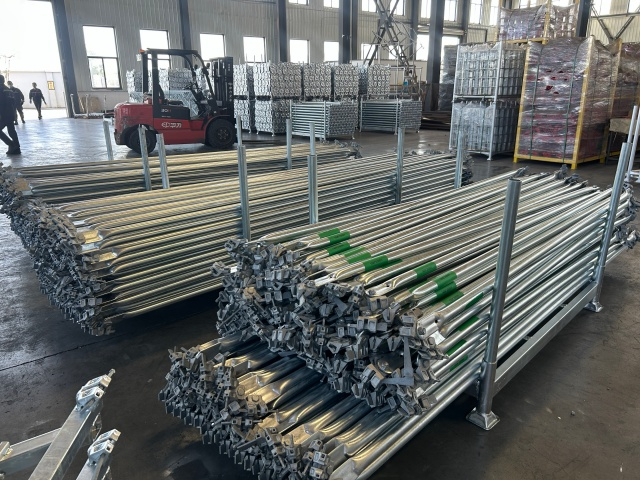

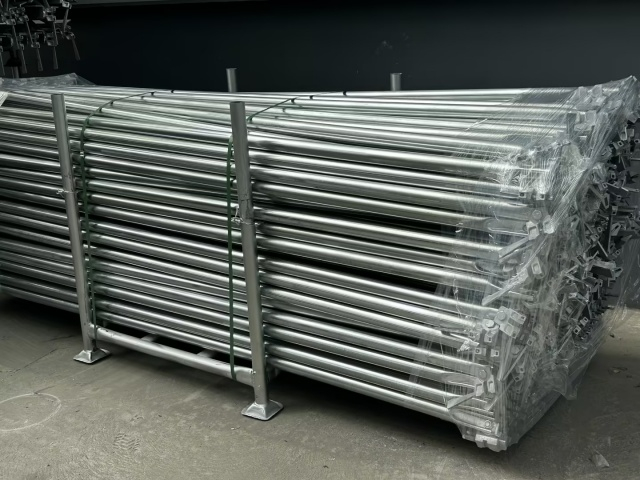

Ringlock Scaffolding Diagonal Brace

Q235 Steel Tubes 48.3 x 2.5mm

Code

Item

Width

Height / Lift

Length

Weight

EK-RLB001

Ringlock Brace 0.65x2.0M

0.65M

2.0M

2.11M

7.7KG

17.0LBS

EK-RLB002

Ringlock Brace 1.07x2.0M

1.07M

2.0M

2.27M

8.2KG

18.0LBS

EK-RLB003

Ringlock Brace 1.57x2.0M

1.57M

2.0M

2.55M

9.0KG

19.8LBS

EK-RLB004

Ringlock Brace 2.13x2.0M

2.13M

2.0M

2.93M

10.1KG

22.3LBS

EK-RLB005

Ringlock Brace 2.44x2.0M

2.44M

2.0M

3.15M

10.8KG

23.8LBS

EK-RLB006

Ringlock Brace 3.05x2.0M

3.05M

2.0M

3.65M

12.3KG

27.0LBS

Other sizes / components or bespoke needs, please Contact US.

Aluminum Ringlock Scaffolding components are also available:



Special polishing process is done at the inner Standard opening to make the erection smoothly:



Ringlock Scaffolding System Application

Ringlock Scaffolding System for Construction

Ringlock scaffolding system is widely used in general tunnel and other bridge projects, viaducts engineering, plant buildings, elevated water towers, power plants, oil refineries, etc. as well as support design of special workshops, also suitable for overpasses, spans shacks, storage shelves, chimneys, water towers and interior and exterior decoration , Large-scale concert stage, background stand, grandstand, grandstand, modeling stand, staircase system, stage erection of evening party, grandstand of sports games, etc.


Ringlock Scaffolding System for Building

Fewer structures, convenient construction and disassembly, basic structure and special components, which can make the ringlock scaffolding system suitable for various structural buildings; it is composed of three types of members: Standards, Ledgers and Diagonals. These members are all made in the factory. First, this scaffolding design minimizes the problem of easy loss and damage of traditional scaffolding moving parts, and reduces the economic loss of the construction unit. Second, it does not have any movable ringlocking scaffold components, which prevents the traditional hidden danger caused by movable locking parts of scaffolding.
Better comprehensive benefits. Component series are standardized for easy transportation and management. No scattered and easily lost components, low loss, and low investment.


Ringlock Scaffolding System for events

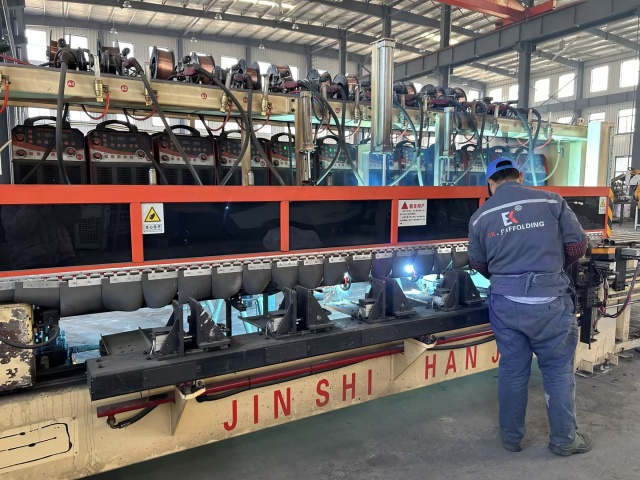

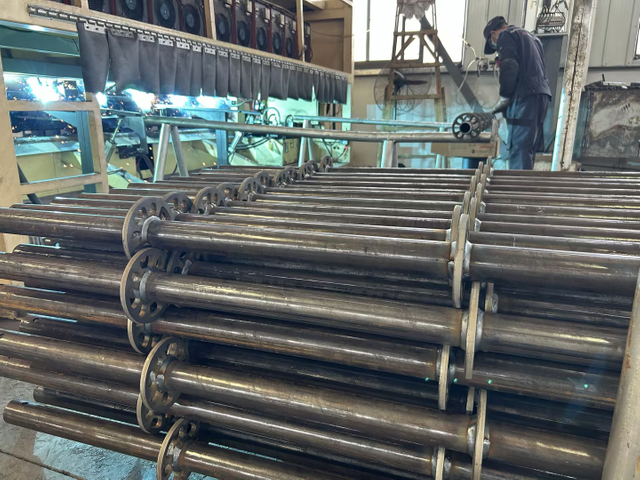

Automatic welding of Ringlock Scaffolding Standard

Ringlock Scaffolding Catalogue

Here is catalogue of EK ringlock scaffolding system. You can see all our diagonal brace, ledger and standard products here.

If you feel that ringlock scaffold catalogue cannot satisfy you, we also have files to download.

Ringlock Scaffolding Standards, Ledgers, Braces and other components

FREE for download and inquiry

Ringlock scaffolding is self-locking mechanism with independent wedge insertion. Due to interlocking and gravity, the ledger cannot be pulled out even if the wedge is not tightened. The ledger has a self-locking function, which can be locked or removed by pressing the wedge, and the contact surface between the rosette and the cast end is large, thereby improving the bending strength of the steel pipe, and ensuring that the standard does not skew.

The vertical cross axis between Ringlock scaffolding standard and ledger is high in accuracy, and the stress property is reasonable. Therefore, the bearing capacity and overall rigidity are large, and the structure stability is strong. Each Standard can carry 3-4 tons. The number of Braces is much less than traditional scaffolding.

Comply with European, USA, Australian and others standards. Lab test will be done by third-party company (SGS, TUV…) as customers’ requirements.

Projects of Ringlock Scaffolding

Our production capacity is more than 20 containers monthly. We are here to help ensure the success of your projects.

 Offshore Oilfield near Labuan, Malaysia, Ringlock Scaffolding

 Oil Refinery in Middle-East Asia, Ringlock Scaffolding

 Seating System for Events in Vietnam, Ringlock Scaffolding

 Shipyard in Northern of China, Ringlock Scaffolding
