The ringlock scaffolding diagonal brace consists of a scaffolding tube, two sets of ringlock plugs with wedge pins and pins to secure the plugs to the scaffolding. Unlike ringlock scaffolding standard and ringlock scaffolding ledger, ringlock scaffolding diagonal brace is very single in function. The function of ringlock scaffolding diagonal brace is to use the support frame to stabilize the ringlock scaffolding. It often appears on the outside of the ringlock scaffolding to strengthen the ringlock scaffolding system so that it will not tilt and shake, and better ensure construction safety.

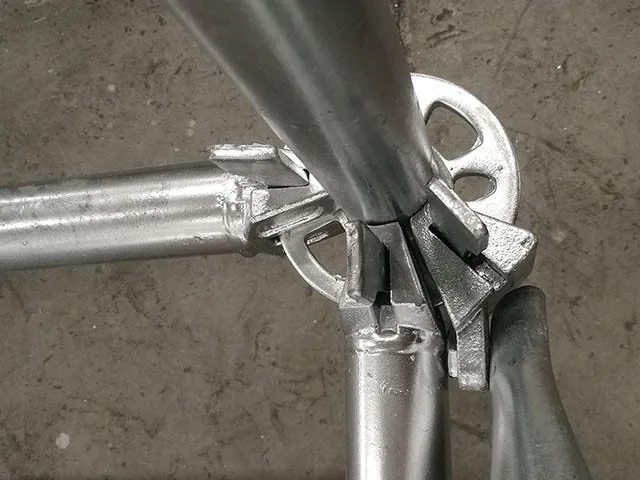

Ringlock scaffolding has few basic components compared to other scaffolding systems. Ringlock scaffolding standard is welded by a garland of eight holes, four of which are large holes connected to ringlock scaffolding diagonal brace, and the other four small holes are connected to ringlock scaffolding ledger. The connections between ringlock scaffolding components are made by inserting the components into the round ring, inserting the pin into one of the holes, and finally tapping the pin lightly with a hammer. This method can establish a firm connection between components, and the latch has a self-locking function, which can completely avoid unsafe factors during operation. Because the ringlock scaffolding has few accessories and is easy to assemble, the cost can also be saved by about one-third.
Ringlock Scaffolding Diagonal Brace | |||||
Code | Item | Width | Height / Lift | Length | Weight |
EK-RLB001 | Ringlock Scaffolding Diagonal Brace 0.65x2.0M | 0.65M | 2.0M | 2.11M | 7.7KG |
EK-RLB002 | Ringlock Scaffolding Diagonal Brace 1.07x2.0M | 1.07M | 2.0M | 2.27M | 8.2KG |
EK-RLB003 | Ringlock Scaffolding Diagonal Brace 1.57x2.0M | 1.57M | 2.0M | 2.55M | 9.0KG |
EK-RLB004 | Ringlock Scaffolding Diagonal Brace 2.13x2.0M | 2.13M | 2.0M | 2.93M | 10.1KG |
EK-RLB005 | Ringlock Scaffolding Diagonal Brace 2.44x2.0M | 2.44M | 2.0M | 3.15M | 10.8KG |
EK-RLB006 | Ringlock Scaffolding Diagonal Brace 3.05x2.0M | 3.05M | 2.0M | 3.65M | 12.3KG |
Aluminum Ringlock Scaffolding Standard
Ringlock scaffolding diagonal brace is based on ringlock scaffolding ledger, the common standard length of ringlock scaffolding diagonal brace is 2M and 1.5M, the size of ringlock scaffolding diagonal brace should match the length of ringlock scaffolding standard and ringlock scaffolding ledger to properly support ringlock scaffolding system. In addition, it can also be customized according to the needs of customers' scaffolding projects.
