Scaffolding Walk Boards

For This Page:

Outstanding Provider of Scaffolding Walk Boards

Scaffolding walk boards is the main part of scaffolding system which is convenient for walking in the heights. The walk plank with strong and structural material, and mainly used for building scaffolding and structural work. EK as experienced China scaffolding system supplier, scaffolding walk boards from us are designed and tested to comply with British Standards and are sold all over the world.
Scaffolding steel walk boards, aluminum walk boards and LVL walk boards are main parts of our types. EK can offer all of scaffolding plank types for any situations or applications, and you may read the options listed as below before making a selection. If you are going to buy scaffolding walk boards, we are undoubtedly the best place to buy.

Scaffolding Walk Boards Types

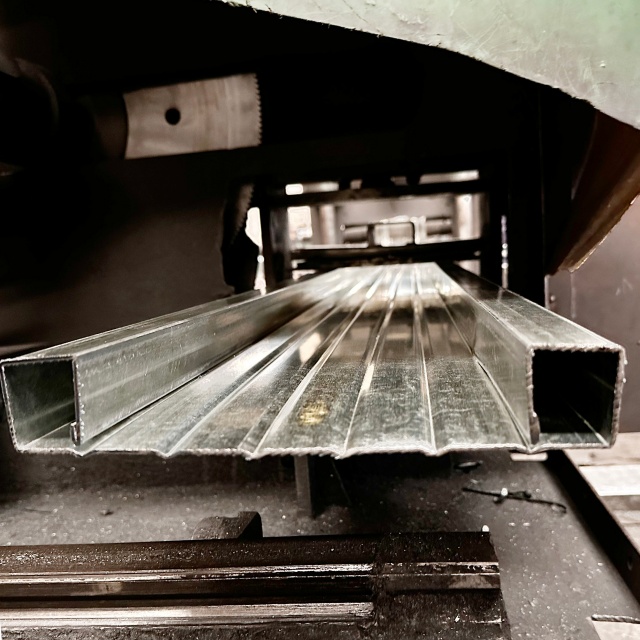

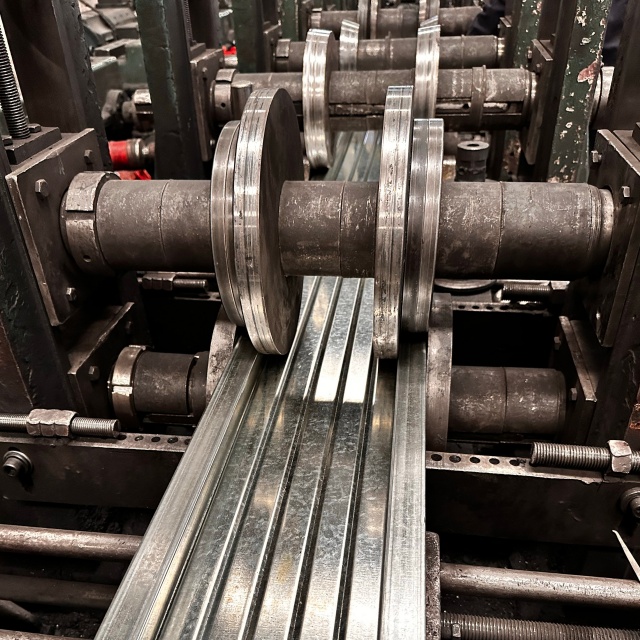

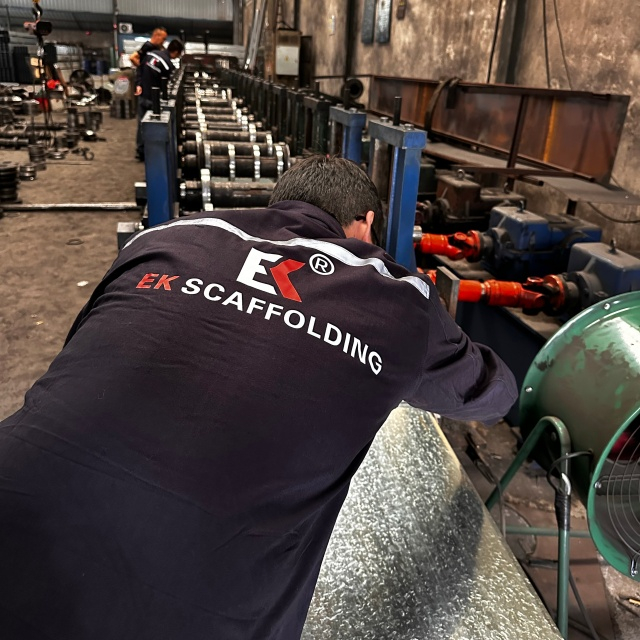

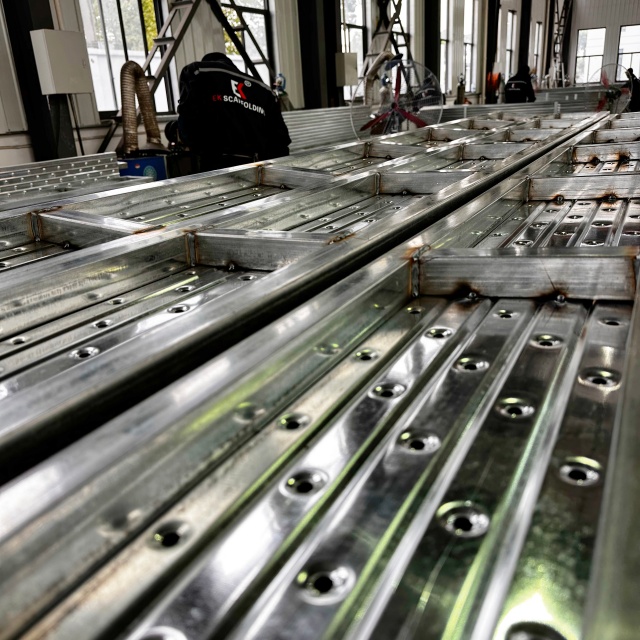

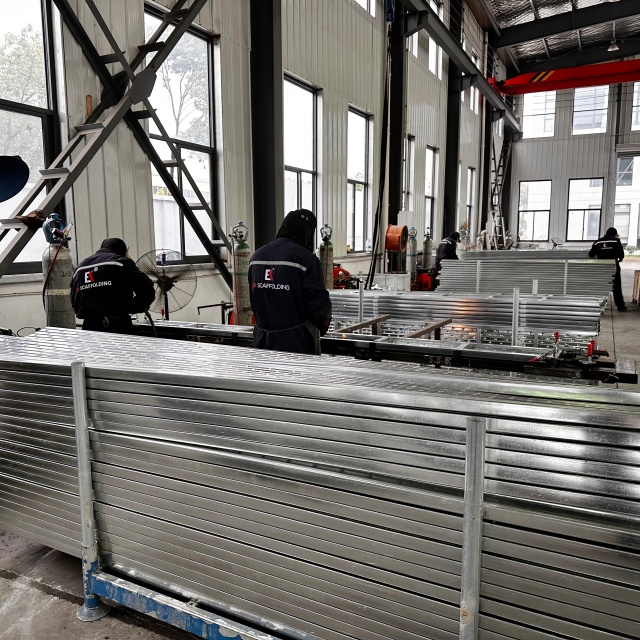

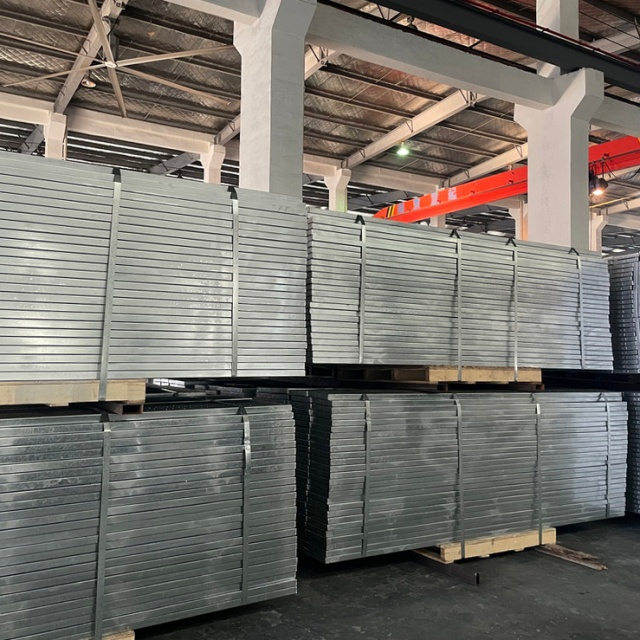

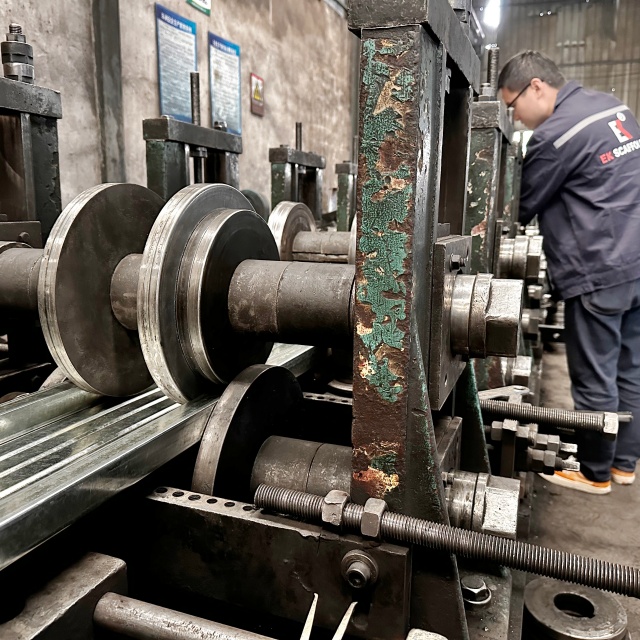

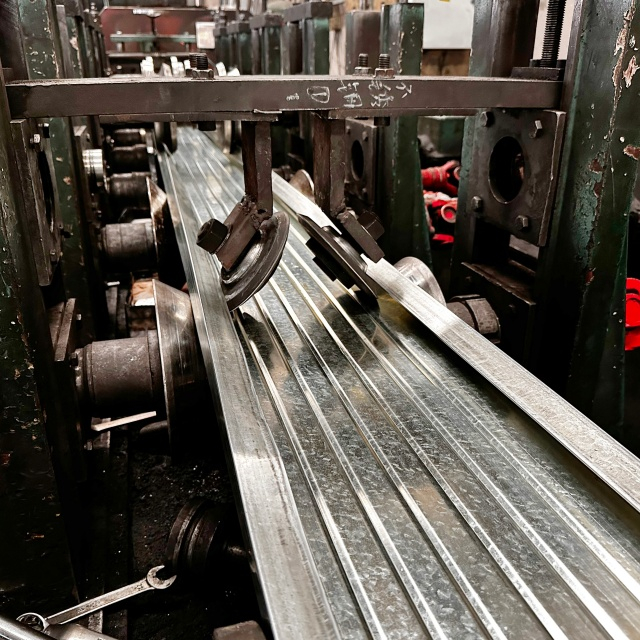

Roll forming process of Galvanized Steel Scaffold Plank

Features and Use of EK Scaffolding Walk Boards

Scaffold working boards has advanced features of fire prevention, sand accumulation prevention, light weight, corrosion resistance, alkali resistance and compressive strength. The convex holes on the walk plank surface are flanged and depicted by double ribs with one rib on each side. The anti-slip effect is good; the effect of inverted triangular double ribs on both sides enhances the fastness of the scaffold board; the regular spacing of the holes is standard and beautiful in appearance, Durable (normal construction can be used continuously for 6-8 years).

Diversity of Scaffolding Aluminum Walk Boards, Galvanized Steel
Scaffold Planks, LVL scaffold plank

Scaffolding Walk Boards, Aluminum Walk Boards and LVL Boards are the main types of board.
Scaffolding walk boards are the most used boards. Width size of this scaffolding plank 210-500mm, thickness of 1.0-2.0mm and height of 38-76mm. We also offer custom walk
boards designed to your specifications by our team of scaffold engineers.

Scaffolding Steel Walk Boards

Here you can see EK standard scaffold walk boards lengths and other parameters.

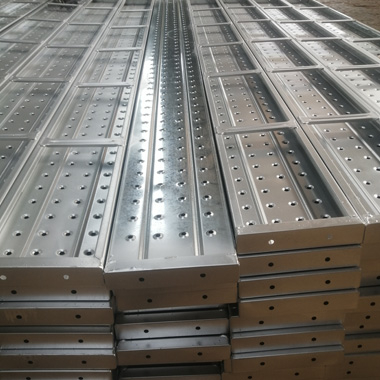

210x45mm Scaffolding Walk Boards
Code No. Size (mm) Thickness (mm) Material Finish
SWB2104501 210x45x500


1.0-2.0



Q195


Pre-galvanized
HDG
Painted
SWB2104502 210x45x1000
SWB2104503 210x45x1500
SWB2104504 210x45x2000
SWB2104505 210x45x2500
SWB21004506 210x45x3000
SWB2104507 210x45x3500
SWB2104508 210x45x4000
Can be customized according to customer specification.

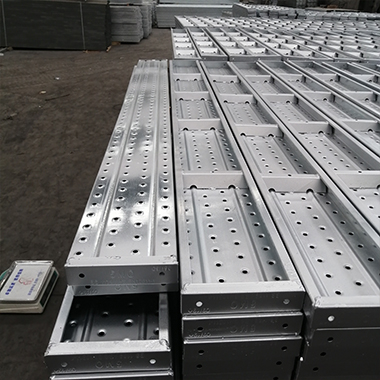

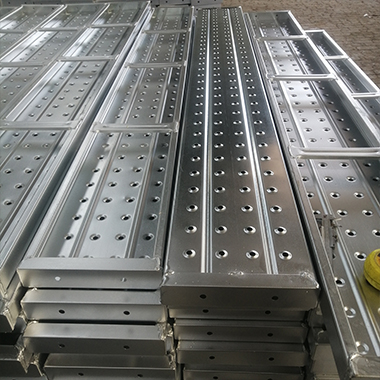

240x45mm Scaffolding Walk Boards
Code No. Size (mm) Thickness (mm) Material Finish
SWB2404501 240x45x500



1.0-2.0



Q195



Pre-galvanized
HDG
Painted
SWB2404502 240x45x1000
SWB2404503 240x45x1500
SWB2404504 240x45x2000
SWB2404505 240x45x2500
SWB24004506 240x45x3000
SWB2404507 240x45x3500
SWB2404508 240x45x4000
Can be customized according to customer specification.
240x38mm Scaffolding Walk Boards
Code No. Size (mm) Thickness (mm) Material Finish
SWB2403801 240x38x500


1.0-2.0



Q195


Pre-galvanized
HDG
Painted
SWB2403802 240x38x1000
SWB2403803 240x38x1500
SWB2403804 240x38x2000
SWB2403805 240x38x2500
SWB24003806 240x38x3000
SWB2403807 240x38x3500
SWB2403808 240x38x4000
Can be customized according to customer specification.

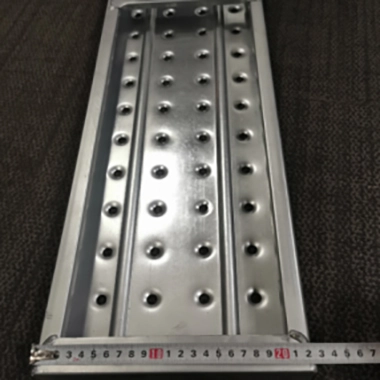

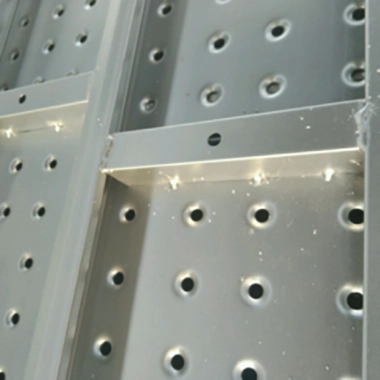

225x38mm Scaffolding Walk Boards
Code No. Size (mm) Thickness (mm) Material Finish
SWB2253801 225x38x500


1.0-2.0



Q195


Pre-galvanized
HDG
Painted
SWB2253802 225x38x1000
SWB2253803 225x38x1500
SWB2253804 225x38x2000
SWB2253805 225x38x2500
SWB22503806 225x38x3000
SWB2253807 225x38x3500
SWB2253808 225x38x4000
Can be customized according to customer specification.

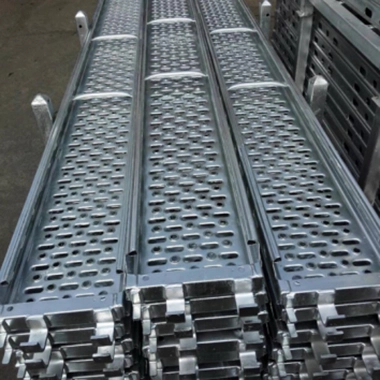

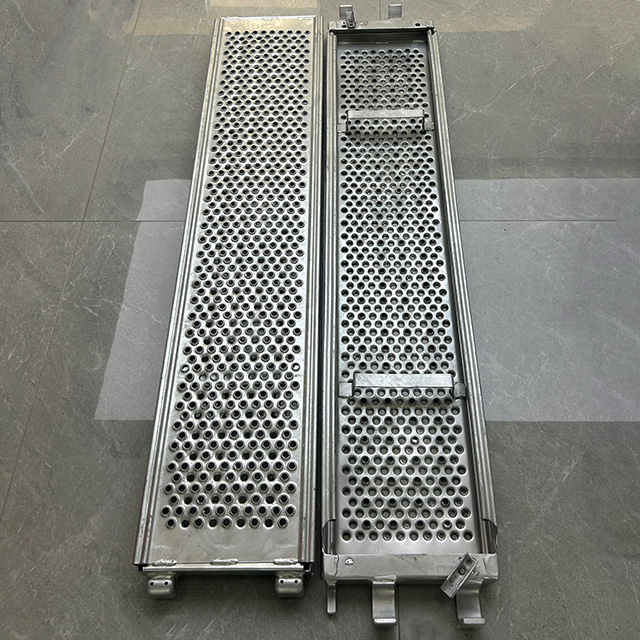

320x76mm Scaffolding Walk Boards
Code No. Size (mm) Thickness (mm) Material Finish
SWBH3207601 320x76x880




1.5-2.0





Q195




Pre-galvanized
HDG
Painted
SWBH3207602 320x76x914
SWBH3207603 320x76x1065
SWBH3207604 320x76x1150
SWBH3207605 320x76x1219
SWBH3207606 320x76x1524
SWBH3207607 320x76x1570
SWBH3207608 320x76x1830
SWBH3207609 320x76x2130
SWBH3207610 320x76x2440
SWBH3207611 320x76x3050
Mainly used for ringlock system and cuplock system, easy to build, firm and stable.
European-style Scaffolding Walk Board are heavy-duty hot-dip galvanized high-end Walk Board styles that can be used with a variety of systems, such as Cuplock system, Ringlock system.
It has a long service life, at least more than ten years, and has strong corrosion resistance.
It is mostly used in offshore projects such as offshore oil fields and petrochemical industries.

240x45x1.8mm Scaffolding Walk Boards
Code No. Size (mm) Thickness (mm) Weight(kg) Finish
SWBH240451801 240x45x1000
1.8
5.70
HDG
SWBH240451802 240x45x1500 8.60
SWBH240451803 240x45x2000 10.90
SWBH240451804 240x45x3000 16.50
Mainly used for ringlock system and cuplock system, easy to build, firm and stable.

Aluminum Walk Boards

Aluminum Walk Boards
Code No. Size (mm)
AWB001 19X5’
AWB002 19X7’
AWB003 19X8’
AWB004 19X10’

Aluminum Walk Boards is perfect for anyone needing a stable and strong scaffold platform. It is constructed to hold 75 lbs per square foot, and qualifies for heavy duty applications by OSHA standards. Our aluminum plank is strong because it is reinforced on the bottom side. The top side contains grooves which remove standing water and ensure you have good traction. This plank’s super-light weight allows for easy assembly and transport. Since the planks are made from aluminum, they will not rust.

Aluminum Plywood Walk Boards
Code No. Size (mm)
AWB001 19X5’
AWB002 19X7’
AWB003 19X8’
AWB004 19X10’

Our Aluminum Plywood Walk Boards is a more cost efficient alternative to our all aluminum board. Our deck is heavy duty and rated for 75 lbs./sq. ft. The 7′ plank holds a total of over 7,000 lbs before failure. Aluminum reinforcement on the bottom of the deck adds extra strength to create a safe and OSHA compliant scaffold platform. It has hooks on each end to attach to scaffolding frames.

LVL Walk Boards

LVL stands for laminated veneer lumber and contain numerous thin layers of wood that are laminated together by glue. The wood grain on each layer should face opposite directions for maximum strength. The advantage of these boards is that they cost less than the solid lumber boards, they are very uniform (no knots or defects), and you don’t have to worry about the boards splitting on the ends.
End treatment: after scraping the waterproof putty, spray the waterproof paint, or add iron or plastic head

LVL Boards
Code No. Size (mm)
LVLB001 225X38
LVLB002 225x42’
LVLB003 230X38
LVLB004 230X42
Side can make marking according to the customer's request

Application Scenario

When using Scaffold Walk boards, several pieces can be laid together, more people can walk on the aluminum walk plank more safely, the safety performance has been recognized by many people, convex holes effectively prevent people from slipping and falling when walking, which greatly improves the work efficiency, and is unanimously praised by the shipbuilding industry, Oil channels, power, and construction industries and used in large quantities.

FAQ of Scaffolding Walk Board

  • How about the price?

    Really competitive! Our company are near the origin of steel and we have big order amount, so we get relatively cheaper price of steel raw material; low labor cost and near Shanghai sea port are also our advantages. And the most of all, "less profit but big turnover " is our perpetual business principle.

  • What is the quantity of walk boards can be loaded for 1x40HC?

    Different type have different loading quantity.

    The corresponding quantity will be provided according to the style required by the customer.

    Generally:

    210x45x3m(1.0-1.2mm thickness) : 2200pcs/40HC

    240x45x3m(1.0-1.2mm thickness) : 1960pcs/40HC

  • Can you make marking on the walk board according to the customer's request?

    Yes, we always make the marking according to the customer’s request.
  • What's your MOQ (minimum order quantity)?

    Scaffolding Walk Boards MOQ is 1x40HC<o:p>

  • How long is the production cycle after ordering?

    General it is about 15-20 days. It depends on the quantity.
    1-2 containers:  15-20 days
    3-5 containers:  18-23 days
    6-10 containers: 25-30 days
  • Does walk boards support customization?

    Yes, we offer custom walk boards designed to your specifications by our team of scaffold engineers.

  • Can I get some samples?

    Yes, Sample is free, but usually the customer will pay for the shipping cost.
