What Is Scaffolding Gate

Scaffolding-Ladder-Access-Gates-Semi-finished-Products
The scaffolding spring gate is an important part of the scaffold workbench and is used for the passage of workers. Scaffold ladder access gates provided by EK scaffolding meets BS1139 standard. This is a very important protection device on the working platform of scaffold top. In any scaffolding system application scenario, when a ladder is required to access the scaffolding structure from the outside, use EK scaffolding safety gates to secure openings and prevent falls from heights; add a toe plate for added security as well. EK scaffold swing safety gates are compatible with tubular scaffolding system, frame scaffolding systems, ringlock scaffolding system, cuplock scaffolding system, kwikstage scaffolding system to ensure the safety of construction access and as a necessary fall-proof component of access scaffolding systems.
The scaffold ladder access gates are mainly composed of curved square pipe, steel mesh, steel sheet, scaffolding coupler, spring and so on. The spring ensures that scaffolding spring gate closes automatically and smoothly, which facilitates the safe entry and exit of scaffolding. The tube scaffold swing gate is mounted on top of a high ladder to ensure the safety of workers working along the ladder.
Scaffolding-Ladder-Access-Gates-Semi-finished-Products-

Related Products

Scaffolding Gate Video

Types Of Scaffolding Gate

Features Of Scaffolding Swing Gate

And Scaffold Ladder Access Trap Door

Scaffolding Gate(1)
Scaffolding Gate Inspection 01
Scaffolding Gate Inspection 02
Scaffolding Gate Inspection 03
Scaffolding Gate Inspection 04
Scaffolding-Gate-Inspection

Features of scaffolding swing safety gate

Raw Materials

Q235/Q355 Carbon Steel

Q235/Q355 Carbon Steel

960mm*710mm

Close Way

Self-closing with high strength spring

Weight

9.0kg or 10kg/pc

Components

Bended square tubes & Steel mesh & Pressed or forged couplers & Springs

Surface Treatment

Painted / Powder Coated / Galvanized

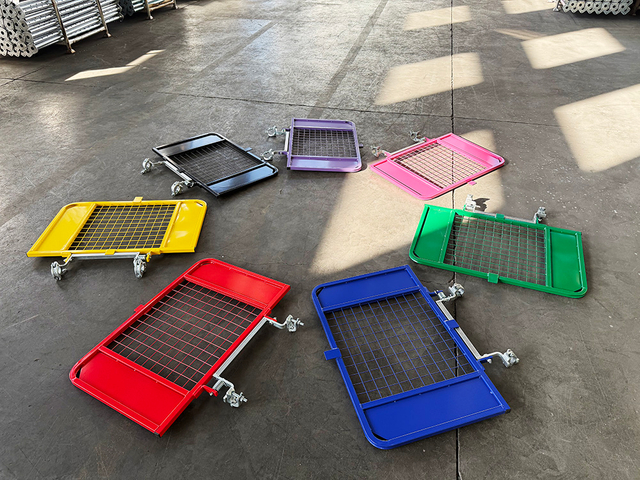

Color

Yellow, Orange, Red, Silver

Standard

EN74 & BS1139 & CE & ISO9001

QTY

864pcs for 20GP container, 2236pcs for 40HC container

Packing

Steel pallet or wooden pallet

High quality, fast delivery, preferential price, free customization and paste your company logo label OEM service is available

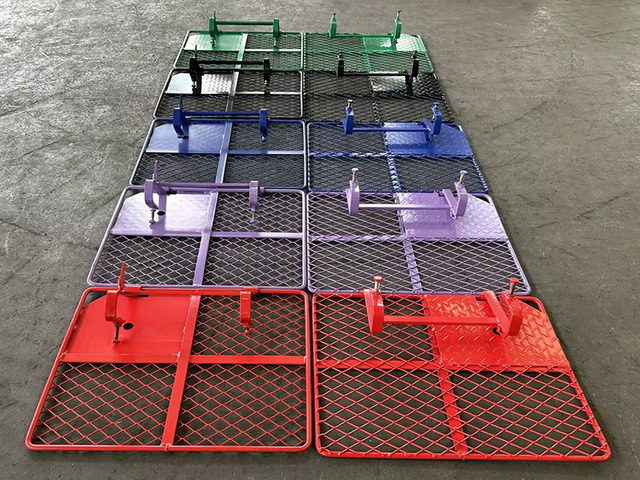

Features of scaffolding ladder access trap door

The scaffold ladder trap door is designed to prevent falling from a height through an internal ladder access point within the scaffold, the usual size is 710mm*580mm with 10.45kg/pc. Simply mount the rear bracket on the toe plate for easy assembly and quickly tighten the ladder trapdoor by tightening the retaining bolts is a quick, simple and rugged solution. The scaffolding ladder hatch can be held in the open position by simply moving the latch down. Ladder trapdoors are the flattest on the market because of their design using flat steel bands, welded mesh, and the fact that they can be dropped by a handle, making them the most suitable solution for avoiding tripping hazards. The general surface treatment is mostly orange powder coating, as illustrated in the following pictures:

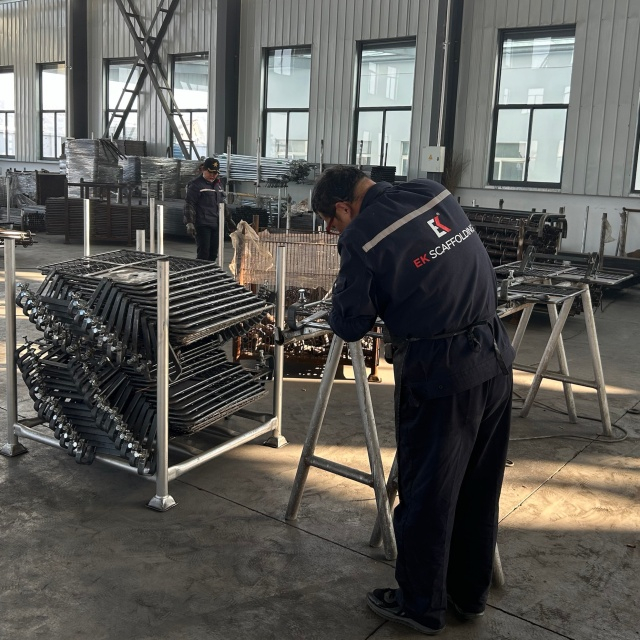

Scaffolding Trap Door Inspection 01
Scaffolding Trap Door Inspection 02
Scaffolding Trap Door Inspection 03
Scaffolding Trap Door Inspection 04

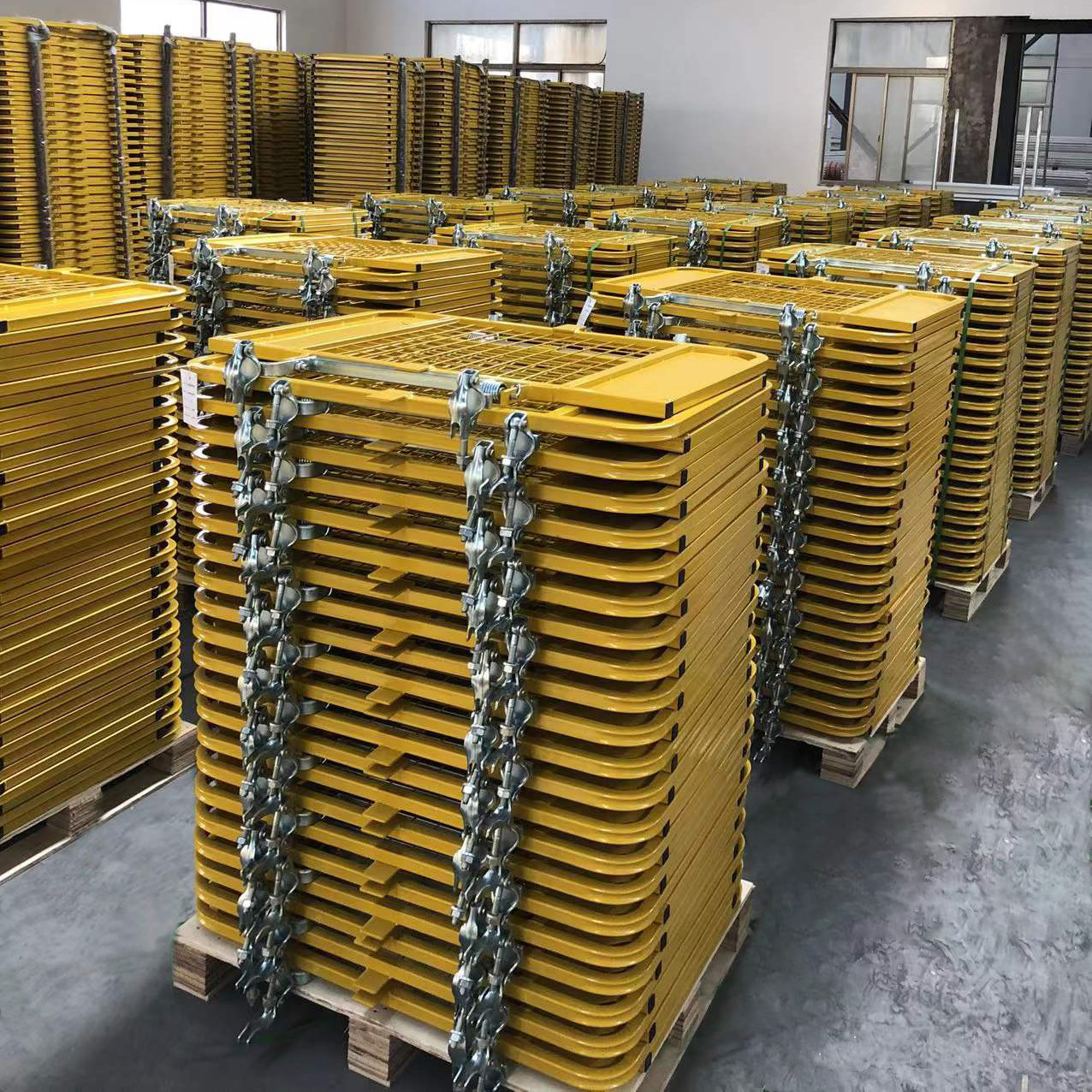

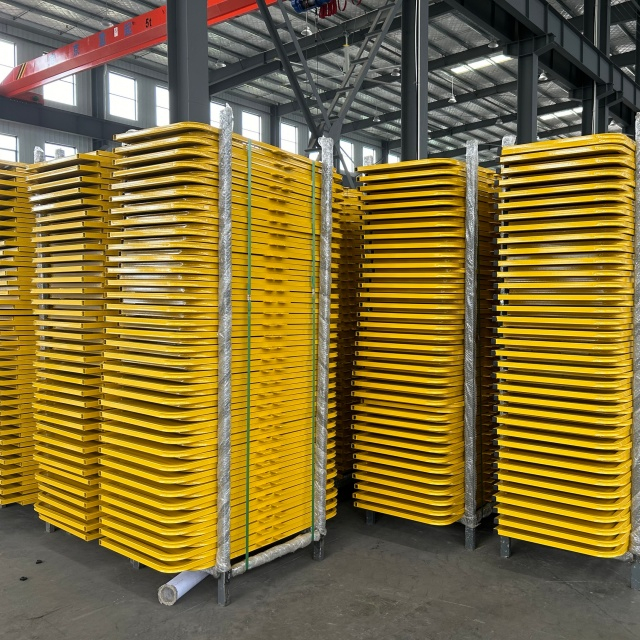

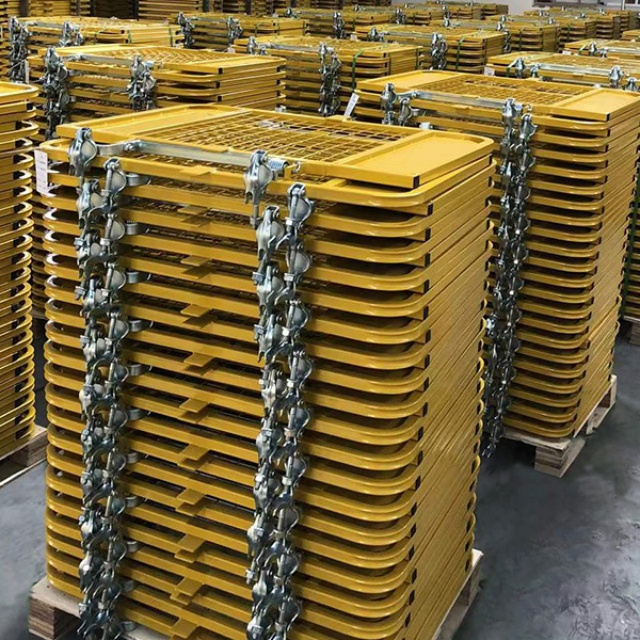

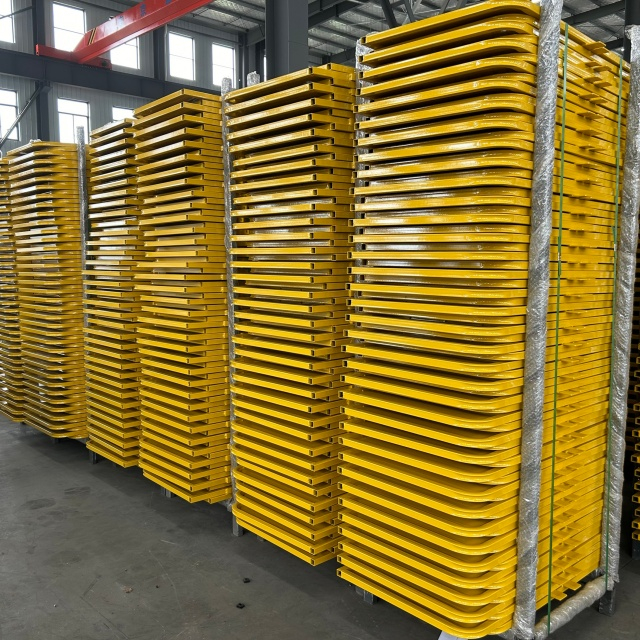

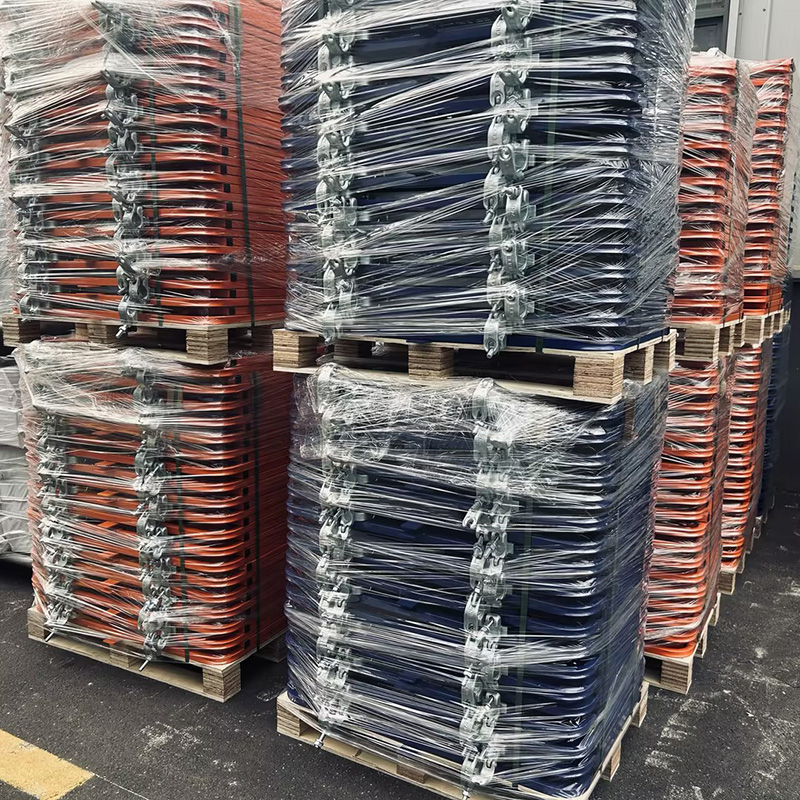

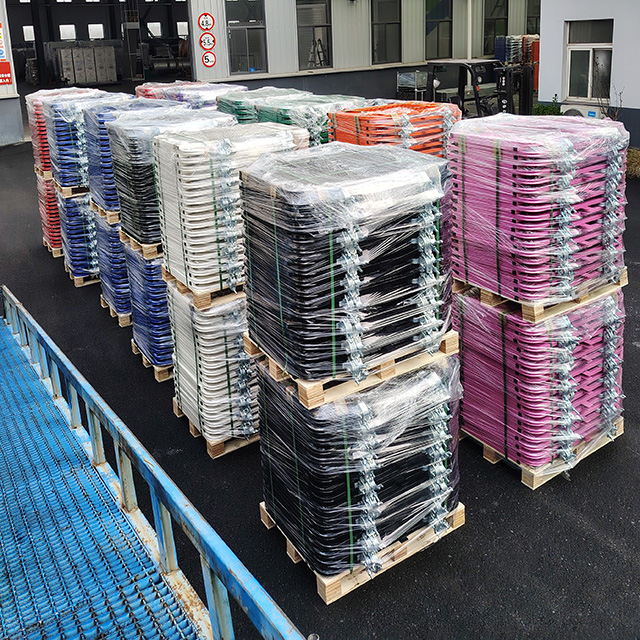

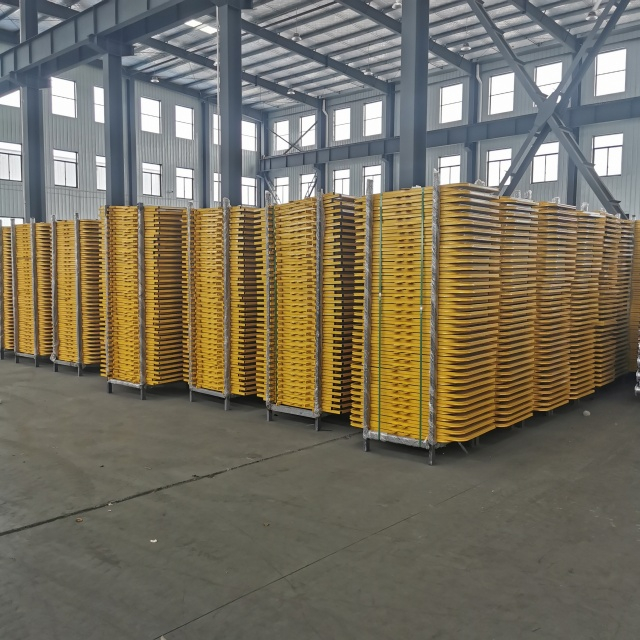

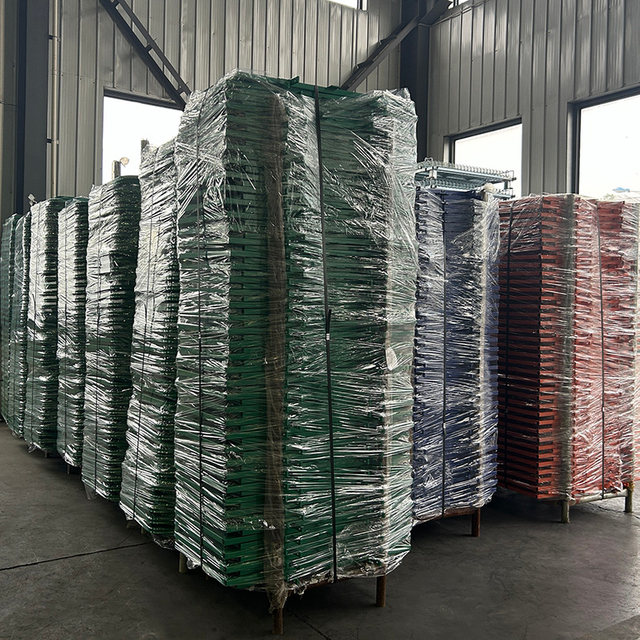

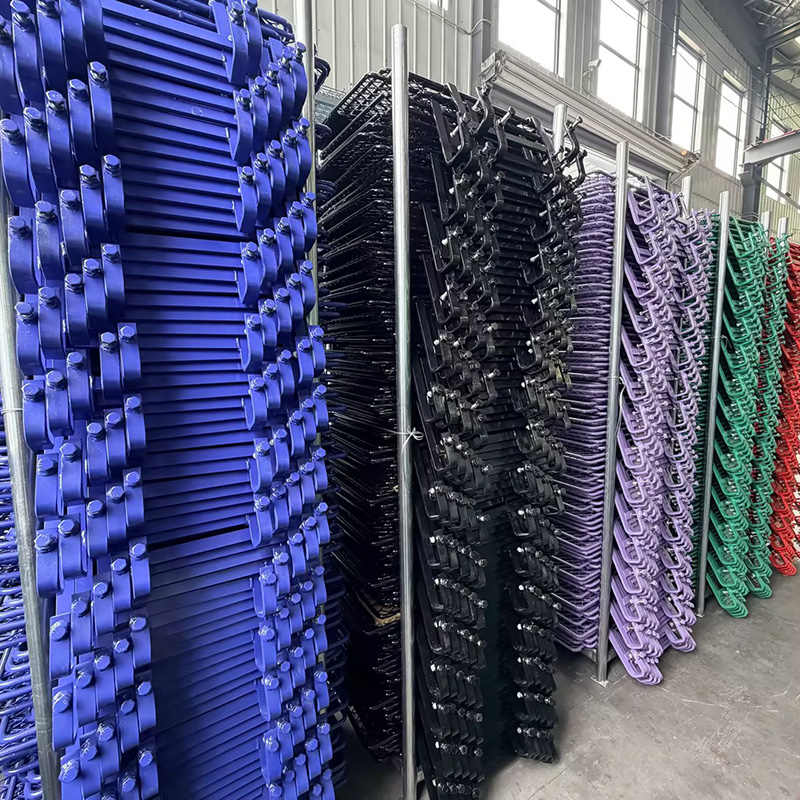

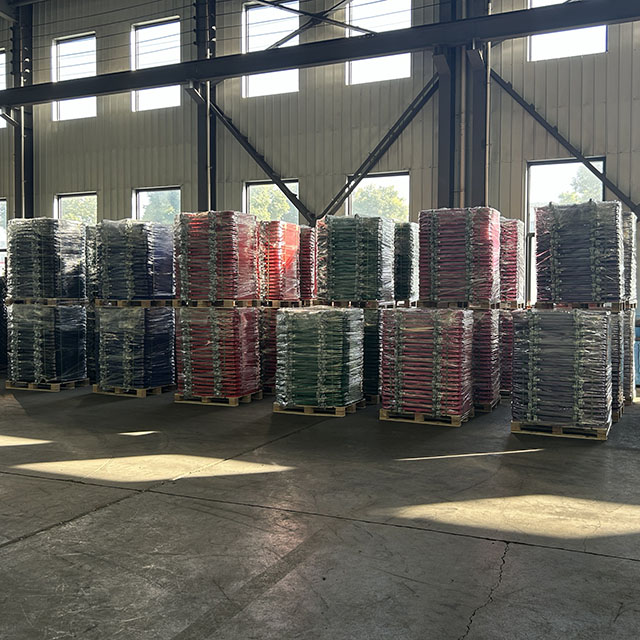

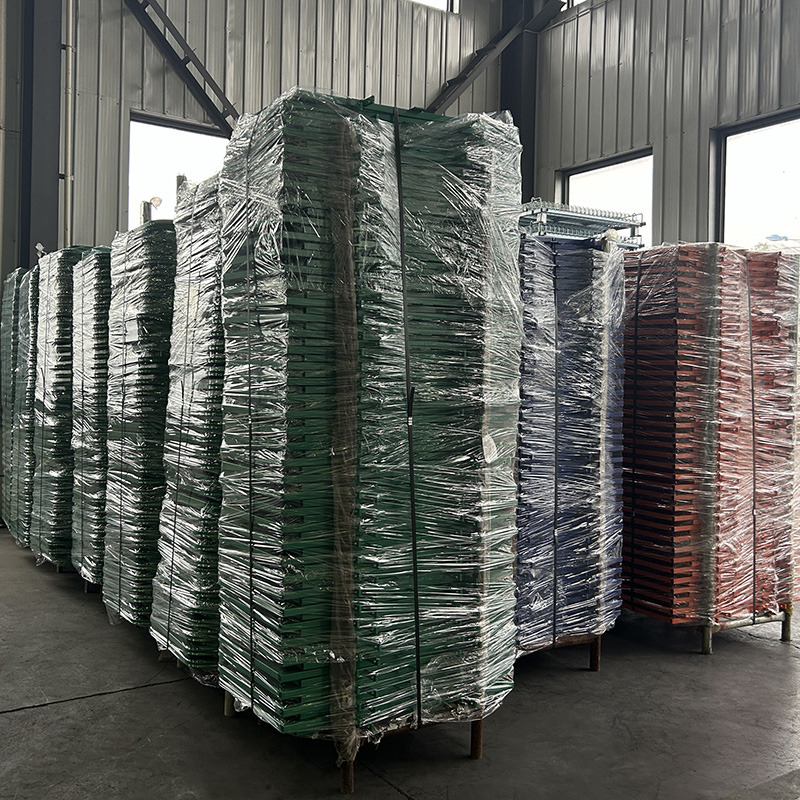

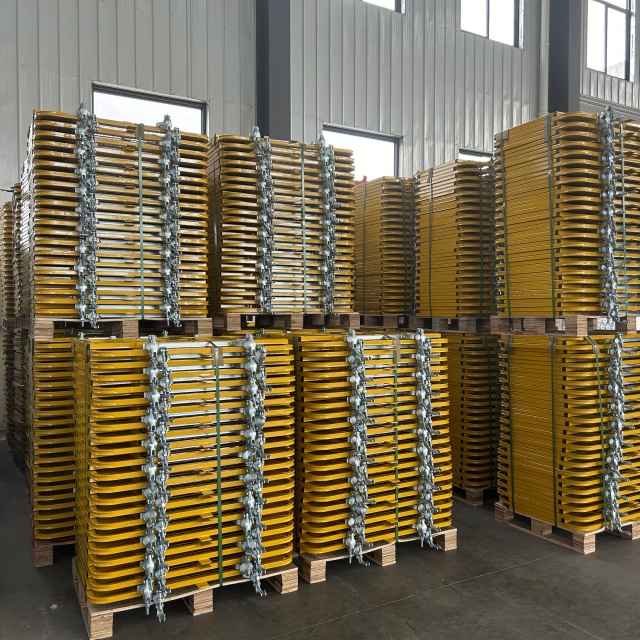

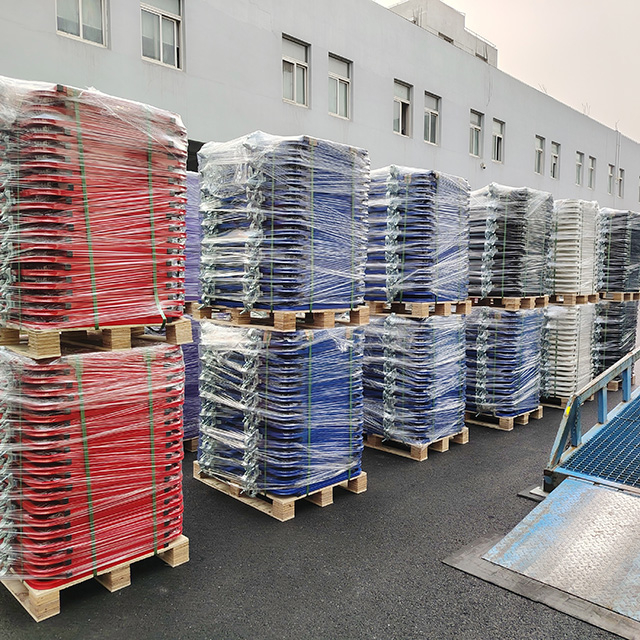

Bulk Of Scaffolding Gate And Scaffolding Ladder Hatch​​​​​​​

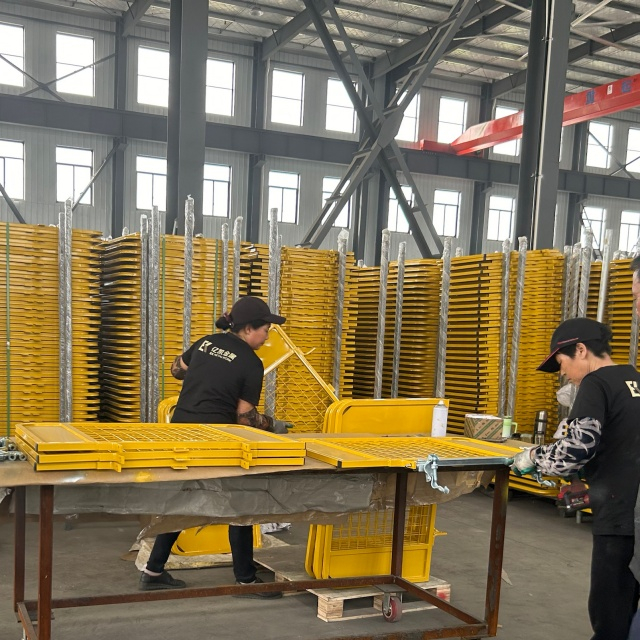

When the production of the scaffolding access gates or scaffold ladder access trap doors ordered by the customer is finished and all the packaging is completed, the packing of the goods is according to customer's requirement or the general way of export packing. EK professional QC documentary staff will take photos, and the sales staff will send them to the customer, and inform the customer of the packing time.

IMG_20240627_093614(1)
IMG_20240603_112333(1)
IMG_20240412_144528(1)
IMG_20240627_093537(1)
IMG_20240517_140606(1)
IMG_20240402_150455(1)
IMG_20240412_144514(1)
scaffolding gate
scaffolding gate
Bulk Scaffolding Gates and Traps 01
Bulk Scaffolding Gates and Traps 11
Bulk Scaffolding Gates and Traps 02
Bulk Scaffolding Gates and Traps 05
Bulk Scaffolding Gates and Traps 06
Bulk Scaffolding Gates and Traps 07
Bulk Scaffolding Gates and Traps 08
Bulk Scaffolding Gates and Traps 14
Bulk Scaffolding Gates and Traps 09
Bulk Scaffolding Gates and Traps 15
scaffolding gate
scaffolding gate
scaffolding gate
scaffolding gate

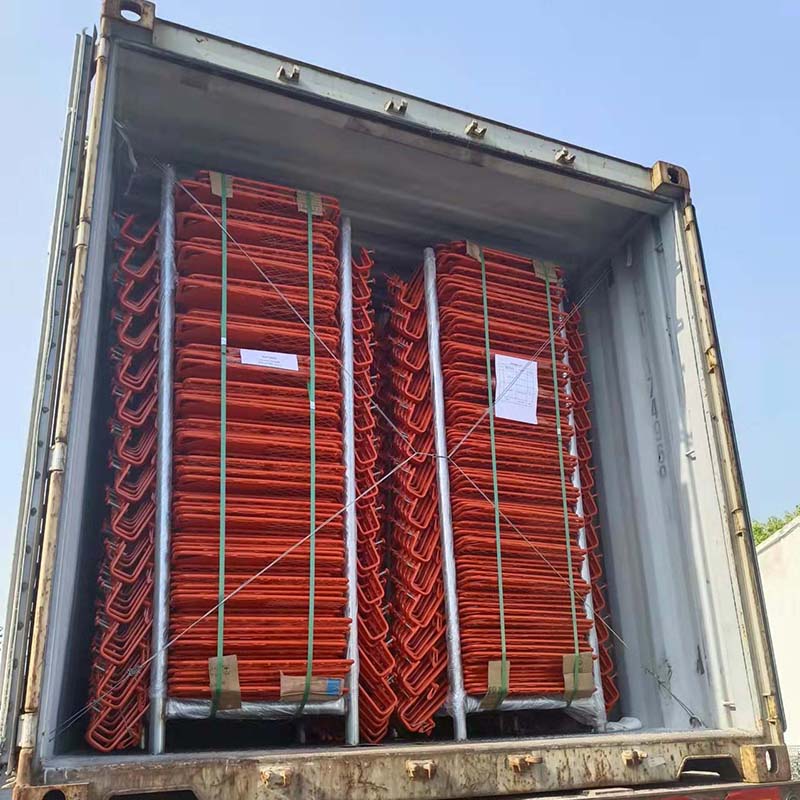

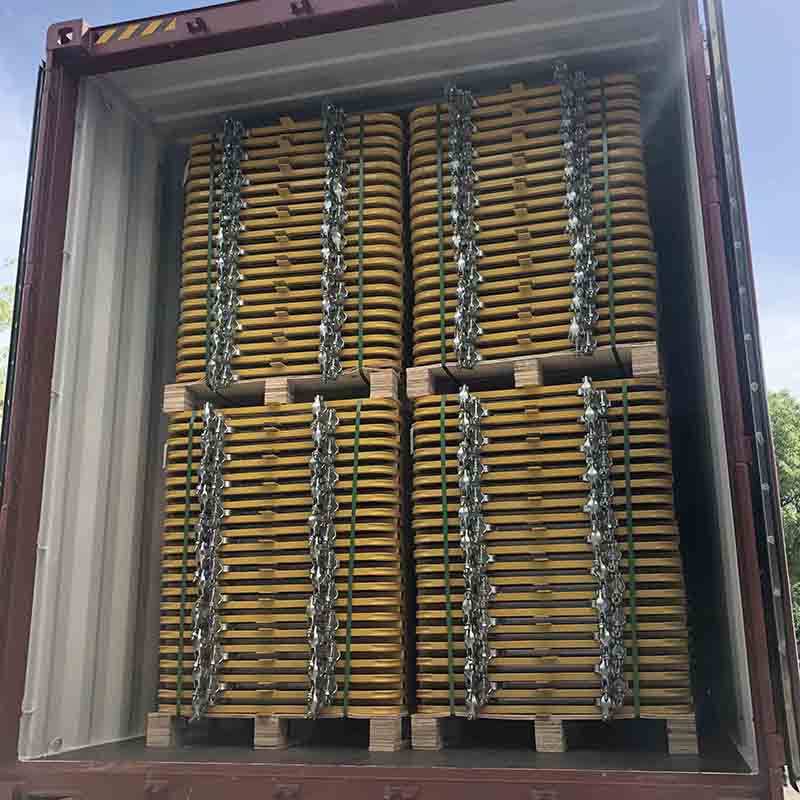

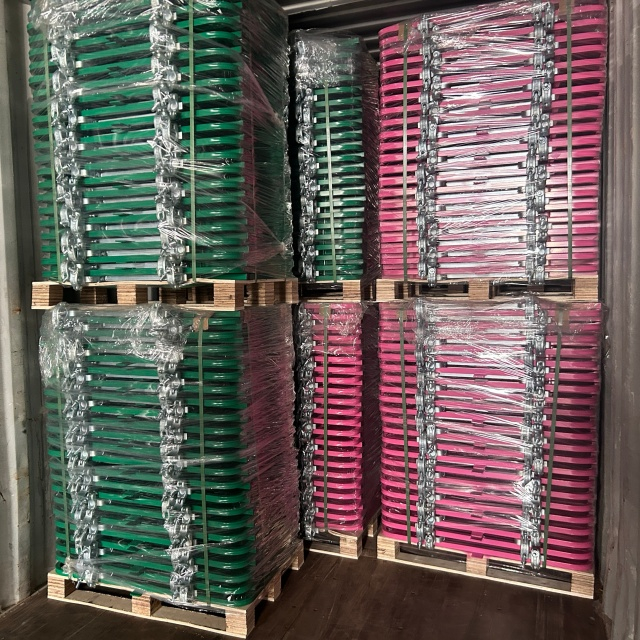

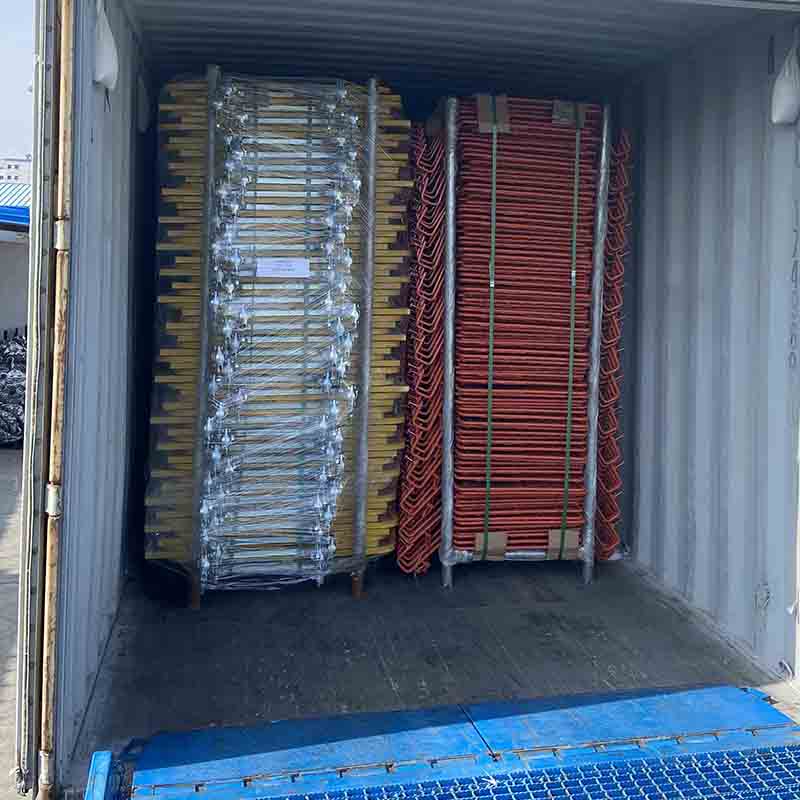

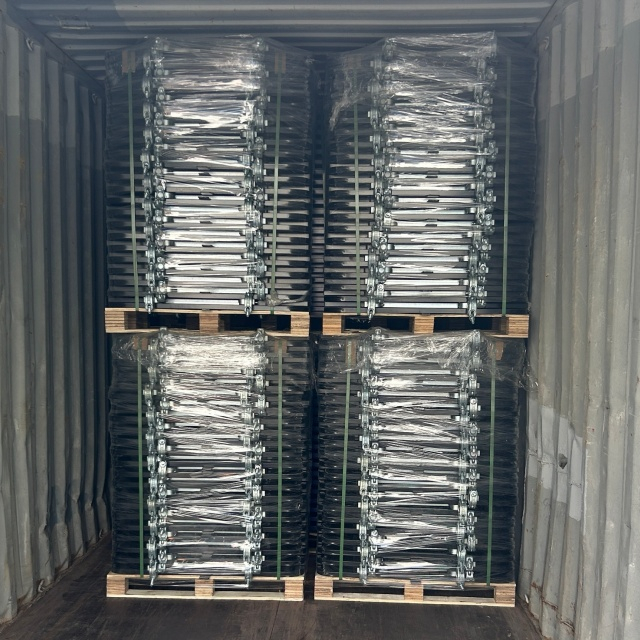

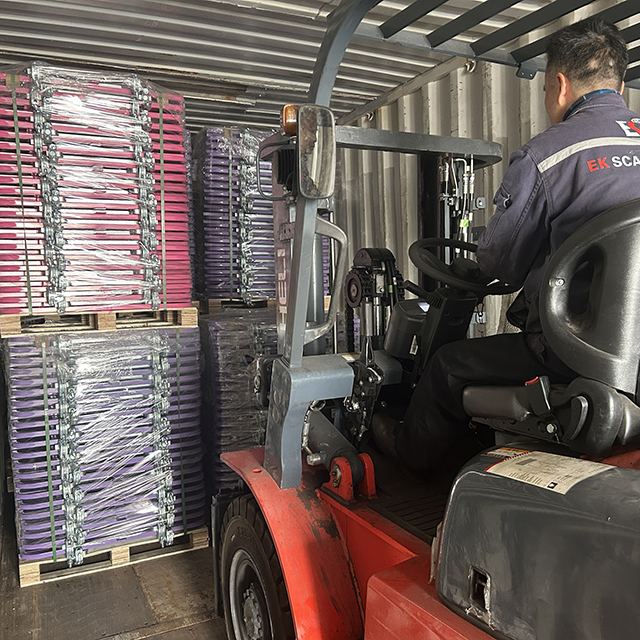

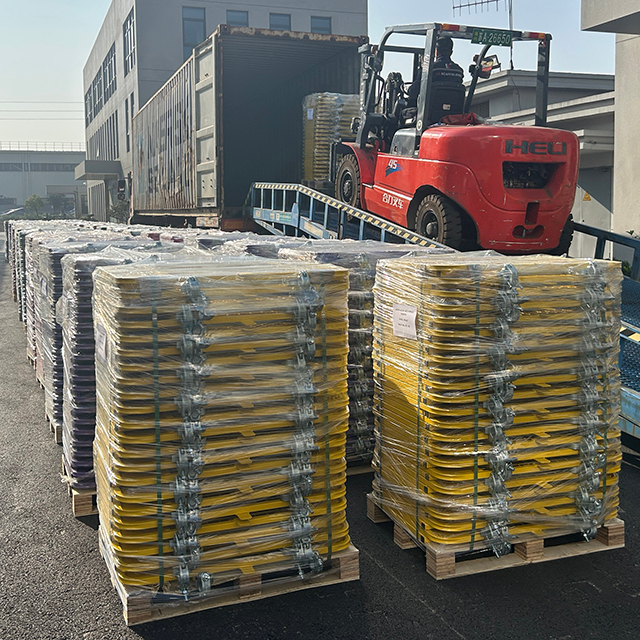

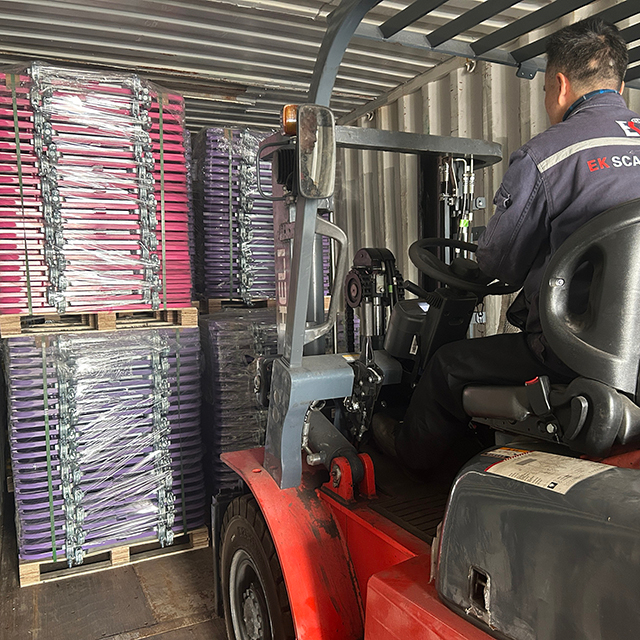

Loading Of Scaffolding Gate And Scaffolding Ladder Hatch

Scaffolding ladder access gates and scaffolding ladder hatches on the day of packing, EK will arrange the staff in charge of supervision to count the customer's goods and supervise the packing to prevent the goods from being short-loaded or damaged.
