Trap Door Definition
A scaffolding trap door—also commonly referred to as "access hatch"—is installed over the opening for a scaffolding ladder, sitting flush with the scaffolding platform. It serves as a core safety component within a scaffolding system, designed to facilitate vertical access.
In the context of building and construction operations, the scaffolding trap door is a critical element that ensures workers can safely and vertically traverse between different working levels.
Scaffolding Trap Door Features
Scaffolding trap door decks typically possess the following characteristics:
Material: Typically consists of an aluminum alloy frame combined with anti-slip plywood or perforated aluminum plating.
Load Rating: Must be consistent with the load rating of the adjacent scaffolding walk boards.
Anti-slip Surface: The surface is designed with embossing, perforations, or an anti-slip coating to ensure slip resistance, even in wet environments.
Opening Angle: Typically designed to open between 90 and 180 degrees and is equipped with a locking mechanism.
Scaffolding Trap Door Functions
Safe Access
Traditional external climbing methods pose a significant risk of falls. The scaffolding safety gate provides an internal ladder access route, ensuring that workers remain within the protective confines of the scaffolding guardrails while ascending or descending. This eliminates the risk of instability associated with external climbing and complies with international safety standards such as OSHA and EN12811.
Increased Working Area
When closed, the scaffolding trap door is load-bearing and forms a continuous, flush surface with the surrounding decking, providing additional space for material storage and personnel movement.
Fall Protection
It prevents tools or small parts from falling through the opening, thereby protecting personnel working on lower levels.
Technical Specifications: Scaffolding Trap Door
Type | Technical Parameters |
Opening Dimensions | 600mm x 600mm or 800mm x 600mm |
Frame Material | High-strength Aluminum Alloy (6061-T6 / 6082-T6) |
Panel Material | Anti-slip Construction Plywood (WBP Glue) or Perforated Aluminum Alloy Plate (Anti-slip Aluminum) |
Opening Mechanism | Upward-opening; Angle: 90° – 180° |
Locking Device | Automatic Gravity Latch or Spring-loaded Self-locking Mechanism (Auto-lock latch) |
Load Rating | Class 3 (2.0 kN/m²) or Class 4 (3.0 kN/m²) |
Anti-slip Coefficient | Meets R10 rating or higher (suitable for wet/oily environments) |
Compliance Certifications | EN 12811-1, BS 1139, AS/NZS 1576 |
Fire Rating | Panel features flame-retardant properties (required for indoor or specialized industrial environments) |

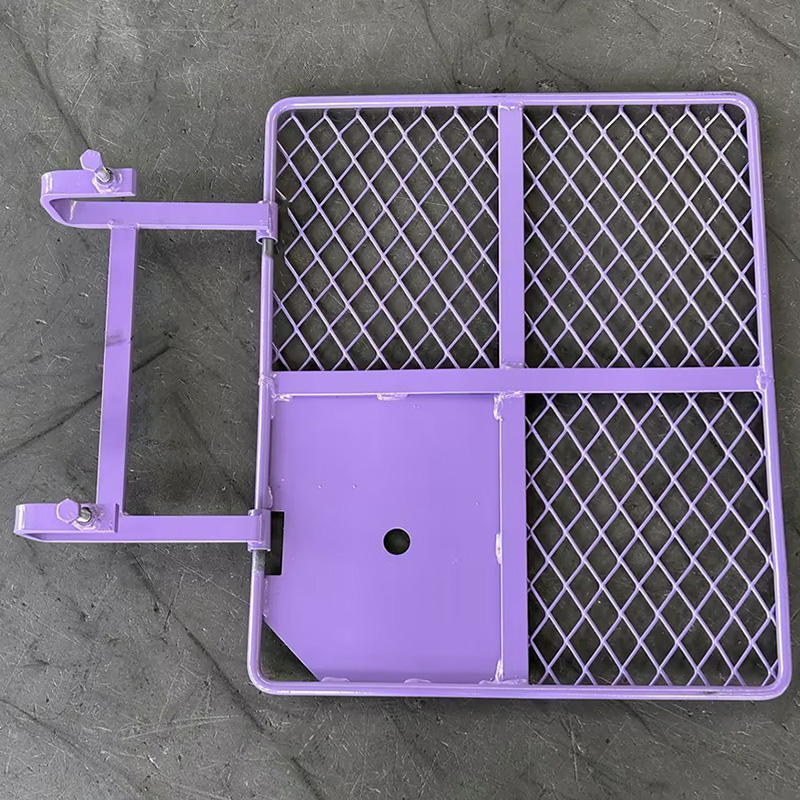

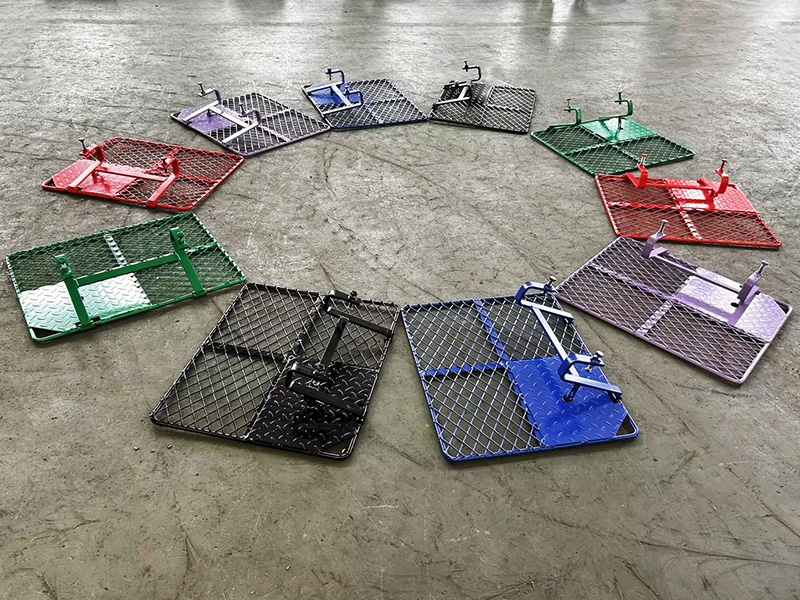

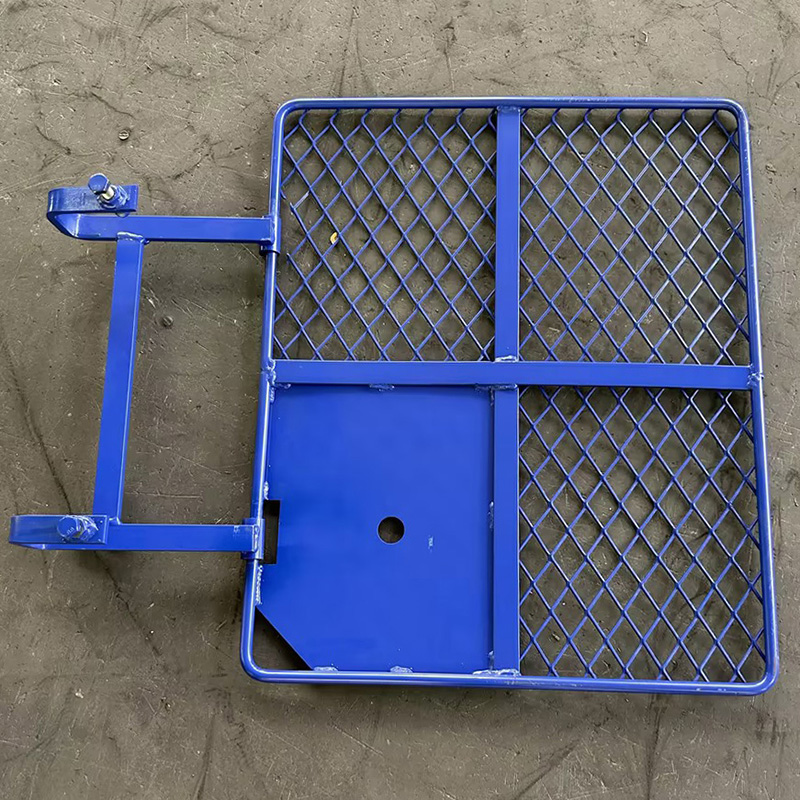

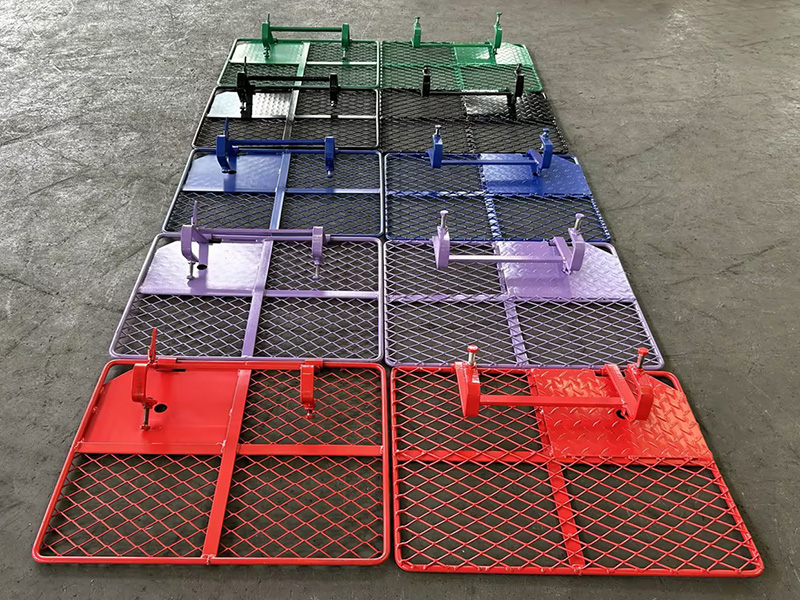

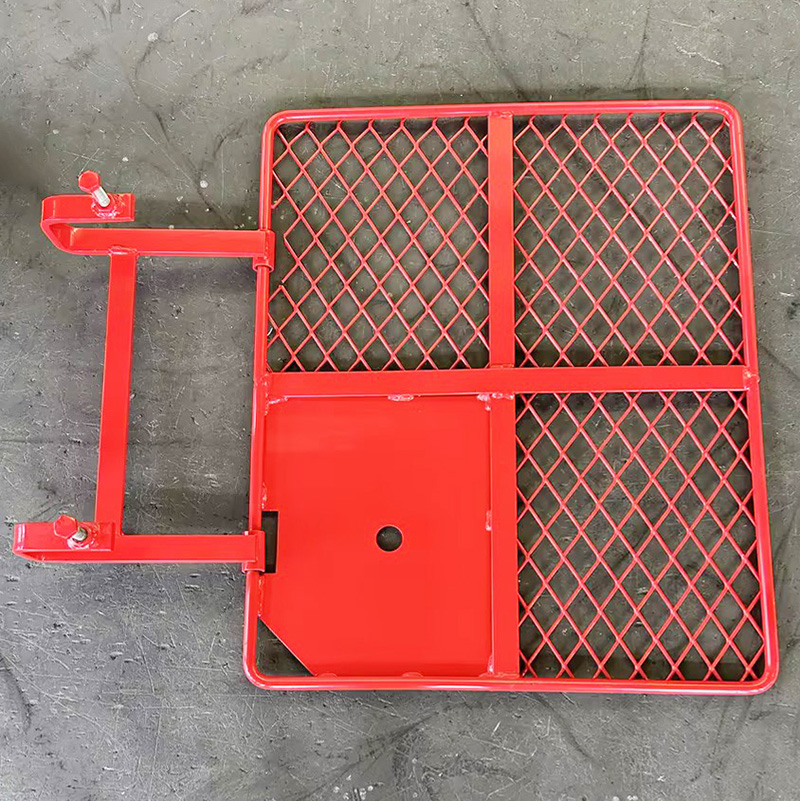

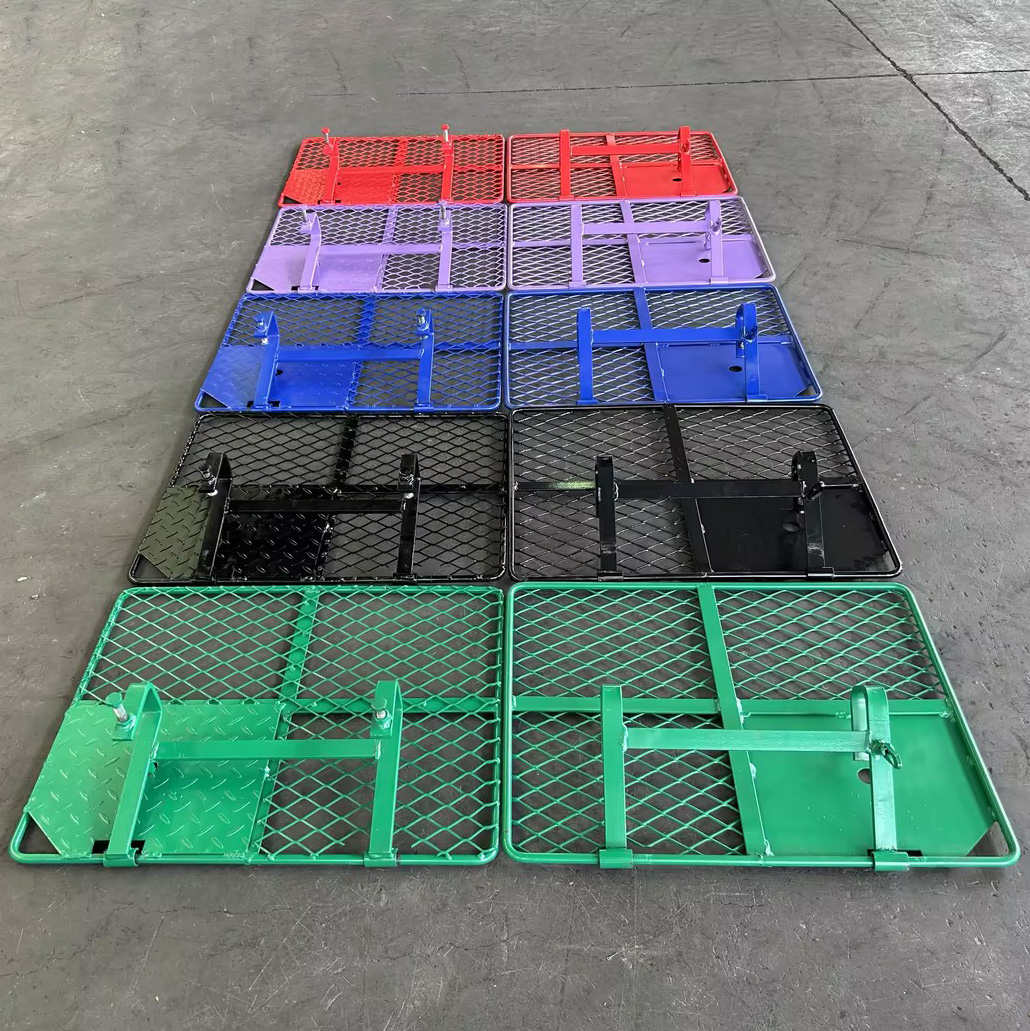

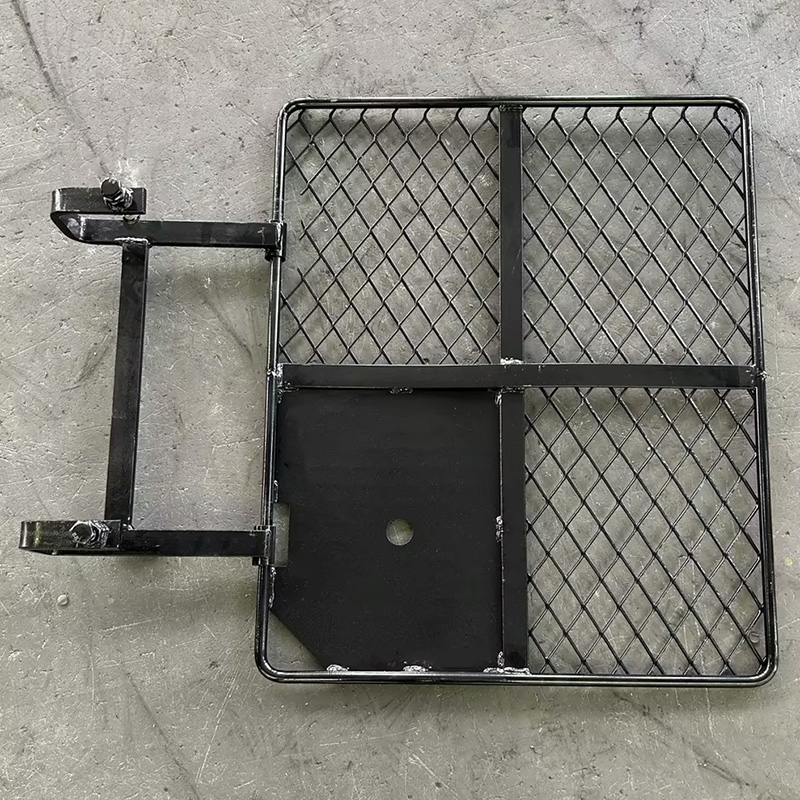

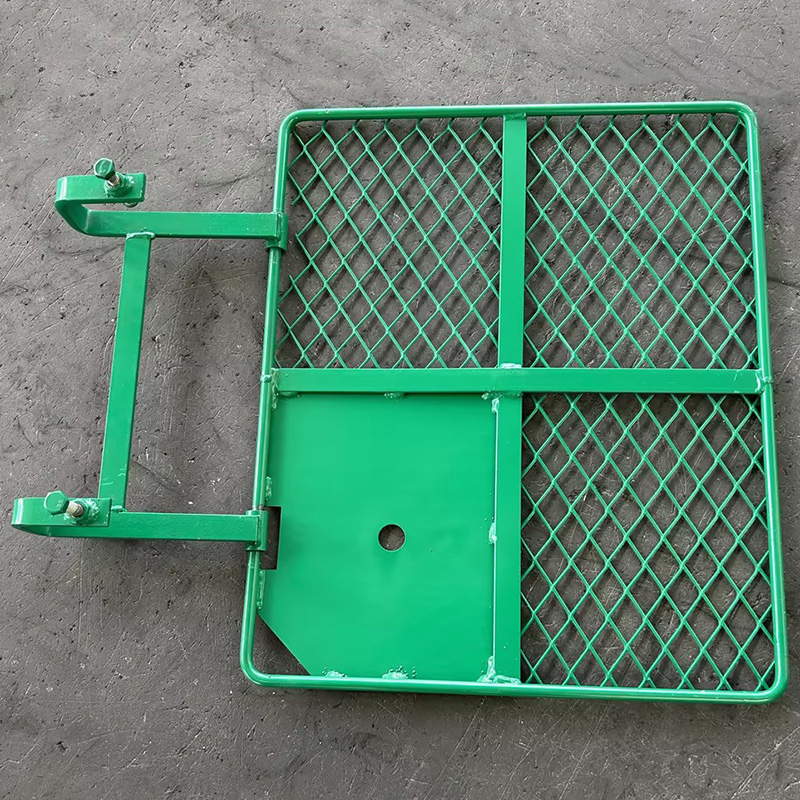

Surface Finish | Green, Black, Blue, Purple, Red |
Scaffolding Gate Pre-shipment Inspection Checklist
Checklist | Detail |
Visual Inspection | Free of welding slag and burrs; aluminum surfaces free of deep scratches. |
Automatic Locking | When opened upward to a 90-degree angle and released, the door panel closes and locks automatically via its own weight. |
Anti-Disengagement Feature | The scaffolding safety gate pin springs back vigorously and operates without jamming. |
Markings and Labels | Load capacity labels and safety warning decals are clearly legible and securely affixed. |
Scaffolding Trap Door FAQ
Q: How does the scaffolding trap door work in conjunction with the internal ladder?
A: A ladder hook is typically provided beneath the scaffolding trap door, or it connects directly to an integrated ladder system, ensuring that a worker's center of gravity remains centered within the scaffolding structure while climbing.
Q: Why is it mandatory to use scaffolding trap door platforms in scaffolding systems?
A: The primary function of the scaffolding trap door is to provide an internal vertical access route. Compliant with OSHA and EN 12811 safety standards, it ensures that workers remain protected by guardrails at all times while moving. When closed, the scaffolding trap door platform adds approximately 0.5–1.0 m² of working area and serves to prevent personnel and tools from falling.
Q: What is the standard Load Class for a scaffolding trap door platform?
A: The scaffolding trap door platform complies with the EN 12811-1 Class 3 standard, featuring a rated uniformly distributed load of 2.0 kN/m².
