What Is Kwikstage Scaffolding?

Name: Kwikstage scaffolding
Brand: EK Scaffolding
Availability: InStock

Kwikstage scaffolding is an easy-to-assemble modular system that is currently widely utilized across the UK, Ireland, Australia, South Africa, and the Gulf region. Kwikstage scaffolding is suitable for a wide range of elevated exterior operations, encompassing tasks such as bricklaying, plastering, carpentry, and exterior cladding installation. Furthermore, it serves as a safety measure, providing plumbers with a parapet-style safety barrier for roof work, thereby enabling the efficient and secure resolution of challenging gutter installation issues in residential, commercial, and industrial projects. The adoption of the Kwikstage scaffolding system not only results in substantial savings in assembly and dismantling time—thereby reducing labor costs—but also significantly enhances overall construction efficiency.
Alternative Names for Star Scaffolding:
Kwikstage scaffolding is also referred to as Quick-stage, Q-stage, K-stage, Star Scaffolding, Stage Scaffold, Q Stage Scaffold, Quick Shore, Star Shore, etc.

Get A Quote

Kwikstage Scaffolding — Top-Selling Countries

Currently, EK Scaffolding offers two types of Kwikstage scaffolding systems:

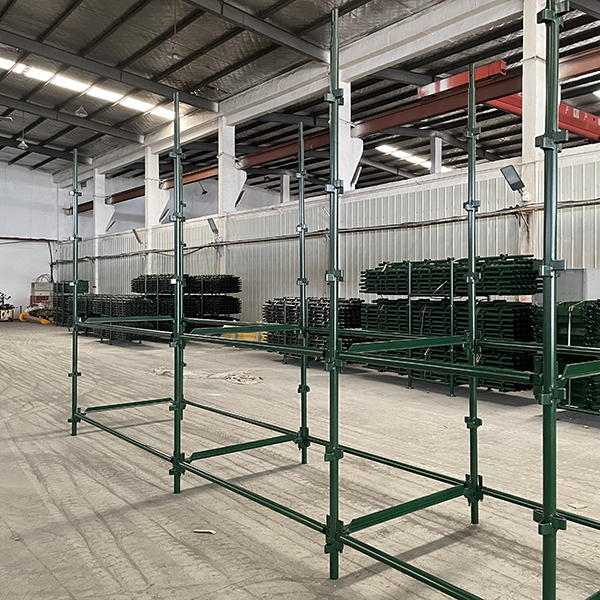

Australian Kwikstage Scaffolding

Australian Kwikstage scaffolding is manufactured in accordance with the AS1576 standard. Compared to aluminum scaffolding, it offers lower costs and is well-suited for high-rise construction projects. Painted Kwikstage scaffolding is also highly popular due to its affordability and cost-effectiveness.

Ask A Price

African Kwikstage Scaffolding

African Kwikstage scaffolding is manufactured specifically for scaffolding and formwork companies operating in the African region. This system features hook-on platforms and C-profile pressed transoms. This African style Kwikstage scaffolding can be utilized for both general building construction and as a rapid formwork support system.

Ask A Price

Specifications	Australia Kwikstage Scaffolding	African Kwikstage Scaffolding
Connection Method
Rosette Spacing	495.3mm	500mm
Welding Process	CO2 Shielded Welding; requires full penetration with a smooth, flat finish.	Industrial-grade welding, prioritizing the structural stability of connections.
Steel Grade	Q235 (S235)	Q355 (S355)
Standards	AS/NZS 1576.1/3	SANS 10085 或 BS 1139
Surface Treatment	Painted or Hot-Dip Galvanized (HDG); average zinc coating thickness >70μm	Painted or Hot-Dip Galvanized (HDG); average zinc coating thickness >70μm
Corrosion Resistance	Low	Low
Application Areas	Residential Construction	Driven by Industrial and Mining Sectors

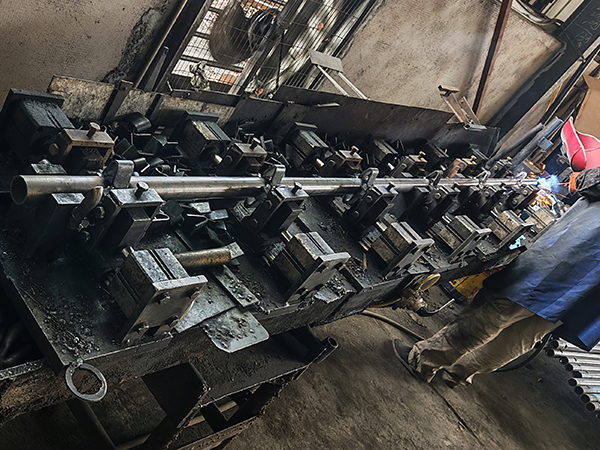

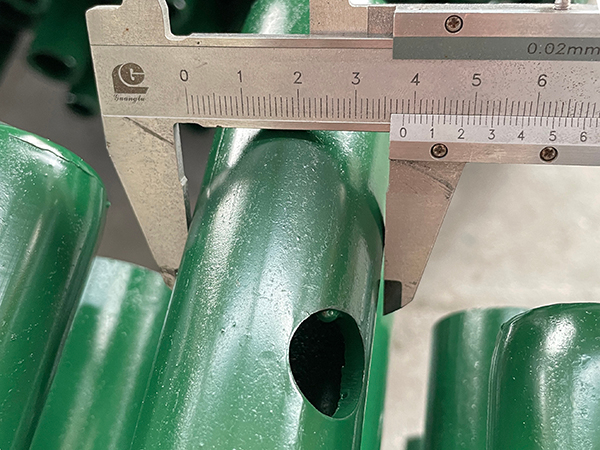

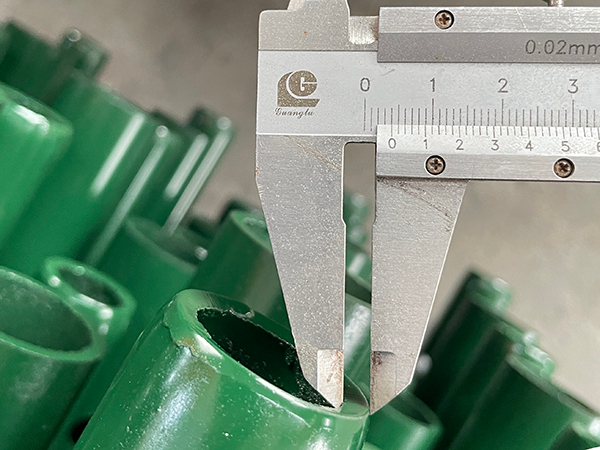

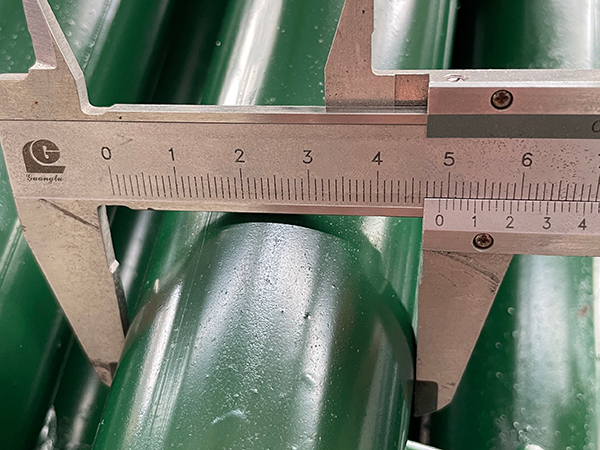

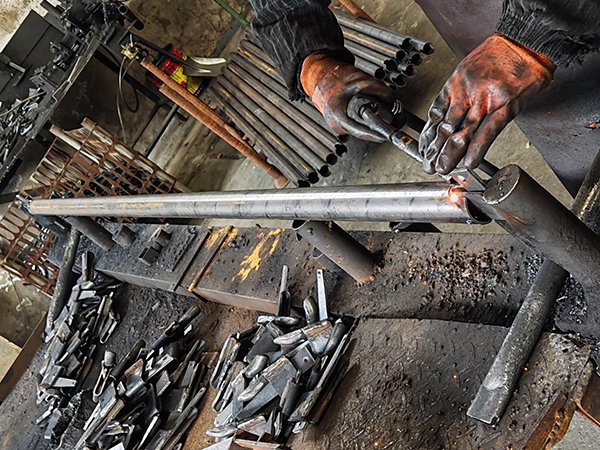

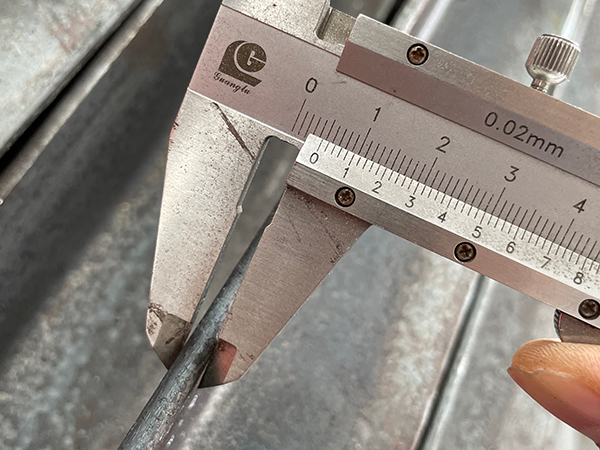

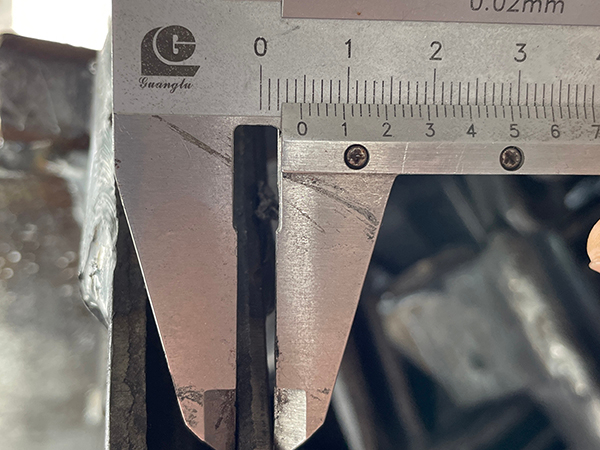

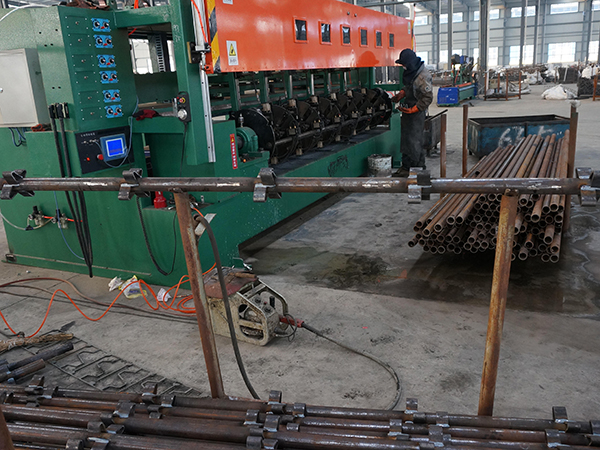

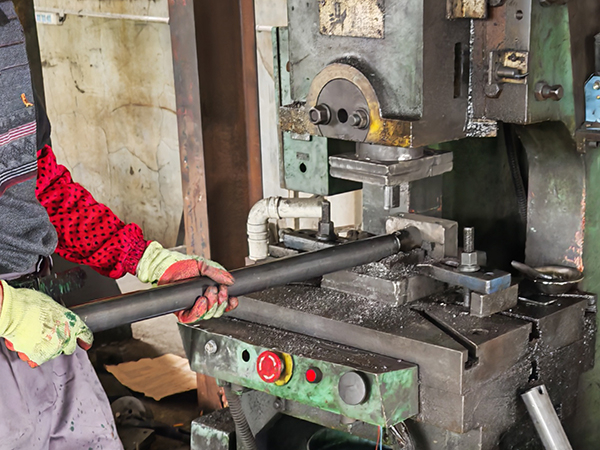

Kwikstage Scaffolding Production Process.

Get A Quote Now

Kwikstage Scaffolding System Components

Australian Kwikstage Scaffolding

Name	Image	Material	Specifications (mm)	Weight (kg)	Surface Finish
Standard		Q235	48.33.82972 48.33.82477 48.33.81981 48.33.81486 48.33.8991 48.33.8495	16.81 14.12 11.43 8.75 6.06 3.37	Painting Hot-dip galvanizing

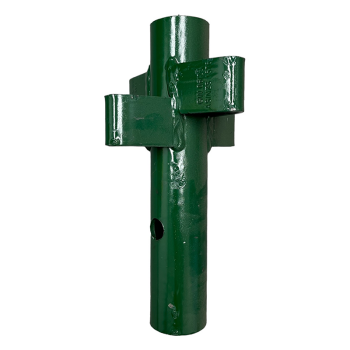

Topper		Q235	48.33.8250	1.66	Painting Hot-dip galvanizing

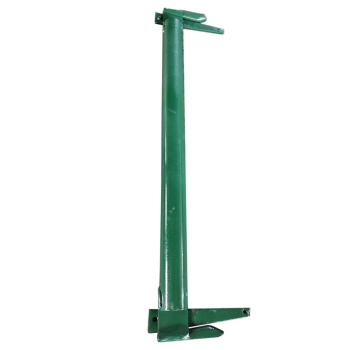

Ledger		Q235	48.33.02438 48.33.01829 48.33.01270 48.33.01000 48.33.0812 48.33.0760 48.33.0560	8.90 6.86 4.98 4.08 3.45 3.28 2.60	Painting Hot-dip galvanizing
Transom		Q235	50504.03048 50504.02438 50504.01829 50504.01270 50504.01000 50504.0812 50504.0760 50504.0560 50504.0*300	23.72 18.98 14.24 8.15 6.45 5.32 5.09 3.89 2.25	Painting Hot-dip galvanizing
Brace		Q235	48.33.03475 / 24772438 48.33.03141 / 19812438 48.33.02855 / 14862438 48.33.02696 / 19811829 48.33.02353 / 19811270 48.33.01955 / 14861270 48.33.01670 / 1486760 48.33.02220 48.33.0*1220	13.15 12.03 11.07 10.54 9.39 8.05 7.10 8.94 5.59	Painting Hot-dip galvanizing

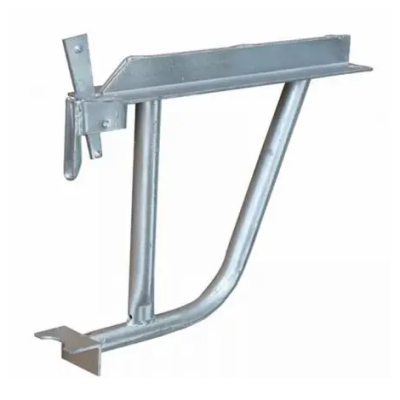

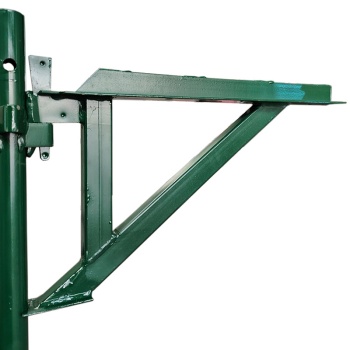

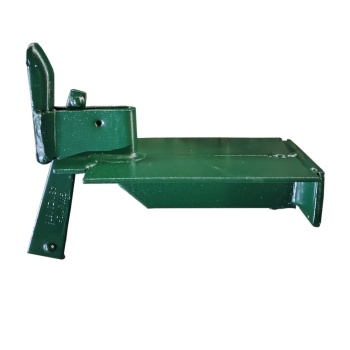

Hopup		Q235	50505.0762 / 50303.0 / H405 50505.0534 / 40403.0 / H405 50505.0263 / 508.0*85	9.45 5.96 2.36	Painting Hot-dip galvanizing
Tie Bar		Q235	40404.02412/2374 / 1245 40404.01803/1765 / 1245 40404.01244/1206 / 1245 40404.0974/936 / 1245 40404.0736/698 / 1245 40404.0534/496 / 1245	5.88 4.42 3.07 2.43 1.86 1.37	Painting Hot-dip galvanizing

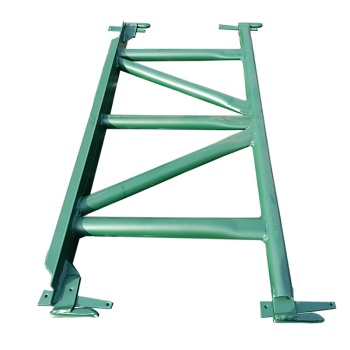

Truss Transom		Q235	50505.02438/ 48.33.0 / 48.32.5 50505.01270/ 48.33.0 / 48.32.5	37.24 22.21	Painting Hot-dip galvanizing

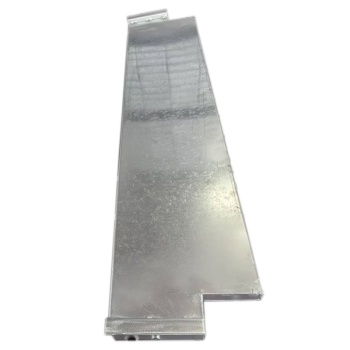

Kick Board		Q235	240251.8*1260	6.40	Painting Hot-dip galvanizing

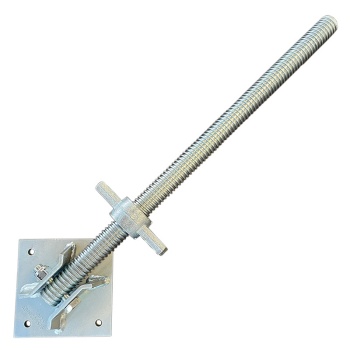

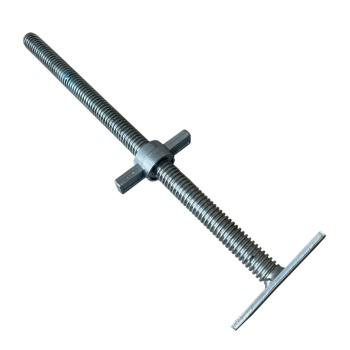

Base Jack		Q235	34650 / 1501508.0 34650 / 1501508.0	6.12 6.61	Painting Hot-dip galvanizing Electro-galvanizing

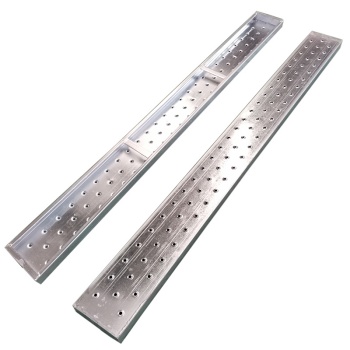

Scaffolding Plank		Q195	230631.72420 230631.71810 230631.71250 230631.7740	14.34 11.03 7.73 4.71	Painting Hot-dip galvanizing
Ladder Transom		Q235	760 / 50505.0 / 48.33.2 / S23 812 / 50505.0 / 48.33.2 / S23 1270 / 50505.0 / 48.3*3.2 / S23	5.91 6.09 7.79	Painting Hot-dip galvanizing

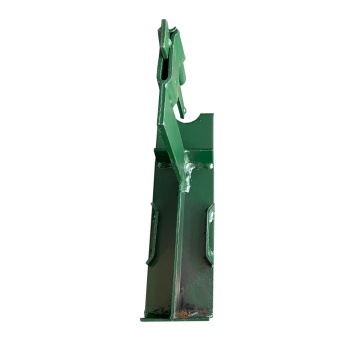

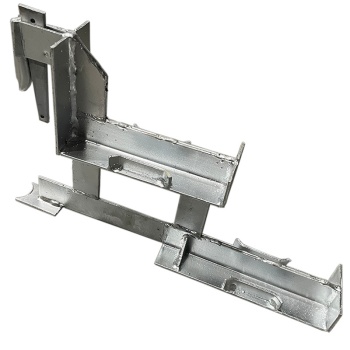

Step Down Bracket		Q235	339.5100238 560100330	4.03 6.29	Painting Hot-dip galvanizing

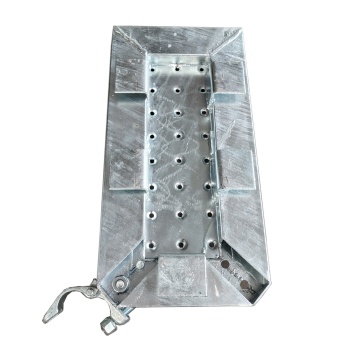

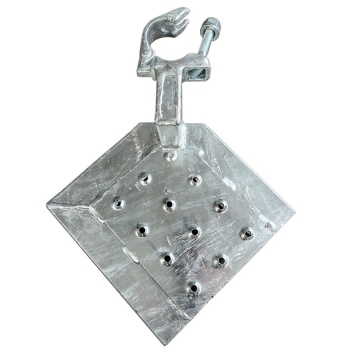

Corner Bracket		Q235	245245 / S23 520260 / S23 750260 / S23 520520 / S23 750520 / S23 750750 / S23	4.65 9.27 11.51 14.04 18.46 22.89	Painting Hot-dip galvanizing

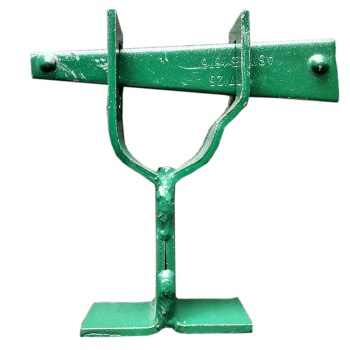

Toe Board Clip		Q235	881654.75	0.86	Painting Hot-dip galvanizing

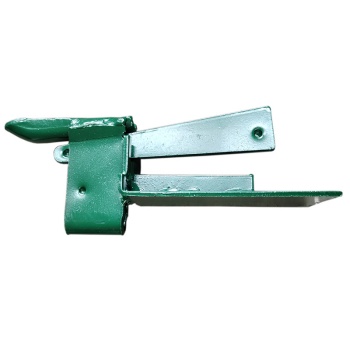

End Toe Board Clip		Q235	8089254 / 3.5	1.04	Painting Hot-dip galvanizing
Pallets		Q235	870870700	32.65	Painting Hot-dip galvanizing
Cages		Q235	870870700	62.01	Painting Hot-dip galvanizing

African Kwikstage Scaffolding

Name	Image	Material	Specifications (mm)	Weight (kg)	Surface Finish
Standard		Q355	48.43.354000 48.43.353500 48.43.353000 48.43.352500 48.43.352000 48.43.351500 48.43.351000 48.43.35500	19.69 17.23 14.76 12.30 9.84 7.38 4.92 2.46	Painting Hot-dip galvanizing
Ledger		Q355	48.42.652500 48.42.652000 48.42.651500 48.42.651295 48.42.651219 48.42.65900 48.42.65600	8.14 6.65 5.15 4.54 4.31 3.36 2.46	Painting Hot-dip galvanizing
Brace		Q355	48.43.3535003500/4949 48.43.3535003000/4610 48.43.3535002500/4301 48.43.3535002000/4031 48.43.3535001500/3808 48.43.3530003000/4243 48.43.3530002500/3905 48.42.6530002000/3606 48.42.6530001500/3354 48.42.6525002500/3535 48.42.6525002000/3201 48.42.6525001500/2915 48.42.6520002000/2828 48.42.6520001500/2500 48.42.651500*1500/2121	20.24 18.98 17.83 16.82 15.99 17.61 16.36 12.53 11.78 12.32 11.32 10.47 10.21 9.22 8.09	Painting Hot-dip galvanizing

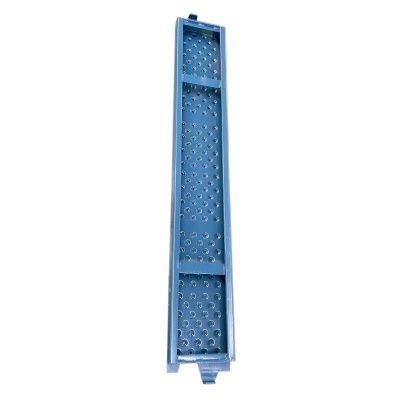

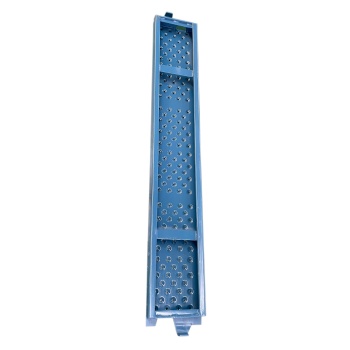

Scaffolding Plank		Q235	227632.02500 227632.02000 227632.01500 227632.01295 227632.01219 227632.0900 227632.0*600	18.15 14.66 11.51 10.22 9.74 7.73 5.84	Painting Hot-dip galvanizing

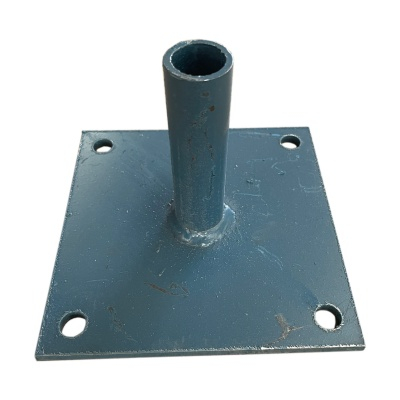

Base Plate		Q235	272.0100 / 1501506.0	1.18	Painting Hot-dip galvanizing

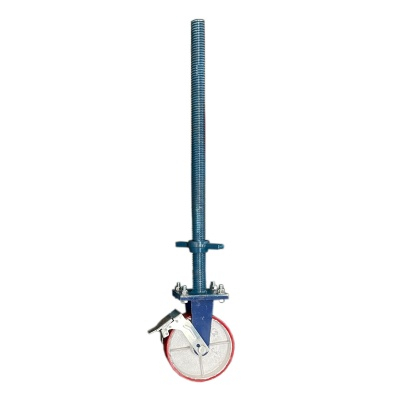

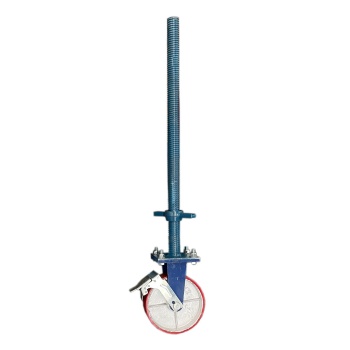

Wheel		Q235	20050 / 38.14.0*710	9.00	Painting Hot-dip galvanizing

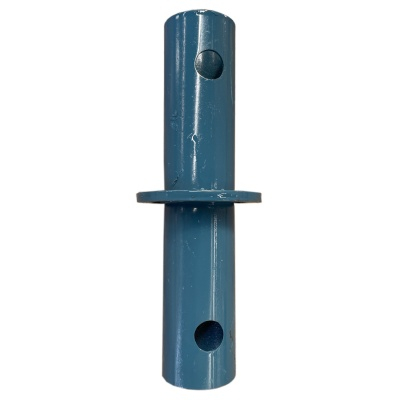

Connector		Q235	38.12.0185 / 66*5.0	0.43	Painting Hot-dip galvanizing

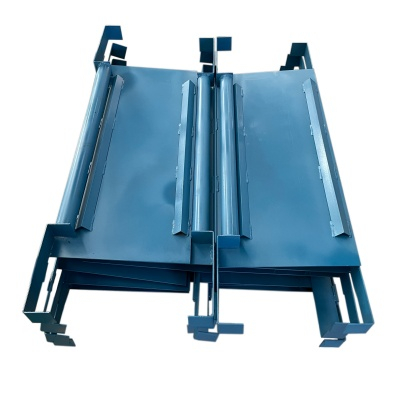

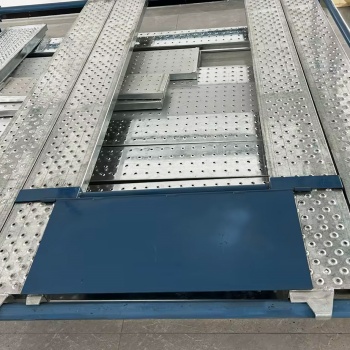

Board Trap Door		Q235	790482 600365	12.17 8.07	Painting Hot-dip galvanizing

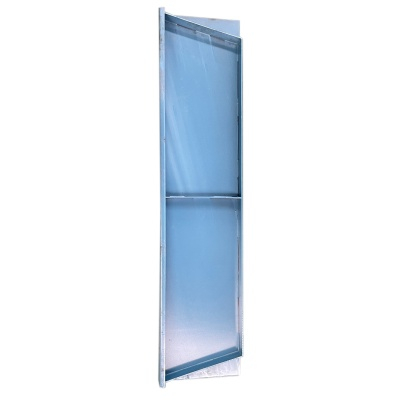

Toe Board		Q235	210402.02500 210402.02000 210402.01500 210402.01295 210402.01219 210402.0900 210402.0*600	12.66 10.21 7.59 6.59 6.22 4.65 3.18	Painting Hot-dip galvanizing

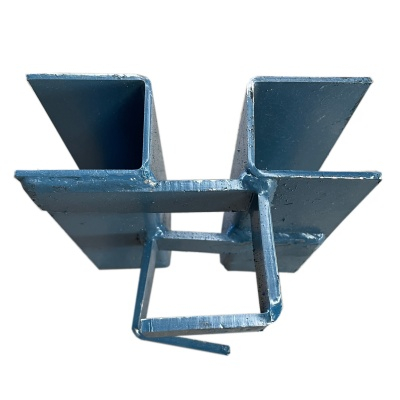

Toe Board Clip		Q235	150*190	1.79	Painting Hot-dip galvanizing

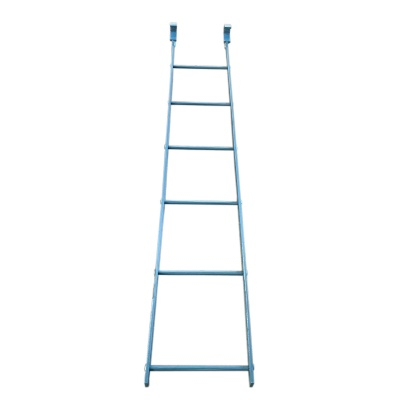

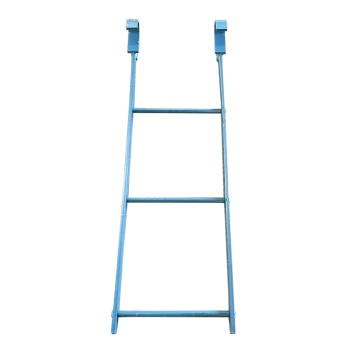

Scaffolding Ladder		Q235	3303000 3302000 330*1000	25.23 17.34 9.45	Painting Hot-dip galvanizing

Product Components

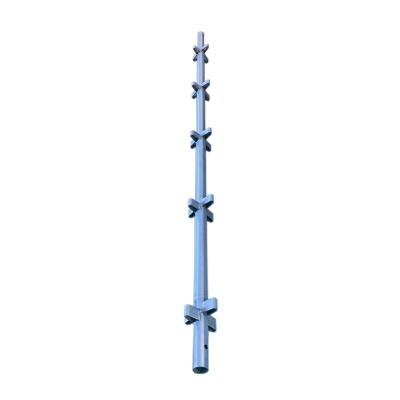

Kwikstage Scaffolding Standard / Vertical

Kwikstage scaffolding standard is the vertical structural member of the scaffolding system, made of Φ48.3x 4mm tube. Standard has V-stampings on 495mm centers to provide anchor points for transoms, ledgers, brackets, Hop up etc and secure a socket at the top.
V-shaped presses allow them to hold transoms, ledgers, brackets or Hop-ups. Each standard is locked vertically by securing the expansion joint pins and tightened by hammering the securing box wedges.

Send An Inquiry

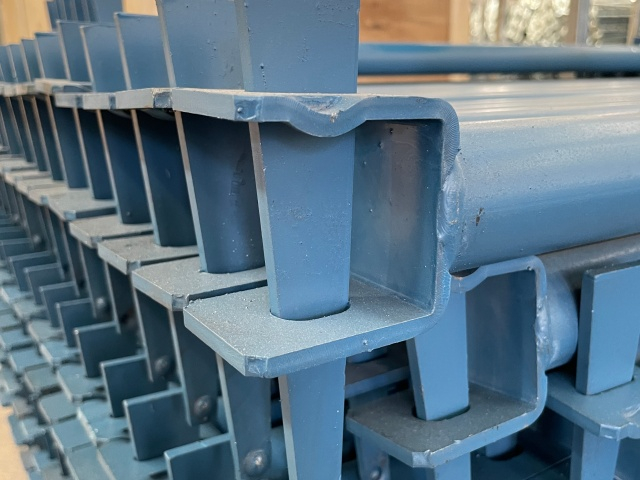

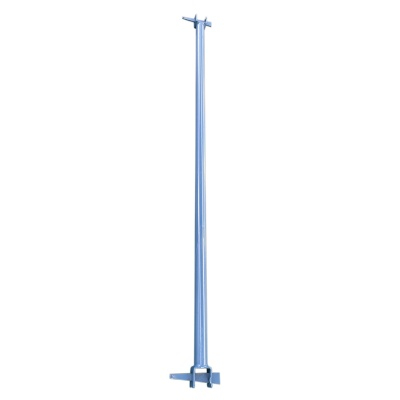

Kwikstage Scaffolding Ledger / Horizontal

Kwikstage scaffolding ledgers are placed horizontally along the length of the scaffolding and form a fixed distance between Kwikstage scaffolding standard. All sizes are produced from the same 48OD x 4MM tubing as standard. Socket and captive wedge arrangements at each end allow for easy coupling and uncoupling of "V" stampings. Ledgers range in size from 0.5M to 2.4M and provide workers with support for various Kwikstage and templating applications.

Send An Inquiry

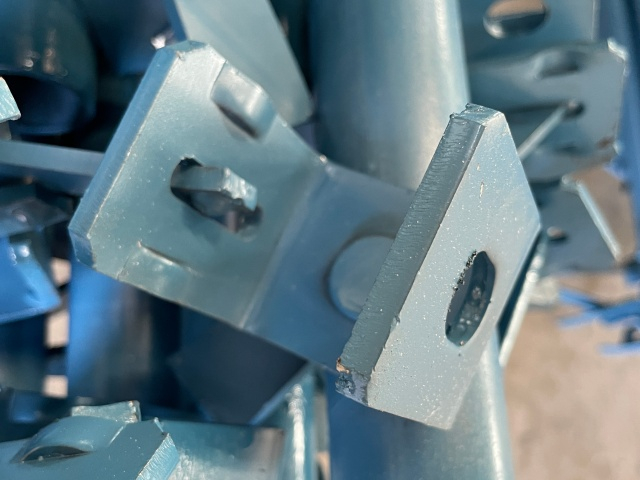

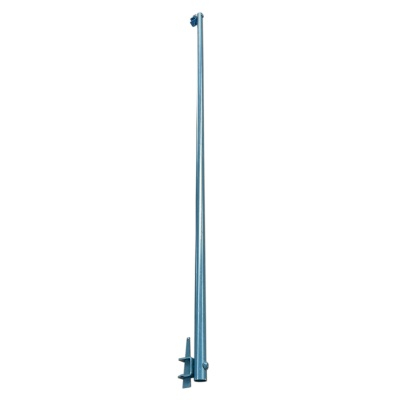

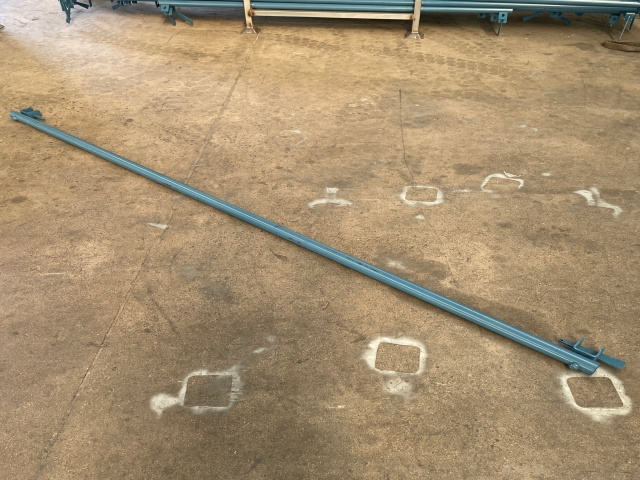

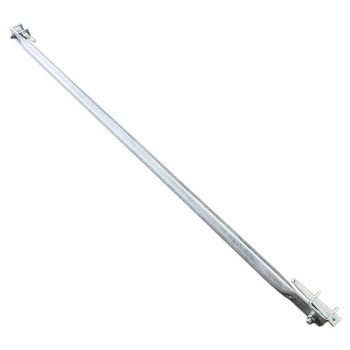

Kwikstage Scaffolding Diagonal Brace

Kwikstage system scaffolding diagonal braces, also known as bay braces, are a primary scaffolding component that provide additional strength to a structure and keep it stable. The Kwikstage Scaffolding Diagonal Brace is made from 48.3mm diameter tubing with swivel C-sections and wedges at both ends, and secures a "V" brace on a Kwikstage scaffolding standard. Their function is to provide lateral and vertical support for the scaffolding structure. They resist swaying forces from wind and horizontal loads imposed on the scaffold by worker movement.

Send An Inquiry

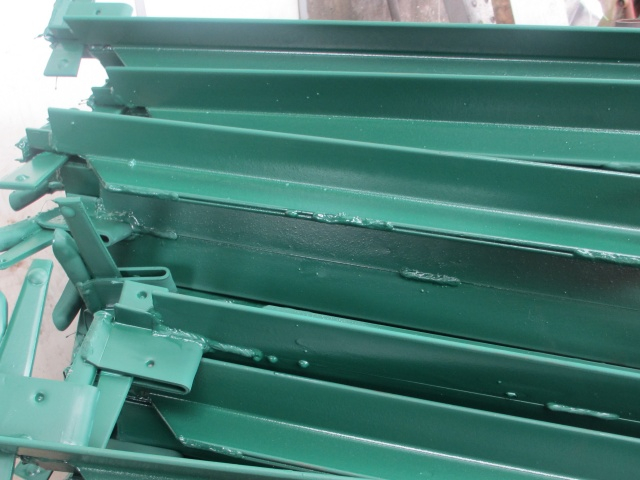

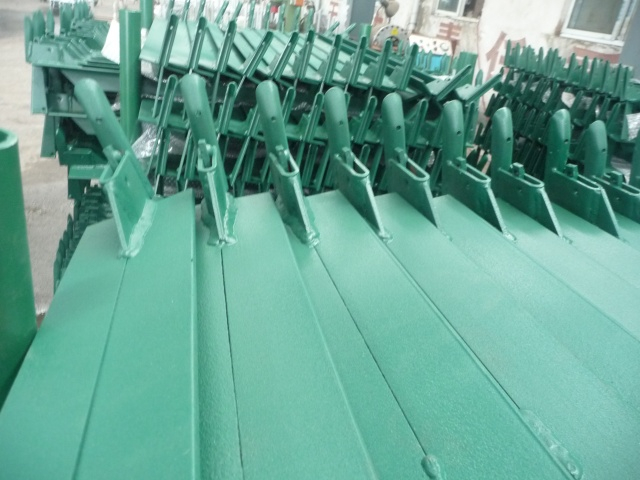

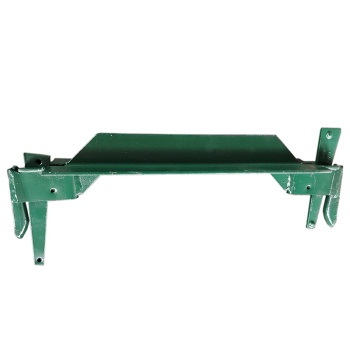

Kwikstage Scaffolding Transoms

The Kwikstage Scaffolding Transom fits into a standard lower "V" compression to carry the steel plate, creating a safe working platform. The Kwikstage Scaffolding Transom is constructed from two 5.00mm steel angles welded back to back, each transom is available in a variety of sizes, ranging from 0.7M to 2.4M, and can accommodate 3 to 10 planks. Usually constructed of galvanized steel, ensure that each beam is equipped with the ability to support equipment and workers.

Send An Inquiry

Why Choose Kwikstage Scaffolding?

Simple Installation

Kwikstage scaffolding utilizes a modular, self-locking wedge connection system that significantly accelerates the speed of scaffolding erection and dismantling. The ledgers and diagonal braces feature integrated wedge pins; these can be inserted directly into the "star-shaped sockets" (V-pressings) on the standards to achieve a secure lock, eliminating the need for tools such as nuts and bolts.
Safety and Stability

Designed using high-quality steel, this system features a unique interlocking mechanism that ensures exceptional stability and structural rigidity, even when the scaffolding is subjected to heavy loads. Guardrails, toe boards, and "Hop-up Brackets" (platform extensions) enhance worker safety during high-altitude operations, helping to prevent accidents such as falls.
Versatility and Flexibility

The star-shaped sockets on the standards allow for the simultaneous connection of ledgers in four directions. This feature provides exceptional adaptability to building projects of various shapes and configurations, offering highly flexible and versatile solutions. It is suitable for a wide range of applications, including high-rise building construction, bridge engineering, and industrial facility maintenance.
Corrosion Resistance and Durability

Typically treated with hot-dip galvanization or protective paint coatings, Kwikstage scaffolding exhibits strong resistance to corrosion, making it suitable for use in harsh environments—such as coastal regions with high salt-spray levels. All components are manufactured from high-strength steel and are free of fragile threaded parts, ensuring a long service life and excellent reusability across multiple projects.
Cost-Effectiveness

The rapid assembly process effectively reduces labor costs, while the robust and durable nature of the system minimizes maintenance and replacement expenses. By allowing for repeated use across numerous projects, Kwikstage scaffolding significantly enhances overall cost-efficiency.

Simple Installation

Kwikstage scaffolding utilizes a modular, self-locking wedge connection system that significantly accelerates the speed of scaffolding erection and dismantling. The ledgers and diagonal braces feature integrated wedge pins; these can be inserted directly into the "star-shaped sockets" (V-pressings) on the standards to achieve a secure lock, eliminating the need for tools such as nuts and bolts.
Safety and Stability

Designed using high-quality steel, this system features a unique interlocking mechanism that ensures exceptional stability and structural rigidity, even when the scaffolding is subjected to heavy loads. Guardrails, toe boards, and "Hop-up Brackets" (platform extensions) enhance worker safety during high-altitude operations, helping to prevent accidents such as falls.
Versatility and Flexibility

The star-shaped sockets on the standards allow for the simultaneous connection of ledgers in four directions. This feature provides exceptional adaptability to building projects of various shapes and configurations, offering highly flexible and versatile solutions. It is suitable for a wide range of applications, including high-rise building construction, bridge engineering, and industrial facility maintenance.
Corrosion Resistance and Durability

Typically treated with hot-dip galvanization or protective paint coatings, Kwikstage scaffolding exhibits strong resistance to corrosion, making it suitable for use in harsh environments—such as coastal regions with high salt-spray levels. All components are manufactured from high-strength steel and are free of fragile threaded parts, ensuring a long service life and excellent reusability across multiple projects.
Cost-Effectiveness

The rapid assembly process effectively reduces labor costs, while the robust and durable nature of the system minimizes maintenance and replacement expenses. By allowing for repeated use across numerous projects, Kwikstage scaffolding significantly enhances overall cost-efficiency.

Get a Quick Quote

Kwikstage scaffolding is flexible in design, each component can be easily adapted to different projects, just need to add or remove modules in the design.
Kwikstage scaffolding is easy to use, can be assembled quickly, saves erection time, and is ideal for construction projects that require regular movement.
Kwikstage scaffolding is very durable and stable, providing security.
Kwikstage scaffolding is cost effective. While it may be more expensive than a wood scaffolding system, it will last longer.
Kwikstage scaffolding is highly adaptable, making it suitable for a variety of projects, regardless of the size or shape of the structure.
Kwikstage scaffolding can be used on sloped or uneven ground.

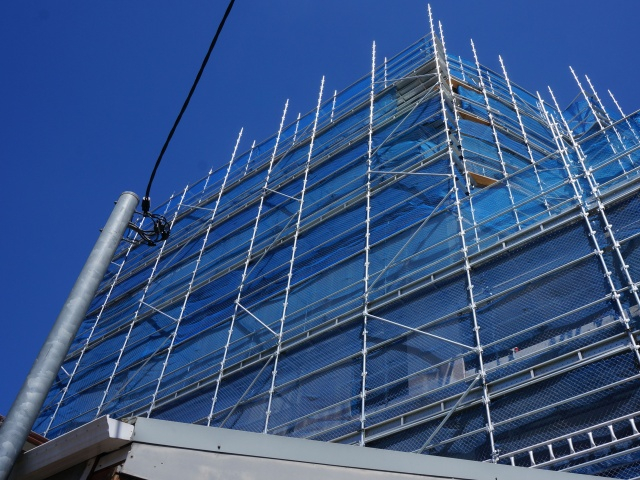

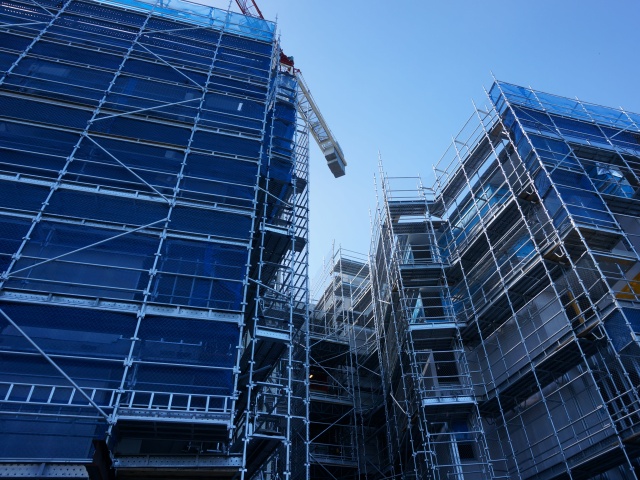

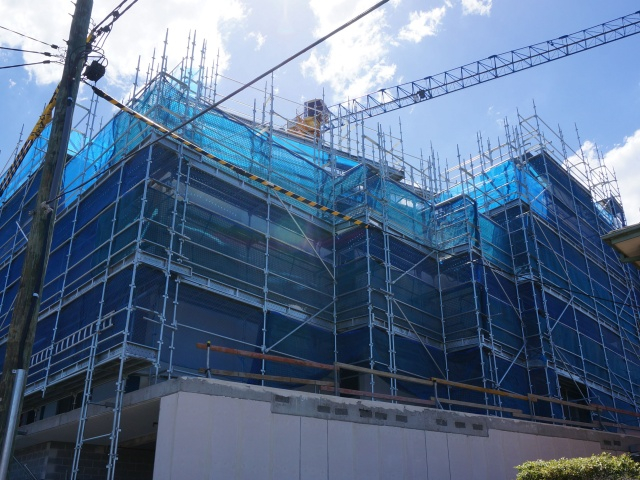

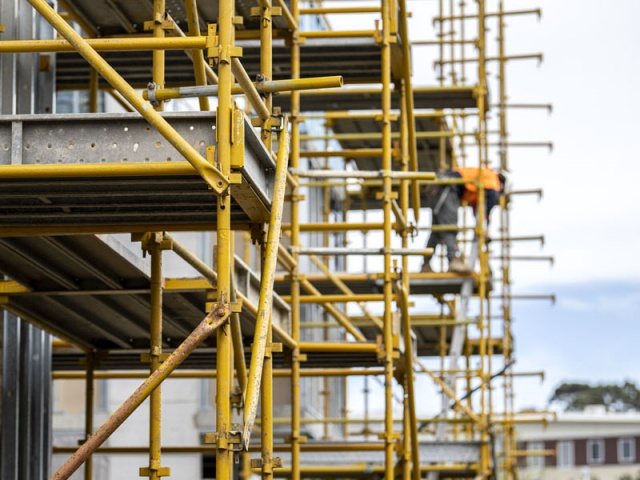

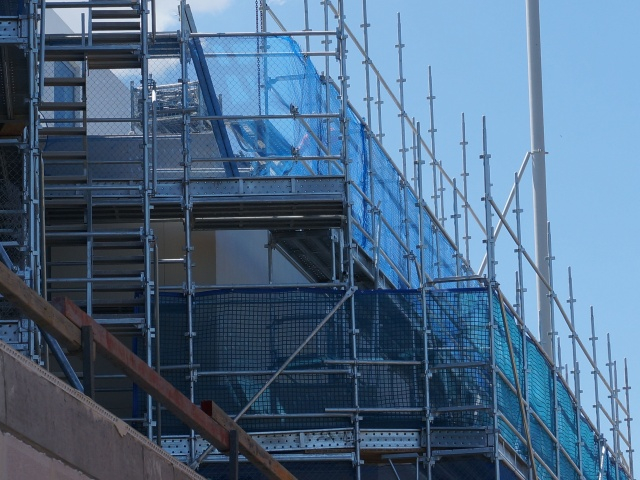

Kwikstage Scaffolding Application

Australian Kwikstage Scaffolding

The standard choice for residential housing and mid-rise commercial buildings across Australia. Specifically engineered to comply with the AS/NZS 1576 standard, it is designed to withstand the corrosive, high-salinity environments typical of Australia's coastal cities.

Residential Exteriors: Perfectly suited for bricklaying, rendering, and roofing operations on single-family homes and townhouses.

Safe Access: Provides code-compliant Stair Towers to ensure the safety of vertical personnel movement across the worksite.

Flexible Extension: Utilizes "Hop-up Brackets" to rapidly adjust working platform widths, allowing masons and painters to work in close proximity to the building's exterior walls.

African Kwikstage Scaffolding

Deployed in large-scale infrastructure, mining, and power generation projects. While offering exceptional cost-effectiveness, it delivers superior load-bearing capacity and structural stability compared to traditional tube-and-coupler scaffolding systems.

Industrial Maintenance: Widely utilized for major boiler and pipeline overhauls in refineries, cement plants, and power stations; its robust "Star Lug" connections are capable of withstanding high-frequency vibrations.

Infrastructure Development: Employed for bridge pier support during concrete pouring or for constructing work platforms within tunnels, capable of adapting to complex and variable terrain conditions.

Mining Platforms: Meets the heavy-duty load-bearing requirements for mining equipment installation and conveyor belt maintenance operations.

Kwikstage Scaffolding Manufacturer In China – EK scaffolding

We strictly adhere to ISO 9001 standards for the quality management of our Kwikstage scaffolding, while rigorously enforcing ISO 3834 and EN 1090 CE standards for welding quality control.
We offer a comprehensive range of Kwikstage scaffolding products in all specifications, including: standards, ledgers, diagonal braces, steel planks, base jacks, truss, corner bracket, step down bracket, ladder transom, toe board clips, toe board clip, end toe board clip, as well as various other accessory components.

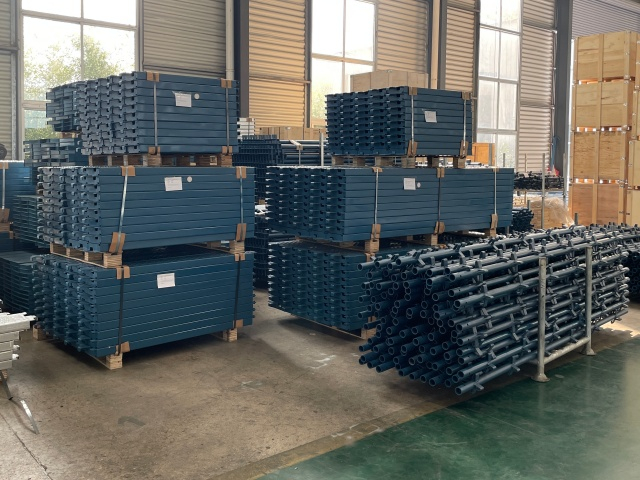

Bulk Production from EK Scaffolding Manufacturer

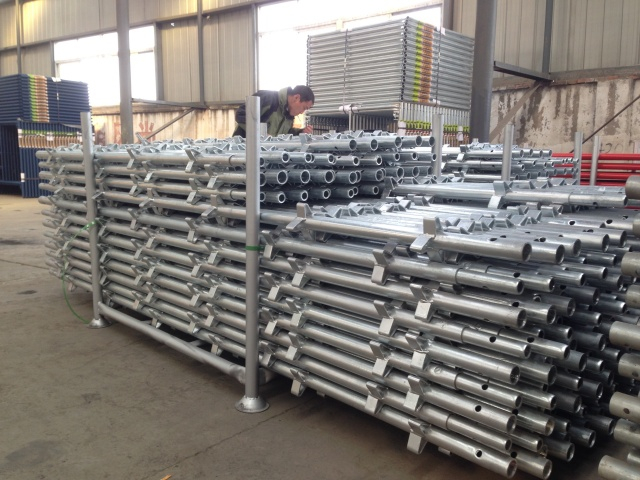

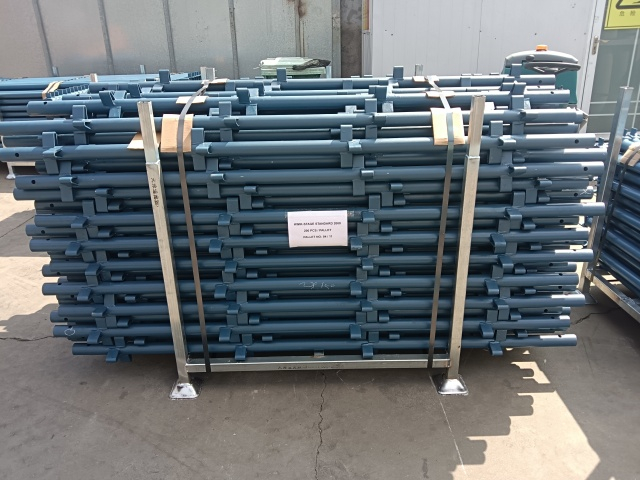

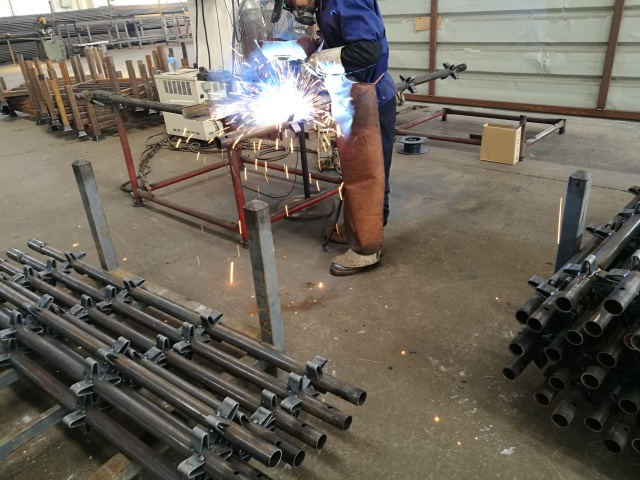

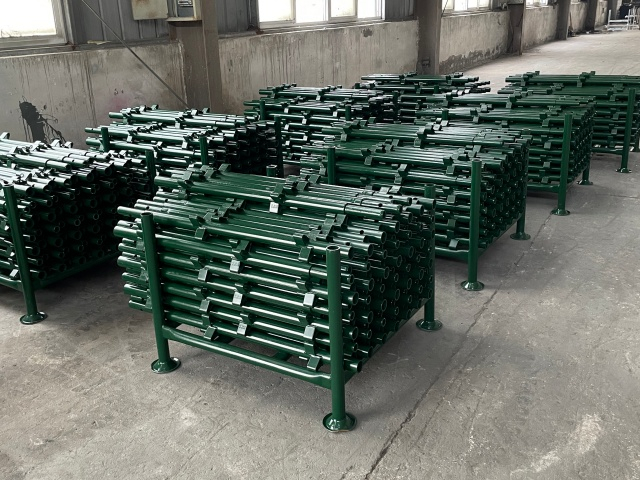

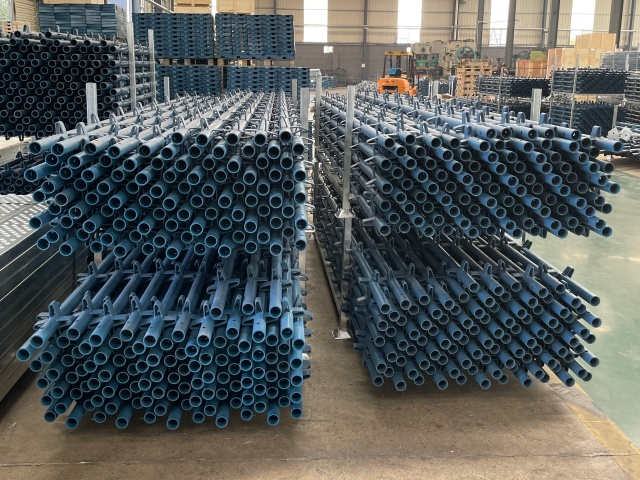

Kwikstage Scaffolding Standard

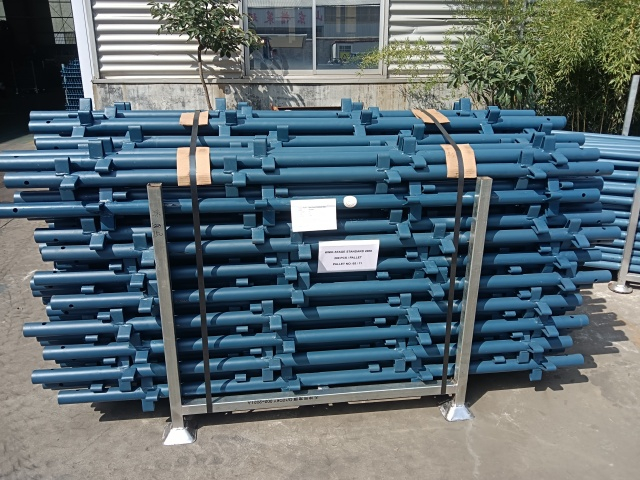

Kwikstage Scaffolding Standard

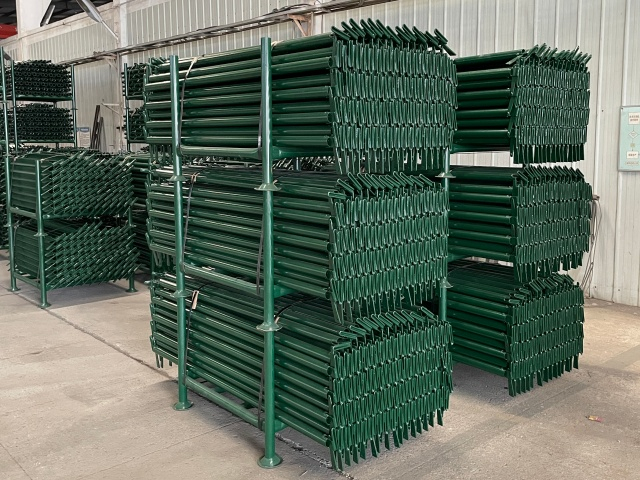

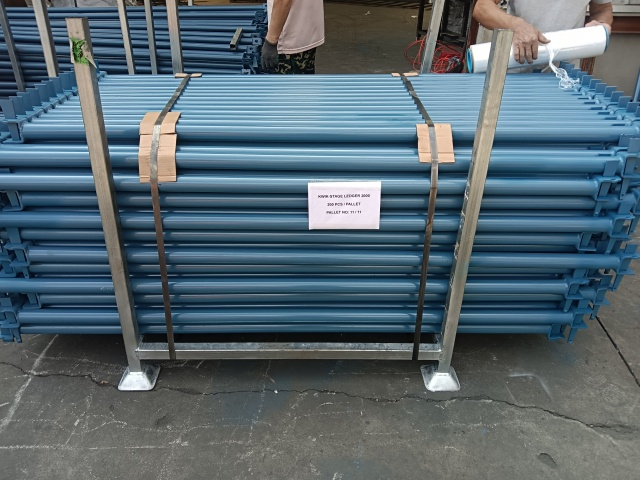

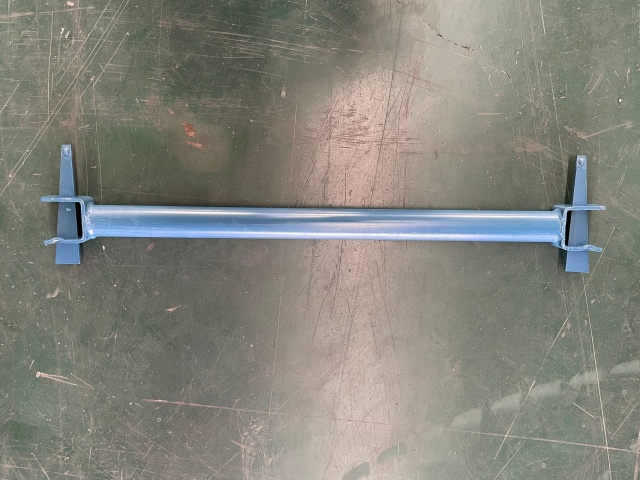

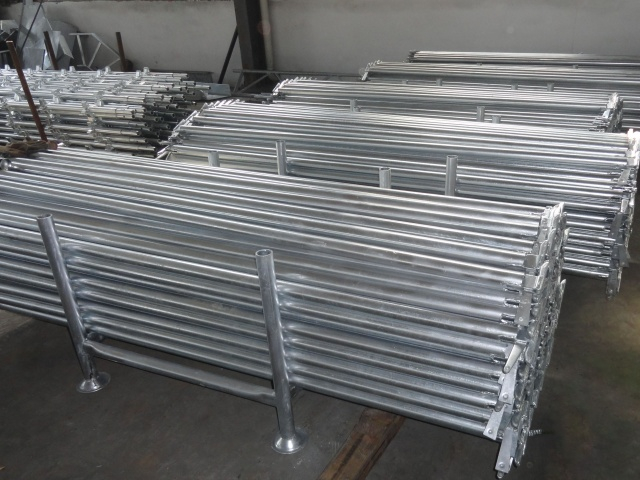

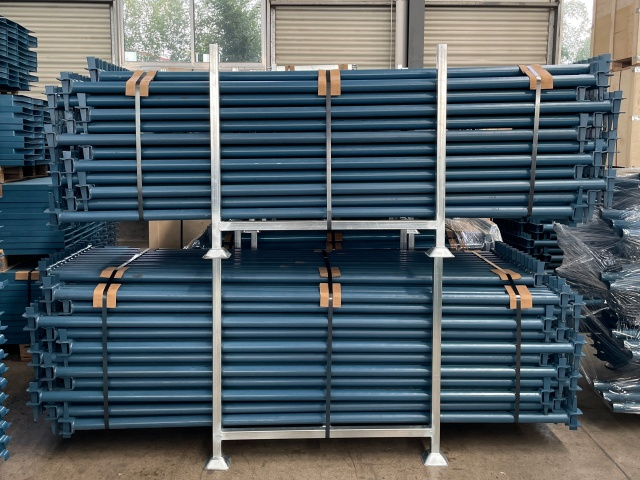

Kwikstage Scaffolding Ledger

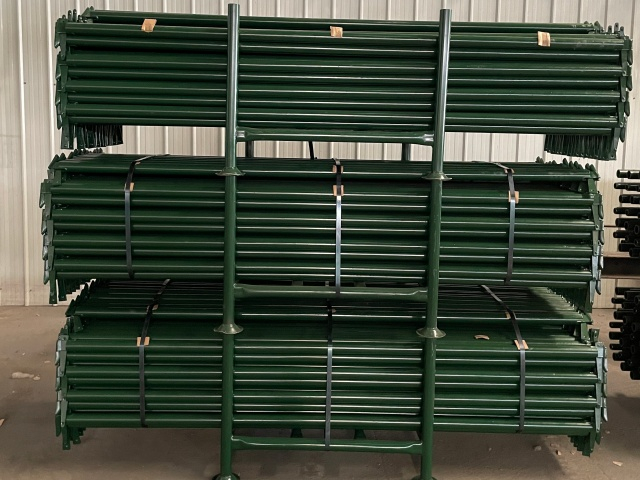

Kwikstage Scaffolding Ledger

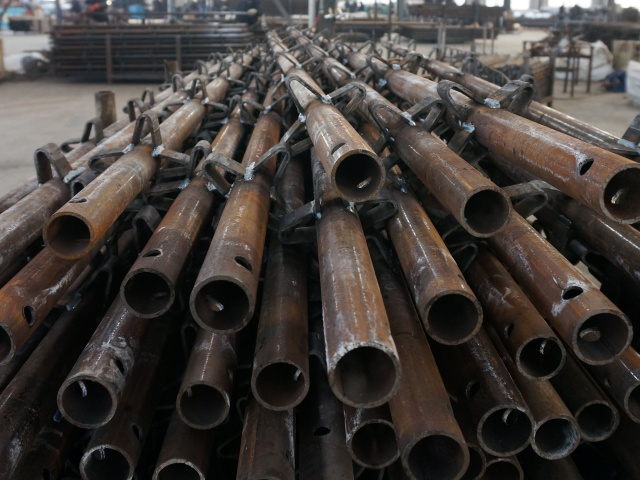

Kwikstage Scaffolding Standard

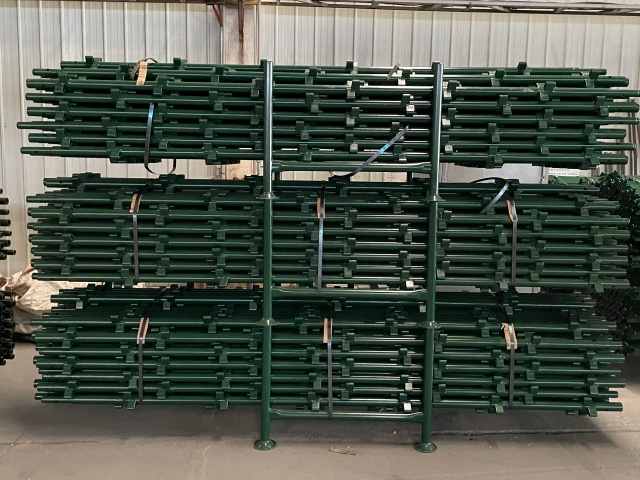

Kwikstage Scaffolding Standard
Kwikstage Scaffolding Standard
Kwikstage Scaffolding System

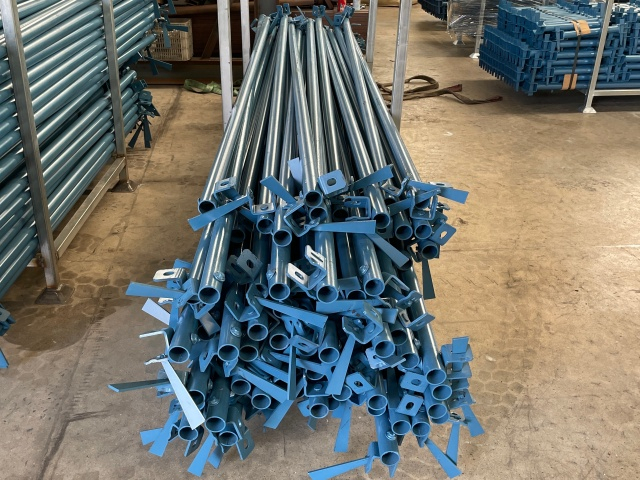

Kwikstage Scaffolding Diagonal Brace

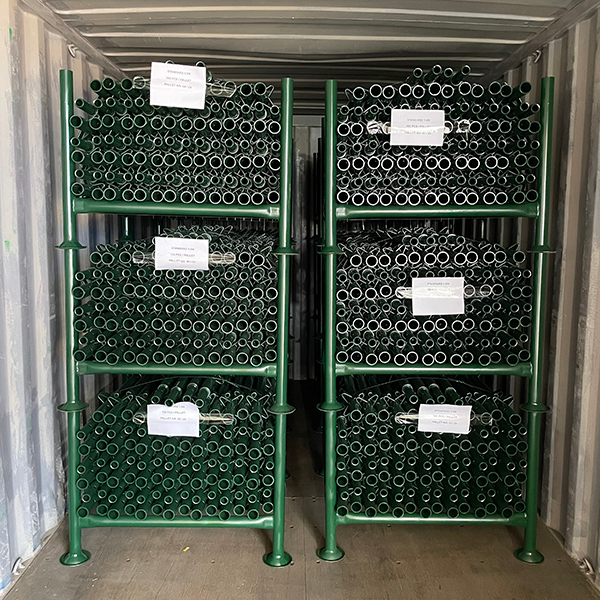

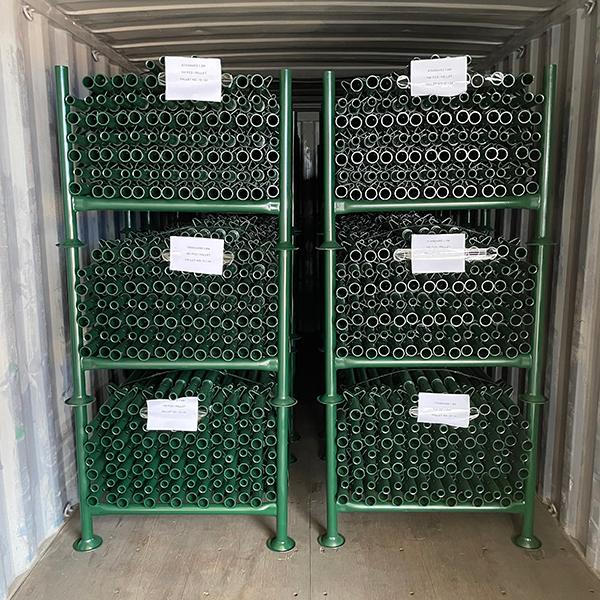

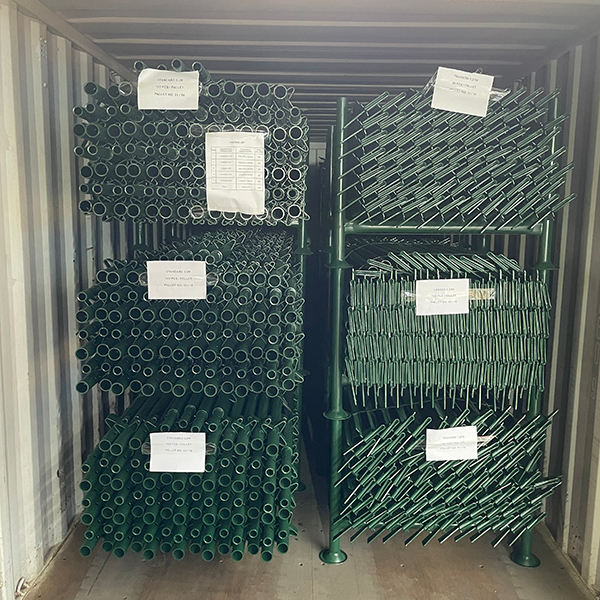

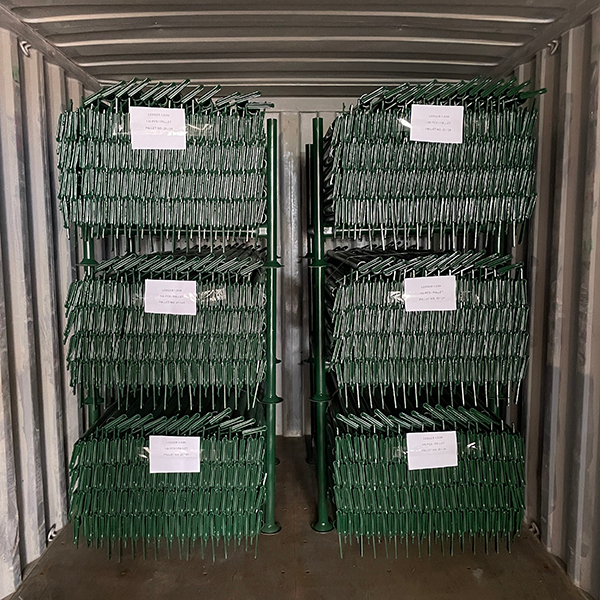

Shipment Photos from EK Scaffolding Manufacturer

Shipping of Kwikstage scaffolding is a critical step in ensuring the scaffolding system arrives on time and meets your needs. Choosing a reliable supplier, confirming the quantity and specification of the goods, checking the packaging and marking, ensuring the safety of transportation, and tracking the status of the shipment are all important matters and precautions to ensure a smooth shipment. By following these guidelines, you can ensure the smooth installation and use of your scaffolding system.

Send An Inquiry

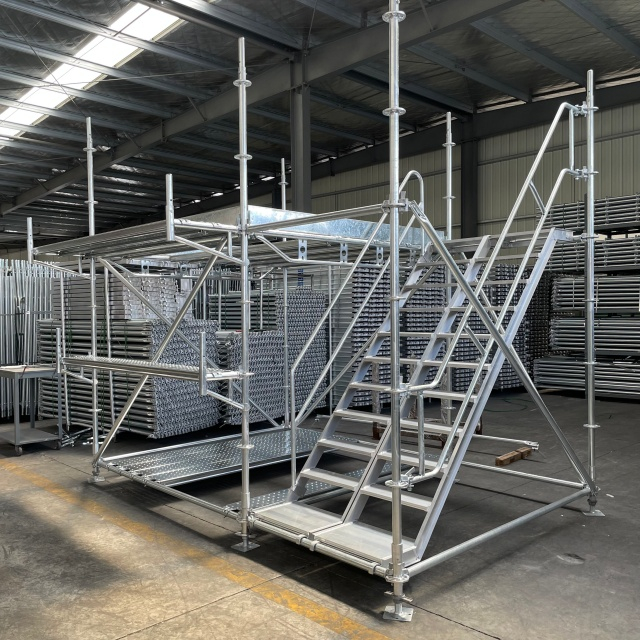

Kwikstage VS Ringlock VS Cuplock

When selecting a modular scaffolding system, factors such as assembly speed, flexibility, load-bearing capacity, and cost should be comprehensively considered. Ringlock Scaffolding, Cuplock Scaffolding, and Kwikstage Scaffolding are currently the three most widely utilized scaffolding systems, each possessing its own unique advantages.

EK Scaffolding Recommendations：Market Application
Kwikstage Scaffolding: A versatile system ideally suited for general construction projects with moderate load-bearing requirements.
Ringlock Scaffolding: Best suited for complex structures requiring a high degree of flexibility and exceptional load-bearing capacity.

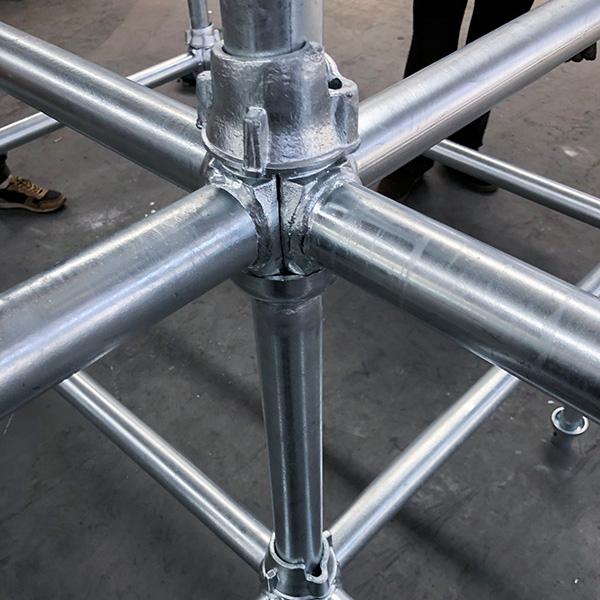

Cuplock Scaffolding: An economical and efficient solution for linear scaffolding structures, such as those used in facade work and formwork support systems.

Send An Inquiry
