Walk Thru Frames Detailed Introduction

Views: 0     Author: Site Editor     Publish Time: 2025-02-20      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Walk thru frame is a type of frame scaffolding system, which mainly includes main frames, cross braces, guard rails, etc. It can also be used with accessories such as base jack, closed steel plank, scaffolding ladder, etc. Closed steel plank can be fixed on the walk thru frame scaffold for workers to walk, screw jack is used to adjust the balance of walk through scaffolding frames, ladder and guard rails allow workers to reach the specified height safely. This type of walk through scaffolding is very popular in the United States and can be used in various types of construction and maintenance work.



EK Scaffolding produces all types of walk through scaffold frames and related accessories, including walk thru frames, ladder frames, mason frames, open end frames, step frames, narrow ladder frames, miscellaneous stock frames.

|

 Walk Thru Frames Type

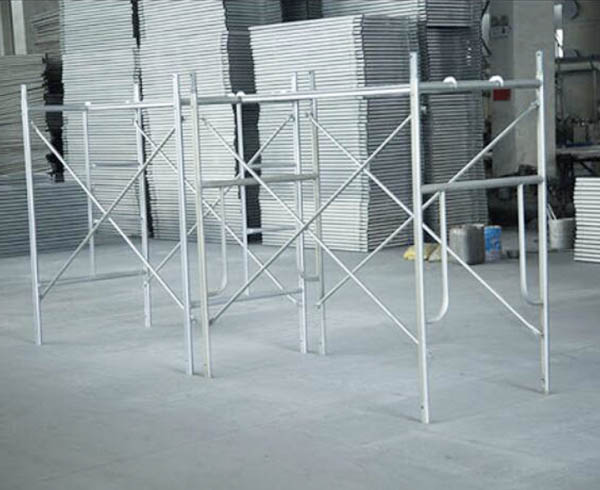

Walk Thru Frames
Orange Walk Thru Frames
GI walk through scaffolding frames

|

 Applications Of Walk Through Scaffolding Frames

Applications Of Walk Through Scaffolding Frames
Applications Of Walk Through Scaffolding Frames
Applications Of Walk Through Scaffolding Frames
Applications Of Walk Through Scaffolding Frames

Walk through frames are suitable for a wide range of applications, including but not limited to:

1. Residential construction

From new construction to renovation, walk through scaffolding is often used in residential construction for tasks such as painting, roofing and window installation.

2. Commercial projects

In commercial buildings, scaffold walk thru frames provide access for exterior and interior work, such as bricklaying, plastering and exterior wall maintenance.

3. Industrial sites

Walk thru frames are also used in industrial settings, including manufacturing plants and refineries, where overhead maintenance and repairs are required.

4. Events and stage construction

In addition to traditional construction, walk thru frame scaffolds can also be used to build stages, platforms and stands for events and performances.

|

 Product Packaging

walk through scaffolding frame

walk through scaffolding frame

walk through scaffolding frame

walk through scaffolding frame


|

 Walk Thru Frames Data

No. Description Width Height OD Surface
EKF-W01 Walk through frame 3’ 4’ 1.625”

Pre-gal;

HDG;

Painted;

Powder Coating
EKF-W02 Walk through frame 3’ 5’
EKF-W03 Walk through frame 3’ 6’8”
EKF-W04 Walk through frame 5’ 6’8”
EKF-W05 Walk through frame 3’ 5’ 1.69”
EKF-W06 Walk through frame 3’ 6’4”
EKF-W07 Walk through frame 42’ 6’4”
EKF-W08 Walk through frame
5’ 6’4”

|

 Walk Through Scaffold Frame Specifications

Dimensions: 78" x 60"

Lock spacing: 48"

Weight: 47.3 lbs

Inner tube OD: 1.25" - 16 gauge

Perimeter tube OD: 1.69" - 13 gauge

Finish: Powder coated and hot dipped galvanized

Connecting pin: Spring lock

Frame locks: Gravity lock, T-lock, U-lock, V-lock, K-lock, C-lock, F-lock

Standards: ANSI, CSA and OSHA

Made of high quality Q235 steel

Drilling: 45 degrees

Shipping dimensions: 76" x 62" x 2"


| Walk Through Scaffold Frame Specifications

c-lock

C-Lock

t-lock

T-Lock

f-lock

F-Lock

u-lock

U-Lock

gravity_lock

Gravity_Lock

v-lock

V-Lock

k-lock

K-Lock
