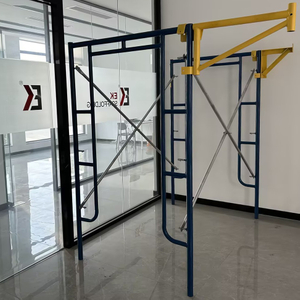

Frame scaffolding is a modular temporary structure used to create elevated work platforms that support personnel and materials. It is widely used in residential and commercial construction projects. Common frame scaffolding consists of portal frames, cross braces, adjustable base jacks, scaffold planks, guardrails, and toe boards. Thanks to the variety of frame types and ease of assembly, the scaffolding can be flexibly configured in terms of height and layout to meet specific project requirements.
Production Process for Frame Scaffolding Systems
1. Raw Materials
Procure high-strength structural tubing; test steel tubes for dimensional accuracy, bending limits, and tensile strength to ensure compliance with product specifications.
2. Cutting
Cut steel tubes according to product dimensions, maintaining tolerances within ±0.05 mm. Punch or drill holes at designated locations. Use a tube bender to shape the tubes to the required curvature.

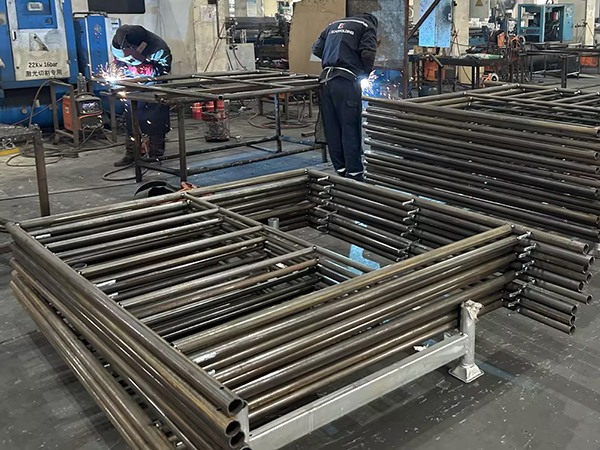

3. Welding
Place prepared tubes into assembly jigs and weld the connection points, ensuring full, solid welds without defects or missed spots.
4. Surface Treatment
Pre-treatment: Clean, degrease, and pickle components to remove rust and mill scale.
Surface treatment methods: Hot-dip galvanizing or powder coating.
5. Assembly
Install components such as connecting pins and locking mechanisms onto the frames.

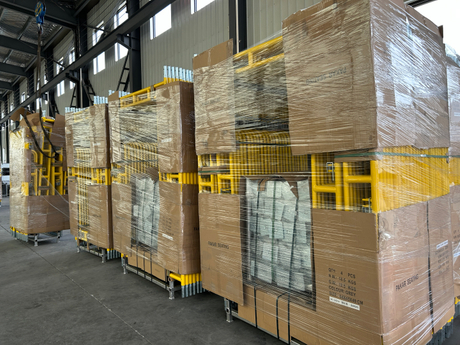

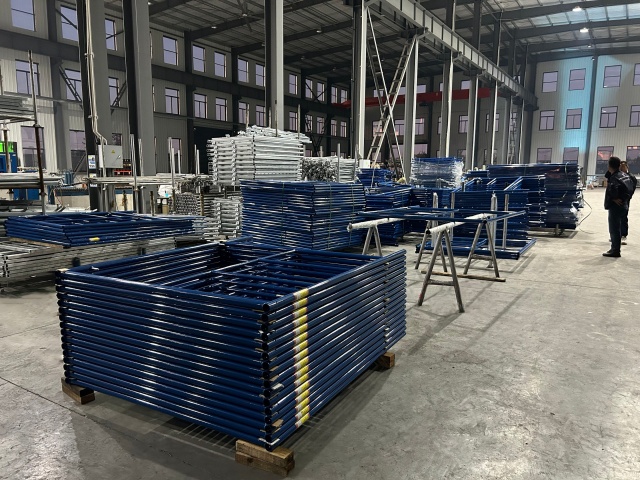

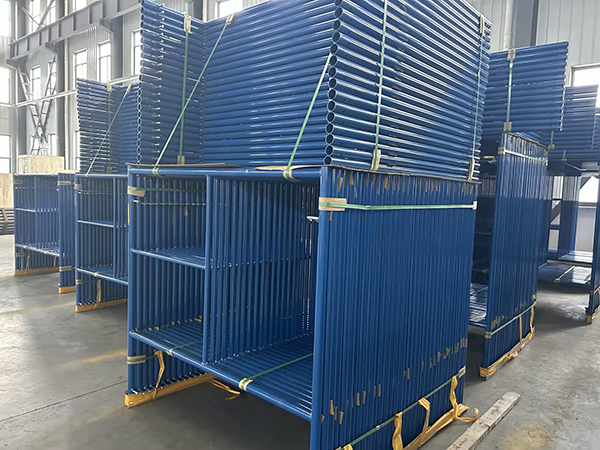

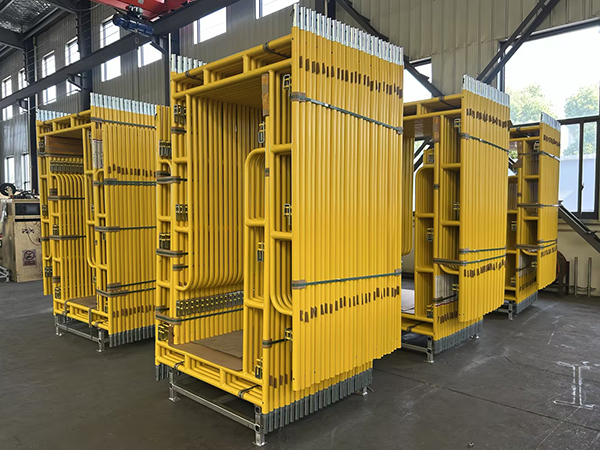

6. Packaging
Bundle and stack the galvanized frames and cross braces in preparation for shipment.
Production Considerations for Frame Scaffolding Systems
1. Material Selection
Material choice: High-strength structural steel (e.g., Q235 or Q345); surface finished with hot-dip galvanizing or a highly durable powder coating process.
2. Manufacturing and Processing
Welding standards: Ensure all welding complies with international structural standards (e.g., ISO 9001, EN 12810).
3. Design and Compatibility
Standardized components ensure full compatibility with various sizes of platform planks, guardrails, and decking.
4. Regulations and Quality Assurance
Compliance with OSHA 1926.451 standards, including limits on maximum platform deflection and specifications for guardrail height.
What safety features does frame scaffolding offer?
1. Cross-bracing (X-bracing)
Diagonal connectors form a rigid, triangular H-shaped structure, preventing the scaffold from swaying.
2. Reliable locking mechanisms
Spring pins, locking pins, and couplers secure modular components together, preventing the scaffold from coming apart under load.
3. Guardrail systems
Top rails and mid-rails installed around the platform perimeter provide fall protection.
4. Toeboards
Barriers installed at the platform edge to prevent tools, materials, and debris from falling and injuring personnel below.
Textured wooden planks or perforated steel decks provide a stable, slip-resistant standing surface.
6. Vertical access
Frame scaffolding systems feature built-in ladders or stair units with platforms to ensure safe vertical access.
To learn more about frame scaffolding system, please contact us. If you have specific project requirements, kindly provide the following details:
Target market?
Project height and area?
Project budget?
