Ringlock Standard In EK Scaffolding Manufacturer

Views: 0     Author: Site Editor     Publish Time: 2022-11-24      Origin: Site

The ringlock scaffolding is composed of vertical standard, ledger, face brace, fixed head, base jack, etc. There are no small accessories, the longest stabdard size is 3m, it is convenient for workers to hold it, and the construction efficiency is high.

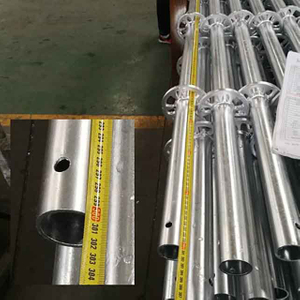

ringlock standard

Ringlock scaffolding standards are vertical parts of ring system scaffold. It gives connectors for other ringlock scaffolding parts like rinlgock horizontals, ringlock braces, side brackets, lattice girders & beams, ringlock types bridging, etc. by folding the also found Single Scaffolding(Brick Layer), Shoring Scaffolding, Double Scaffolding, Building Scaffolding, Putlog Scaffolding, Supported Scaffolding, Cantilever Scaffolding, Independent Scaffolding, Suspended Scaffolding, Needle Scaffolding.



The Ringlock standard is mostly made of round seamless steel pipe of national standard material Q345B, and a ring is welded every 500mm. 400mm will be reserved at the bottom of Ringlock standard and 400mm at the top for splicing Ringlock standard. The splicing of the top and the bottom usually adopts two methods of inner connection and outer connection. The difference is that the connecting rod of the inner connection is inside, and the connecting rod of the outer connection is outside. Both of the connection methods are socket.



The maximum length of Ringlock standard is no more than 3 meters and can be connected with each other. The general length is 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m. If there are other special size requirements, it can also be customized. Ringlock standard is the main supporting member of the entire Ringlock scaffolding system, with a maximum load of 200KN. The Ringlock standard produced by EK adopts a fully automatic professional welding process and hot-dip galvanizing process, which can ensure the service life and quality of the Ringlock standard.
