What Are Scaffolding Steel Props?

Acrow props are jack posts that are employed for short- term horizontal and vertical assist for load-bearing ceilings, walls, and trenches. People working in the region ensure that ceilings, walls, and other structures do not collapse.

The scaffolding prop are galvanised steel and are able to face up to a great deal of weight and enduring. They are telescopic and arrive in a range of sizes from 1065 mm to 4966 mm. The steel props we produce are mainly divided into four sizes: 1065 mm- 1792 mm, 1774 mm-- 3148 mm, 2462 mm- 3964 mm and 2992- 4966 mm. Props may span a number of heights and sizes.

Different sizes correspond to different load-bearing ranges, such as

1065mm-1792mm

This Acrow Prop is Intended To Hold A Maximum Load Of 223kN Closed & 108kN Open

Weight: 10kg

1774mm-3148mm

This Acrow Prop is Intended To Hold A Maximum Load Of 192kN Closed & 56kN Open

Weight: 15kg

2462mm-3964mm

This Acrow Prop is Intended To Hold A Maximum Load Of 116kN Closed & 38kN Open

Weight: 19kg

2992mm-4966mm

This Acrow Prop is Intended To Hold A Maximum Load Of 58kN Closed & 18kN Open

Weight: 23kg

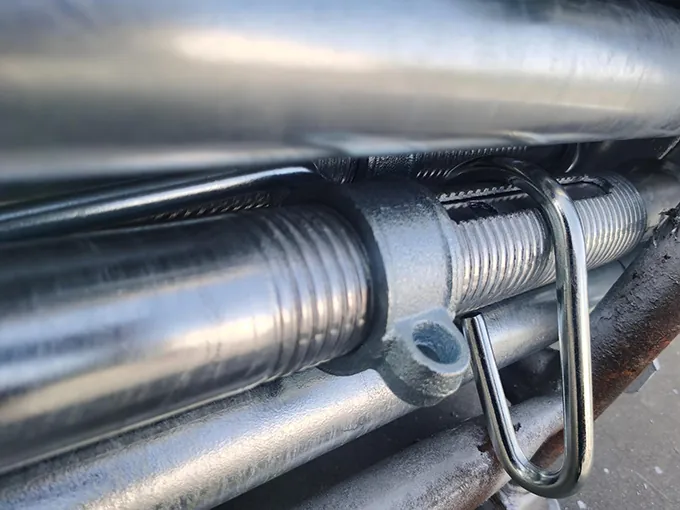

Acrow props are made up of a threaded inner tube with a welded top plate, a threaded outer tube with a welded base plate, collar, handle, and a pin. The thread allows you to adjust the length quickly and easily, and the pin prevents the inner tube from collapsing down inside the outer tube when supporting a load.

Steel prop produced by EK must meet australlan standards AS3610-2010 & AS3610-1995 before shipment.
