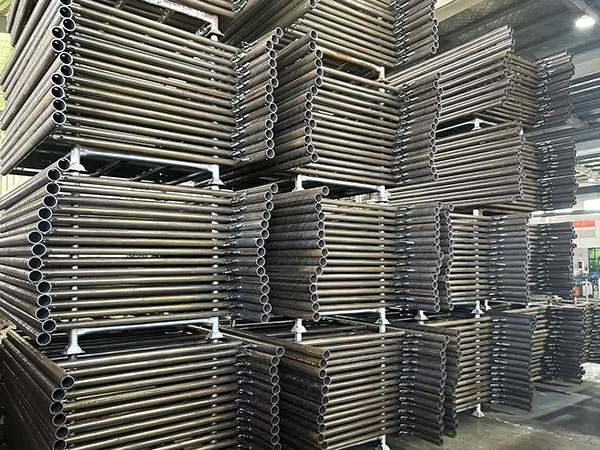

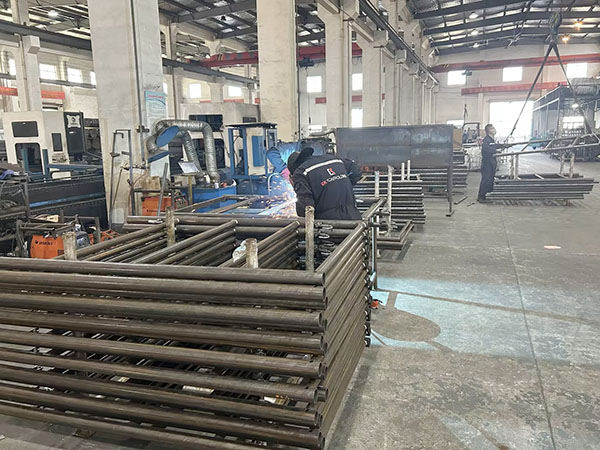

Frame scaffolding is a modular scaffolding structure used to support workers and materials during construction, maintenance, and repair projects. It is highly popular due to its simple design, high strength, and ease of assembly and disassembly. Typically constructed from steel or aluminum, this modular system is capable of bearing heavy loads and withstanding demanding work environments.
Key Components of Frame Scaffolding

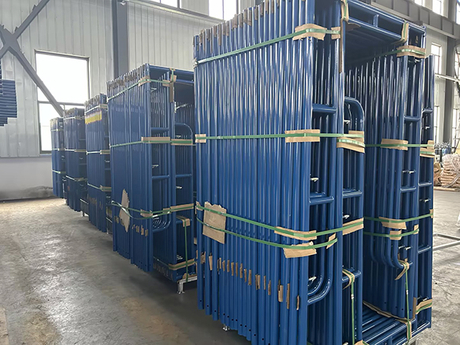

Frames: The vertical components of the scaffolding system, available in various heights and widths.
Cross Braces and Horizontal Members: These connect the vertical frames horizontally, providing stability; horizontal members can also be used to support planks or ladders.
Scaffolding Planks : Provide a working surface for personnel to stand on and place tools; these can be made of wood, aluminum, or steel.
Adjustable Base Jacks: Installed at the bottom of the frames to adjust height, ensure the system remains level, and distribute loads.
Guardrails and Toeboards: Safety barriers that prevent personnel or materials from falling off the scaffolding.
Ladders: Integrated or attachable ladders that allow personnel to move vertically up and down safely.
Scaffolding Couplers: Used to securely connect various components, ensuring a stable assembly of the scaffolding frames.
How to Erect Frame Scaffolding
1. Site Preparation
Use a spirit level to check the flatness of the ground. If the ground is uneven, install base plates or adjustable base jacks (with threaded adjustment screws) to level the surface. Additionally, ensure proper drainage or address any moisture issues to maintain a stable foundation.
2. Assembling the Frames
Erect the frames, spacing them according to the required width and height of the scaffolding. Use a spirit level or a plumb line to verify that they are perfectly vertical. Secure the frames in place using the adjustable base jacks or fixed anchor points to prevent any displacement during use.
3. Installing Cross Braces and Horizontal Members
Install cross braces between the vertical H-shaped frames to create a stable "X" configuration. Assemble the structure layer by layer, starting from the bottom, and lock the diagonal braces into their designated slots or connectors. Install horizontal transoms (crossbars) between the spans to enhance structural strength and provide support for the work platforms.
4. Laying Scaffolding Planks
Place scaffolding planks or metal decking onto the horizontal transoms, ensuring they are evenly distributed and securely installed. Verify that each platform is intact, adequately supported, and fastened in place where necessary.
5. Installing Ladders and Protective Elements
Install toe boards along the edges of the platforms to prevent tools or materials from sliding off. Set up internal ladders or utilize frames with integrated ladders to ensure safe access between levels.
6. Checking Stability and Safety
Once assembly is complete, inspect the scaffolding for stability. Check for any loose connections or wobbling, and ensure that all components are firmly secured and the overall structure is stable.
Precautions for Using Frame-Type Scaffolding
1. Pre-use Inspection
Before assembly, inspect all scaffolding components for damage, wear, or defects. Conduct regular inspections throughout the construction process to identify and address any potential issues promptly.
2. Adhering to Load Limits
Never overload the platforms. When calculating the total load, account for the combined weight of both personnel and materials. Use reinforced platforms when performing heavy-duty tasks.
3. Installing Edge Protection
Guardrails, mid-rails, and toe boards must be installed on all open sides of elevated platforms to prevent personnel or objects from falling.
4. Comprehensive Training
Ensure that all personnel have received training on scaffolding assembly, usage, fall protection protocols, and emergency response procedures. Supervisors must hold the appropriate qualifications and are responsible for inspecting and approving the scaffolding setup.
5. Maintaining a Tidy Work Area
Keep ladders and platforms free of debris or obstructions. Organize materials neatly to minimize the risk of tripping and ensure that emergency exits remain clear.
