Scaffolding swivel base jack can be used to adjust the scaffolding level in the case of uneven ground, special shape, etc. It is an indispensable part of each scaffolding system and is widely used in the support system of construction projects such as buildings, bridges, tunnels, and civil buildings. Base jack scaffolding is usually made of metal, and the height of the scaffolding system can be adjusted by rotating the nut handle to raise or lower it. The scaffolding adjustable base jack can also ensure the safety and stability of the scaffolding system structure.
Swivel base jack can be used for construction projects that require enhanced mobility, such as when you want to build a scaffold on uneven ground, you can use the swivel base jack to adjust the scaffolding to the level, or you can use the nut handle to adjust the scaffolding to the required height of the construction project.
Solid Base Jack
Solid base jack is usually used for heavy-duty applications. Its sturdy structure ensures that the base jack can withstand the rigors of the construction site. It can provide a stable foundation for the scaffolding system and minimize the risk of bending or breaking. Solid base jack is heavier and can withstand greater loads than hollow swivel base jacks of the same size.
Hollow Base Jack
The hollow design of hollow base jack is more lightweight, easy to transport and store, and can withstand heavy loads and harsh conditions. According to the load-bearing capacity, there are 4-ton hollow base jacks and 6-ton hollow base jacks.

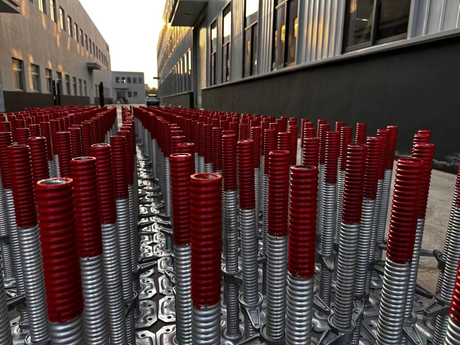

Accessories Screw Base Jack
The screw base jack is mainly composed of 3 parts, namely screw rod, jack nut, base plate, EK Scaffolding manufacturer uses an automatic welding machine to weld the screw rod and base plate together. The jack nut can move freely on the screw rod, and the height can be adjusted by rotating the jack nut. Screw rods are available in hollow and solid types. The solid weight is heavier and has better load-bearing capacity.
Screw Rod
Jack Nut
Base Plate
Scaffolding Base Jack Size
Accessories
Size
Notching Distance
50/90/100/150mm
Screw Diamater
30/32/34/35/38/43mm
Screw Length
300-1500mm or customized
Base Plate
150*150*5mm or customized
Jack Nut
100/150/200mm or customized
Scaffolding Base Jack Specification
Scaffolding Types
U-Head
Swivel Base Jack
Hollow Base Jack
Solid Base Jcak
Sample
Weight
1-5kg
1-5kg
1-5kg
1-5kg
Material
Q235
Q235
Q235
Q235
Diameter
35/38mm
or OEM
35/38mm
or OEM
38mm
or OEM
34/38mm
or OEM
Length
300-1500mm
or OEM
300-1500mm
or OEM
300-1500mm
or OEM
300-1500mm
or OEM
Plate Size
120*120*50*5mm
150*150*50*5mm
or OEM
120*120*5mm
150*150*5mm
or OEM
120*120*5mm
150*150*5mm
or OEM
120*120*5mm
150*150*5mm
or OEM
Surface Treatment
Natural
Painted
Electro Galvanized
HDG
Natural
Painted
Electro Galvanized
HDG
Natural
Painted
Electro Galvanized
HDG
Natural
Painted
Electro Galvanized
HDG
Shoring Jack VS Base Jack
Both shoring jack and base jack are very important adjustable support components in scaffolding systems and are widely used in construction projects.
Shoring Jack is mainly used to support weight in the vertical direction. It is usually used to support temporary structures in construction projects and can be adjusted according to the height of the project. Base Jack is a component used to level and stabilize the scaffolding system. It is usually used in conjunction with the scaffolding system to safely and stably build the scaffolding system on uneven ground, providing workers with a horizontal working platform. It is usually not used to support vertical weight. In other words, the shoring Jack is used to support a temporary structure, and the Base Jack is used to level and stabilize the scaffolding system.
