Solid Adjustable Scaffolding Screw Jack

Solid Adjustable Scaffolding Screw Base Jack

Share to:

Specification:35/38mm or Customized Surface Treatment: Painted, galvanized, HDG, powder coated Material: Q235 or Q345 Marking: BS1139 / EN74 or as you Standrad: BS Standard

Availability:

Quantity:



Inquire Add to Basket

Model:
Base Jack
Brand:
EK
Code:
73084000
Tube Size:
600mm, 914mm, 1524mm or Customize
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
2-30kg

Product Description

|

Product Description

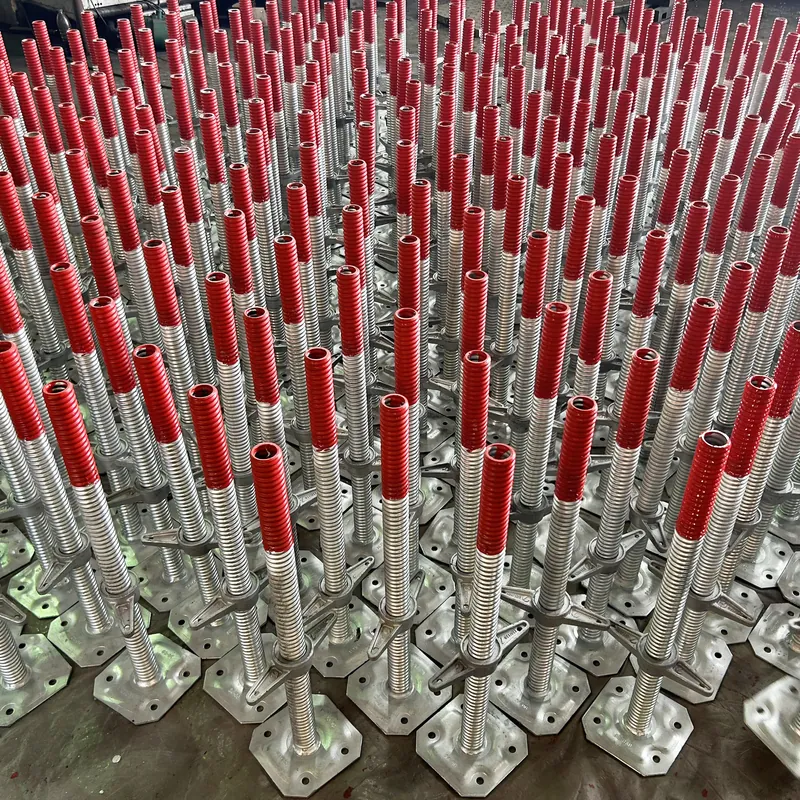

Solid scaffolding leveling jack with base plate in 150*150*5mm or customized, screw rod made from high strength steel rod structure with casting or forging scaffolding jack nut for scaffolding system as ringlock scaffolding, cuplock scaffolding, kwikstage scaffolding, haki scaffolding, tube&fitting scaffolding system and others.

|

Product Type

Adjustable Solid Screw Jack

Solid Screw Jack

Grey Galvanized Solid Screw Jack

|

Application Video

|

Product Advantage

A. High quality materials, higher quality.
   Material--The product material is Q235 carbon steel which is higher than the standard as the raw material.
Bolt--The bolt is 8.8 grade high-strength bolt, which ensures the quality.
Quality assurance, more resistance to falls, improve the efficiency of scaffolding removal, saving time.

B. Advanced technology, better performance
  Products using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding, more firm, not easy to slide.

C. Anti-rust treatment, longer service life.
After passivation and surface galvanized anti-rust treatment, it is corrosion resistance is better than the ordinary coupler, longer service life.

D. Standard production, more secure.
  According to the professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, ensure construction safety and personnel safety.

|

Product Packing

|

Screw Jack Data

Solid Adjustable Scaffolding Screw Jack
Name	Base Jack Type	Solid Adjustable Base Jack Size		Weight (KG)
Name	Base Jack Type	Screw Rod (MM)	Base Plate (MM)	Weight (KG)
Solid Adjustable Base Jack	Solid	30*400	1201205	3.10
Solid Adjustable Base Jack	Solid	30*600	1201205	4.07
Solid Adjustable Base Jack	Solid	32*400	1201205	3.39
Solid Adjustable Base Jack	Solid	32*600	1201205	4.50
Solid Adjustable Base Jack	Solid	34*400	1201205	3.70
Solid Adjustable Base Jack	Solid	34*600	1201205	4.95
Solid Adjustable Base Jack	Solid	35*400	1501505	4.17
Solid Adjustable Base Jack	Solid	35*500	1501505	4.84
Solid Adjustable Base Jack	Solid	35*600	1501505	5.51
Solid Adjustable Base Jack	Solid	38*500	1501505	5.48
Solid Adjustable Base Jack	Solid	38*750	1501505	7.48
Solid Adjustable Base Jack	Solid	45*400	1501505	6.04
Solid Adjustable Base Jack	Solid	45*500	1501505	7.18
Solid Adjustable Base Jack	Solid	45*600	1501505	8.32
Specifications can be customized according to requirements
