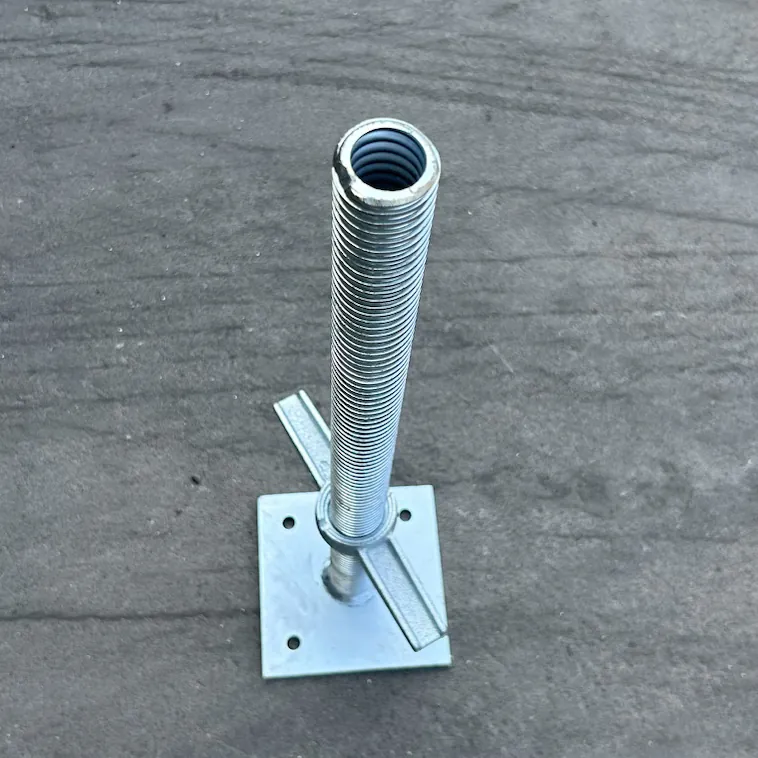

Scaffolding hollow adjustable base jack made by high strength steel structure in hollow tube diameter 35/38/48mm with screw thread. Usually used at the bottom of scaffolding system verticals, it makes the whole scaffold system more stable.
High Load Carrying Capacity Scaffolding Hollow Adjustable Base Jack
Name
Base Jack Type
Hollow Adjustable Base Jack Size
Hollow Adjustable Base Jack Weight (KG)
Screw Rod (MM)
Base Plate (MM)
Hollow Adjustable Base Jack
Hollow
35*4*600
150*150*5
3.32
Hollow Adjustable Base Jack
Hollow
38*4*600
150*150*5
3.50
Hollow Adjustable Base Jack
Hollow
48*4*600
160*160*6
4.41
Hollow Adjustable Base Jack
Hollow
35*5*400
150*150*5
2.96
Hollow Adjustable Base Jack
Hollow
35*5*500
150*150*5
3.33
Hollow Adjustable Base Jack
Hollow
35*5*600
150*150*5
3.70
Hollow Adjustable Base Jack
Hollow
38*5*500
150*150*5
3.52
Hollow Adjustable Base Jack
Hollow
38*5*750
150*150*5
4.55
Hollow Adjustable Base Jack
Hollow
45*5*400
150*150*5
3.46
Hollow Adjustable Base Jack
Hollow
45*5*500
150*150*5
3.95
Hollow Adjustable Base Jack
Hollow
45*5*600
150*150*5
4.44
Specifications can be customized according to requirements
2.Product Advantage
A. High quality materials, higher quality. Material--The product material is Q235 or Q345 carbon steel which is higher than the standard as the raw material. Quality assurance, not easy to crush deformation.
B. Advanced technology, better performance Products using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding.
C. Anti-rust treatment, longer service life. After passivation and surface galvanized anti-rust treatment, it is corrosion resistance is better than the ordinary tubes, longer service life.
D. Standard production, more secure. According to the professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, ensure construction safety and personnel safety.
How is base jack used in Scaffolding?
The scaffolding leveling jacks the scaffold tower when the tower legs are placed on surfaces of different elevations. It ensures all the legs will have (appx) equal bearing on the substrate(s) the tower rests upon.
Unless the scaffolding screw jack is placed on something solid, it will need dunnage underneath it to properly transfer the leg load into the soil.
It is also used to ‘fine tune’ the height of the tower itself, so that height adjustments of up to around 12″ can be achieved.
Essentially, a scaffolding jack is a load bearing base and is used to hold standards/uprights (the vertical tubes) in place and help transfer the weight of the structure to the ground. The base jack scaffolding is used to help spread the load and has a shank in the center to hold the tube in place. To eliminate sway, a facade brace is fitted to the face of the scaffold every 30 meters. The spacing of the upright scaffolding and base jack is usually around every 2.1m but this can be reduced to 2m or 1.8m depending on the weight of the structure.
Hollow Screw Base Jack
1.Product Description
Scaffolding hollow adjustable base jack made by high strength steel structure in hollow tube diameter 35/38/48mm with screw thread. Usually used at the bottom of scaffolding system verticals, it makes the whole scaffold system more stable.
High Load Carrying Capacity Scaffolding Hollow Adjustable Base Jack
Name
Base Jack Type
Hollow Adjustable Base Jack Size
Hollow Adjustable Base Jack Weight (KG)
Screw Rod (MM)
Base Plate (MM)
Hollow Adjustable Base Jack
Hollow
35*4*600
150*150*5
3.32
Hollow Adjustable Base Jack
Hollow
38*4*600
150*150*5
3.50
Hollow Adjustable Base Jack
Hollow
48*4*600
160*160*6
4.41
Hollow Adjustable Base Jack
Hollow
35*5*400
150*150*5
2.96
Hollow Adjustable Base Jack
Hollow
35*5*500
150*150*5
3.33
Hollow Adjustable Base Jack
Hollow
35*5*600
150*150*5
3.70
Hollow Adjustable Base Jack
Hollow
38*5*500
150*150*5
3.52
Hollow Adjustable Base Jack
Hollow
38*5*750
150*150*5
4.55
Hollow Adjustable Base Jack
Hollow
45*5*400
150*150*5
3.46
Hollow Adjustable Base Jack
Hollow
45*5*500
150*150*5
3.95
Hollow Adjustable Base Jack
Hollow
45*5*600
150*150*5
4.44
Specifications can be customized according to requirements
2.Product Advantage
A. High quality materials, higher quality. Material--The product material is Q235 or Q345 carbon steel which is higher than the standard as the raw material. Quality assurance, not easy to crush deformation.
B. Advanced technology, better performance Products using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding.
C. Anti-rust treatment, longer service life. After passivation and surface galvanized anti-rust treatment, it is corrosion resistance is better than the ordinary tubes, longer service life.
D. Standard production, more secure. According to the professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, ensure construction safety and personnel safety.
How is base jack used in Scaffolding?
The scaffolding leveling jacks the scaffold tower when the tower legs are placed on surfaces of different elevations. It ensures all the legs will have (appx) equal bearing on the substrate(s) the tower rests upon.
Unless the scaffolding screw jack is placed on something solid, it will need dunnage underneath it to properly transfer the leg load into the soil.
It is also used to ‘fine tune’ the height of the tower itself, so that height adjustments of up to around 12″ can be achieved.
Essentially, a scaffolding jack is a load bearing base and is used to hold standards/uprights (the vertical tubes) in place and help transfer the weight of the structure to the ground. The base jack scaffolding is used to help spread the load and has a shank in the center to hold the tube in place. To eliminate sway, a facade brace is fitted to the face of the scaffold every 30 meters. The spacing of the upright scaffolding and base jack is usually around every 2.1m but this can be reduced to 2m or 1.8m depending on the weight of the structure.
