Cuplock scaffolding is a robust and reliable modular scaffolding system capable of fully supporting complex buildings, designed for construction, repair, and maintenance. One of the key features of Cuplock scaffolding is its wedge-lock system, employing a unique cuplock connection method that eliminates the need for nuts, bolts, or wedges; a single hammer is all that's needed to quickly connect cuplock standards and cuplock ledgers. This quick-installation and disassembly design offers high flexibility and suitability for various applications. All cuplock components are made of galvanized steel, ensuring long-term reuse and maintaining excellent performance even in harsh environments, providing workers with a safe and stable scaffolding system.
Cuplock Scaffolding System Components
Cuplock Vertical Tube
Commonly referred to as "cuplock standards," these are the vertical steel tubes of the scaffolding system. Cuplock nodes are installed every 500mm, with each node connecting four cuplock ledgers. They bear the vertical loads of the scaffolding system, ensuring its stability.
Cuplock Ledger
Made of galvanized steel with forged blades at both ends, the cuplock ledger easily inserts into the cuplock joint. Perpendicular to the cuplock standards, the cuplock ledger distributes the load evenly across the entire scaffolding, crucial for maintaining the integrity of the cuplock scaffolding system.
Cuplock Transom
Installed between cuplock ledgers, the cuplock truss provides support for the scaffolding plank, offering additional support to the scaffolding structure. The snap-lock locking devices at both ends of the cuplock transom prevent movement, improving platform safety.

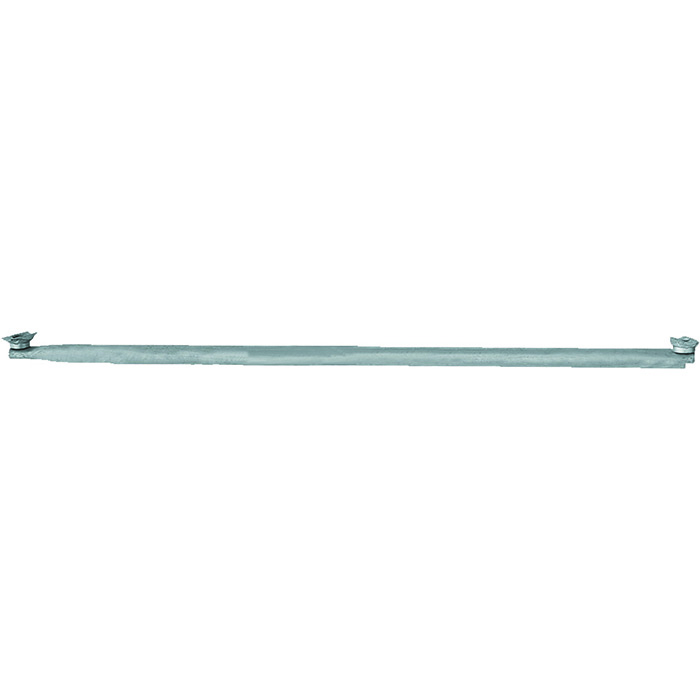

Cuplock Diagonal Brace
The cuplock diagonal brace enhances the lateral stability of the scaffolding and is installed between cuplock standards to prevent swaying.

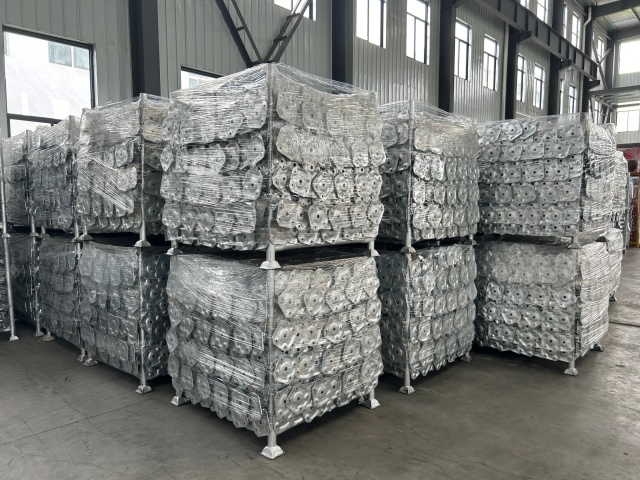

Base Jack
The base jack is an essential component of the scaffolding system, providing a stable and adjustable foundation for the scaffolding structure.

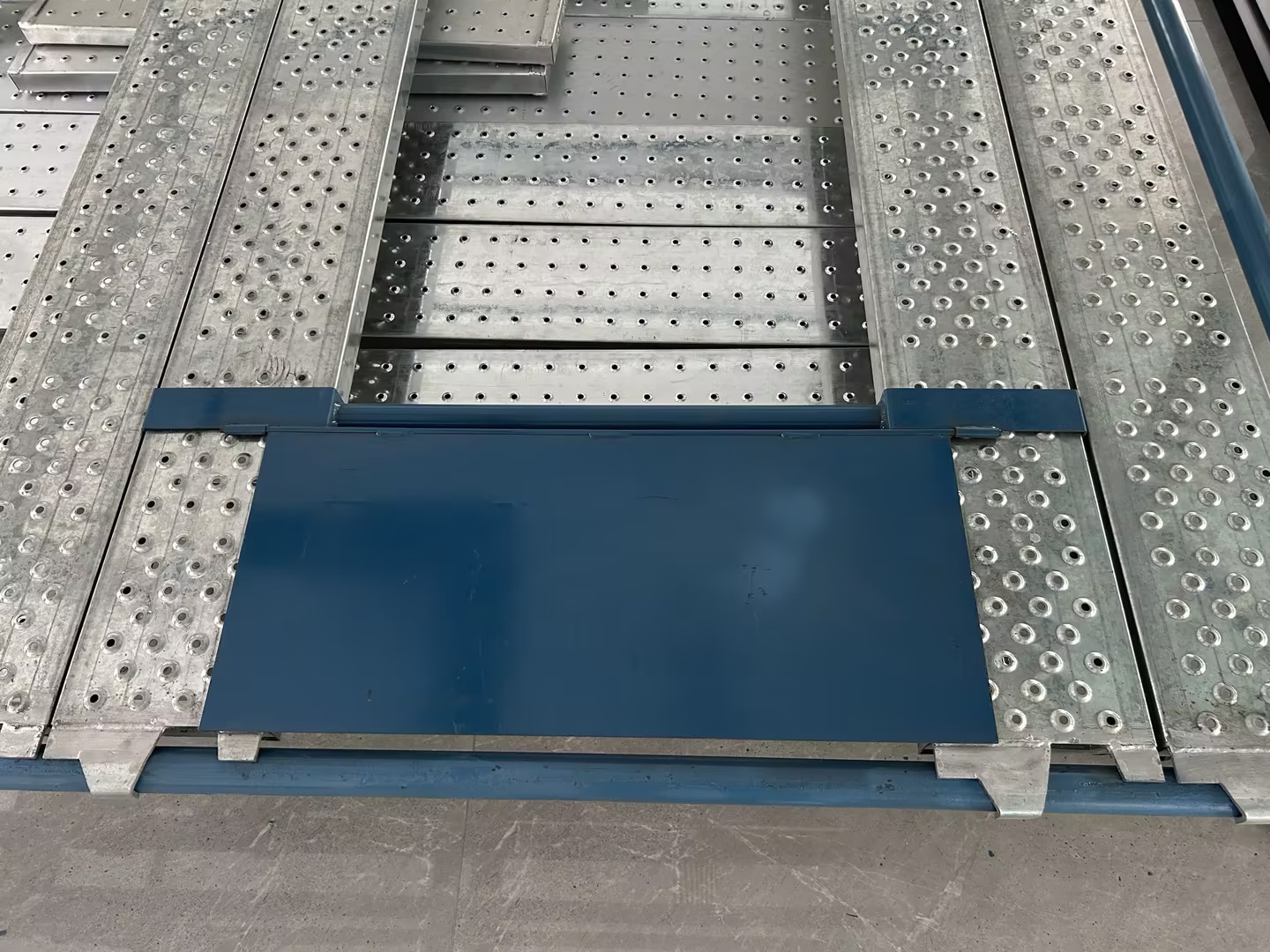

Scaffolding Plank
An important component of the scaffolding system, the scaffolding plank is a platform or walkway erected to allow workers to reach higher areas.
Scaffolding Stair
Allows for safer ascent and descent from scaffolding without restricting the usable width of the scaffolding like scaffolding stairs.

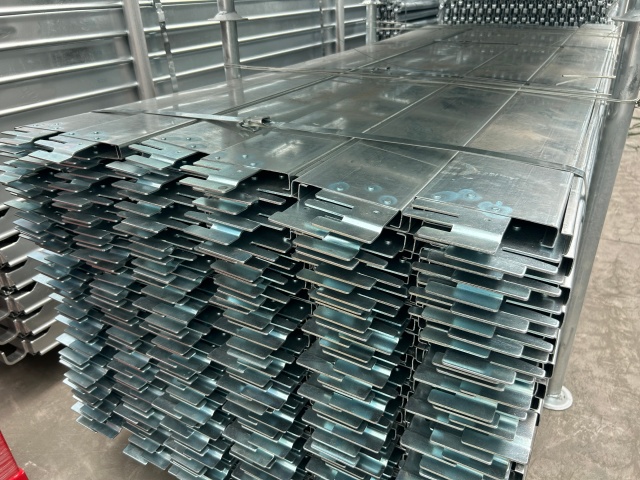

Toe board
Used at the edge of the platform to prevent tools or materials from falling.
Cuplock Scaffolding Load Capacity
Component
Rating
Test Standard
Standard (Axial)
20 kN
EN 12811-1
Ledger (Mid-Span)
10 kN
BS 5975
Brace (Tension)
8 kN
ISO 8601
Advantages of Cuplock Scaffolding
Cuplock scaffolding's unique design allows for quick, tool-free installation, reducing setup time and labor costs. Constructed entirely of high-quality galvanized steel, it offers high strength and stability, making it ideal for support and floor reinforcement, as well as providing a stable load-bearing platform. Its modular design adapts to complex shapes and construction scenarios, allowing for rapid adjustments in orientation and size. All Cuplock scaffolding components are galvanized to protect parts from corrosion and ensure durability even in harsh environments. These components are interoperable, allowing for assembly without orientation considerations. After disassembly, they can be reused multiple times when stored in a dry environment.
FAQ
A: Is Cuplock scaffolding safe? Q: As long as trained workers assemble it correctly and conduct regular checks.
A: Does Cuplock scaffolding installation require training? Q: Installers should receive certified training covering scaffolding erection, load management, and safety checks.
A: What safety measures should be taken during Cuplock scaffolding installation? Q: Ensure the foundation is stable and level; use full personal protective equipment (especially fall protection systems); install guardrails and toe boards on all platforms; ensure all components are installed as designed.
A: What are the standard specifications for Cuplock scaffolding? Q: Cuplock Standard and Ledger are made of high-grade steel with an outer diameter of 48.3 mm and a wall thickness of 3.0 mm to 4.0 mm. All components are hot-dip galvanized for enhanced corrosion resistance. The fixing cups are welded to the Cuplock standard at 500mm intervals.
A: What is the maximum load-bearing capacity of Cuplock scaffolding? Q: It is designed for strong load-bearing capacity, including bracing and floor support. With proper spacing and configuration, the Cuplock scaffolding system can withstand loads up to 74kN.
A: Can Cuplock scaffolding be used for curved or circular structures? Q: Cuplock ledgers can be connected at various angles, enabling non-linear scaffolding shapes such as cylindrical and elliptical structures.
A: What is the service life of Cuplock scaffolding? Q: Hot-dip galvanized Cuplock scaffolding can last for more than 10 years even under harsh construction conditions.
A: What makes Cuplock scaffolding different? Q: Its quick-locking system, robust construction, and reusable modular design make it easier to use.
