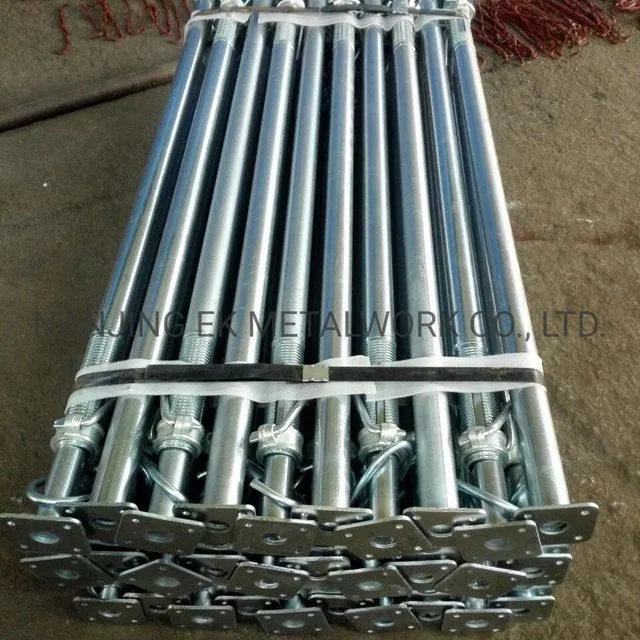

1.75m-3.12m Adjustable Scaffolding Steel Props

5 0 Reviews

Share to:

Tube sizes: 48.3mm*2.0mm Plate Size: 120mm*120mm*4mm Adjustable Length: 2572mm - 3872mm Weight: 12.6kg Surface Treatment: Black/Galvanized/Powder Coated/Painted Material: Q235 or Q345 Marking: BS1139 / EN74 or as you Standrad: BS Standard

Availability:

Quantity:



Inquire Add to Basket

Model:
Scaffolding Steel Prop
Brand:
EK
Code:
73084000
Tube Size:
48.3mm*2.0mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
12.6KG

Product Description

What are the scaffolding prop components?

Scaffolding prop components mainly include the following types

1. Base Jack

2. Adjustable scaffolding prop

3. Scaffolding pillar head

4. Light Scaffolding prop

5. Heavy-duty scaffolding prop

How to choose scaffolding prop?

1. What is the height required for scaffolding prop?

The maximum height of the concrete can help you choose the desired size scaffolding supports. The sizes we can provide: 1065mm-1792mm, 1774mm-3148mm, 2462mm-3964mm, 2992mm-4966mm.

2. What is the load-bearing capacity that scaffolding prop need to meet?

Based on the slab thickness, volume and concrete density, you can calculate how much weight the scaffolding posts need to take from the concrete, and then decide which scaffolding posts to choose: light or heavy?

More details about the products.

Name	Pic	Code No.	Adjust Height	Tube&Plate size	Finish
LIGHT DUTY PROPS		PSL01	1080-1790	40/48 48/56 48/60	Pre-gal Elec-gal HDG Painted
		PSL02	1800-3150
		PSL03	1950-3350
		PSL04	2570-3880
		PSL05	3200-4890
HEAVY DUTY PROPS		PSL01	1080-1790	48/60	Pre-gal Elec-gal HDG Painted
		PSL02	1800-3150
		PSL03	1950-3350
		PSL04	2570-3880
		PSL05	3200-4890
HEAVY DUTY PROPS		PSH01	1080-1790	48/60	Elec-gal HDG Painted
