Scaffolding Steel Planks
Scaffolding walk boards are walkways in scaffolding systems, improving construction safety. They are an indispensable component of scaffolding systems, providing workers with a reliable working platform. Scaffolding walk boards have high slip resistance and good flexibility, making them suitable for various working platforms.
Steel scaffolding planks are a common type of scaffolding walk board, also known as steel scaffolding planks, galvanized steel planks, hot-dip galvanized steel planks, etc. The surface is made of carbon steel using cold working and hot-dip galvanizing processes, providing fire resistance and corrosion resistance, with a normal service life of 5-8 years.
Currently, scaffolding planks are manufactured in two ways: welded and riveted.
Welded steel scaffolding planks have higher overall strength, but the welded parts are more prone to rust, and maintenance is more troublesome.
Riveted steel scaffolding planks use a riveting process for the hooks; although the hooks are also prone to damage, maintenance is simpler.
Scaffolding Plank Dimensions:
Scaffolding planks are available in 7-foot and 10-foot lengths, with a width of 9 inches. Hooks at both ends enhance safety and stability.
Scaffolding Plank Specification
Scaffolding Part Type | Scaffolding Plank |
Material | Steel, Q195, Q235 |
Thickness of the tube | 2.0mm, 2.2mm,or customized |
Specification | 19''x7', 19''x8',19''x10', or customized (3'-10' available) |
Factory Certificate | ISO9001 ISO14001 OHSAS18001 |
Certificate | CE SGS TUV |
Material Standard | AL6061-T6, AL6063-T5 |
Construction Properties | Building Scaffold |
Transport Package | Pack in Steel Trestles |
Production Capacity | 50, 000 Ton/Year |
Brand Name | EK Scaffolding |
Place of Origin | Nanjing, Jiangsu, China |
Closed Steel Plank Size
Material | Q195, Q235 |
Thickness | 1.0mm-2.0mm, as you |
Length | 500mm-4000mm, as you |
Width | 210mm-320mm, as you |
Heigh | 38mm-76mm, as you |
Surface treatment | Pre-galvanized, Hot-dip galvanized, Painted |
Advantages | Anti-deposited sand, Anti-corrosion |
What are the characteristics of steel scaffolding planks?
Wooden scaffolding planks: Prone to cracking, corroded by rainwater, and flammable;
Bamboo scaffolding planks: Prone to cracking, affecting construction safety;
Steel scaffolding plank: Fire-resistant, sand-resistant, lightweight, corrosion-resistant, high compressive strength, with a perforated surface, neatly spaced and standardized, aesthetically pleasing and durable.
High recycling rate: High recycling rate, easy to disassemble, reusable, and can still generate income after disposal.
Sturdy and durable: The perforated surface not only reduces its weight but also prevents slippage and deformation.
Easy to install and remove: The shape of the steel scaffolding planks makes bundling easier and allows for neat stacking when not in use.
Extended lifespan: The steel scaffolding planks are made of cold-worked carbon steel and hot-dip galvanized, achieving a service life of 5-8 years.
Scaffolding Walk Board Producation Line
Loading and Package

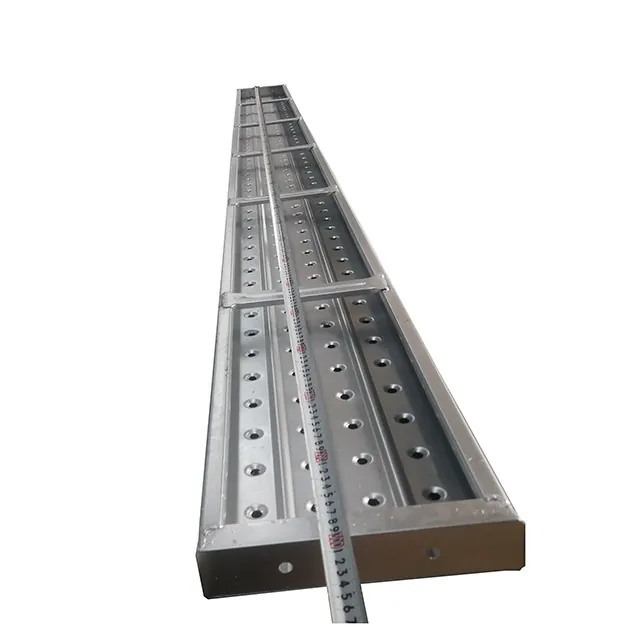

![Pre-Galvanized Steel Walking Board/Plank Scaffold 225X38mm Scaffolding]()
