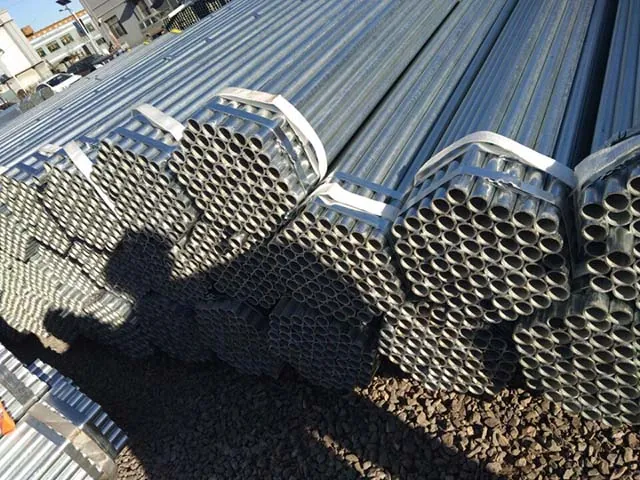

6M GI Steel Tube HDG Scaffolding Pipe
What Are The Common Lengths Of Scaffolding Steel Pipes?
Scaffolding pipes are commonly available in lengths of 5 feet, 6 feet, 8 feet, 10 feet, 13 feet, 16 feet, and 21 feet, with the longest being 21 feet (6.4 meters). Depending on their location and function, these steel pipes can be used as uprights, horizontal bars, baseboards, scissor bracing, etc.
What Is The Surface Treatment Of Scaffolding Steel Pipes?
The surface treatment of scaffolding steel pipes typically involves coating the steel pipes with a protective galvanized layer to prevent rust and corrosion. This surface treatment helps protect the steel pipes, making them more durable in various weather conditions.
Will Scaffolding Steel Pipes Rust?
Scaffolding steel pipes are usually galvanized, which prevents corrosion and rust in humid and oxygen-rich environments. However, improper maintenance or prolonged exposure to extreme environments can still cause rust.
How Should Scaffolding Pipes Be Stored?
Scaffolding steel pipes should be stored in a dry, sheltered place.
How Strong Are Steel Scaffolding Pipes?
Scaffolding steel pipes are used to withstand heavy loads and unexpected situations. Typically, the working tensile load of scaffolding steel pipes is 79kN, approximately 8 tons.
How Are Steel Pipes Used To Construct Scaffolding Structures?
Steel pipes can be connected using scaffolding couplers to form a fixed structure.
Double Coupler: This type of coupler fixes two steel pipes vertically, typically used to connect horizontal and vertical members.
Swivel Coupler: This type of coupler fixes two steel pipes at any angle, used to connect diagonal braces and vertical members.
Sleeve Coupler: This type of coupler connects two steel pipes end-to-end, extending the length of the pipes.
Girder Coupler: Used to connect steel pipes and beams.
Board Retaining Coupler: Can fix the treads to the steel pipes, used to fix the working plane formed by the treads to the scaffolding structure.
Product Specification
| Commodity Name | 6M GI Scaffolding Steel Tube |
| Material | Q235, Q345 |

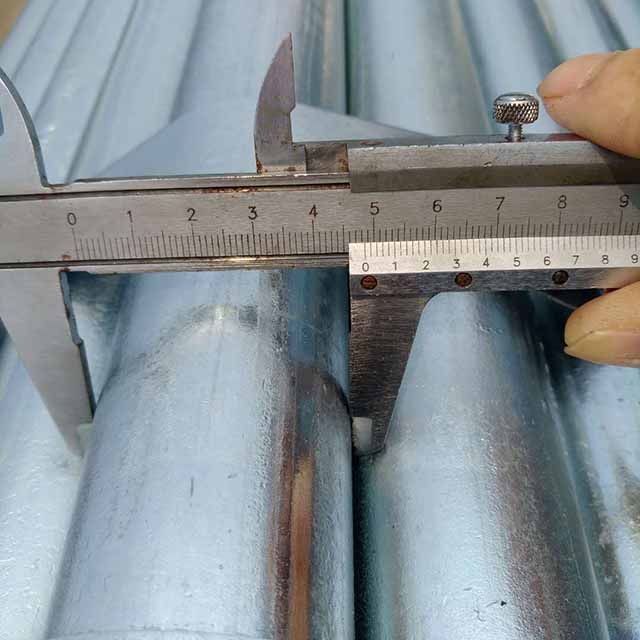

| Outer Diameter | 48.3mm |
| Wall Thickness | 2.9mm, 3.0mm, 3.2mm, 3.8mm, 4.0mm |
| Length | 300mm -6000mm all are available |
| Surface Treatment | Hot-dip Galvanized |
| Joint Method | Weld |
| Lead time | 7-10 days |
| Product Capacity | 2000-2500 tons per month |
Usage
| widely used as the constrution building materials, also used in different scaffolding systems, such as cuplock scaffolding system, Ringlock Scaffolding System, KwikStage Scaffolding System, etc. |
