Aluminum Ringlock Scaffolding

Aluminum ringlock scaffolding standards are made of high-strength aluminum alloy, making them lightweight and corrosion-resistant. They are an important vertical component of the modular ringlock scaffolding system. The aluminum ringlock scaffolding standards have a disc welded every 500mm and utilize a gravity wedge locking system for quick and secure connection to ledgers and diagonal braces. Aluminum ringlock scaffolding can be assembled into a stable and versatile structure without tools, offering advantages such as faster installation and dismantling, and easier handling compared to traditional scaffolding.

Advantages of Aluminum Ringlock Scaffolding:

Aluminum ringlock scaffolding is lightweight, making installation and transportation easier and faster.

Assembly speed is 30% faster than traditional scaffolding.

Aluminum ringlock scaffolding has strong connections and a stable structure, resulting in higher safety.

Aluminum ringlock scaffolding is suitable for complex and curved construction projects.

Complies with BS1139 and EN74 standards.

Aluminum Ringlock Scaffolding System Components:

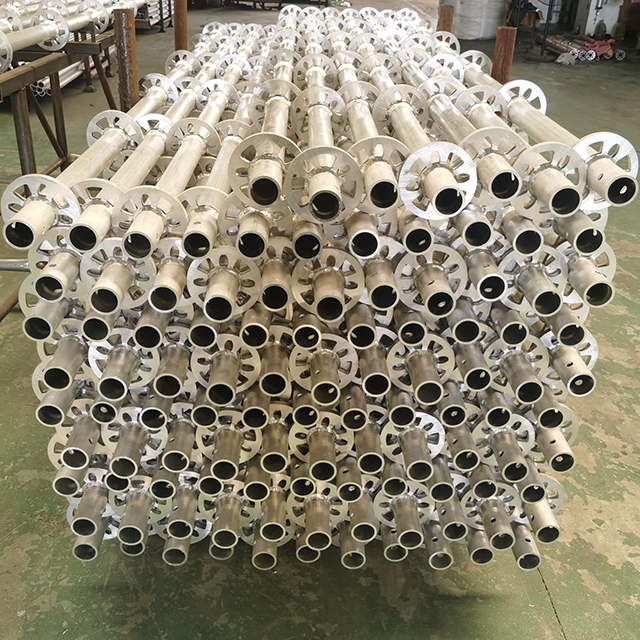

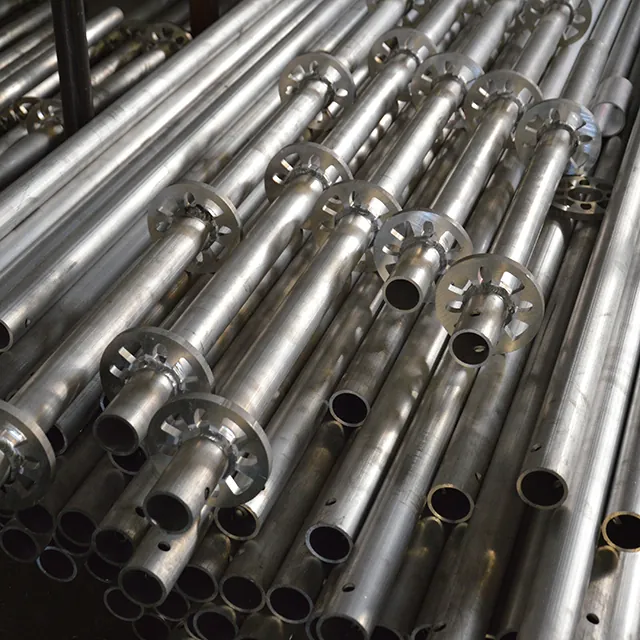

Standards: The vertical support poles of the scaffolding system, with a disc locking device welded every 500mm.

Ledgers: The horizontal bars of the scaffolding system, connecting to the standards to form the scaffolding frame.

Braces: Primarily provide support and stability to the scaffolding system.

Base Plates: Used at the bottom of the scaffolding system to adjust the stability of the scaffolding.

Platforms: Installed in the scaffolding system to provide support, work platforms, and access for workers.

Ladders: Provide safe access for workers working at heights.
