Drop Forged Swivel Coupler
EK
EK-DF Coupler American
48.3
Q235
Hot-Dip Galvanized

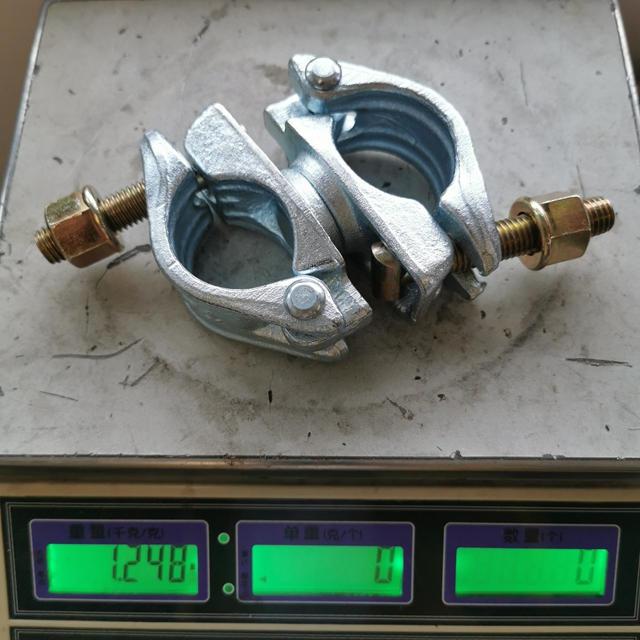

1.25 kg

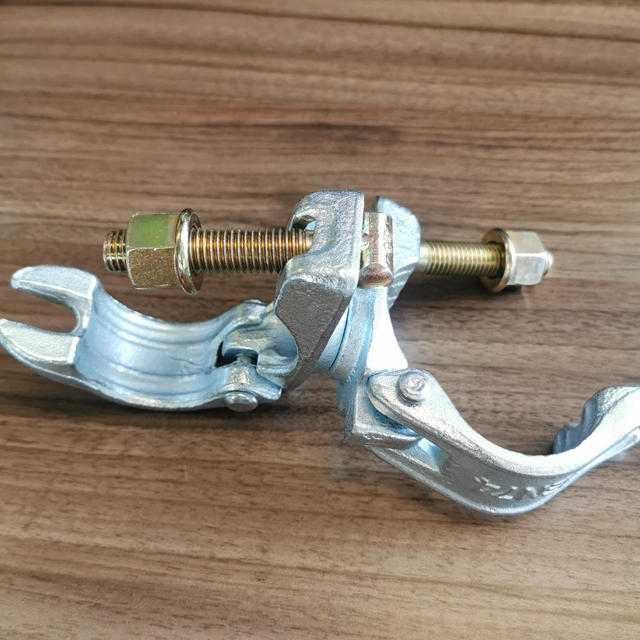

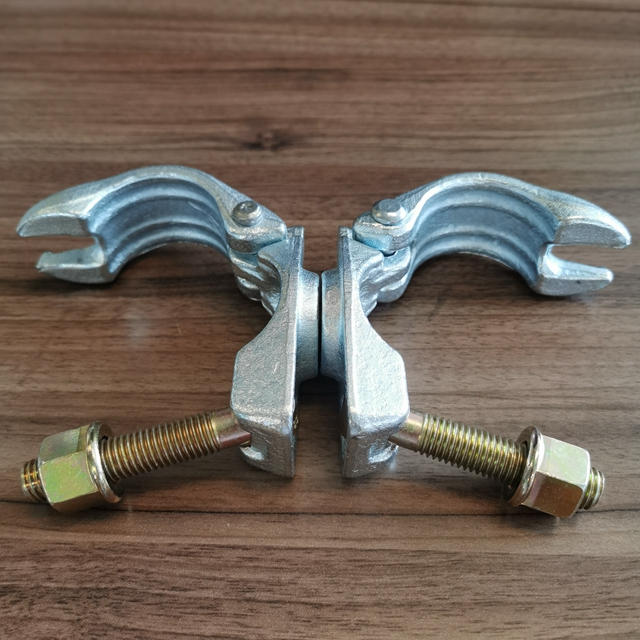

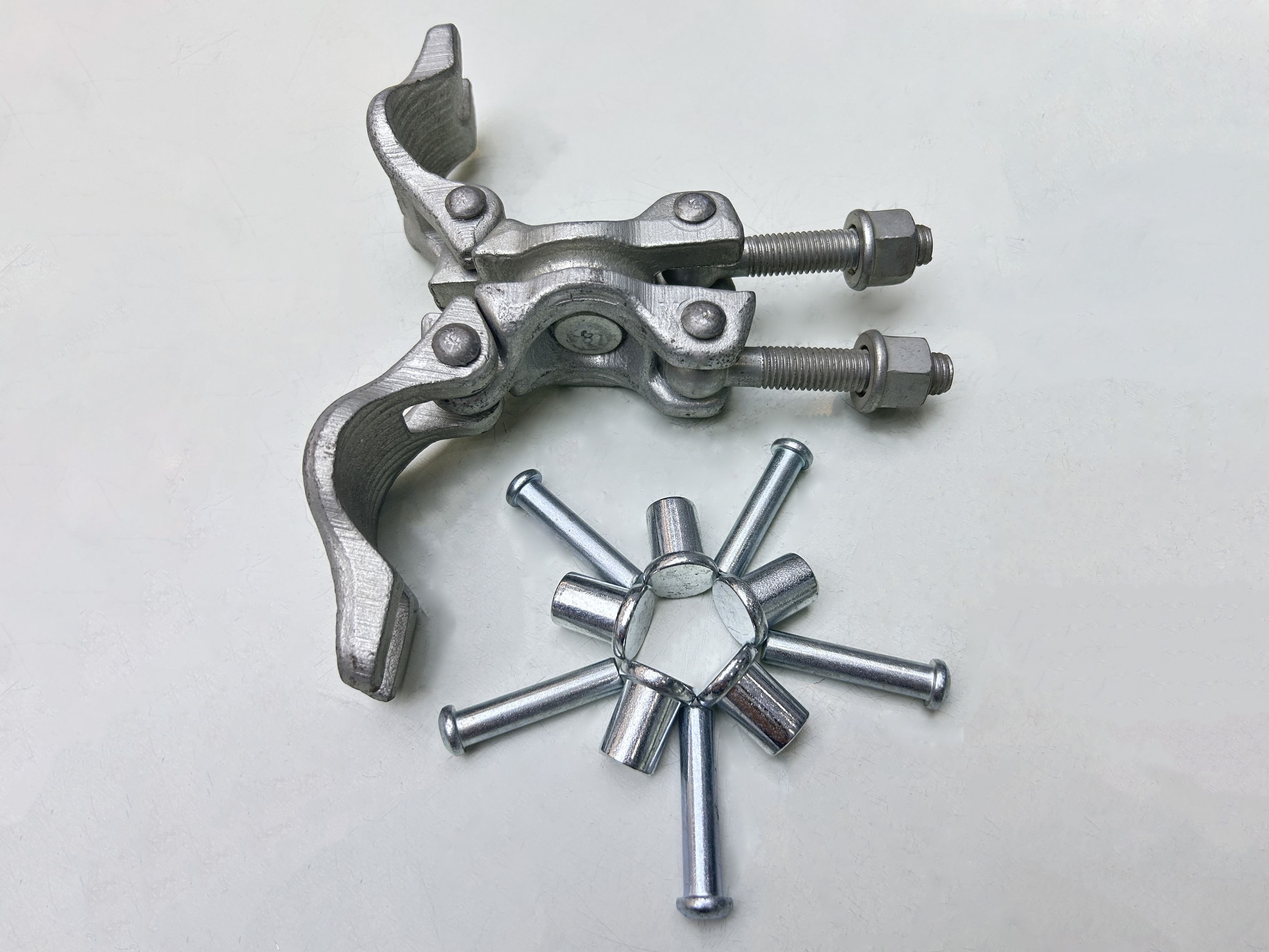

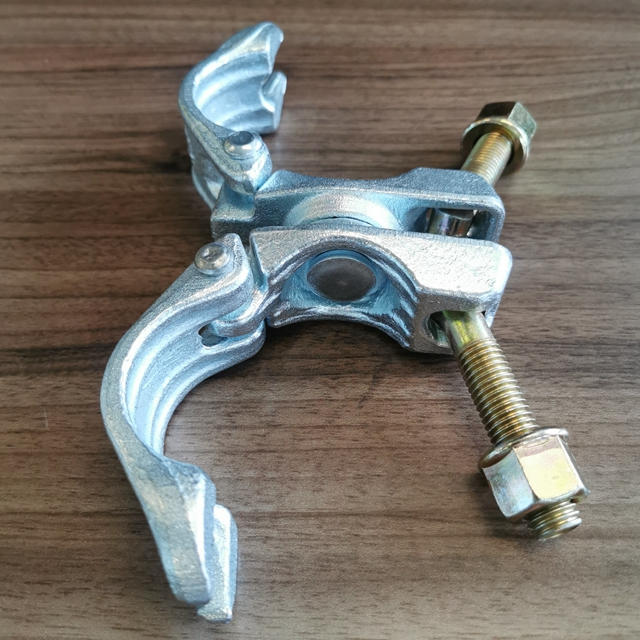

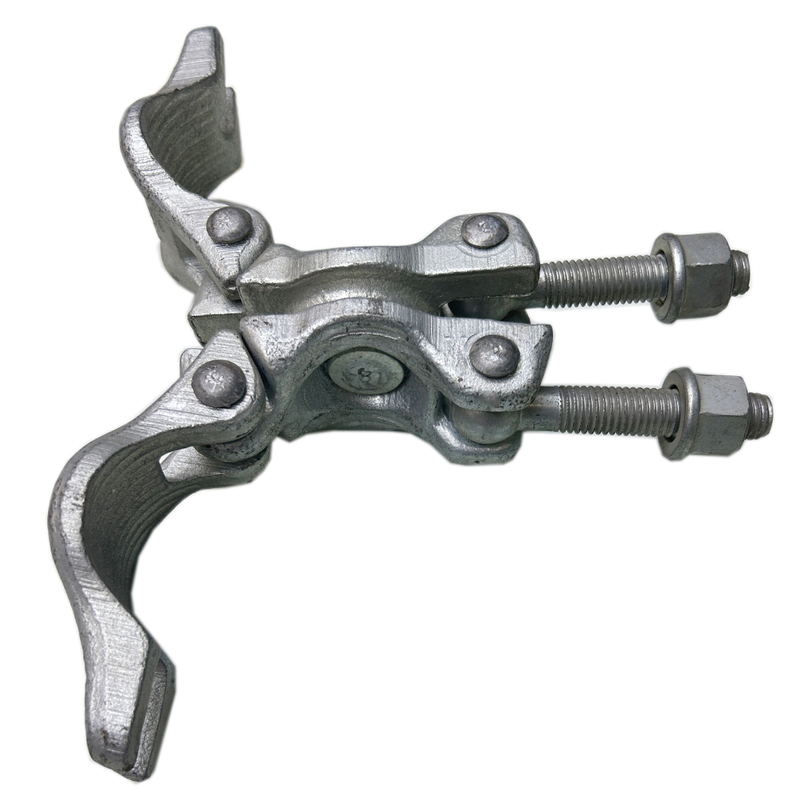

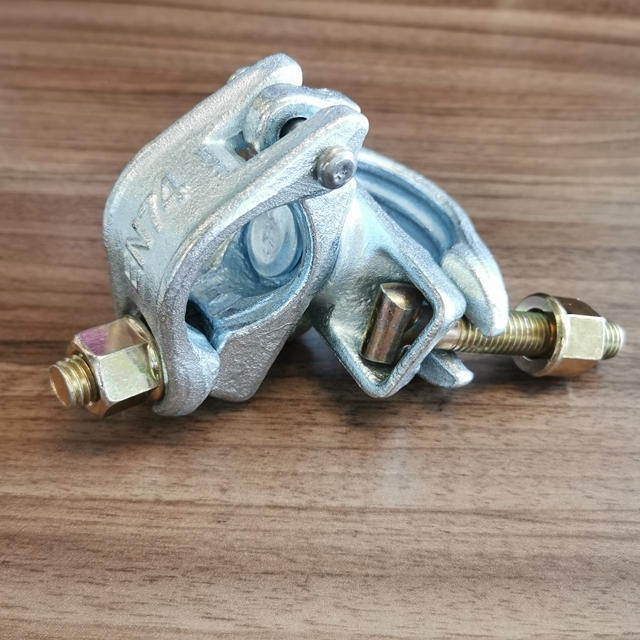

American Type Drop Forged Swivel Coupler
American type forged scaffolding couplers are also called the USA forged scaffolding clamps, is the heaviest weight of forging scaffolding couplers, with thicker forged covers and bodies, more anti-slipping bars behind the covers, assembled with ball head bolt and 22mm hex flange nuts, which is widely used in North American and other regions. Weight and forged type can be designed and produced as customer's requests.
Swivel Coupler: Used for cross-connection and fastening of two scaffolding steel pipes at any angle. Connects and fixes two components and can rotate flexibly to facilitate construction.
Name | American type scaffolding coupler |
Style | British type |
Technic | Drop forged |
Standard | EN74, BS1139 |
Anti-Rusting Treatment | Hot Dipped Galvanized, Electro Galvanized |
Material | Q235 |
Colour | White or Yellow |
Swivel coupler most commonly used coupler specifications are: 48.3*48.3. There are also some special specifications as shown:
Swivel Coupler | ||
48.3*34 | 34*34 | 34*38 |
48.3*38 | 38*38 | 38*42 |
48.3*42 | 42*42 | 42*60 |
48.3*48.3 | 48.3*60.3 | - |
48.3*60 | 60*60 | 60*76 |
48.3*76 | 76*76 | 86*89 |
48.3*89 | 89*89 | - |
60.3*60.3 | - | - |
Drop Forged Swivel Coupler SGS Report
EK-SGS-SWIVEL COUPLER 2025.pdf
Scaffolding Coupler Detection
This type of American drop forged couplers is mostly used to connect scaffolding tubes in dimension diameter 48.3mm, 60mm, and 89mm.
American type swivel couplers are constructed from high-quality steel and finished with a durable powder coat finish, designed to withstand the rigors of construction sites. Easily connecting two pipes at any angle, these swivel couplers are durable building components that provide exceptional flexibility and stability on the jobsite. Designed to meet EN74 & BS1139 standards, these swivel coupler are compatible with a variety of scaffolding systems.
As a reliable exporter, manufacturer, and supplier, EK scaffolding uses premium materials and adheres to precise manufacturing standards to provide customers with high-quality scaffolding coupler.
American Type Drop Forged Swivel Coupler
American type forged scaffolding couplers are also called the USA forged scaffolding clamps, is the heaviest weight of forging scaffolding couplers, with thicker forged covers and bodies, more anti-slipping bars behind the covers, assembled with ball head bolt and 22mm hex flange nuts, which is widely used in North American and other regions. Weight and forged type can be designed and produced as customer's requests.
Swivel Coupler: Used for cross-connection and fastening of two scaffolding steel pipes at any angle. Connects and fixes two components and can rotate flexibly to facilitate construction.
Name | American type scaffolding coupler |
Style | British type |
Technic | Drop forged |
Standard | EN74, BS1139 |
Anti-Rusting Treatment | Hot Dipped Galvanized, Electro Galvanized |
Material | Q235 |
Colour | White or Yellow |
Swivel coupler most commonly used coupler specifications are: 48.3*48.3. There are also some special specifications as shown:
Swivel Coupler | ||
48.3*34 | 34*34 | 34*38 |
48.3*38 | 38*38 | 38*42 |
48.3*42 | 42*42 | 42*60 |
48.3*48.3 | 48.3*60.3 | - |
48.3*60 | 60*60 | 60*76 |
48.3*76 | 76*76 | 86*89 |
48.3*89 | 89*89 | - |
60.3*60.3 | - | - |
Drop Forged Swivel Coupler SGS Report
EK-SGS-SWIVEL COUPLER 2025.pdf
Scaffolding Coupler Detection
This type of American drop forged couplers is mostly used to connect scaffolding tubes in dimension diameter 48.3mm, 60mm, and 89mm.
American type swivel couplers are constructed from high-quality steel and finished with a durable powder coat finish, designed to withstand the rigors of construction sites. Easily connecting two pipes at any angle, these swivel couplers are durable building components that provide exceptional flexibility and stability on the jobsite. Designed to meet EN74 & BS1139 standards, these swivel coupler are compatible with a variety of scaffolding systems.
As a reliable exporter, manufacturer, and supplier, EK scaffolding uses premium materials and adheres to precise manufacturing standards to provide customers with high-quality scaffolding coupler.
