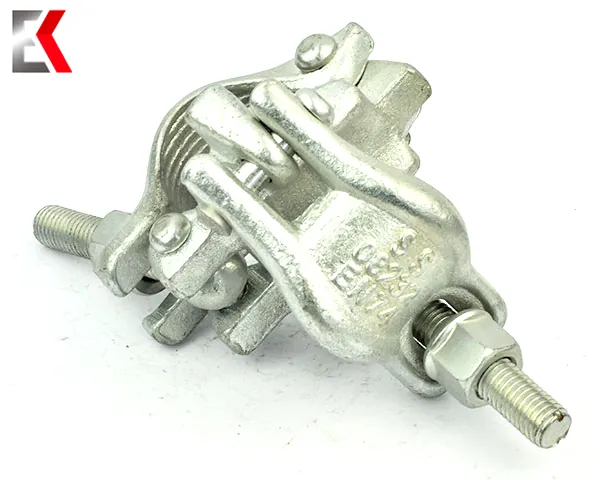

American Type Heavy Duty Double Forged Coupler

Share to:

American Type Heavy Duty Double Coupler Tube Size:51 mm Surface Treatment: Zinc-Plated Material: Carbon Steel Q235 AS Per Standard EN74-1:2005 Class B, AS1576.2,BS1139

Tube Size:	51mm
Material:	Q235
Single Weight:	1.8kg
Surface:	Zinc-Plated
Color:	White
Availability:

Quantity:



Inquire Add to Basket

Model:
F018
Brand:
EK
Code:
730890000
Tube Size:
51mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
1.8kg

Product Description

American Type Heavy Duty Double Forged Coupler

Products Details

Commodity Name	American Type Heavy Duty Double Coupler
Tube Size	51x51mm
Material	Q235
Color	Silver
Surface Treatment	Zinc-Plated
Single Weight	1.8kg
Standard	EN74-1:2005 Class B, ANSI/ASSE A10.8-2011,BS1139
Production Capability	2000 tons per month
OEM	Yes
Packing	Woven bags with wooden/Steel Pallets
MOQ	It depents on goods status
Application	Construction Building
Marking	Customized markings on products
Payment Term	T/T, L/C, D/P, etc.
Lead Time	20-25 days after receving the payment
Main Market	Asia (Malaysia, Singapore, Thailand,etc), South Africa, South America, North America, European( Italy, Poland, Switzerland, UK,etc), etc.

Products Advantages

1) with better plasticity and mechanical properties, using the high-frequency furnace to heat the carbon steel at the temperature 950 ° C -1050 ° C.

2）Products are stronger with anti-deformation and anti-tensile

3) Can work longer because of adopting anti-rust treatment

4) With better corrosion resistance

5) Suitable and firm structure design
