Australian Kwikstage Scaffolding Standard

5 0 Reviews

Share to:

Features:
Tube Dimension: O.D 48.3x4.0mm. Other tube thickness 3.5mm/3.25mm/3.0mm is also available by request.

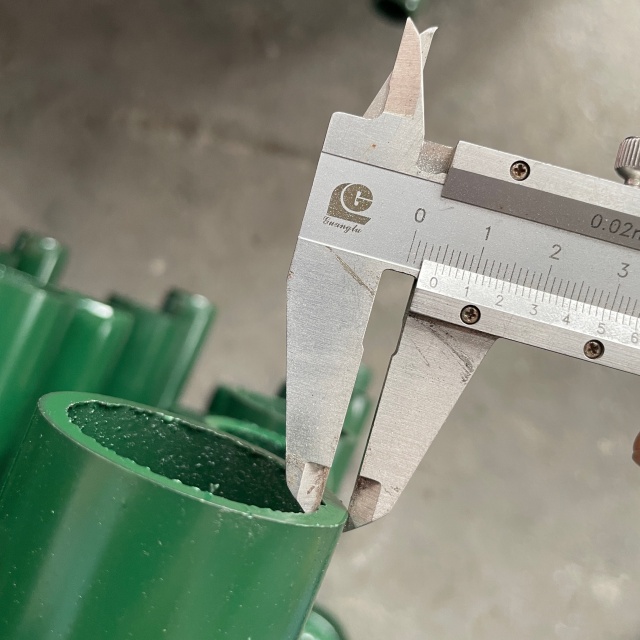

Spigot Size: O.D 38x3x265mm
Steel Tube Grade: Q235-Q355
V-lug Distance: 495mm
Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Availability:

Quantity:



Inquire Add to Basket

Model:
Kwikstage Scaffolding
Brand:
EK Scaffolding
Code:
EK-AKS
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated

Product Description

Australian Kwikstage Scaffolding Standard / Vertical

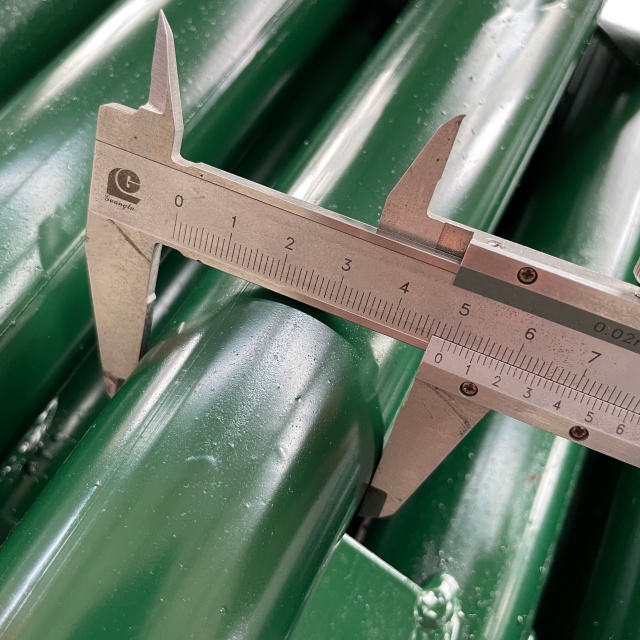

Steel tubes: 48.3mm x 4.0mm

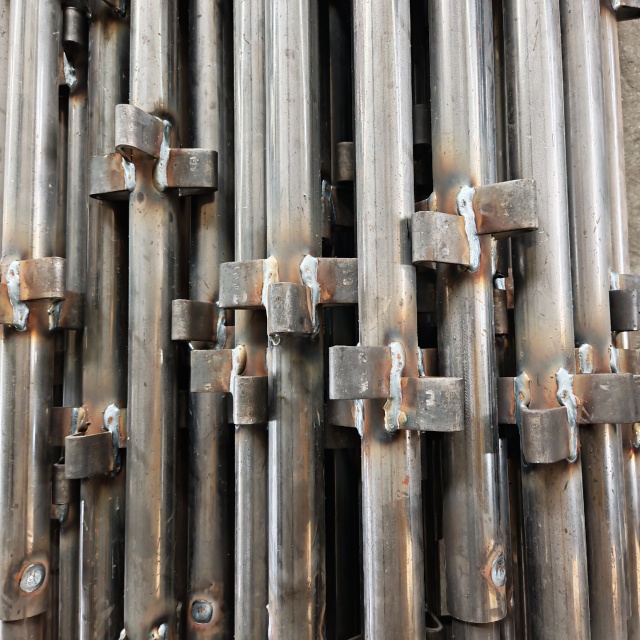

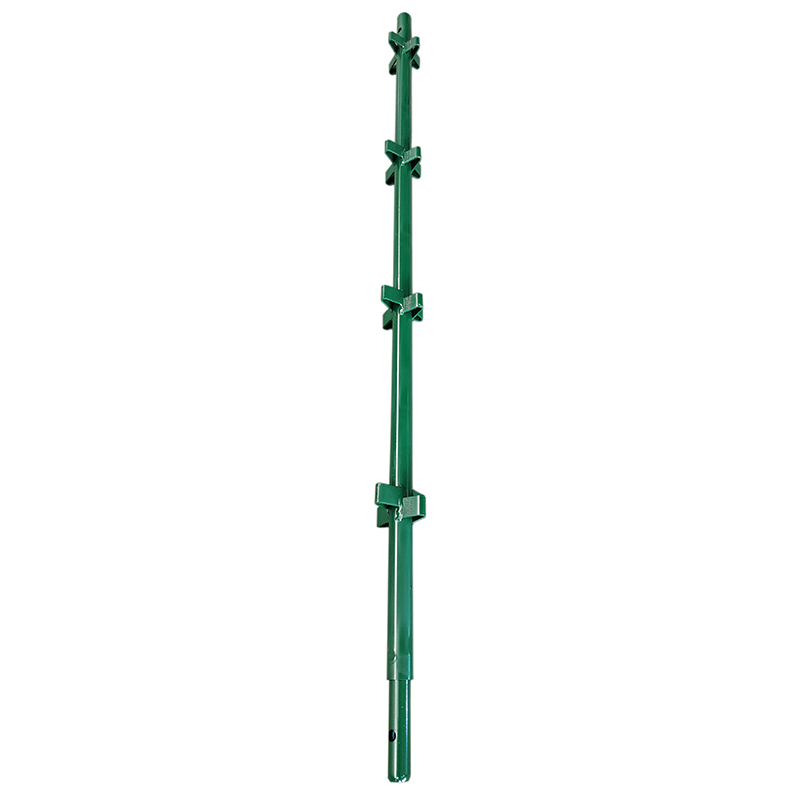

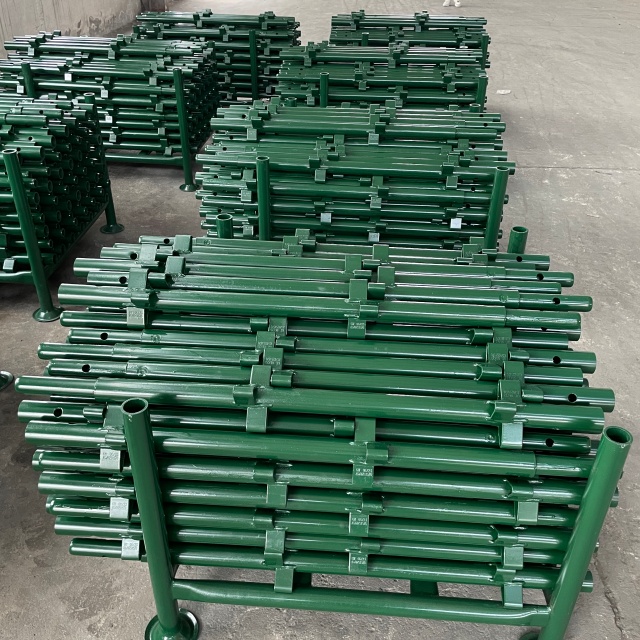

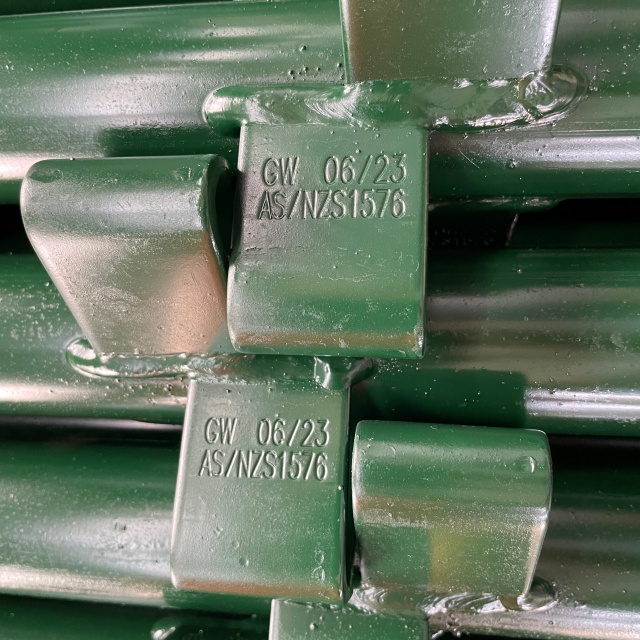

The Kwikstage Standard (vertical post) is the primary structural support for kwikstage scaffolding. Built to AS/NZS 1576 standards, it features "V" pressings spaced at 495 mm intervals to lock in ledgers, transoms, and hop-ups without needing tools. These heavy-duty uprights are typically manufactured from 48.3 mm OD x 4.0 mm high-tensile steel and include a top spigot for safe, vertical stacking.

Code	Item	Specification(mm)	Weight(Kg)
EK-AKS30	Australian Standard 3.0m	48.33.82972	16.81
EK-AKS25	Australian Standard 2.5m	48.33.82477	14.12
EK-AKS20	Australian Standard 2.0m	48.33.81981	11.43
EK-AKS15	Australian Standard 1.5m	48.33.81486	8.75
EK-AKS10	Australian Standard 1.0m	48.33.8991	6.06
EK-AKS05	Australian Standard 0.5m	48.33.8495	3.37
