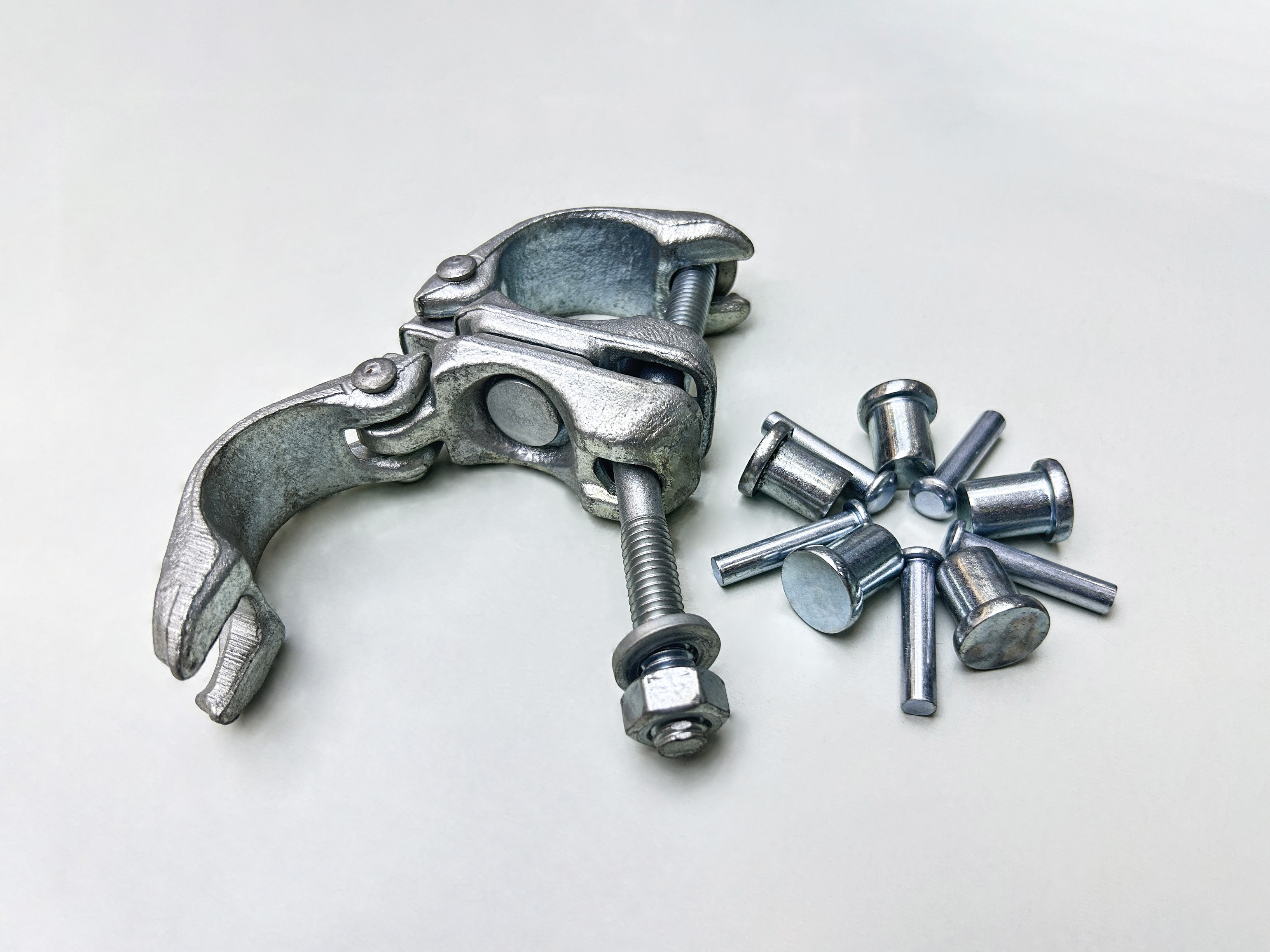

British Type Drop Forged Swivel Coupler

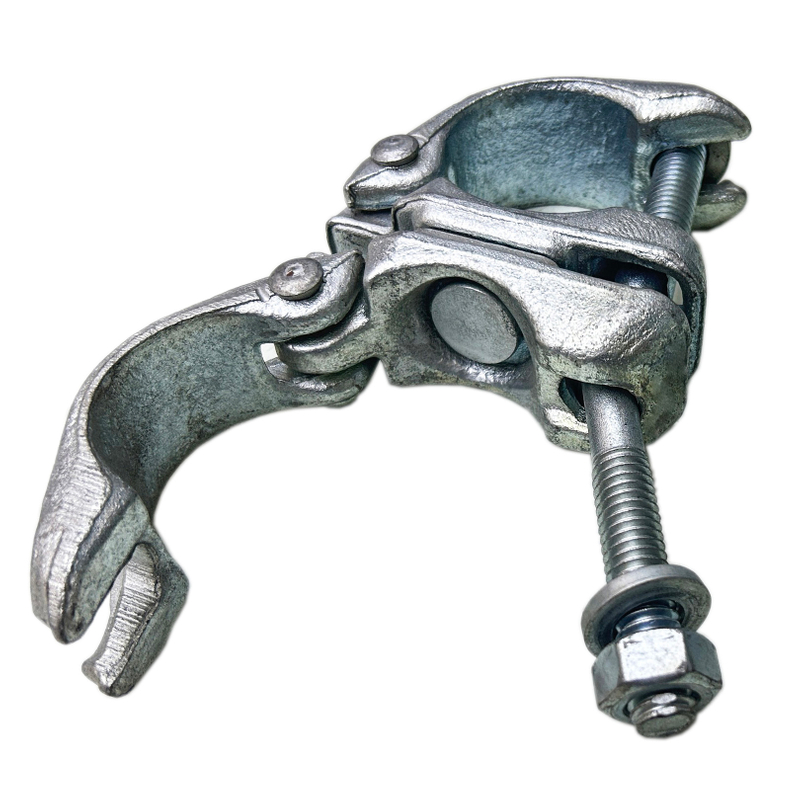

Swivel Coupler: Used for cross-connection and fastening of two scaffolding steel pipes at any angle. Connects and fixes two components and can rotate flexibly to facilitate construction.
| Name | Drop forged scaffolding coupler |
| Style | British type |
| Technic | Drop forged |
| Standard | EN74, BS1139
|
| Anti-Rusting Treatment | Hot Dipped Galvanized, Electro Galvanized |
| Material | Q235 |
| Colour | White or Yellow |
Swivel coupler most commonly used coupler specifications are: 48.3*48.3. There are also some special specifications as shown:
Swivel Coupler
|
| 48.3*34 | 34*34 | 34*38 |
| 48.3*38 | 38*38 | 38*42 |
| 48.3*42 | 42*42 | 42*60 |
| 48.3*48.3 | 48.3*60.3 | - |
| 48.3*60 | 60*60 | 60*76 |
| 48.3*76 | 76*76 | 86*89 |
| 48.3*89 | 89*89 | - |
| 60.3*60.3 | - | - |
Drop Forged Swivel Coupler SGS Report
EK-SGS-SWIVEL COUPLER 2025.pdf

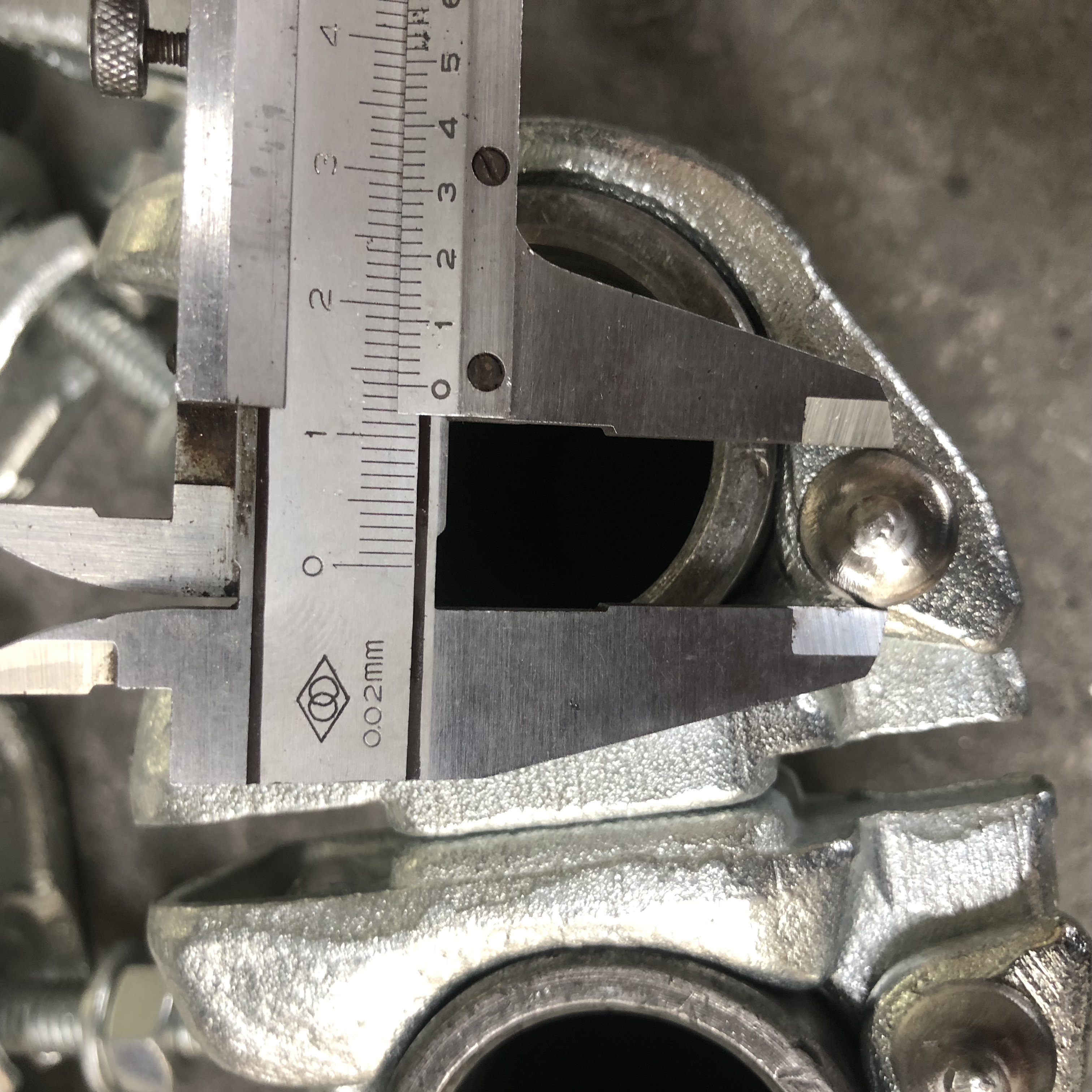

Scaffolding Coupler Detection
Drop forged coupler can improve the efficiency of scaffolding removal and save man-hours. Due to advanced technology, Drop forged swivel coupler has stronger anti-deformation and anti-stretching properties, is more suitable for scaffolding use, has a firm structure and is not easy to slip. Anti-rust treatment makes the forged swivel coupler have a longer service life. The scaffolding coupler is passivated and surface galvanized for anti-rust treatment. The corrosion resistance of drop forged swivel coupler is better than that of ordinary couplers. All forged couplers use high-frequency electric furnaces to heat carbon structural steel of different specifications to 950℃-1050℃ austenite state. After 4000KN one-time forging, its organization structure and mechanical properties can be improved, there by improving the plasticity and mechanical properties of swivel coupler.
