Cuplock Scaffolding Standard

EK is Cuplock Scaffolding Manufacturer. Cuplock scaffolding standard is Vertical Parts of Cuplock Scaffolding System. It Is Made From OD48.3mm Standard Scaffold Pipes With Top Cups and Bottom Cups On. EK Cuplock scaffolding standards are Tested According to EN 12810 Standard. Welding Quality of the Cuplock scaffolding standards is Conform to EN 1090 and ISO 3834 CE Requirement.

You Can find Both Galvanized and Painted Cuplock scaffolding standards from EK scaffolding. Our Cuplock scaffolding standards are Adapter with All Brand Cuplock Scaffolding System. Send Us Your Cuplock scaffolding standards Requirement to Get The Update High-Quality Cuplock Scaffolding Material Price Now.

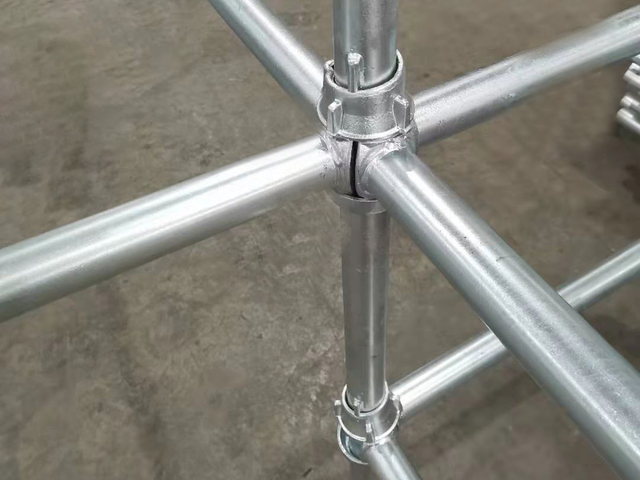

It is a fully Hot Dip Galvanized multi-purpose steel scaffold system suitable for providing general access and supporting vertical loads. The key feature is its bowl locking point which allows up to 4 horizontals to be connected to a vertical in a single fastening action-making it probably the fastest and safest system available.
Cuplock Scaffolding Components: Cuplock Scaffolding Standard, Cuplock Scaffolding Ledger, Cuplock Scaffolding Diagonal Brace, Side Bracket, Plank, Toe Board, Stair.

CupLock Scaffolding Standard / Vertical

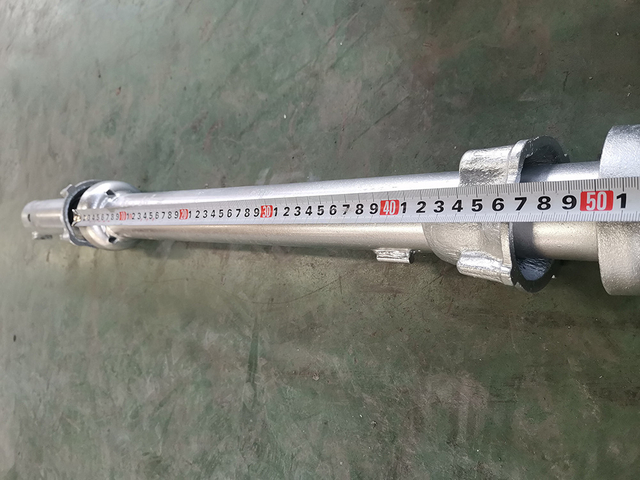

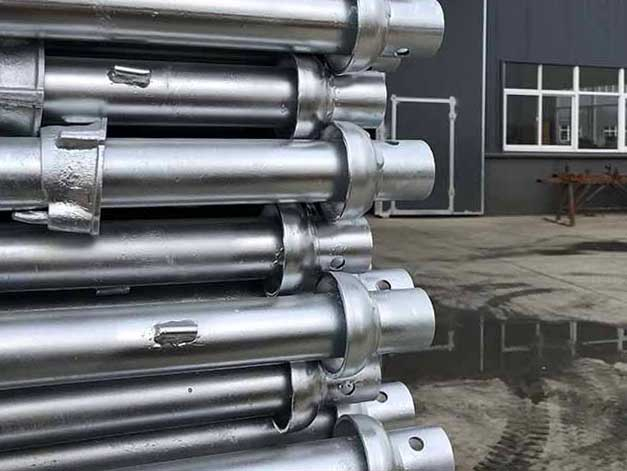

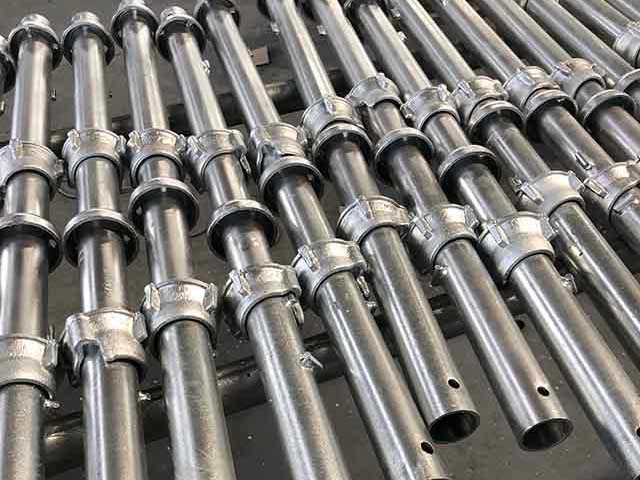

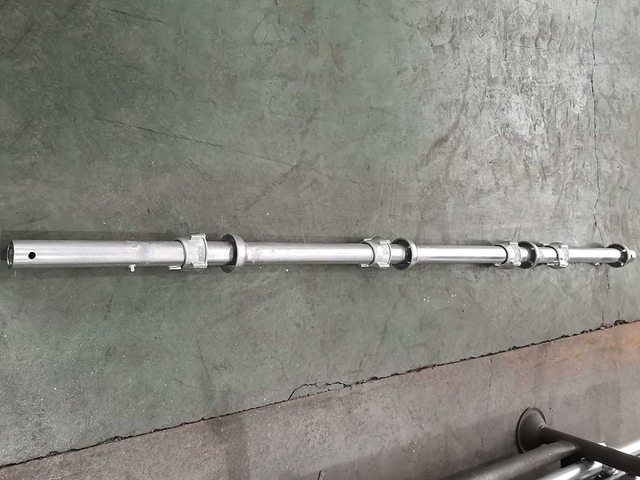

EK cuplock scaffolding standard parts are made of 48.3 diameter X3.2mm thick Q345 high-strength steel pipes, cuplock scaffolding standard has cup joints every 500mm interval. The top cup is removable and the bottom cup is welded. Works perfectly with the cuplock scaffolding ledger blade to securely lock the scaffolding.

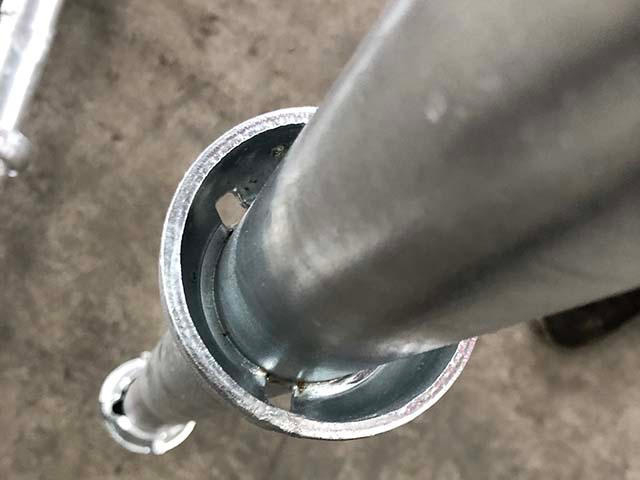

Cuplock scaffolding standard bottom cups are positioned 80mm from standard plinths, increasing structural strength and reducing the need for plinth bracing in support structures. On the top of the cuplock scaffolding standard, there is a socket that allows more standard pieces to be connected vertically, allowing to place a universal socket with various supporting components. At the bottom and top of each cuplock scaffolding standard, there is a corresponding drill hole for bolting two cuplock scaffolding standards together.

Features:
Tube Dimension: O.D 48.3x3.25mm,also available by request.
Spigot Size: O.D 38x3x300mm or SHS30x30x3x300mm
Cup Distance: 500mm
Material: High Quality Q235 or 345 Strengh Steel

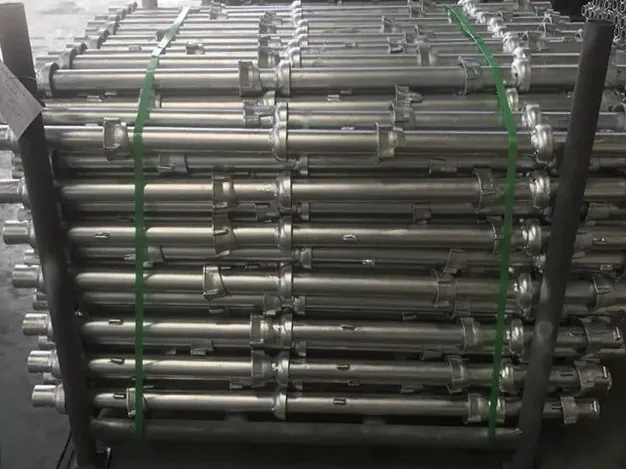

Packing: steel pallet
Surface finish: Hot dip Galvanized; Powder Coated, Painted
long lasting from rusted, powder coated or painted protecting the surface with less cost
