Cuplock scaffolding is a modular scaffolding system constructed from galvanized steel. It utilizes a unique "cup-lock" mechanism on the vertical standards to connect up to four horizontal ledgers simultaneously. Thanks to this distinctive locking mechanism—which eliminates the need for bolts or other complex fittings—assembly and dismantling times can be significantly reduced. Our cuplock scaffolding products comply with either EN 12810 / 12811 (European Standards) or ANSI / SSFI SC100-5/05 (North American Standards). We typically utilize S355 grade steel; the vertical standards are manufactured with a wall thickness of 3.2mm or 4.0mm, while the horizontal ledgers feature a thickness of 3.0mm or 3.2mm. The surface undergoes a hot-dip galvanization process to provide effective protection against corrosion and rust.

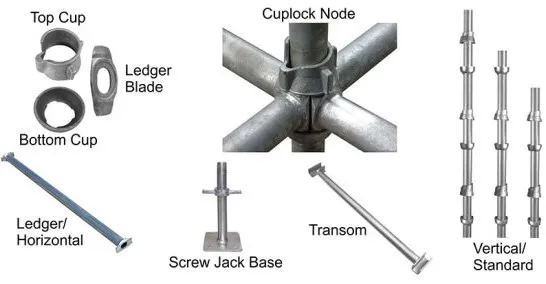

The primary components of cuplock scaffolding include:
Vertical Standards: These are the vertical members within the scaffolding system responsible for bearing the structural load of the scaffold. They are available in various lengths and diameter specifications. Horizontal Ledgers: These horizontal members serve to connect the vertical standards and define the span length of the scaffolding bay. Additionally, they provide structural stability, support the working platforms, and distribute the weight of the working load. Diagonal Braces: Used to reinforce the scaffolding structure and maintain its overall rigidity, providing additional stiffness and stability to the system. Platforms/Boards: Available in various sizes and materials, these components provide a secure working surface at different heights within the scaffold structure. Base Jacks: These components support the entire weight of the scaffolding structure and distribute it evenly across the ground surface.
Safe Assembly Steps for Cuplock Scaffolding

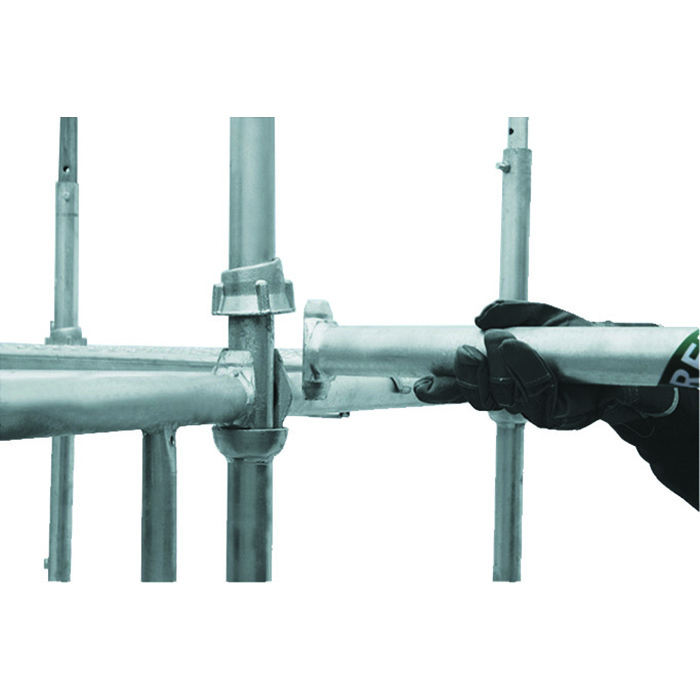

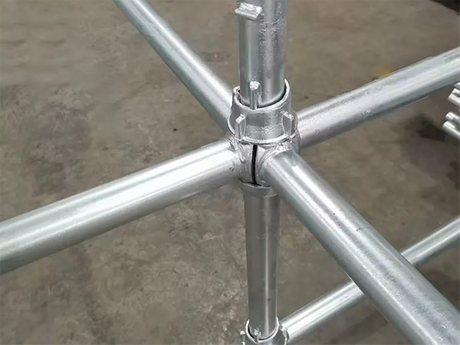

1. Component Inspection Prior to assembly, all components must be thoroughly inspected to ensure they are free of any damage or defects. 2. Base Jack Setup Clear and level the construction site, ensuring the ground is firm and stable to prevent the scaffolding from tilting. Place the adjustable base jacks at the designated locations for the scaffolding structure, ensuring that the base setup is solid and secure. 3. Connecting Standards and Ledgers Insert the vertical standards (uprights) into the base jacks. Fixed lower cuplock are positioned on the vertical standards at 0.5-meter intervals, while rotatable upper cuplock are fitted at the top. Up to four horizontal ledgers can be connected at each node point by inserting the wedge-shaped ends of the ledgers into the lower cuplock on the standards. 4. Locking the Connection Slide the movable upper cuplock downward so that it covers the ledger wedges; then, rotate the upper cuplock to achieve an initial engagement. Finally, strike the upper cuplock in a clockwise direction to establish a rigid and secure locked connection. 5. Installing the Work Platform Lay the scaffolding walk boards (scaffolding planks) across the horizontal ledgers, ensuring they are securely fastened to form a stable working platform. Verify that the scaffolding walk boards are level and evenly spaced; once installed, secure them using board clamps or fasteners. 6. Installing Safety Components Install guardrails along the edges of the scaffolding to prevent workers from falling. Install toe boards at the base of the platform to prevent tools or materials from falling off the scaffolding. 7. Increasing Height Repeat steps 3 through 6 to increase the height of the scaffolding until the required elevation is reached. During the upward construction process, ensure that the scaffold structure remains level and vertically aligned. 8. Final Inspection Inspect the stability of all scaffolding components to ensure the overall structural integrity of the system. Verify the load-bearing capacity to ensure the scaffold structure can safely support the anticipated loads. Conduct periodic inspections to ensure that all components are free of damage and comply with local safety standards.
Precautions for Use
1. Regular Inspection: Before each use, all cup-locks must be inspected to ensure they are in a secure, locked position. Verify that the cup-locks, wedges, vertical standards, and horizontal ledgers show no signs of cracks, corrosion, or damage. 2. Locking Mechanism: Confirm that all upper cup-locks have been firmly driven down with a hammer, producing the distinct, crisp "click" sound characteristic of a secure, hammered connection. 3. Load Limits: Ensure that the platform load does not exceed the specified limits. Never exceed the maximum load-bearing capacity of the scaffolding; when calculating the total load, be sure to include the combined weight of the workers, tools, and materials. 4. Safe Access: Access to and egress from the cuplock scaffolding system must be made via designated access ladders or integrated stairways; climbing the diagonal braces is strictly prohibited. 5. Component Maintenance: Regularly clean concrete residue and debris from the joints to prevent the locking mechanisms from jamming or failing. 6. Personal Protective Equipment (PPE) Requirements: Appropriate PPE must be worn at all times, including safety helmets, fall-protection safety harnesses, and non-slip safety boots.
Summary
The highly efficient locking mechanism and exceptional structural strength of the cuplock scaffolding system provide a safe, stable, and cost-effective solution for temporary support and work platforms in construction projects. By choosing EK Scaffolding, you gain access to certified, well-maintained cuplock scaffolding systems, along with professional structural design consultation services. To provide you with more specific guidance, please briefly outline your project requirements: • What is the specific application scenario? (e.g., masonry work, concrete support, etc.) • What is the anticipated load per square meter? • What is the specific spacing required between the vertical standards?
