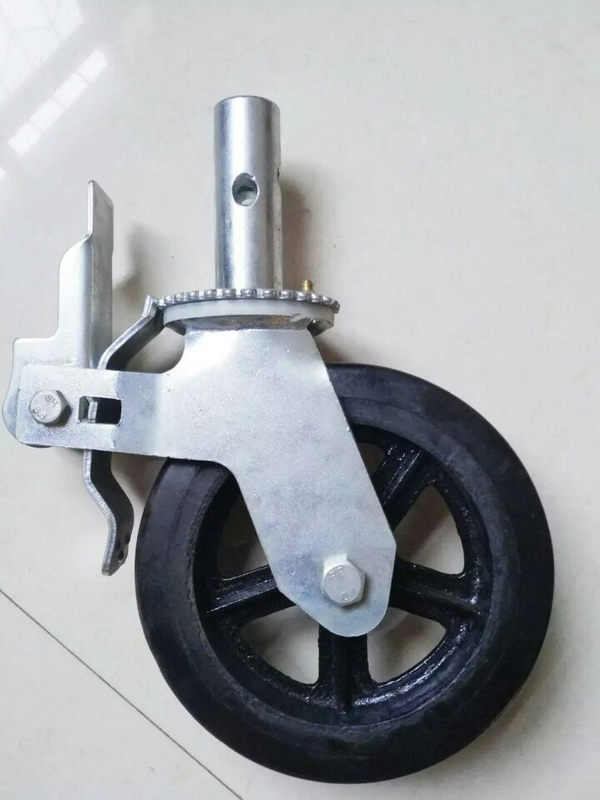

High Quality Heavy Duty Scaffold Swivel Caster Wheel
EK Scaffolding
73089000
Q235
Zinc-Plated
Size available: 4'', 5'', 6'', 8'',10"
*Wheel Material: PU on cast iron
*Color in Red,Black
*Swivel Type/PU
*Double ball bearing
*Housing be made of pressed steel
*Zinc plating or Electrophoresis finish
*High shock absorption /High abrasion resistance/ High Stain resistance
*Top quantity Competive price
wheel dia(mm | tread width(mm) | top plate size(mm) | top plate size(mm) | top plate size(mm) | top plate size(mm) | overall height (mm | load capacity(mm) |
125 | 50 | 149X110 | 120X60 105X80 | 45 | 13 | 177 | 600 |
160 | 50 | 149X110 | 120X60 105X80 | 49 | 13 | 212 | 800 |
200 | 50 | 149X110 | 120X60 105X80 | 54 | 13 | 252 | 1000 |
250 | 50 | 149X110 | 120X60 105X80 | 70 | 13 | 303 | 1200 |
300 | 50 | 149X110 | 120X60 105X80 | 80 | 13 | 353 | 1300 |
[Others]:
*Special Size can be made upon request.
EK METALWOR CO.,LTD is an China based scaffolding company, located in Nanjing, Jiangsu, with more than ten years experience in scaffolding field.
--We have been adhering to the ideas of honesty and service since the establishment of our company.
--We take pride in providing high quality services and putting safety first as our priority.
--We provide safety first scaffolding services for industrial, commercial, residential, oil & gas, shipyard repair etc.
--We can make drawing and develop new products use our own technician team according to the cusotmers' required of special design and marking.
--Any product support customization.
Product Chain
--Scaffolding Couplers
--Scaffolding System
--Props
--Aluminium Scaffolding
--Working Board
--Screw Jack
--Frame System
--Formwork
--Hand Tools
--Accessories
--Raw Material
Size available: 4'', 5'', 6'', 8'',10"
*Wheel Material: PU on cast iron
*Color in Red,Black
*Swivel Type/PU
*Double ball bearing
*Housing be made of pressed steel
*Zinc plating or Electrophoresis finish
*High shock absorption /High abrasion resistance/ High Stain resistance
*Top quantity Competive price
wheel dia(mm | tread width(mm) | top plate size(mm) | top plate size(mm) | top plate size(mm) | top plate size(mm) | overall height (mm | load capacity(mm) |
125 | 50 | 149X110 | 120X60 105X80 | 45 | 13 | 177 | 600 |
160 | 50 | 149X110 | 120X60 105X80 | 49 | 13 | 212 | 800 |
200 | 50 | 149X110 | 120X60 105X80 | 54 | 13 | 252 | 1000 |
250 | 50 | 149X110 | 120X60 105X80 | 70 | 13 | 303 | 1200 |
300 | 50 | 149X110 | 120X60 105X80 | 80 | 13 | 353 | 1300 |
[Others]:
*Special Size can be made upon request.
