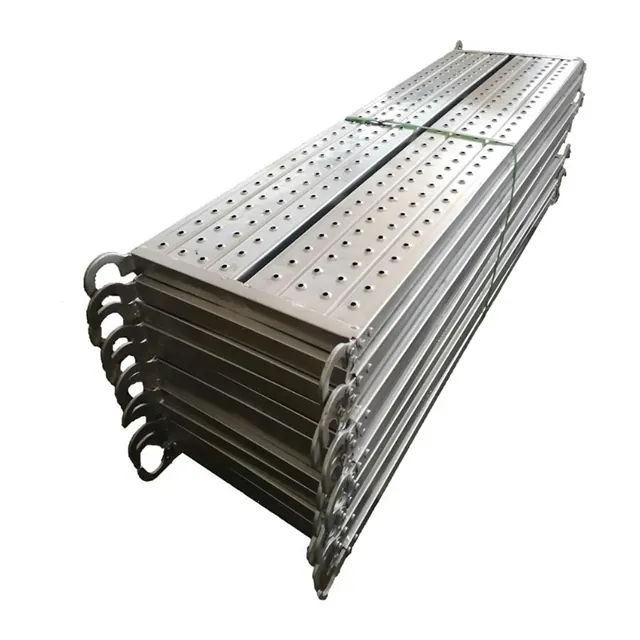

Galvanized Scaffolding Hook Steel Plank for Construction

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
1) Material: Q195, Q235
2) Surface Treatment: Galvanized ( Pre-Galvanized, Hot-dip Galvanized)
3) Thickness: 2.0mm or per design
4) Width: 38mm or per design
5) Length: 2500mm or per design
6) Usage: For Ladder Prop Hook Steel Plank
7) Marking: Customized markings on products
Availability:
Quantity:
  • Hook Plank

  • EK

  • 730890

  • NO

  • Q235

  • Zinc-Plated

  • 2-30KG

Steel Scaffold Plank Galvanized Scaffolding Catwalk Hook Walk Board for Construction

Scaffolding Steel Hook Walk Board


1.  Made of Q235 steel which has high loading capacity for walking through.
2. Connected with CO2 arc welding to against cracking and deformation, which provide longer protection from rustiness and corrosion.
3. Can be galvanized or paitned to against rustness.
4. Can be used with all kinds of scaffolding systems.
5. Can be welded with hook or without hook.
6. Used to walk through the scaffolding system or elevate the step on the scaffolding easier.
Other specifications of scaffolding planks are available as your requirement.

Product Description


Commodity Name

Scaffolding Steel Hook Plank Walk Board

Material Q195,Q235

Size

T2.0mmxW225mmxH38mmxL2500mm

Single Weight

Around 15.18kg

Surface

Galvanized

Color

White or per request

Hook design

With hook or without per design

Processing Way

Galvanized

Standard

EN74-1:2005 Class B, AS1576.2, BS1139

Production Capability

2000 tons per month

Payment term

T/T, L/C, D/P or further negotiation

Delivery Term

20-25 days after order confirmed or receiving deposit

Steel Walk Board Common Size


Width*Height(mm)

thickness(mm)

length(mm)

210*45

1.0-2.0

300-4000

220*65

225*38

230*60

240*45

250*45

320*76

330*50

420*45

450*38

450*45

480*45

495*50

500*50


Product Images

Hook Walk board1
