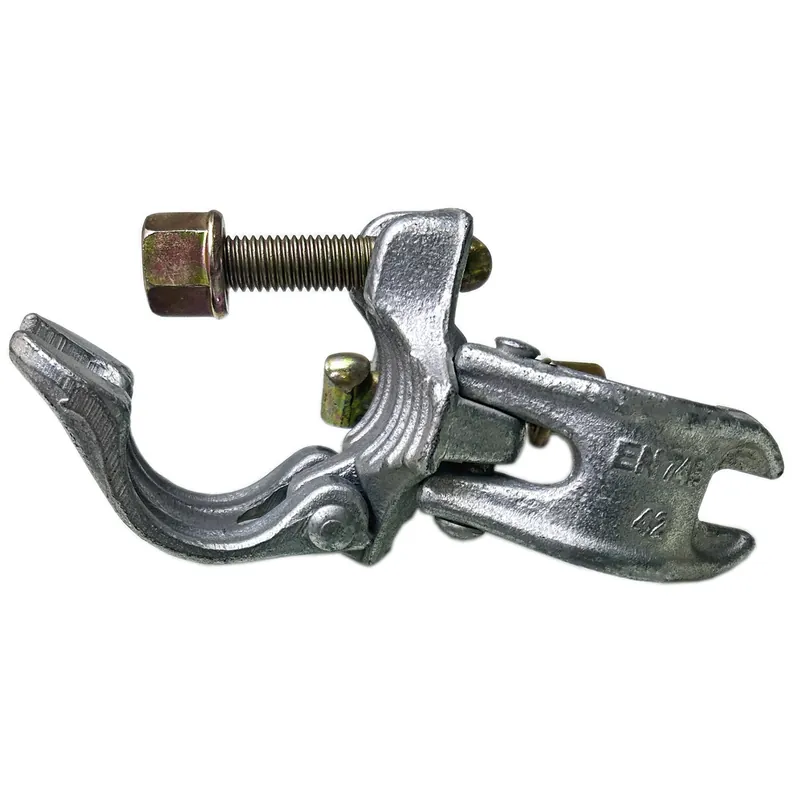

German Type Scaffolding Coupler

The German type scaffolding coupler is a heavy-duty scaffolding coupler. It features forged steel components for high strength and durability. It comes with M14 bolts and 22 mm flange nuts and is primarily used in Germany. Our German type scaffolding coupler undergo rigorous load testing, with right-angle couplers capable of up to 30 kN and swivel couplers capable of up to 20 kN, ensuring safety under heavy loads.

German scaffolding clamps include double couplers, swivel couplers, half couplers, and joint pin couplers. Our German scaffolding clamps strictly comply with the following standards:

- EN 74-1: European standard defining requirements for scaffolding couplers.
- BS 1139-2: Internationally recognized British standard for scaffolding couplers.
- ISO 9001: Quality management system certification ensures consistent manufacturing quality.
- CE Mark: Demonstrates compliance with EU safety, health, and environmental protection requirements.

German Type Scaffolding Clamp Coupler

Material: Q195 / Q235 / Q345
Nut:22mm
Tube Size: 48.3mm
Weight: 0.97-1.56kg or as per your request
Size:48.3*48.3mm
Surface Treatment: Self-color,Zinc plated ,Hot dip galvanised
Color:Self-color(Black) , White, Yellow
Standards: EN74 / BS1139 / AS1576
Packing: Woven bag + steel pallet
Specification:25pcs/bag 50bag/pallet
