Scaffolding couplers are critical components in any scaffolding system, used to securely fasten steel scaffolding tubes and construct stable scaffolding structures. These couplers are essential for supporting workers, materials, and equipment. Understanding the manufacturing and maintenance of scaffolding couplers helps ensure safety and efficiency on construction sites.
Manufacturing of Scaffolding Couplers
The choice of the right combination of material, manufacturing process, and coating determines the coupler's application range and service life.
Scaffolding Coupler Materials
Most scaffolding couplers are made of steel or aluminum. Steel couplers are currently the most common type on the market.
Steel couplers offer high tensile and shear strength; they are generally used for heavy-duty tasks and building construction, and are compatible with standard steel tubes having an outer diameter of 48.3 mm.
Aluminum couplers are lightweight but have lower tensile strength; they are typically used for light-duty platforms or mobile structures and are usually paired with aluminum scaffolding tubes.
Manufacturing Processes for Scaffolding Couplers
There are two common manufacturing processes for scaffolding couplers: drop forged and pressed.

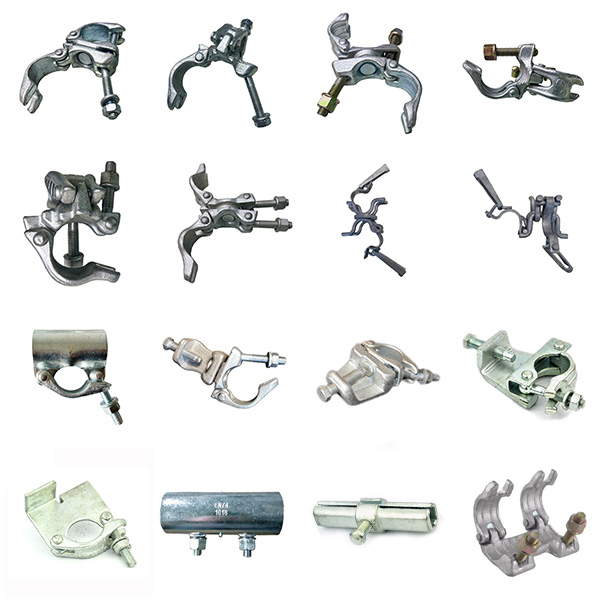

Drop Forged couplers are produced by shaping steel blocks through a hot forging process; they offer exceptional strength and impact resistance, making them the preferred choice for demanding and heavy-duty projects.

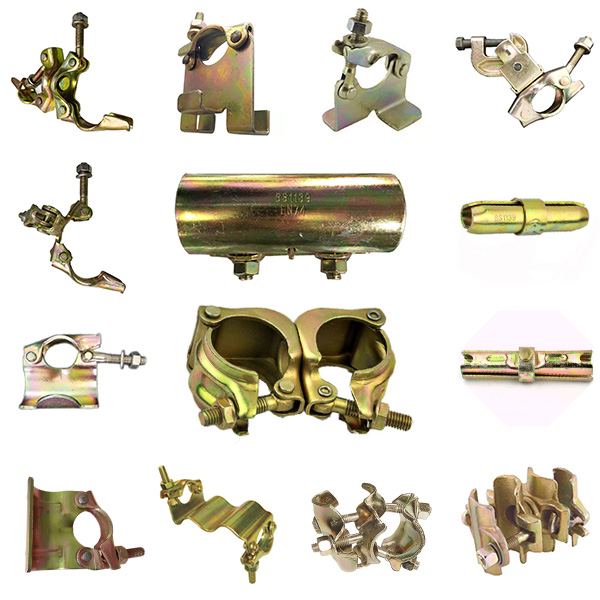

Pressed couplers are formed by pressing steel sheets and welding specific areas; while their overall strength and impact resistance are lower than those of forged couplers, they are generally more cost-effective and suitable for projects with lower load-bearing requirements.
Surface Treatment of Scaffolding Couplers
Common surface treatments for scaffolding couplers include hot-dip galvanizing and electro-galvanizing.
Hot-dip galvanized couplers feature a thicker coating with superior corrosion resistance, making them suitable for outdoor or coastal environments and effectively extending their service life.
Electro-galvanized couplers have a thinner coating and offer less durability than hot-dip galvanized versions; they are suitable for indoor or dry environments.
Scaffolding Coupler Standards
BS 1139 and EN 74 are the most widely used scaffolding standards in global construction engineering. These standards go beyond isolated restrictions and regulations for civil, residential, and general building construction; as regulatory standards, their scope of application has expanded to the global industrial and commercial scaffolding sectors.
EN 74 Standard: Applies to scaffolding couplers, primarily covering right-angle couplers, swivel couplers, and sleeve couplers. Although its specifications are similar to BS 1139, EN 74 categorizes couplers into Class A and Class B.
EN 74 Class A: Specifies basic safety standards for scaffolding couplers regarding slip resistance, deformation resistance, and other structural factors.

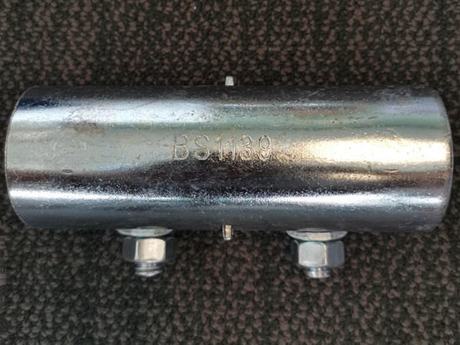

EN 74 Class B: Imposes stricter requirements for deformation resistance than Class A, making it more suitable for heavy-duty construction projects with higher load-bearing demands. BS 1139 Standard: This standard also specifies requirements for various types of scaffolding couplers, such as drop-forged right-angle couplers (double couplers), pressed right-angle couplers, forged swivel couplers, pressed swivel couplers, putlog couplers, board retaining couplers, and sleeve couplers.
Maintenance of Scaffolding Couplers
Couplers require regular inspection during use; any showing signs of wear, rust, or damage must be taken out of service and replaced immediately.
Scaffolding couplers need regular cleaning and lubrication to prevent rust. Any rusted couplers should be set aside and treated accordingly. Anti-corrosion treatment is recommended on an annual basis.
Upon project completion, scaffolding couplers must be promptly collected, sorted, and stored in a cool, dry place (preferably indoors).
Applications of Scaffolding Couplers
Scaffolding couplers are essential in construction for securely connecting steel scaffolding tubes. They serve several critical functions:
Base Framework
Right-angle couplers (double couplers) connect standards (vertical tubes) and ledgers (horizontal tubes) at a precise 90-degree angle to support heavy load-bearing structures.
Platform Support
Couplers secure transverse members (such as transoms) to create a stable platform for workers to stand on, while also fixing scaffolding walk boards in place to prevent dangerous slippage. Bracing, Reinforcement, and Complex Structures
Swivel couplers allow steel tubes to be connected at various angles, which is crucial for installing diagonal braces and adjusting the scaffold's shape to suit unique architectural structures.
Support Structures
Couplers are used to assemble scaffold frameworks that support personnel, tools, and materials during construction, maintenance, or renovation work at heights.
Platform Assembly
Couplers connect horizontal members (such as ledgers and transoms) to vertical standards, creating stable platforms for workers to stand on safely.
Constructing Complex Structures
By connecting steel tubes at various angles, couplers enable the scaffolding to adapt to irregular shapes or navigate around obstacles.
