Color Zinc Plating Scaffolding Pressed Swivel Coupler

5 0 Reviews

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Color Zinc Plating JIS Scaffolding Pressed 60.5 Double Coupler, 60.5*60.5mm, 0.78kg/pc.
Availability:
Quantity:
  • swivel coupler

  • EK Scaffolding

  • 730890

  • 60.5

  • Q235

  • Zinc-Plated

  • 0.75

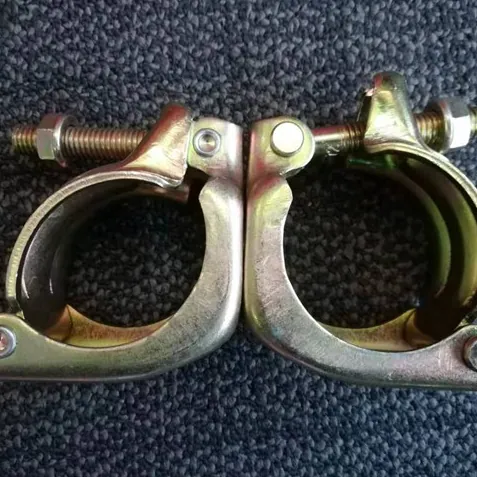

Color Zinc Plating Scaffolding Pressed Swivel Coupler

Pressed Swivel Scaffolding Coupler


Pressed Swivel Coupler

Pressed swivel coupler is a scaffolding accessories used in scaffolding and other construction applications to connect two scaffold tubes at any angle, allowing for 360 degrees of rotation. It's particularly useful for diagonal bracing and other angled connections. Swivel couplers are typically made of pressed steel and zinc-plated for durability.


1.Hot-dip galvanized couplers: After degreasing, pickling, dipping, and drying, the scaffold couplers are immersed in the molten zinc solution for a certain period of time and then taken out.
   2.Electro-galvanized couplers: Electro-galvanized couplers are scaffolding couplers that need to be processed by degreasing and pickling with electrolysis equipment, then put them into a solution of zinc salt, and then connect the negative electrode of the electrolysis equipment; Place a zinc plate on the opposite side of the piece and connect it to the positive electrode of the electrolysis device, turn on the power, and use the directional movement of the current from the positive electrode to the negative electrode to gradually deposit a layer of zinc on the surface of the scaffolding coupler.
       3.Hight Protected paint couplers: Spray paint is a coating method that is sprayed through a spray gun or a disc atomizer, dispersed into uniform and fine droplets by means of pressure or centrifugal force, and applied to the surface of the scaffolding coupler.


Pressed Swivel Coupler Description

Used for cross-connection and fastening of two scaffolding steel pipes at any angle. Connects and fixes two components and can rotate flexibly to facilitate construction.

A pressed steel swivel coupler allowing 360 degree rotation. Designed to fit 48mm diameter tube.

Supplied with a passivate finish but this can vary between silver and gold.

Swivel Coupler Specification

Tube Size: 48.3 mm

Surface Treatment: Zinc-Plated

Material: Carbon Steel Q235

AS Per Standard EN74-1:2005 Class B, AS1576.2,BS1139

Scaffolding Use

Durable and Sustainable


Pressed Swivel CouplerPressed Swivel CouplerPressed Swivel CouplerPressed Swivel Coupler
