Scaffolding Fitting BS1139 Scaffold Clamp Pressed Steel Board Coupler

5 0 Reviews

Share to:

Pressed Scaffolding Board Coupler 1) Material: Q235 2) Tube Size: 48.3mm 3) Processing Way: Pressed 4) Surface Treatment: Zinc-Plated 5) Color: Colored 6) Standard: EN74-1:2005 Class B, AS1576.2,BS1139

Availability:

Quantity:



Inquire Add to Basket

Model:
Scaffolding Pressed Board Coupler
Brand:
EK
Code:
730890000
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
0.86kg

Product Description

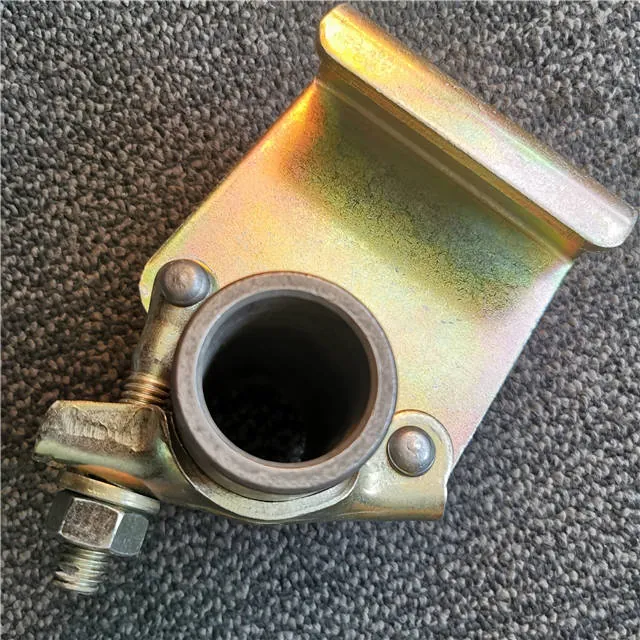

Scaffolding Pressed Board Coupler

The Pressed Ladder Coupler is a scaffolding coupler made from Q235 steel plate by stamping, complying with EN74 and BS1139 standards, and can vertically connect scaffolding ladders to steel pipes. It facilitates the movement of workers up and down the scaffolding system. Pressed ladder couplers are treated with electro-galvanizing or hot-dip galvanizing on the surface, which improves corrosion resistance and extends their service life. Compared to drop forged ladder couplers, pressed ladder couplers are lighter and more affordable.

Why choose pressed ladder couplers?

1. Cheaper than forged connectors.
2. Easier to handle and transport.
3. Provides a secure and reliable connection for various ladders.

Product Information

Commodity	Pressed Scaffolding Board Coupler
Tube Size	48.3mm
Weight	0.86kg
Surface	Zinc Plating
Material	Q235 Carbon Steel
Function	Anti-slide rod with welded wedge
Color	Blue-white, White, Colored, Etc
MOQ	1 Tons
Mark	Customize your Markings on Products
Processing Way	pressed
Packing	Woven bags packed on steel pallets
Standard	EN74-1:2005 Class B, AS1576.2, BS1139
Certificate	SGS, EN12810, AS/NZS1576.3, ANSI10.8, CE, ISO9001, ISO14001, OHSAS18001
Payment	TT, L/C, D/P, Etc
Delivery Time	20-25 days after the order confirmed
Packing	Wooven bags with steel strip on pallet
Production Capability	2000 tons per month
Place of Origin	China
Main Market	South America, North America, Australia, European, South Africa
