Pressed Scaffolding Inner Joint Pin Clamp

5 0 Reviews

Share to:

Specification: 40*40mm Weight: 0.56kg/pcs Surface Treatment: Electro-Galvanized Color: Blue-white, White, Colored, Etc Material: Carbon Steel Q235 Marking: Customized according to your requirements Standard: EN74-1:2005 Class B, AS1576.2,BS1139

Availability:

Quantity:



Inquire Add to Basket

Model:
Pressed Coupler
Brand:
EK
Code:
EK-PC- Clamp-5
Tube Size:
40mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
0.56kg

Product Description

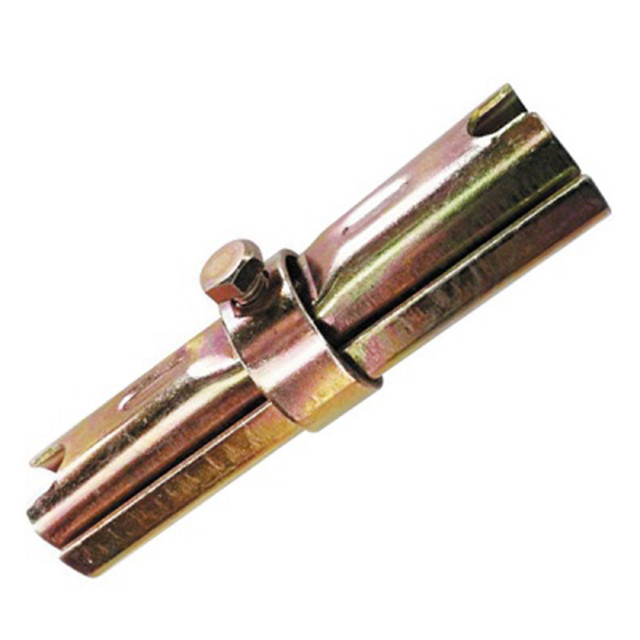

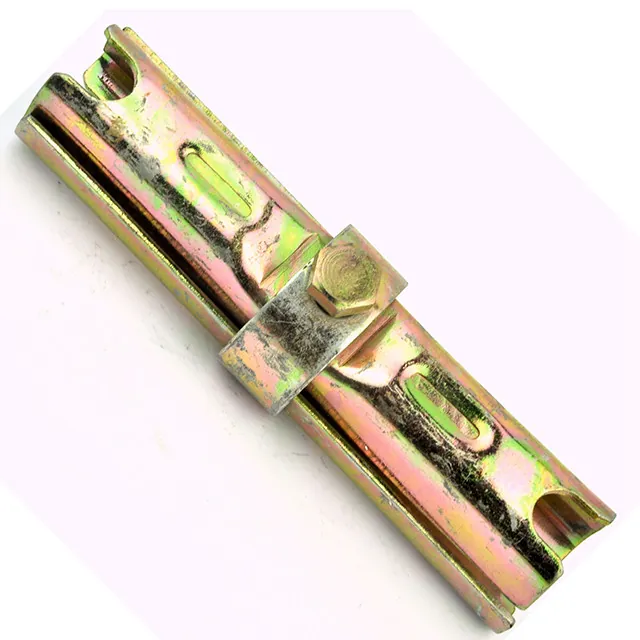

Pressed Scaffolding Inner Joint Pin Clamp

Pressed Scaffolding Inner Joint Pin Clamp is a type of scaffolding coupler used to horizontally connect two steel tubes from the inside, extending the length of the steel tubes. EK Scaffolding's Pressed Scaffolding Inner Joint Pin Clamp is made of high-quality steel and conforms to BS1139 standards. Surface treatments include electro-galvanizing and hot-dip galvanizing, with a choice of gold or silver joint pin couplers.

EK Scaffolding is an ISO 9001 and CE certified scaffolding coupler manufacturer. We can provide you with videos, pictures, and test reports for all production stages. You can find any scaffolding product you need on our website.

Product Discription

Specification	40*40mm
Weight	0.56kg
Surface Treatment	Electro Galvanized
Material	Q235 Carbon Steel
Color	Blue-white, White, Colored, Etc
MOQ	1 Tons
Mark	Customize your Markings on Products
Processing Way	Pressing
Packing	Woven Bags with Wooden/Steel Pallets
Standard	EN74-1:2005 Class B, AS1576.2, BS1139
Certificate	SGS, EN12810, AS/NZS1576.3, ANSI10.8, CE, ISO9001, ISO14001, OHSAS18001
Payment	TT, L/C, D/P, Etc
Delivery Time	20-25 days after the order confirmed
Production Capability	2000 tons per month
Place of Origin	China
Main Market	South America, North America, Australia, European, South Africa

Product Advantage

A. High quality materials, higher quality.
Material--The product material is Q235 carbon steel which is higher than the standard as the raw material.
Bolt--The bolt is 8.8 grade high-strength bolt, which ensures the quality.
Quality assurance, more resistance to falls, improve the efficiency of scaffolding removal, saving time.

B. Advanced technology, better performance
Products using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding, more firm, not easy to slide.

C. Anti-rust treatment, longer service life.
After passivation and surface galvanized anti-rust treatment, it is corrosion resistance is better than the ordinary coupler, longer service life.

D. Standard production, more secure.
According to the professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, ensure construction safety and personnel safety.

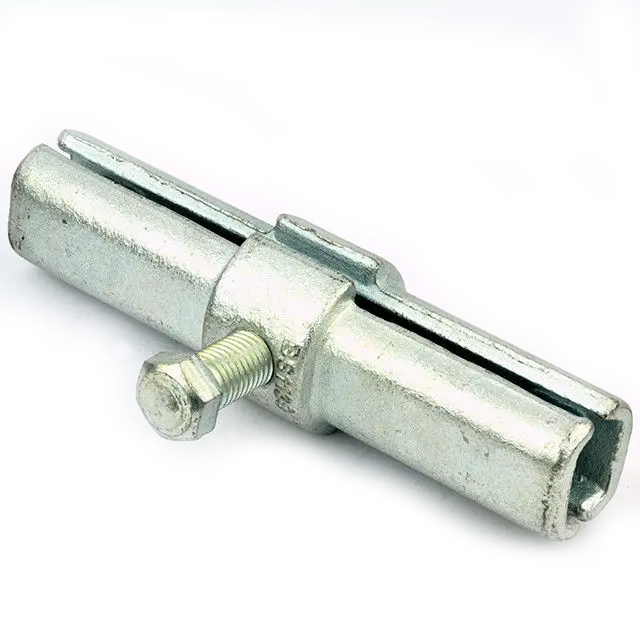

Scaffolding Inner Joint Pin Coupler
