Zinc Plated Pressed Clamps Scaffolding Steel Double Coupler

5 0 Reviews

Share to:

Zinc Plated Scaffolding Double Coupler 1) Material: Q235 2) Tube Size: 48.3mm 3) Processing Way: Pressed 4) Surface Treatment: Zinc-Plated 5) Standard: EN74-1:2005 Class B, AS1576.2,BS1139 7) Weight: 0.81KG

Availability:

Quantity:



Inquire Add to Basket

Model:
Pressed Double Coupler
Brand:
EK
Code:
730890000
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
0.81kg

Product Description

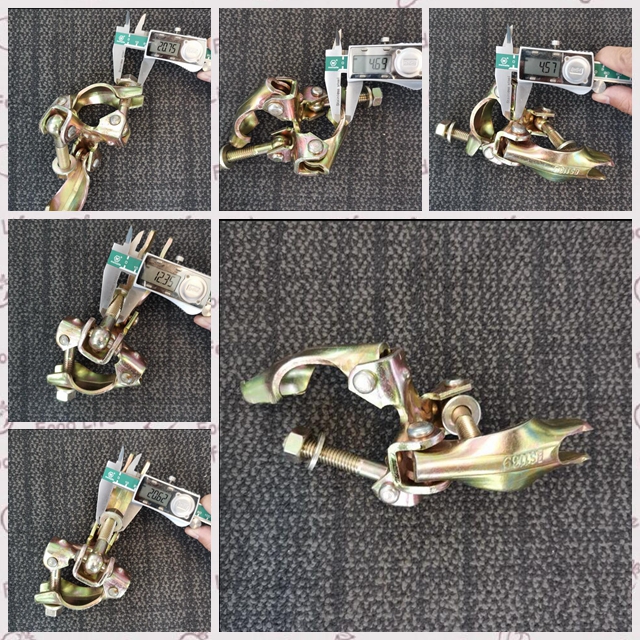

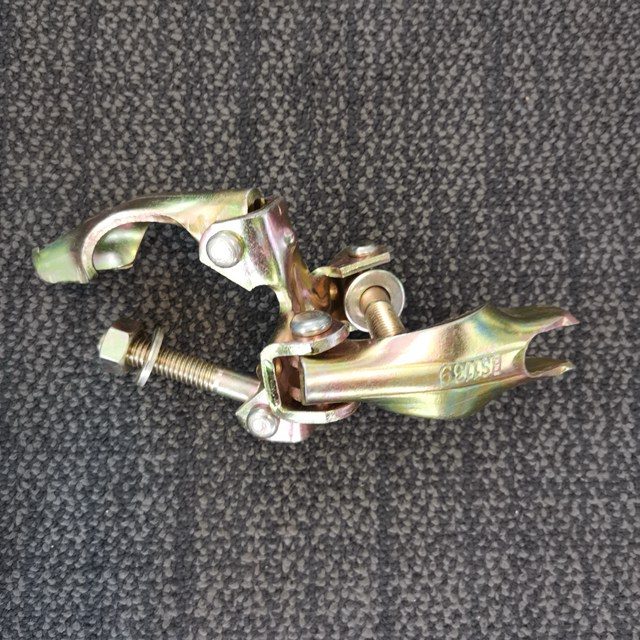

Scaffolding Pressed Double Coupler

Double Coupler SGS Report

EK-SGS-DOUBLE COUPLER 2025 NEW.pdf

Pressed coupler are used to connect & clamp two scaffolding pipes at any angle to each other in a scaffolding system. EK scaffolding is a scaffolding manufacturer in China, We provide all types of scaffolding coupler, such as drop forged coupler, pressed coupler, double coupler, swivel coupler,etc.

All scaffolding clamps are manufactured to British and European Standards BS1139/ EN74 and incorporate the latest designs for added safety and ease of use.

Product Information

Commodity	Pressed Scaffolding Double Coupler
Tube Size	48.3mm
Weight	0.81kg
Surface	Zinc Plating
Material	Q235 Carbon Steel
Function	Anti-slide rod with welded wedge
Color	Blue-white, White, Colored, Etc
MOQ	1 Tons
Mark	Customize your Markings on Products
Processing Way	pressed
Packing	Woven bags packed on steel pallets
Standard	EN74-1:2005 Class B, AS1576.2, BS1139
Certificate	SGS, EN12810, AS/NZS1576.3, ANSI10.8, CE, ISO9001, ISO14001, OHSAS18001
Payment	TT, L/C, D/P, Etc
Delivery Time	20-25 days after the order confirmed
Packing	Wooven bags with steel strip on pallet
Production Capability	2000 tons per month
Place of Origin	China
Main Market	South America, North America, Australia, European, South Africa
