Sleeve couplers are external scaffolding accessories that extend the length of scaffolding steel pipes without affecting the structural stability of the scaffolding, thereby providing axial continuity and load-bearing strength. This article will provide a detailed introduction to sleeve couplers, their application scenarios, and how to use them correctly.
What are Sleeve Couplers?
Sleeve couplers, also known as connectors or external couplers, are key components in scaffolding systems, used to connect scaffolding pipes with an outer diameter of 48.3mm end-to-end. They can connect two uprights vertically, two horizontal bars horizontally, or two diagonal bars diagonally. Sleeve couplers are typically made of 4mm thick high-strength steel plates through stamping or forging processes, meeting EN74 or BS139 standards, and achieving heavy-duty Class B performance with a slip resistance exceeding 9 kN.
Common Specifications
Name | Sleeve Coupler |
Standard | EN74 Class B & BS1139 |
Material | Q235 forged or stamped steel |
Color | Gold or white |
Specifications | 48.3mm × 48.3mm scaffolding steel pipe |
Thickness | 3.5mm |
Weight | 1.0kg |
Fasteners | High-strength bolts and nuts (e.g., 1/2 inch BSW thread) |
Rated Load | Up to 20 kN |
Surface Treatment | Electro-galvanized, hot-dip galvanized |
Slip Resistance | 9 KN |
OEM Marking | Customization available |
Applications | Construction |
MOQ | 1000 pieces |
Delivery Time | 20 days after receiving deposit or letter of credit (L/C) |
Packaging | 25 pieces/bag, 1000 pieces/pallet, 20 pallets/20ft container |
Types of Couplers in Scaffolding and Differences from Sleeve Couplers
There are various types of scaffolding couplers used in scaffolding, generally categorized as swivel couplers and right-angle couplers.
Coupler Type | Function | Advantages | Disadvantages |
Sleeve Coupler | Fixed externally, extending the length of the steel pipe | Widely used, stable, economical | Requires precise alignment |
Swivel Coupler | Enables connections at any angle | Flexible, adaptable | Relatively complex installation |
Right-Angle Coupler | Enables right-angle connections | Easy installation, structural foundation | Limited flexibility |
What are the Classifications and Differences of Sleeve Couplers?
Stamped Sleeve Coupler: Also known as a standard sleeve coupler, it is a lightweight and economical coupler made from high-strength steel plates through stamping, providing end-to-end connections for foundations.
Forged Sleeve Coupler: Also known as a heavy-duty sleeve connection, it is suitable for high-load-bearing applications and is an ideal choice for harsh construction environments.
Additionally, according to standards, couplers can be divided into British standard sleeve couplers and EN74 Class B sleeve couplers.

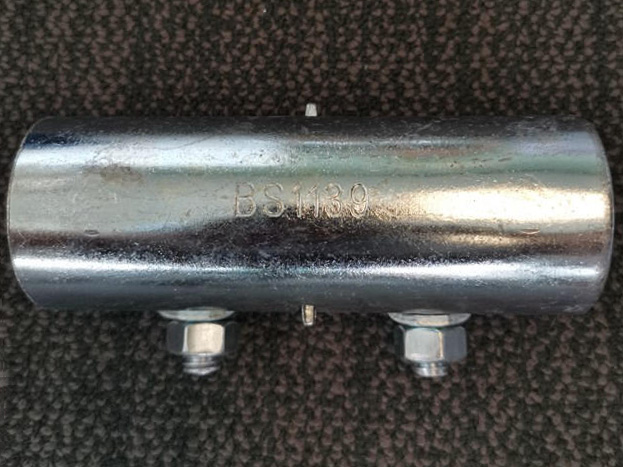

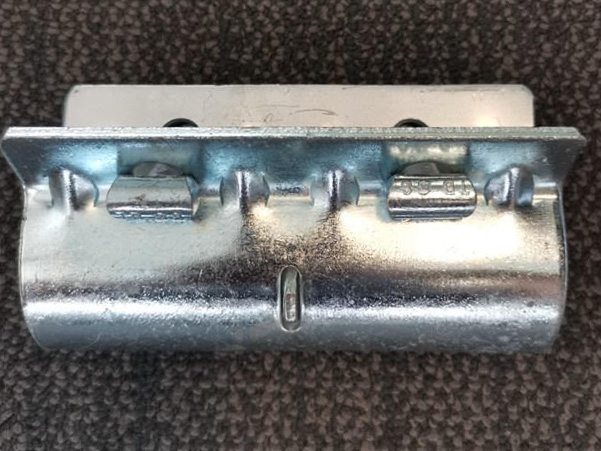

British standard sleeve couplers: A widely used standard type.

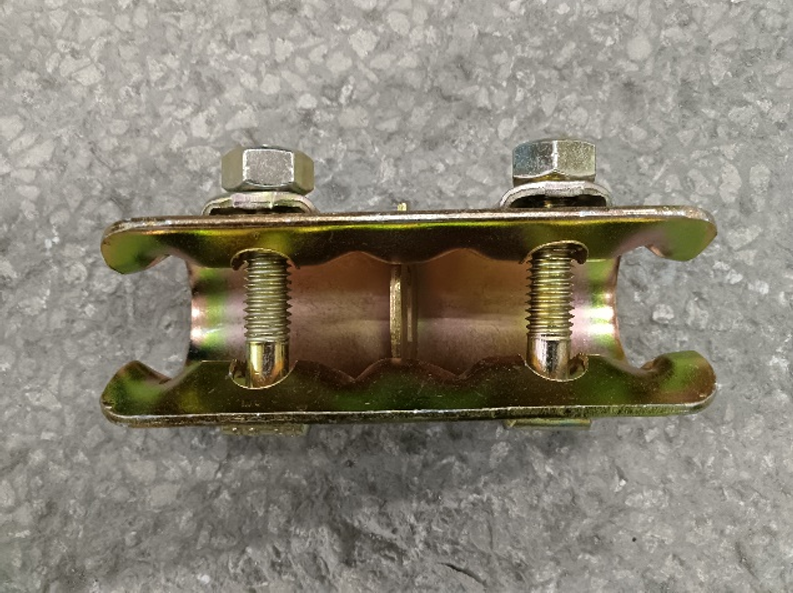

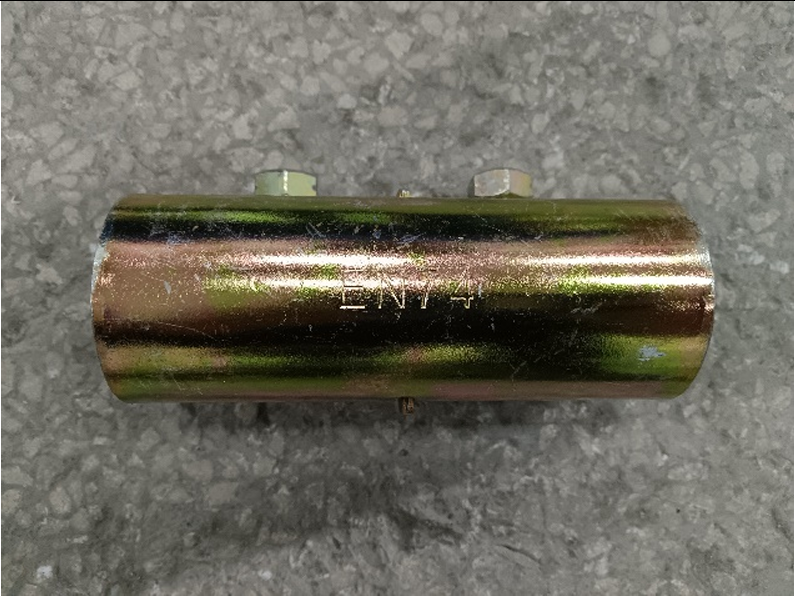

EN74 Class B sleeve couplers: Couplers with higher anti-slip performance and load-bearing capacity compared to Class A couplers.
All models are specifically designed for scaffolding steel pipes with an outer diameter of 48.3mm, ensuring seamless interchangeability on construction sites.
What are the Advantages of Sleeve Couplers?
Extended Length: Sleeve couplers can extend the length of scaffolding pipes without adding extra support structures.
Stability: Provides a strong and secure connection between steel pipes.
Versatility: Suitable for various scaffolding configurations.
Economy: Compared to splicing multiple shorter steel pipes, using sleeve couplers is often more cost-effective.
Where Can Sleeve Couplers be Used?
Sleeve couplers are commonly used in projects requiring extended scaffolding length or height, such as:
High-Rise Building Construction: In high-rise building construction projects, scaffolding often needs to be erected to extremely high heights.
Bridge Maintenance Projects: In bridge maintenance and repair projects, scaffolding needs to span long distances.
Industrial Plants: In industrial environments where scaffolding needs to be erected for maintenance and repair work.
How to Use Sleeve Couplers Correctly?
Sleeve Coupler Installation Guide
Preparation: Ensure the steel pipes to be connected are clean and free of debris, and that the pipe joint surfaces are smooth for a tight fit.
Alignment: Align the two steel pipes end-to-end.
Coupler Installation: Slide the sleeve coupler onto the aligned steel pipes.
Secure: Use a wrench to tighten the bolts to secure the coupler in place, with a torque of approximately 50 Nm.
Inspection: Apply manual force to test and ensure the steel pipes are stably connected and secure.
Sleeve Coupler Usage Precautions
When using sleeve couplers, pay attention to the following:
Correct Installation: Ensure the sleeve coupler is correctly and securely installed to prevent accidents.
Regular Inspection: Regularly inspect the sleeve couplers; determine if worn or damaged couplers can still be used.
Load Capacity: Strictly adhere to the load capacity of the sleeve coupler to avoid damage due to overloading.
Sleeve Coupler Maintenance Manual
Sleeve couplers require regular maintenance and inspection during use. Timely replacement of severely damaged couplers ensures the stability and safety of the scaffolding system.
Maintenance:
Regularly check the thread condition of bolts and nuts to ensure the sleeve couplers are functioning properly.
Apply rust inhibitor during storage.
Store on a dry, off-the-ground shelf.
Inspection:
Visual inspection: Check for signs of wear, rust, or damage.
Functional testing: Test the connection function of the couplers to ensure they function correctly.
Cleaning: Inspect the couplers and surrounding area for rust or dirt and clean promptly.
Conclusion
Scaffolding sleeve couplers are suitable for various scaffolding projects and are widely used in oil and gas drilling platforms, stage construction, guardrails, and other fields. Proper use and maintenance of couplers can effectively extend their service life.
Sleeve Coupler FAQ
What are the main functions of sleeve couplers?
Sleeve couplers are primarily used for end-to-end connections of scaffolding steel pipes, effectively extending the length and height of scaffolding pipes without compromising structural stability.
What standards do sleeve couplers meet?
Sleeve couplers manufactured by EK scaffolding comply with EN74 Class B & BS1139 standards and can provide SGS test reports.
What is the difference between sleeve couplers and internal couplers?
Sleeve couplers connect externally to the steel pipes, offering higher overall rigidity and are commonly used for 48.3mm steel pipes.
Internal couplers connect internally to the steel pipes, resulting in a cleaner appearance and lower rigidity at the connection point, but with higher stability.
What are the advantages of using sleeve couplers in scaffolding projects?
They extend the length and height of scaffolding, maintain the stability of the scaffolding system, and provide greater flexibility in scaffolding erection and configuration.
In which scenarios are sleeve couplers suitable?
Sleeve couplers have a wide range of applications and can be used in any scenario requiring extended scaffold length or height, such as high-rise building construction, bridge maintenance projects, and industrial sites like oil and gas drilling platforms. They can also be used in stage construction and guardrail protection.
How are sleeve couplers fixed to scaffold steel pipes?
Align the ends of two scaffold steel pipes, insert the sleeve coupler, and tighten the bolts with a wrench or insert the pins for secure fastening.
What safety precautions should be taken when using sleeve couplers?
First, proper installation is essential. During use, strictly adhere to the load recommendations from the scaffolding manufacturer and regularly inspect the couplers for wear or damage.
Which scaffolding systems are compatible with sleeve couplers?
Our sleeve couplers are designed with 48.3mm outer diameter steel pipes and are compatible with most modular scaffolding systems, such as disc scaffolding, cup-lock scaffolding, quick-assembly scaffolding, and portal frames. It is important to note that the steel pipes for these scaffolding systems must have an outer diameter of 48.3mm.
Do you offer customization services or handle large orders?
As a scaffolding manufacturer, EK scaffolding has its own production line and can provide customization services. However, we only support large-volume orders.
