Painted or Galvanized Kwikstage System Scaffolding Standard Vertical For Sale

5 0 Reviews

Share to:

Kwikstage Scaffolding System Standard 1) Material: Q345 Carbon Steel 2) Tube Size: 48.3x3.2mm 3) Length: 2000mm(500-4000mm available) 4) Weight: 9.53kg 5) Surface Treatment: Painted (Hot-dip galvanized available). 6) Standard: EN74-1:2005 Class B, AS1576.2, BS1139

Availability:

Quantity:



Inquire Add to Basket

Model:
Kwikstage Scaffolding System
Brand:
EK
Code:
730890000
Tube Size:
48.3x3.2mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
9.53kg

Product Description

Painted or Galvanized Kwikstage System Scaffolding Standard Vertical For Sale

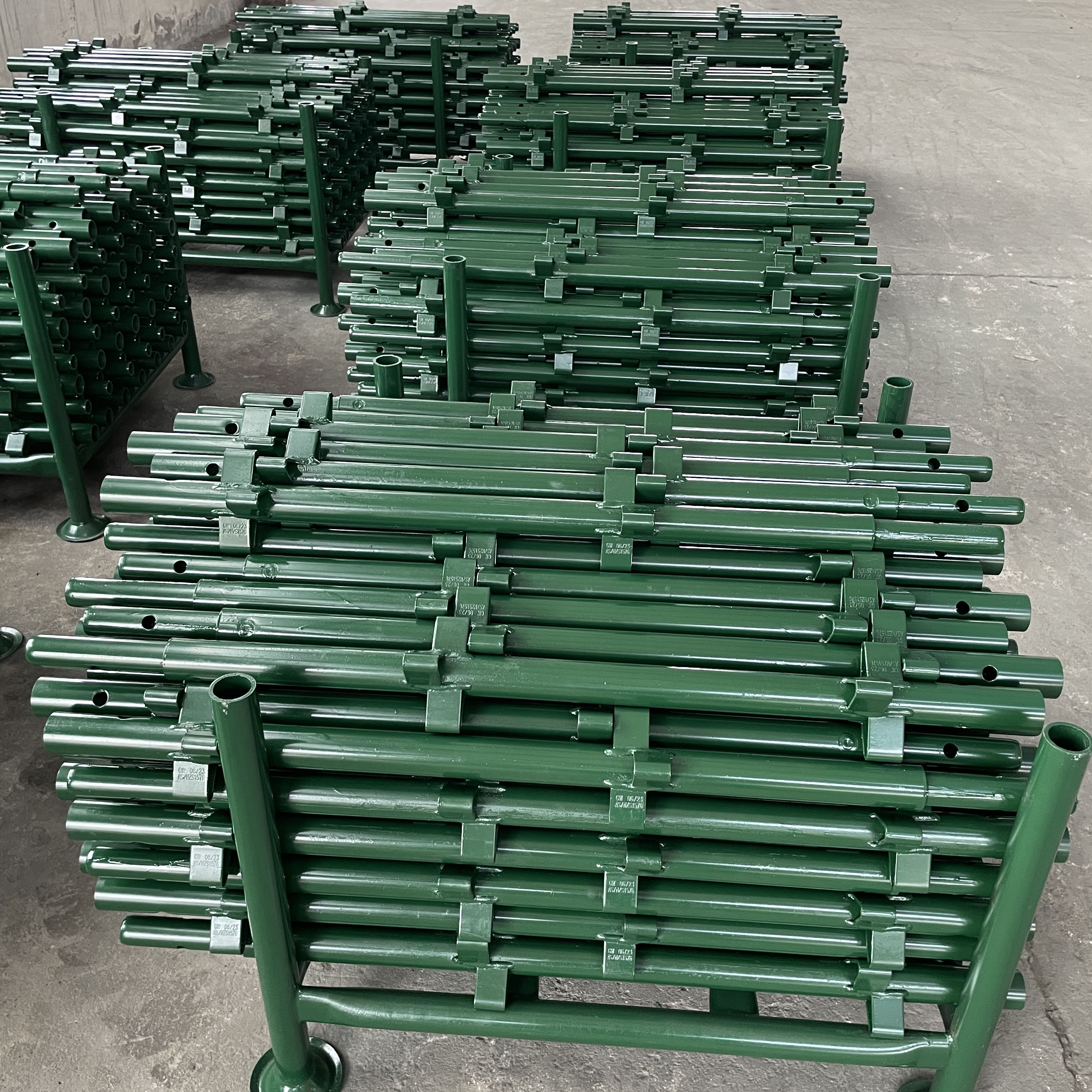

Kwikstage standards are the vertical support members in a Kwikstage scaffolding system. They are made from steel tube and feature V-shaped pressings, or "V clips", welded at regular intervals (typically 500mm) to allow for the attachment of horizontal ledgers, transoms, and diagonal braces. These standards are crucial for providing the vertical structure and stability of the scaffold.

Products Description

Commodity Name	Kwikstage System Standard Vertical
Specification	48.33.2mm2000mm
Weight	9.35kg
Surface Treatment	Painted (HDG available)
Material	Q235/Q345 Carbon Steel
MOQ	200 pieces
Packing	Steel Pallets, Customized
Standard	EN74-1:2005 Class B, AS1576.2, BS1139
Certificate	SGS, EN12810, AS/NZS1576.3, ANSI10.8, CE, ISO9001, ISO14001, OHSAS18001
Payment	TT, L/C, D/P, etc
Delivery Time	20-25 days after the order confirmed
Production Capability	200000 tons per year
Place of Origin	China
Main Market	South America, North America, Australia, European, South Africa

Description	Size	Weight (KG)
0.5m Kwikstage Standards	48.33.2500mm	2.38
1.0m Kwikstage Standards	48.33.21000mm	4.77
1.5m Kwikstage Standards	48.33.21500mm	7.15
2.0m Kwikstage Standards	48.33.22000mm	9.53
2.5m Kwikstage Standards	48.33.22500mm	11.92
3.0m Kwikstage Standards	48.33.23000mm	14.3
3.5m Kwikstage Standards	48.33.23500mm	16.68
4.0m Kwikstage Standards	48.33.24000mm	19.07
