Base jacks are usually installed on the ground for support and balance. These base jacks can support a weight of 6T and are widely used in foundation restoration projects. Base jack is assembled by base, threaded pipe and nuts. It can flexibly adjust the height of the construction system and is compatible with most scaffolding systems, such as Ringlock scaffolding system, cuplock scaffolding system, HAKI Scaffolding System, Kwikstage Scaffolding System, etc.
The raw material used for the base jack is Q235/Q345, which has high bearing capacity and is very durable. But there are some precautions when using it:
1. Never strike the jack with any foreign objects.
2. Do not lift more than the rated capacity of the jack.
3. Do not force the nut past its safety stop.
4. Use a jack on a hard, level surface.

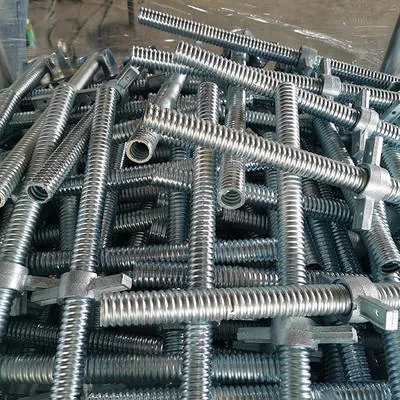

For uneven surfaces, we can also use an adjustable screw base jack, which is made of a threaded screw jack rod, a scaffolding jack nut, and a base plate. Among them, the jack nut is an adjustable handle. It makes the screw jack base run to a different level. In construction, it is used as the foot of construction scaffolding. Adjustable screw jack bases are widely used on uneven construction ground. The level adjustment of the scaffolding on the same level is easy.
Generally, base jacks are height adjustable up to 600mm and can be installed in standard/vertical poles to support standard loads, scaffolding base jacks can spread the load capacity of scaffolding uprights. Make the scaffolding system stand more stable.
EK scaffolding can provide all types of base jacks. In order to ensure the service life of the scaffolding base jack and make it durable, we provide three surface treatment methods: zinc plated (E-galvanized), hot-dip galvanized (HDG), and Painted. In addition, all base jacks we provide will be tested for safe load capacity in accordance with the EN 12810 standard, and corresponding test reports can be provided. If you have purchase needs for base jack, you can contact us, and we can also provide customized services.
