Scaffolding coupler is used to fix horizontal components such as scaffold transom, scaffold ledger, scaffolding plank in the vertical scaffolding tube to form a stable scaffolding system, so that workers can walk, construct and transport materials safely and stably on the scaffolding platform. A completed scaffolding system requires a variety of different types of scaffolding couplers. Next, I will introduce to you what specific functions different scaffolding couplers have?
What Is A Double Coupler Used For?
Double coupler refers to two single couplers fixed together, including swivel coupler and right-angle coupler. Usually, the double coupler we refer to is a right-angle coupler fixed at 90 degrees, also known as a fixed coupler. Double coupler will be directly fixed at 90 degrees when it is made, and the angle cannot be adjusted according to the project. It is suitable for building flat construction projects.
Drop forged double coupler
British type double coupler
Italian type double coupler
Pressed right-angle coupler
Drop forged right-angle coupler

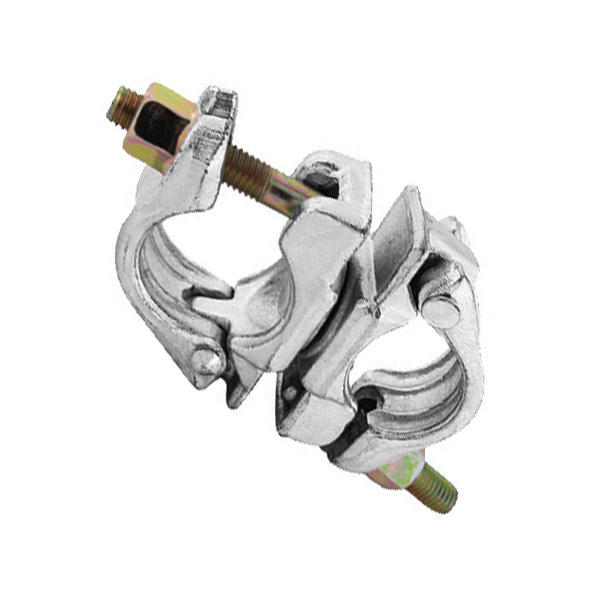

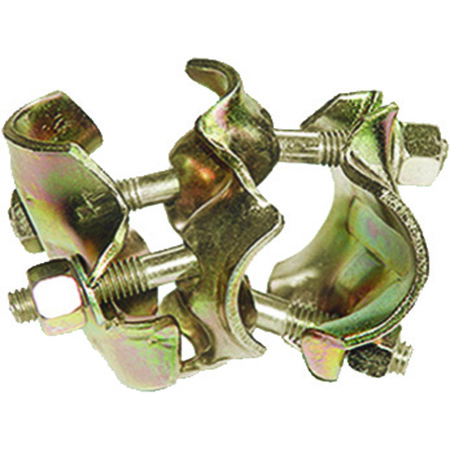

What Is A Swivel Coupler Used For?
Swivel coupler is mainly used for complex construction projects. It can build complex scaffolding structures according to project requirements. The connecting parts in the middle of the swivel coupler are very flexible and can rotate 360 degrees. It can connect scaffolding tubes at various angles. It can build a horizontal construction platform on uneven ground and adapt to construction projects of various shapes.
Drop forged swivel coupler
British type swivel coupler
Italian type double coupler
Pressed swivel coupler
Swivel coupler

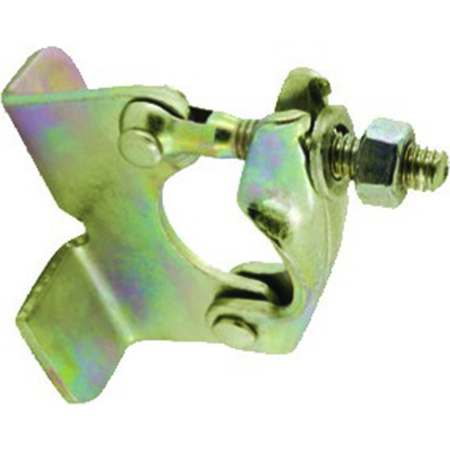

What Is A Beam Coupler Used For?

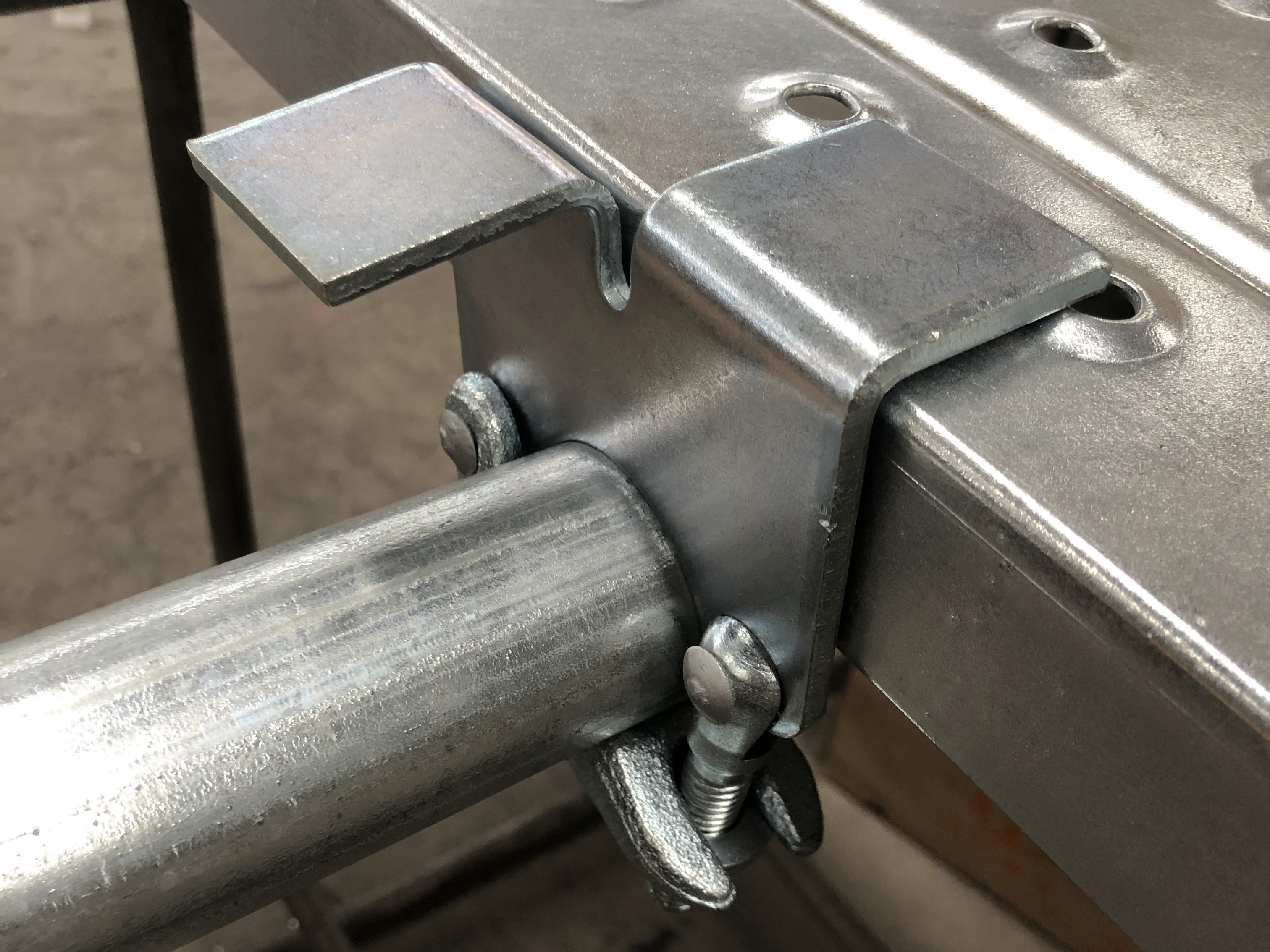

Beam coupler, also known as Board Retaining Coupler (BRC), is used to fix the scaffolding walk board to the scaffolding system to prevent the scaffolding walk board from sliding. It provides a safe and stable construction platform for workers during construction. It is compatible with common scaffolding systems and only needs to meet the scaffolding pipe size within 48.3.
Board retaining coupler
Ladder coupler
Board retaining coupler
Board retaining coupler
Board retaining coupler

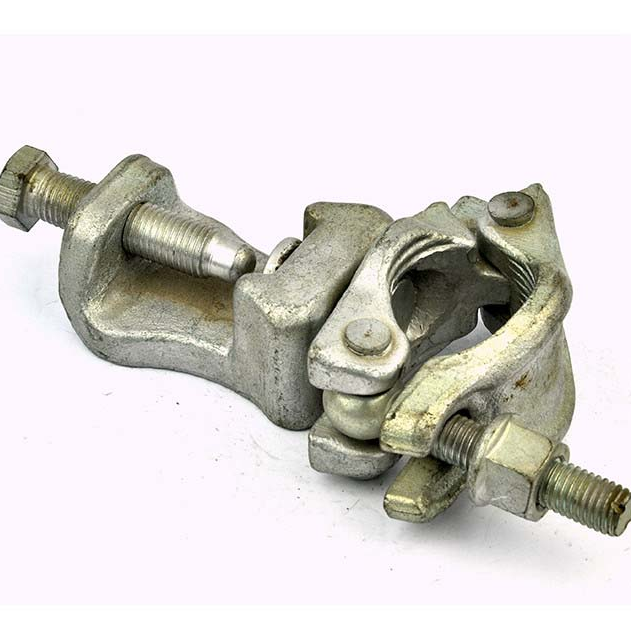

What Is A Girder Coupler Used For?
Girder couplers need to be used in pairs to clamp scaffolding pipes to both sides of the suspension steel beams or supports, which can make the scaffolding structure more solid and stable and prevent slipping. It is mainly used in the suspension support system of construction, railways, roads and other projects. Girder couplers are also divided into fixed and rotating types. You can choose the appropriate girder coupler according to the complexity of the construction scene.
Girder Coupler
Swivel girder coupler
Swivel girder coupler
Board retaining coupler
Board retaining coupler
The scaffolding couplers we provide are made of high-quality steel. There are two types: pressed and drop forged. The surface is galvanized or painted, which can effectively prevent the fasteners from rusting and corrosion. They can be used in dry and humid environments. All types of scaffolding couplers are suitable for 48.3mm steel pipes and are compatible with common scaffolding systems.
Understanding the uses of different types of scaffolding couplers can help customers better choose the right coupler and improve the safety and efficiency of the entire scaffolding industry.
