African Kwikstage Scaffolding Standard

5 0 Reviews

Share to:

Features:
Tube Dimension: O.D 48.3x4.0mm. Other tube thickness 3.5mm/3.25mm/3.0mm is also available by request.
Spigot Size: O.D 38x3x265mm
Steel Tube Grade: Q235-Q355
V-lug Distance: 495mm
Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Availability:

Quantity:



Inquire Add to Basket

Model:
Kwikstage Scaffolding
Brand:
EK Scaffolding
Code:
EK-AFKS
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated

Product Description

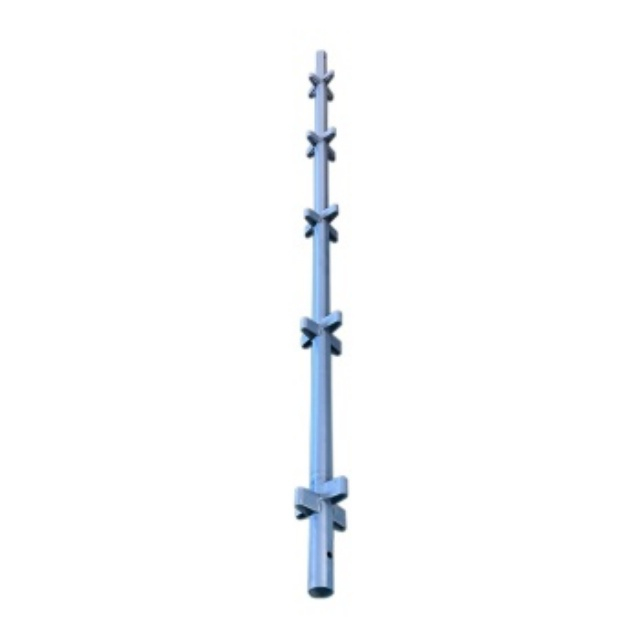

African Kwikstage Scaffolding Standard / Vertical

Steel tubes: 48.3mm x 4.0mm

The Kwikstage Standard (vertical post) is the primary structural support for kwikstage scaffolding. Built to AS/NZS 1576 standards, it features "V" pressings spaced at 495 mm intervals to lock in ledgers, transoms, and hop-ups without needing tools. These heavy-duty uprights are typically manufactured from 48.3 mm OD x 4.0 mm high-tensile steel and include a top spigot for safe, vertical stacking.

Code	Item	Specification(mm)	Weight(Kg)
EK-AFKS40	African Standard 4.0m	48.43.354000	19.69
EK-AFKS35	African Standard 3.5m	48.43.353500	17.23
EK-AFKS30	African Standard 3.0m	48.43.353000	14.76
EK-AFKS25	African Standard 2.5m	48.43.352500	12.3
EK-AFKS20	African Standard 2.0m	48.43.352000	9.84
EK-AFKS15	African Standard 1.5m	48.43.351500	7.38
EK-AFKS10	African Standard 1.0m	48.43.351000	4.92
EK-AFKS05	African Standard 0.5m	48.43.35500	2.46
