What Is Aluminum Ladder Beam?

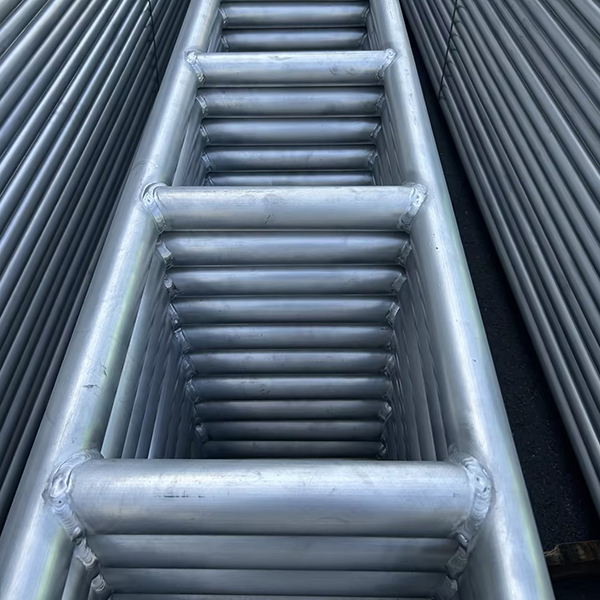

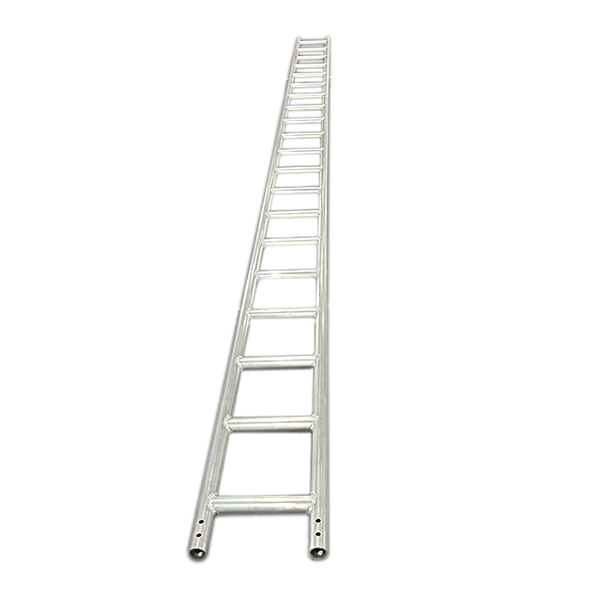

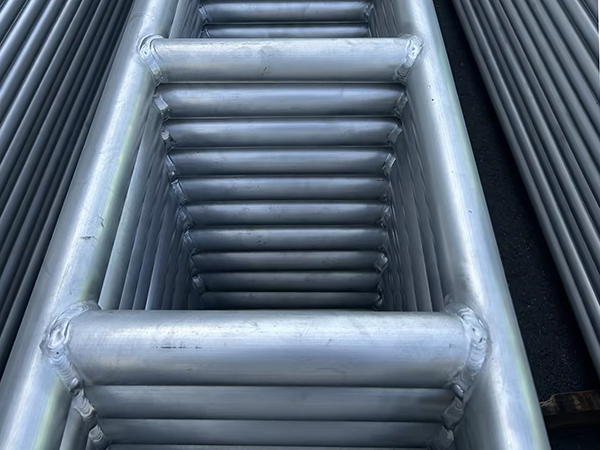

Ladder beams are scaffold components that span large distances and provide openings for the passage of vehicles and workers on construction sites. They have top and bottom chords, and between the top and bottom chords, there are several vertical tubes supporting them. A ladder beam is also called a scaffold ladder beam or ladder beam truss.

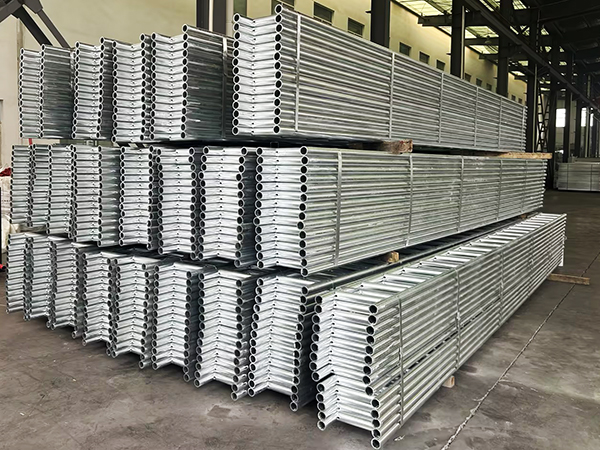

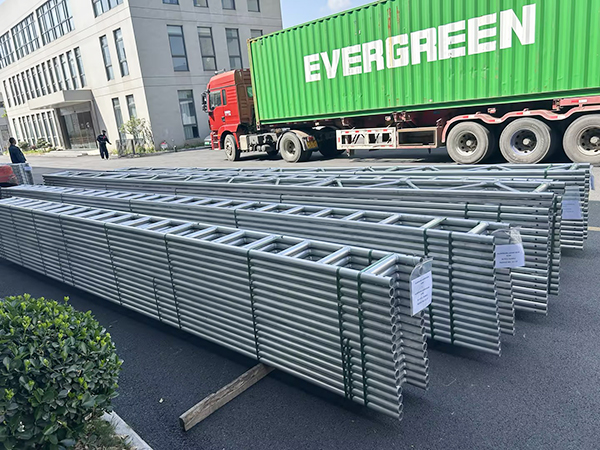

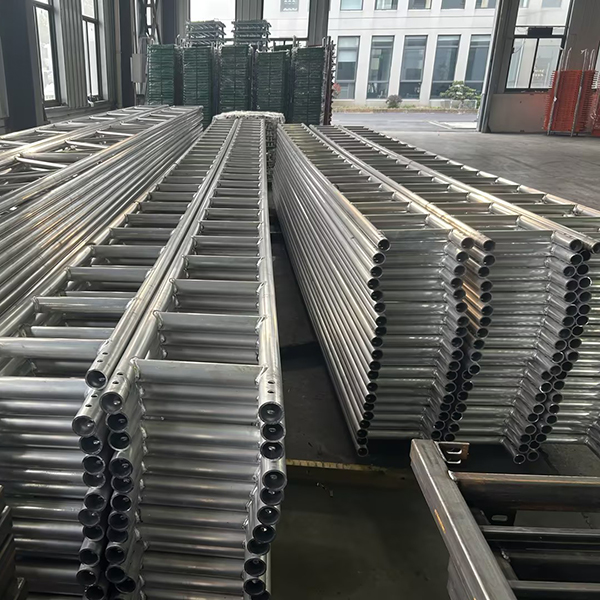

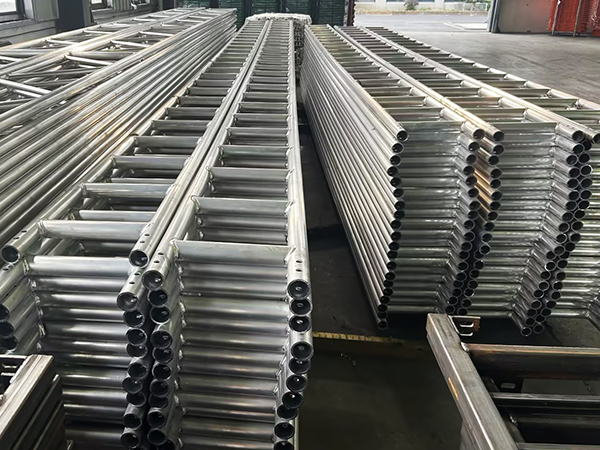

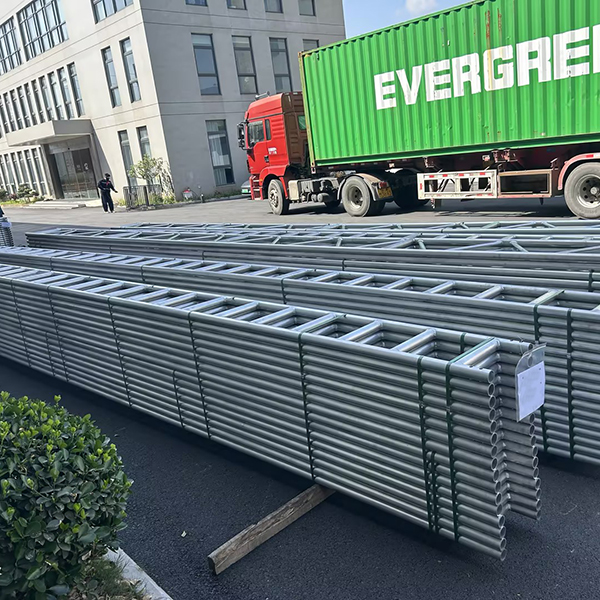

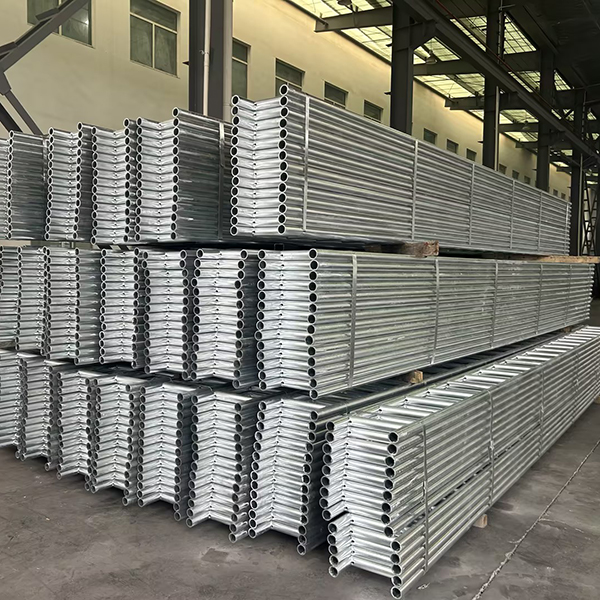

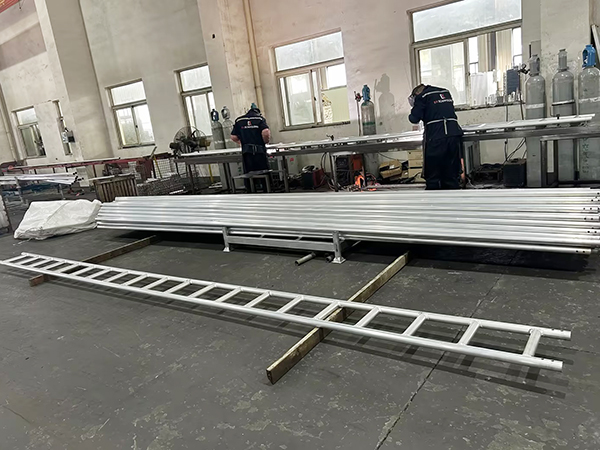

Aluminum Ladder Beams are a type of scaffold ladder beam made from aluminium scaffold tubes.
Diameter:48.3mm.
Depth:228mm,353mm and 450mm.
Thickness:5.0mm and 4.5mm.
There are normal aluminium grades of 6061 T6 and a higher grade of 6082 T6 for the aluminium ladder beam. The grades are met up to BS8118 and TG20 British scaffold standards.
Aluminum Ladder Beam Size & Weight
Name | Dia*Thk*L | Weight |
8m Ladder Beam | 48.3×3.2x8m | 105.26 KG |
8m Ladder Beam | 48.3×4.0x8m | 85.74 KG |
6.5m Ladder Beam | 48.3×3.2×6.5m | 85.37 KG |
6.5m Ladder Beam | 48.3×4.0x6.5m | 69.54 KG |
6.4m Ladder Beam | 48.3×3.2×6.4m | 83.21 KG |
6.4m Ladder Beam | 48.3×4.0x6.4m | 67.78 KG |
6.3m Ladder Beam | 48.3×3.2×6.3m | 82.31 KG |
6.3m Ladder Beam | 48.3×4.0x6.3m | 67.04 KG |
6m Ladder Beam | 48.3×3.2x6m | 78.32 KG |
6m Ladder Beam | 48.3×4.0x6m | 63.8 KG |
5.4m Ladder Beam | 48.3×3.2×5.4m | 70.37 KG |
5.4m Ladder Beam | 48.3×4.0x5.4m | 57.32 KG |
5m Ladder Beam | 48.3×3.2x5m | 65.48 KG |
5m Ladder Beam | 48.3×4.0x5m | 53.33 KG |
4.8m Ladder Beam | 48.3×3.2×4.8m | 62.41 KG |
4.8m Ladder Beam | 48.3×4.0x4.8m | 50.84 KG |
4.2m Ladder Beam | 48.3×3.2×4.2m | 54.45 KG |
4.2m Ladder Beam | 48.3×4.0x4.2m | 44.36 KG |
4m Ladder Beam | 48.3×3.2x4m | 52.63 KG |
4m Ladder Beam | 48.3×4.0x4m | 42.87 KG |
3m Ladder Beam | 48.3×3.2x3m | 39.78 KG |
3m Ladder Beam | 48.3×4.0x3m | 32.41KG |
2.4m Ladder Beam | 48.3×3.2×2.4m | 31.83 KG |
2.4m Ladder Beam | 48.3×4.0x2.4m | 25.93KG |
Why Choose EK Scaffolding?
EK Scaffolding customize your ladder beam according to your construction size and load requirements.You can get galvanized and painted ladder beams from us. As a leading ladder beam manufacturer, We brings you the benefits of reasonable prices, high-quality products, professional services, and customized logos. You can also get the MTC and test report for your orders.
