Cuplock Scaffolding Standard

With excellent safety performance and simple installation, Cuplock scaffolding system is one of the multi-functional modular scaffolding and one of the most popular scaffolding systems at present. Because cuplock scaffolding has reasonable structure, simple manufacture and convenient construction, it is widely used in the construction industry. In addition, cuplock scaffolding can also fully meet the construction requirements of houses, bridges, tunnels, chimneys, water towers and other buildings. It has very broad development prospects and applications.

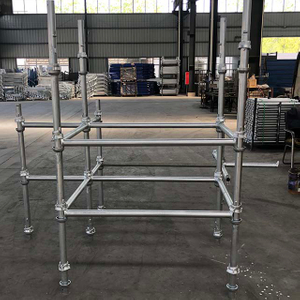

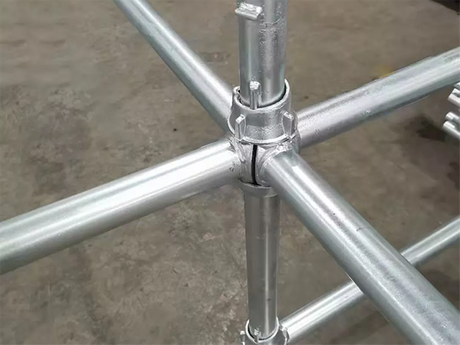

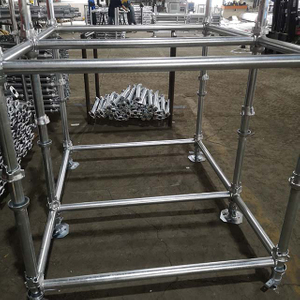

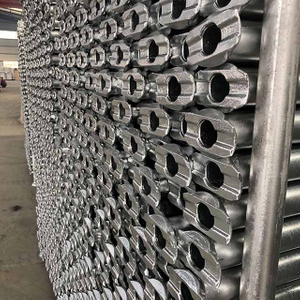

Cuplock Standard is the vertical part of the Cuplock scaffolding system. The Cuplock Standard produced by EK is tested according to EN 12810 and the quality of the welds complies with EN 1090 and ISO 3834 CE requirements. cuplock scaffolding standard is made of 48.3 diameter X3.2mm thickness high strength steel pipe Q345. Made by welding fixed bottom cups and movable top cups at intervals of 500 mm in scaffolding pipe. These two joints can fix up to four components without nuts and bolts, generally two cuplock scaffolding Ledgers and two cuplock scaffolding diagonal braces can be connected. The upper cup moves down and rotates to fix the blades of the cuplock scaffolding ledger and cuplock scaffolding diagonal brace in place by hammering, providing a reliable and stable connection. In addition, there is a corresponding drill hole on the top and bottom of the cuplock scaffolding standard to connect and fix the two cuplock scaffolding standard.

Cuplock standard is also called cuplock verticals. It is the steel uprights in the cuplock scaffoldingsystem. In construction, the cuplock scaffolding standard transfers the entire weight from the structure to the ground. In manufacturing, cuplock scaffolding standard is made of 3.2mm or 4.0mm thick scaffolding pipes.
