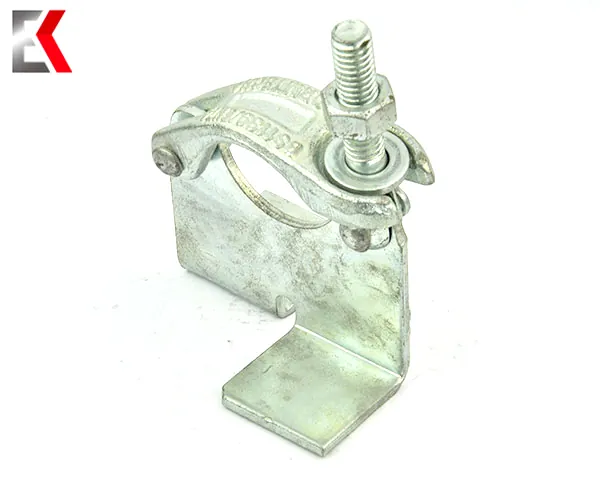

Drop Forged BRC/Board Retaining Coupler

Board Retaining Coupler Specifications

Tube Size: 48.3 mm
Surface Treatment: Zinc-Plated, Hot-dip Galvanized, Electro galvanized, Pre-galvanized
Material: Carbon Steel Q235
AS Per Standard EN74-1:2005 Class B, AS1576.2,BS1139
Customize your Markings on Products
Durable and Sustainable

Comment & FAQ

1. What is a drop forged board retaining coupler?
A:Drop forged board retaining coupler, also known as board retaining clamp, scaffolding board clamp, is a scaffolding connector used to secure scaffolding boards.

2. How does a scaffolding board retaining coupler work?
A: Scaffolding board retaining coupler is widely used in the global market to connect 48.3 mm tubes and 38 mm thick or other thickness LVL boards/steel plates.

3.How to assemble a scaffolding board retaining coupler?
A: Designed to protect scaffolding boards from wind, the drop forged board retaining coupler has a double flange that sits flush with the top of two adjacent boards. The board retaining coupler is located between the boards and is fixed to the tubular crossbeam below. It also has holes to allow accessories to be nailed or screwed to the boards.

4.What material is used for scaffolding board retaining coupler?
A: Scaffolding board retaining coupler uses a pressed steel structure with galvanized exterior for longer service life.

5.Where are drop forged board retaining coupler applied?
A:Grid scaffolding inside and outside high-rise buildings. Templates for buildings, halls, bridges, viaducts, tunnels, etc. on roofs or flying templates to support the main frame. Mobile work platforms for renovation projects such as electromechanical installation and hull repair. Temporary viewing platforms and stands.

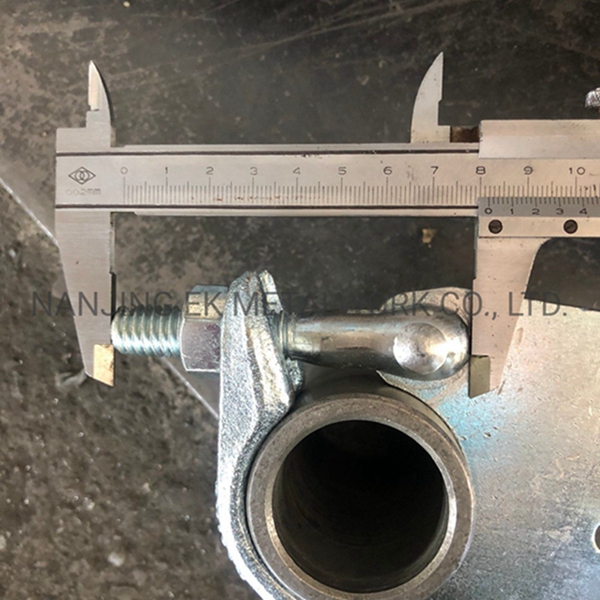

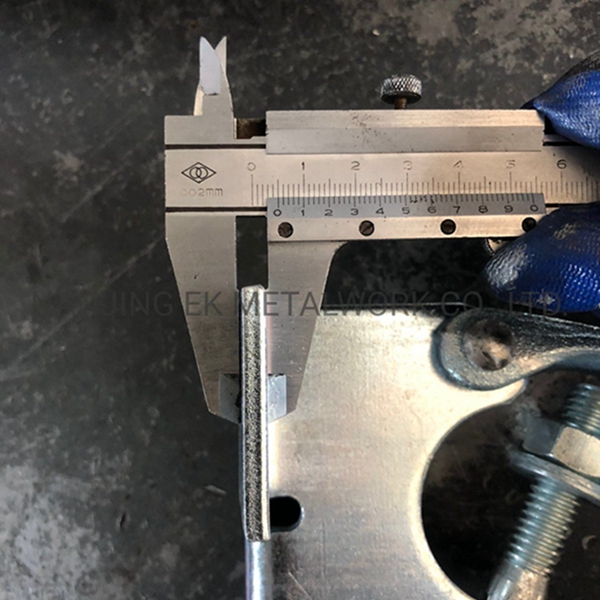

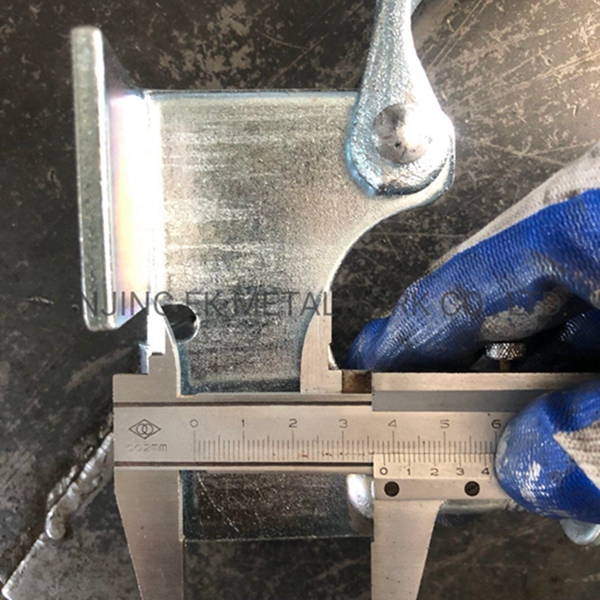

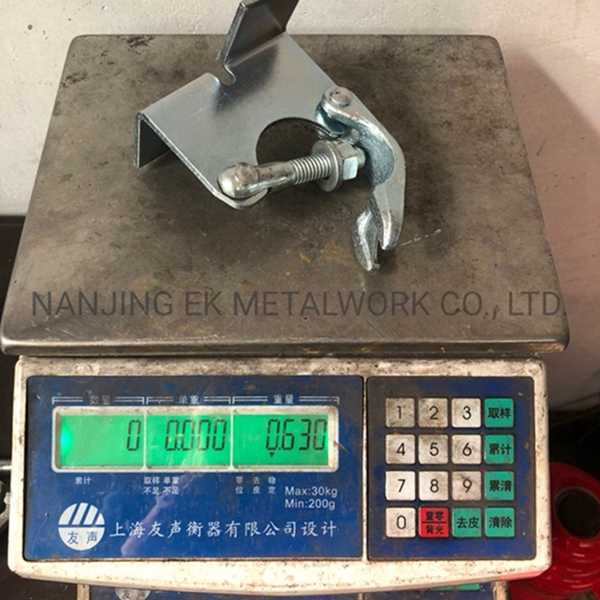

Testing Quality

Board retaining coupler will be inspected by professional merchandisers before shipment to ensure that the size of the scaffolding coupler meets the customer's requirements. Board retaining couplers that do not meet the requirements will be returned to the factory for processing to ensure that every drop forged board retaining coupler provided to customers meets the requirements and is sturdy and durable.
