Independent Scaffold Fitting Clamp Drop Forged EN74 Coupler Putlog Scaffolding

Share to:

Drop Forged Scaffolding Putlog Coupler 1) Material: Q235 2) Tube Size: 48.3mm 3) Processing Way: Drop Forged 4) Surface Treatment: Electro Plated 5) Color: White 6) Standard: EN74-1:2005 Class B, AS1576.2,BS1139

Availability:

Quantity:



Inquire Add to Basket

Model:
Forged Half Swivel Coupler
Brand:
EK
Code:
730890000
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
0.63kg

Product Description

EN74 Drop Forged Scaffolding Putlog Coupler

Product Information

Commodity	Scaffolding Putlog Coupler
Tube Size	48.3mm
Weight	0.63kg
Surface Treatment	Electro Galvanized
Material	Q235 Carbon Steel
Function	with Anti-slide Rod welded wedge
Color	Blue-white, White, Colored, Etc
MOQ	1 Tons
Mark	Customize your Markings on Products
Processing Way	Drop Forging
Packing	Woven Bags with Wooden/Steel Pallets
Standard	EN74-1:2005 Class B, AS1576.2, BS1139
Certificate	SGS, EN12810, AS/NZS1576.3, ANSI10.8, CE, ISO9001, ISO14001, OHSAS18001
Payment	TT, L/C, D/P, Etc
Delivery Time	20-25 days after the order confirmed
Packing	Wooven bags with steel strip on pallet
Production Capability	2000 tons per month
Place of Origin	China
Main Market	South America, North America, Australia, European, South Africa

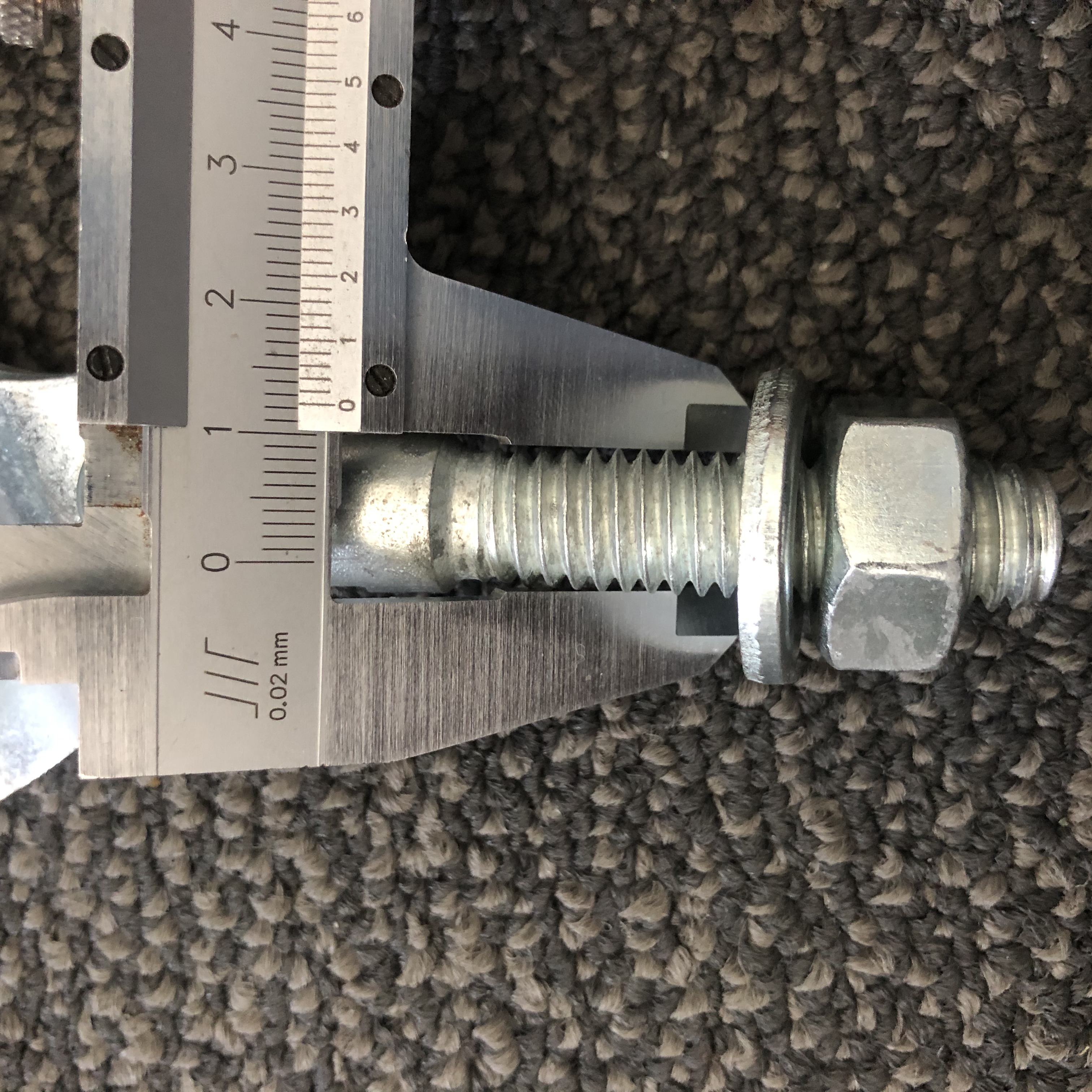

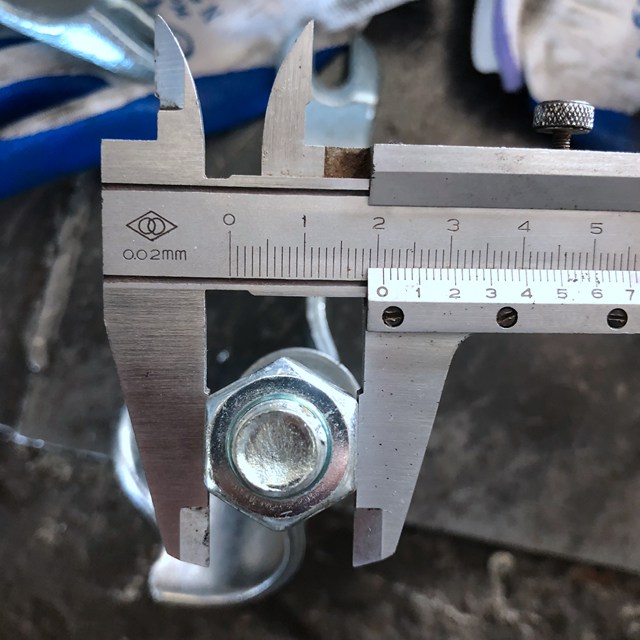

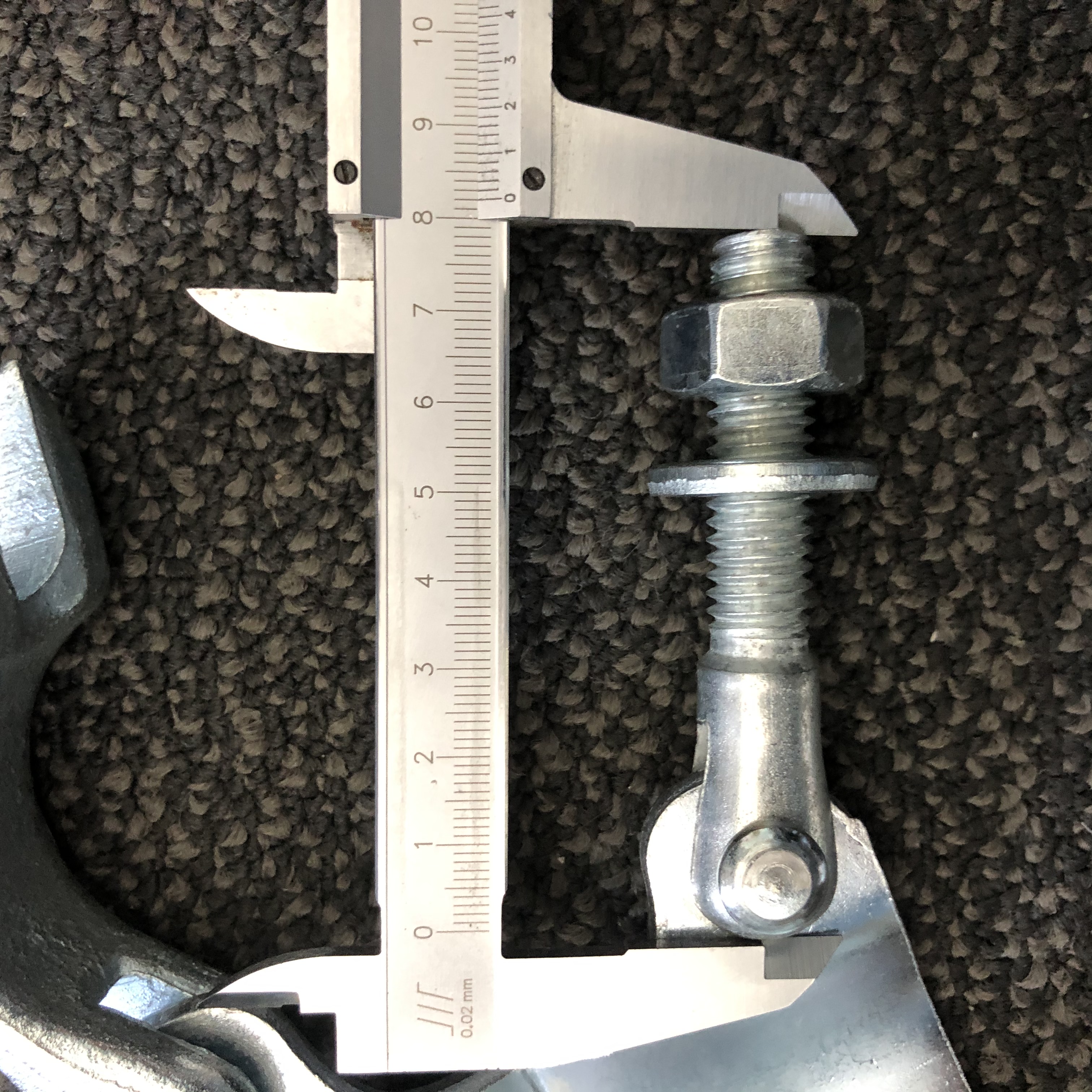

Product Detailed Image

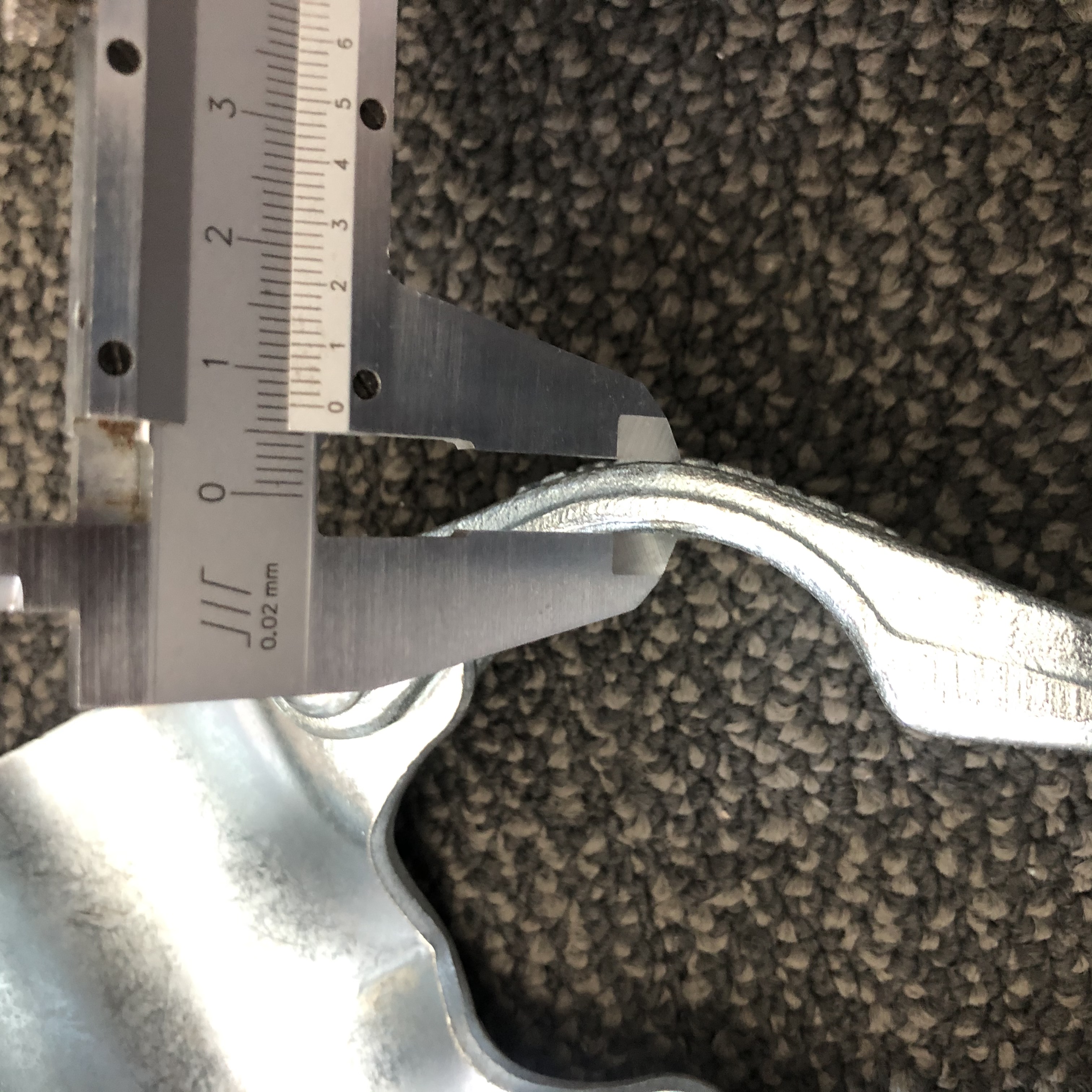

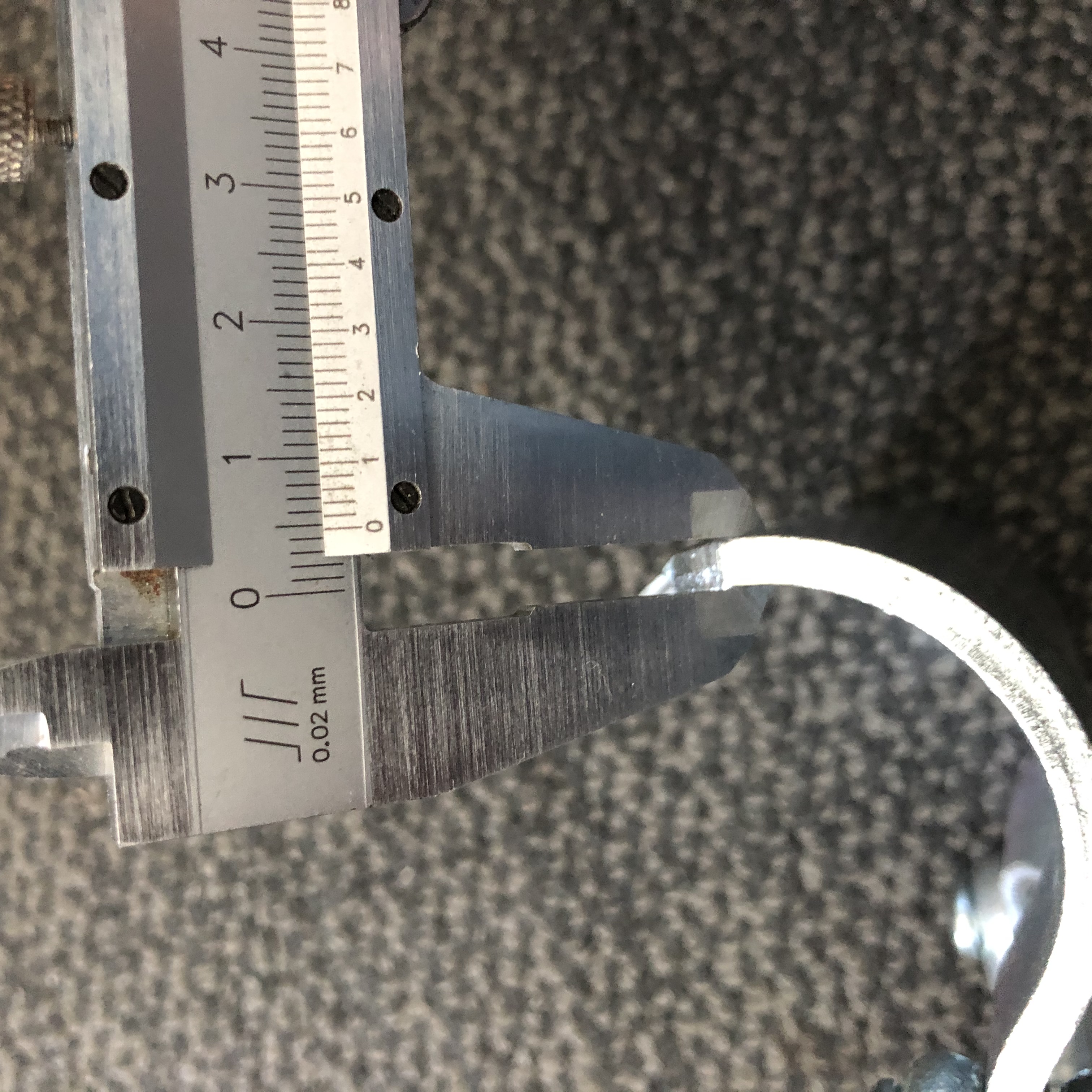

DF Putlog 4 DF Putlog 9 DF Putlog 1

Related Products

Related Couplers

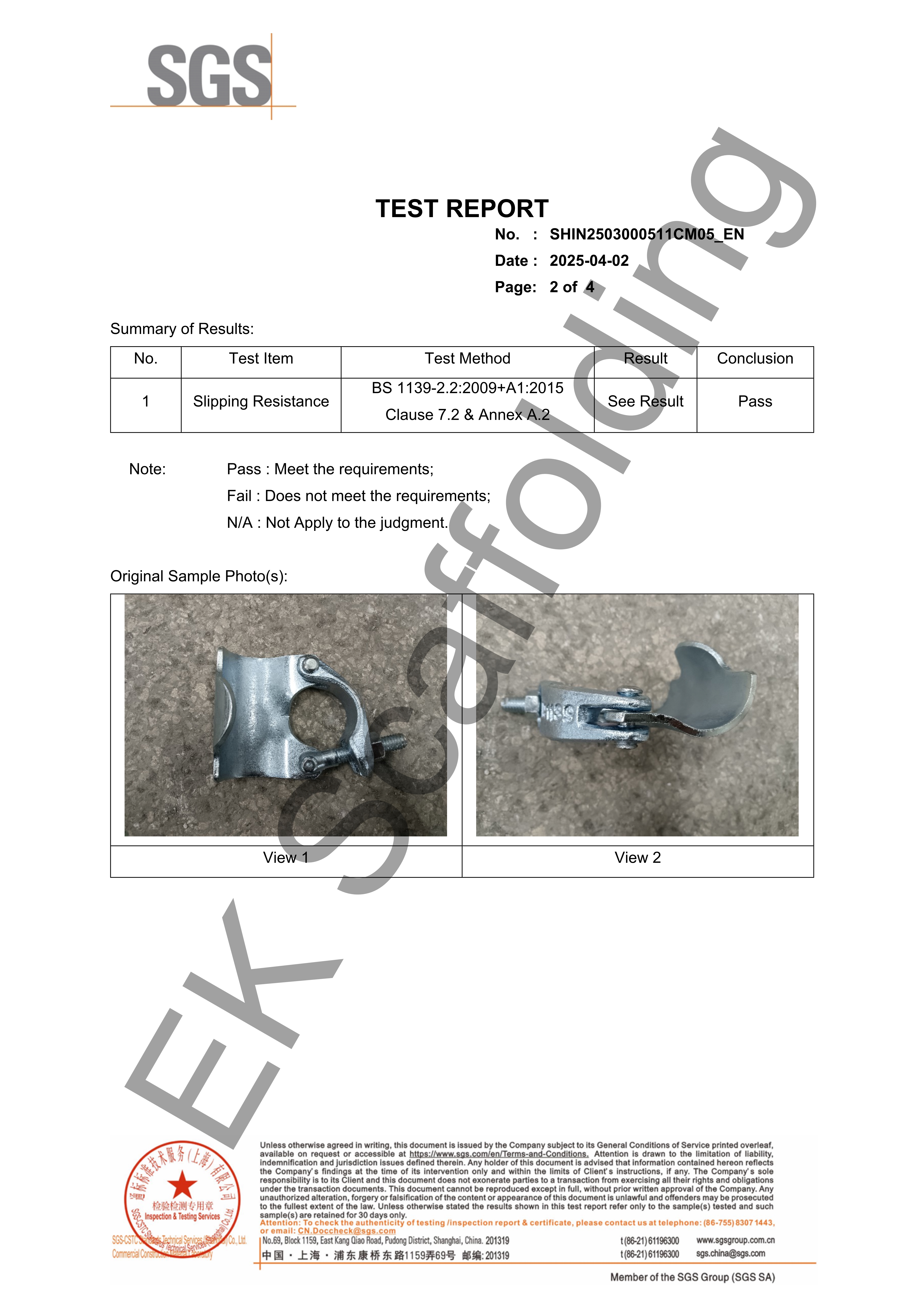

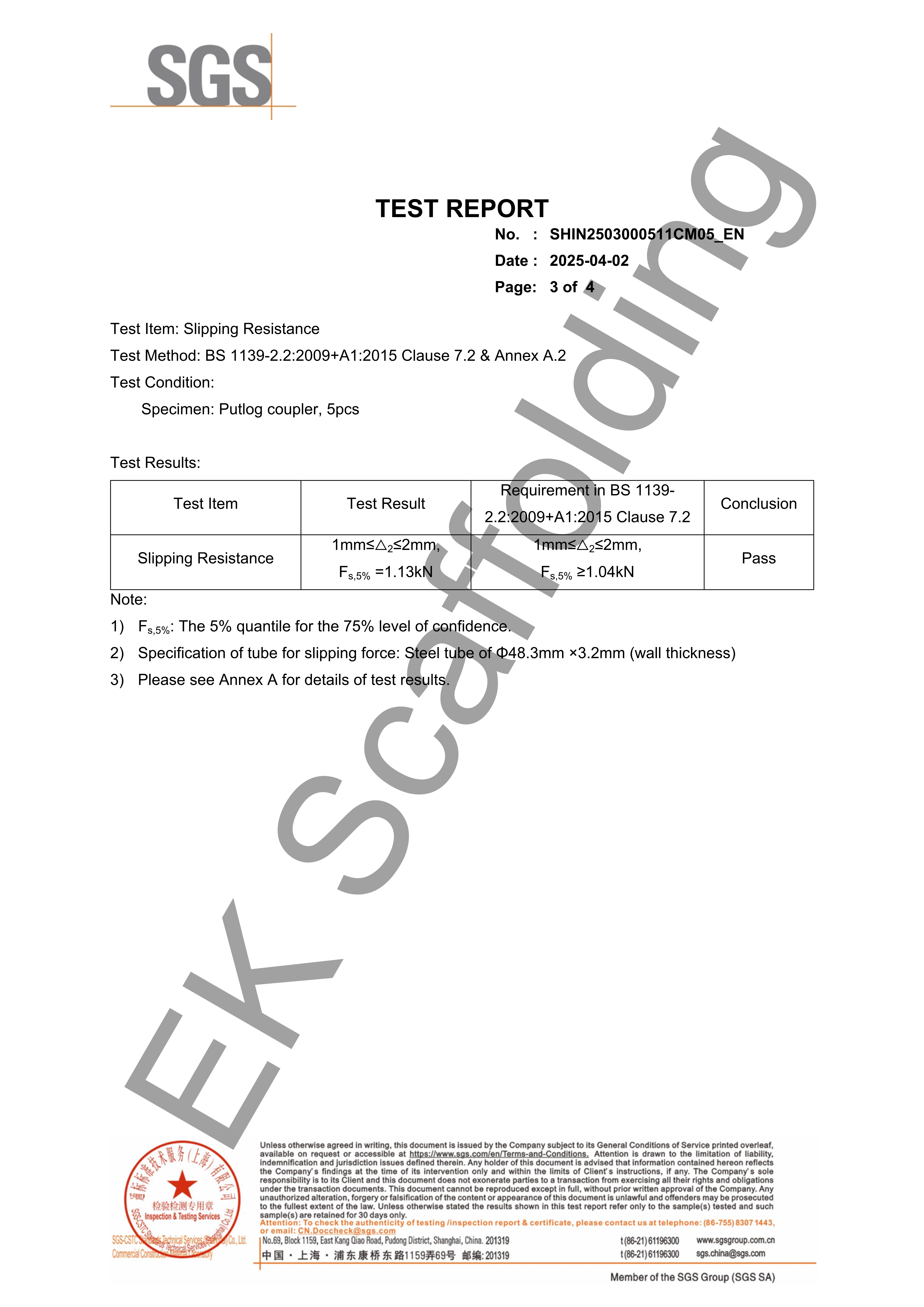

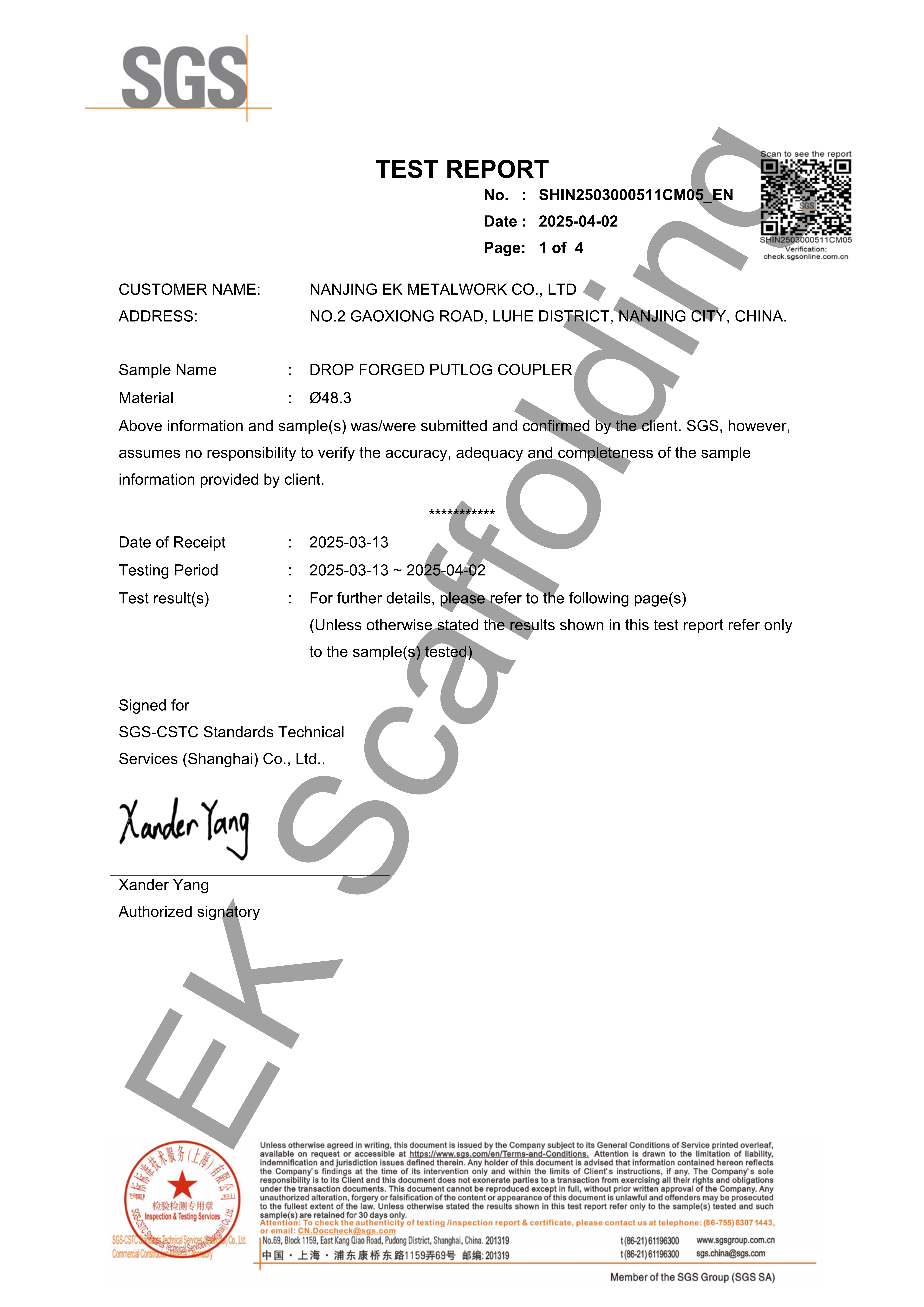

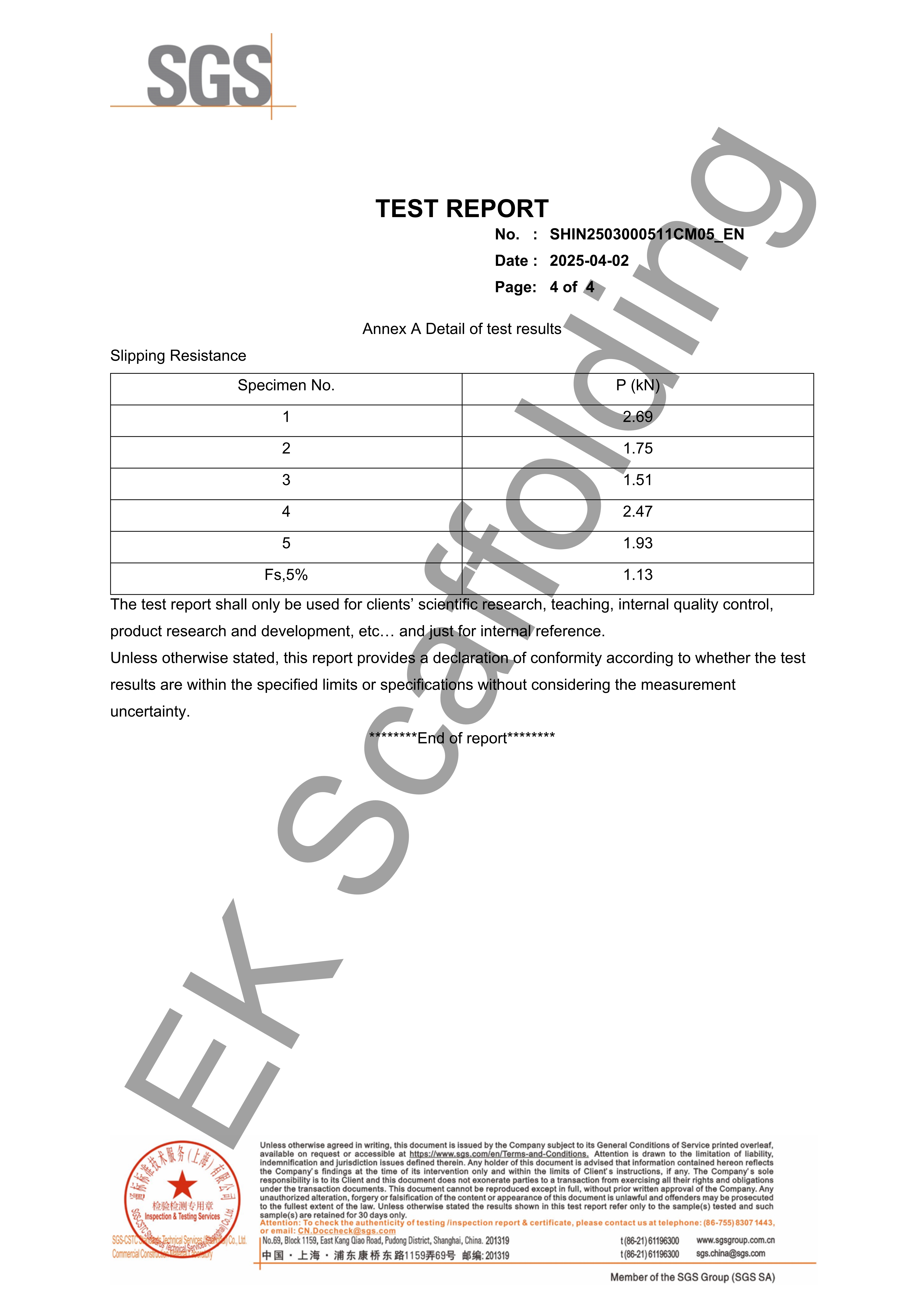

SGS Tests

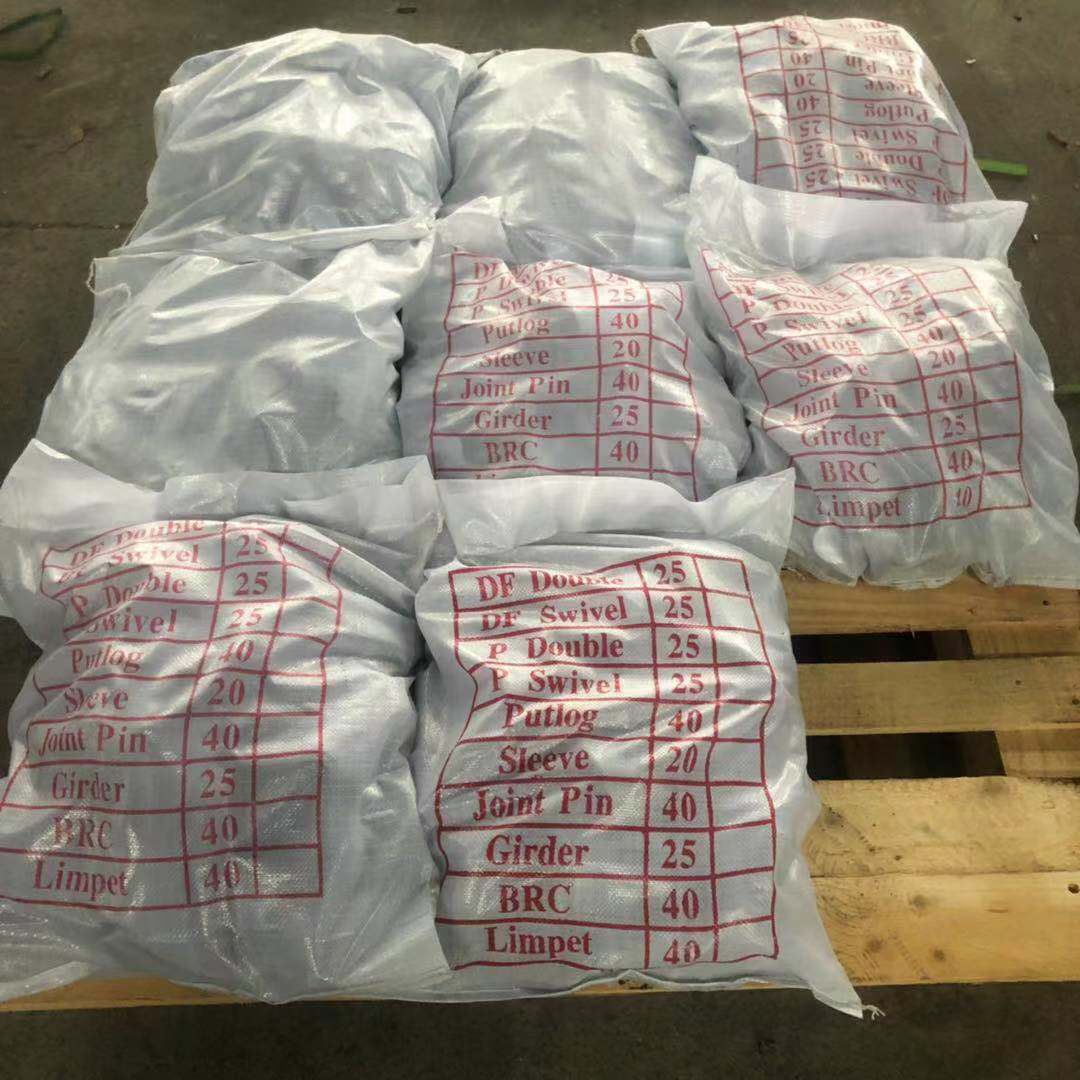

Packing and Details
