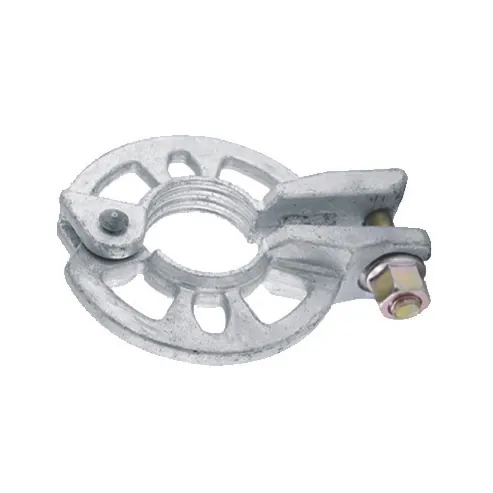

Ringlock System Drop Forged Round Ring Clamp Coupler

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Specification: 48.3mm Weight: 1.20kg/pc Surface Treatment: Electro-Gal Color: Colorful Material: Carbon Steel Q235 Marking: Customized according to your requirements Standard: EN74-1:2005 Class B, BS1139
Availability:
Quantity:
  • Round Ring Clamp

  • EK

  • 73084000

  • 48.3mm

  • Q235

  • Hot-Dip Galvanized

  • 1.2kg

Ringlock System Drop Forged Round Ring Clamp Coupler

DSC_0094

DSC_0098

1. Product Discription

Specification 48.3mm
Weight 1.20kg
Surface Treatment Electro Galvanized
Material Q235 Carbon Steel
Color Blue-white, White, Colored, Etc
MOQ 1 Tons
Mark Customize your Markings on Products
Processing Way Pressing
Packing Woven Bags with Wooden/Steel Pallets
Standard EN74-1:2005 Class B, AS1576.2, BS1139
Certificate SGS, EN12810, AS/NZS1576.3, ANSI10.8, CE, ISO9001, ISO14001, OHSAS18001
Payment TT, L/C, D/P, Etc
Delivery Time 20-25 days after the order confirmed
Production Capability 2000 tons per month
Place of Origin China
Main Market South America, North America, Australia, European, South Africa

2. Product Advantage
A. High quality materials, higher quality.
    Material--The product material is Q235 carbon steel which is higher than the standard as the raw material.
    Bolt--The bolt is 8.8 grade high-strength bolt, which ensures the quality.
    Quality assurance, more resistance to falls, improve the efficiency of scaffolding removal, saving time.
B. Advanced technology, better performance.
    Products using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding, more firm, not easy to slide.
C. Anti-rust treatment, longer service life.
   After passivation and surface galvanized anti-rust treatment, it is corrosion resistance is better than the ordinary coupler, longer service life.
D. Standard production, more secure.
    According to the professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, ensure construction safety and personnel safety.


Ringlock Scaffolding Ultimate Guide 2023

Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffolding couplers and fittings to fix.  Ringlock scaffolding systems include prefabricated parts of ringlock standard, ringlock ledgersringlock diagonal braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.

Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ledgers, braces, decks, etc, used to form scaffold frames and towers for construction and shoring.

In the ringlock scaffolding, wedge pins are fixed on the ringlock ledger and ringlock diagonal brace heads by rivets. It is used to fix ringlock system horizontals and braces between ringlock standards.

More than ringlock system scaffoldingcuplock system scaffolding, kwikstage system scaffolding, quick lock scaffold, crab shoring systems, and frame system scaffolding are modular scaffolds too.
