Scaffolding safety gates are also referred to by various names, such as Self-Closing Safety Gates, Spring-Loaded Safety Gates, Gravity Self-Closing Gates, Scaffolding Swing Gates, Adjustable Safety Gates, Scaffold Mesh Gates, Ladder Access Gates, Platform Safety Gates, Industrial Walkway Gates, and so on.
The core functionality of a scaffolding safety gate lies in its one-way opening mechanism and automatic closing capability. The safety gate is designed to open only inward—towards the platform (the safe zone). When an attempt is made to open it outward, it is blocked by a steel stopper located at the edge. This steel stopper effectively prevents the gate from swinging outward in the event that a worker falls against it or leans upon it, thereby preventing personnel and objects from falling. Furthermore, the high-performance spring integrated into the gate ensures that it automatically returns to the closed position.
What are the Components of a Scaffolding Gate?
A compliant scaffolding gate typically consists of the following components:

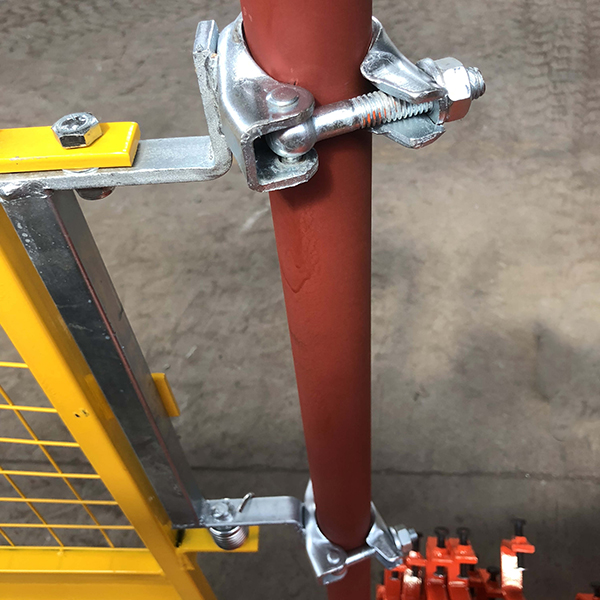

Mounting Brackets and Connectors:
These usually feature two pre-welded half-couplers (fittings) that can be directly fastened to the scaffolding's vertical standards, allowing for extremely rapid installation.
Hinges and Automatic Closing Mechanism:
The hinge assembly incorporates either a built-in high-performance torsion spring (spring-loaded mechanism) or a gravity-assisted inclined plane design. Once a worker passes through the gate and releases their outward force, the gate body automatically and smoothly swings back to the closed position—driven by either spring tension or gravity—without requiring manual pulling or latching by the user.
Main Gate Frame:
Constructed from high-strength bent tubing or square tubing, the frame is shaped to form a protective barrier. A steel stopper is welded to the edge of the frame to prevent the scaffolding safety gate from swinging outward.
Mesh and Infill Panels:
Typically, a steel wire mesh is welded into the central area of the gate frame; this provides clear visibility while simultaneously preventing tools or debris from slipping through the opening.
Toe board:
For self-closing gates that comply with EN 12811 / OSHA standards, the base of the gate features a stamped steel plate with a minimum height of 150 mm (typically 180 mm). When the gate is closed, this toe board aligns perfectly with the platform's perimeter toe board, preventing tools—such as bolts or wrenches—from being accidentally kicked off the platform and striking personnel below.
What surface finishes are available for scaffolding safety gates?
Hot-Dip Galvanizing: The zinc coating typically measures ≥ 85μm, ensuring rust resistance for many years—even in coastal environments with high humidity or within chemical plant settings—making it ideal for the European and North American markets.

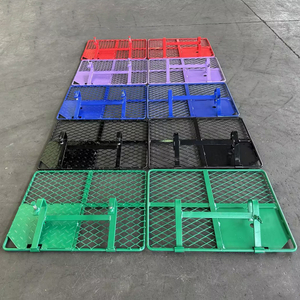

Powder Coating: Yellow is the most common color, as it enhances visual visibility during nighttime hours or in adverse weather conditions. Additionally, we offer a wide variety of other colors—including pink, purple, red, black, blue, green, white, and more—which are particularly popular in the UK.
Export Standards for Scaffolding Safety Gates:
In modern construction and international trade, scaffolding safety gates serve as critical safety components for work at heights. Consequently, their production and delivery are subject to extremely rigorous standards; they must undergo testing and certification by leading international third-party agencies (such as TÜV, SGS, and Intertek).
European and UK Market Standards: EN 12811-1 / EN ISO 14122-3
European standards place a strong emphasis on the safety gate's unidirectional restriction capabilities, anti-pinch mechanisms, and fatigue life.
North American Market Standards: OSHA 1910.29 / ANSI A14.3 / ANSI ASSE A1264.1
The US and Canadian markets prioritize absolute geometric precision and robust impact resistance and load-bearing capabilities.
Australia and New Zealand Market Standards: AS/NZS 1576.1 / AS/NZS 1657
Testing requirements for scaffolding in Australia and New Zealand—particularly for components compatible with Kwikstage (banana-style) and Ringlock (rosette-style) systems—are renowned for their stringent criteria regarding fatigue life and the application of highly corrosion-resistant zinc coatings.
Scaffolding Safety Gate Quality Control Checklist:
1. Limit Stop Inspection: Verify that the limit stops are fully welded, free of porosity (pinholes), and exhibit no undercut defects; this ensures the scaffolding safety gate cannot swing outward.
2. Weld Seam Inspection: Focus specifically on the welding quality of the hinge mounts, limit stops, and half couplers. UK-based engineering projects typically require weld seams to meet specific grading standards—specifically, they must be free of porosity, undercuts, and slag inclusions.
3. Self-Closing Mechanism Inspection: Inspect the sloped raceways and pin holes of the gravity hinges for any accumulation of zinc nodules. A secondary precision cleaning or grinding process is mandatory to ensure that, regardless of the angle from which the door body is released, it rebounds and closes with 100% smoothness.
4. Surface Treatment:
Hot-Dip Galvanizing (HDG) Zinc Coating Thickness: Conduct multi-point spot checks using a thickness gauge. Standard requirements for exports to Australia and Europe typically specify an average zinc coating thickness of ≥85μm (or a zinc coating weight of ≥610g/m²).
Coating Adhesion and Appearance: For painted products—such as those finished in "Safety Yellow"—a Cross-Cut Test must be performed to verify coating adhesion. The coating surface must be smooth and free of runs, bare spots, or blistering.
5. Anti-Pinch Hazard Testing: During the hinge's self-closing rebound, a safety clearance of greater than 25mm must be maintained between the rotating components and the fixed bracket—alternatively, the area must be completely enclosed—to prevent maintenance personnel wearing heavy-duty industrial gloves from sustaining pinch injuries.
6. Impact Resistance: The scaffolding gate must be capable of withstanding concentrated lateral loads. In the North American market, the standard requirement is to withstand a lateral thrust of at least 200 pounds (approximately 90 kg) without undergoing permanent plastic deformation.
