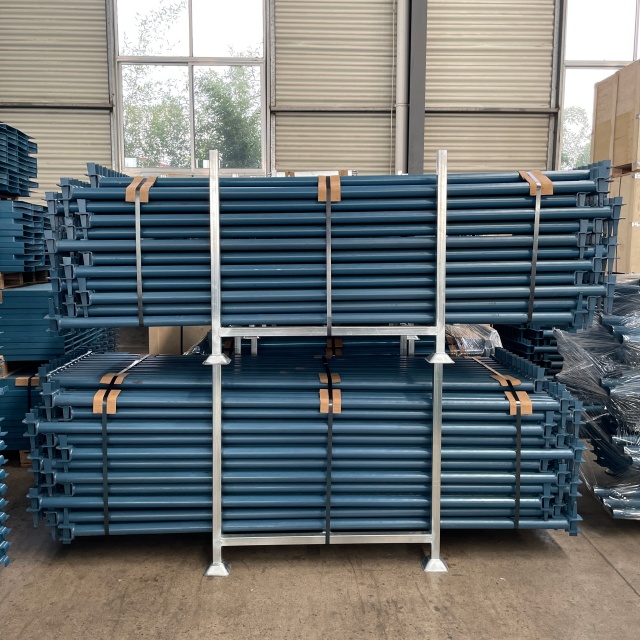

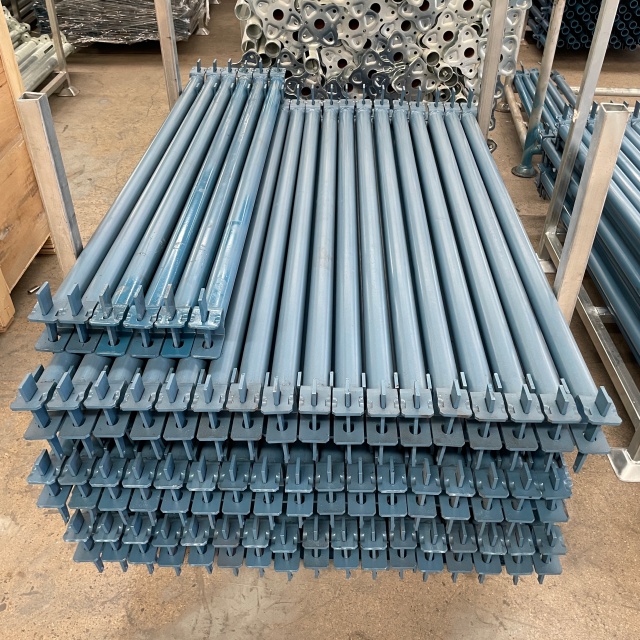

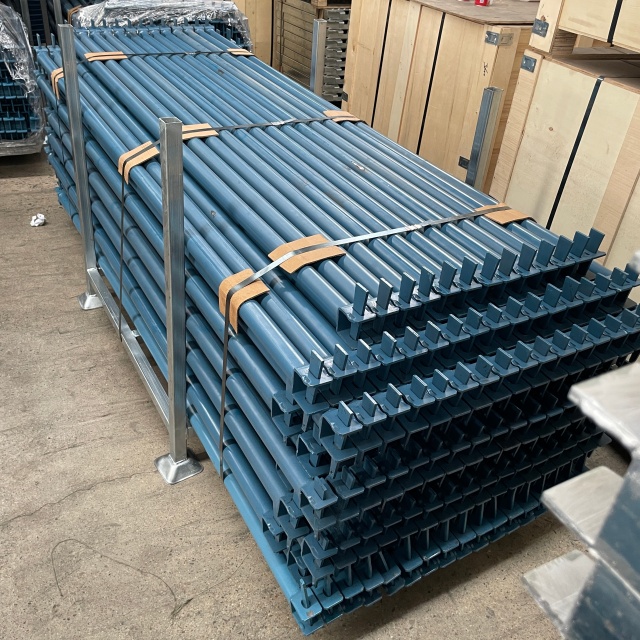

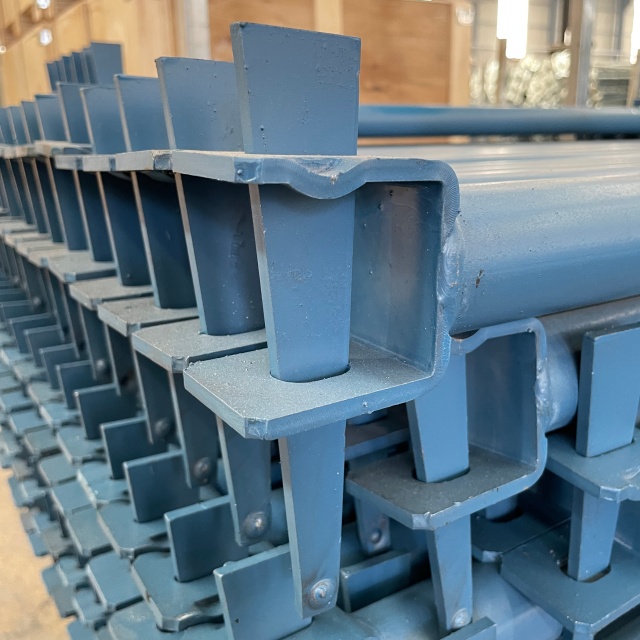

African Kwikstage Scaffolding Ledger

5 0 Reviews

Share to:

Length: 0.73 m to 3.07 m
Material: High-strength steel (48.3 mm outer diameter)
Surface treatment: Hot-dip galvanized (HDG)

Availability:

Quantity:



Inquire Add to Basket

Model:
Kwikstage Scaffolding
Brand:
EK Scaffolding
Code:
EK-AFKL
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated

Product Description

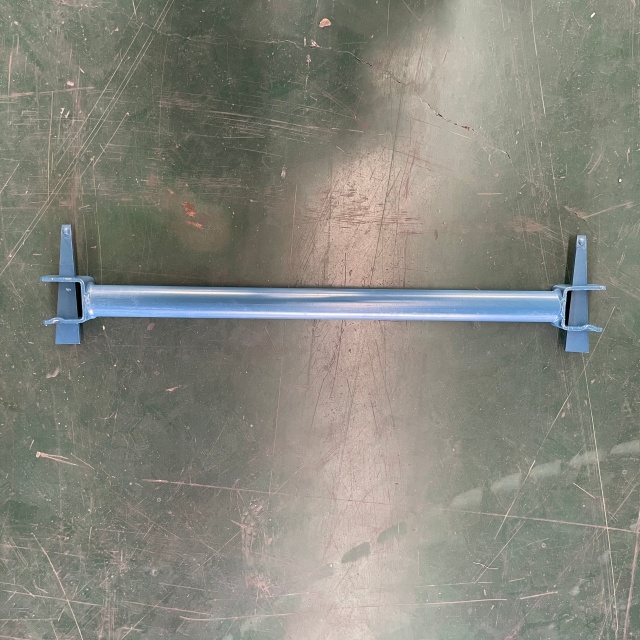

African Kwikstage Scaffolding Ledger / Horizontal

Steel Tubes:48.3 OD X 3.2 mm & 2.5mm

African Kwikstage ledger is a horizontal, modular kwikstage scaffolding component used to connect vertical standards. It provides lateral stability, acts as a platform support, and serves as a guardrail. It is highly popular in construction and concrete shoring projects across Africa.

Code	Item	Specification(mm)	Weight(Kg)
EK-AFKL25	African Ledger 2.5m	48.42.652500	8.14
EK-AFKL20	African Ledger 2.0m	48.42.652000	6.65
EK-AFKL15	African Ledger 1.5m	48.42.651500	5.15
EK-AFKL13	African Ledger 1.3m	48.42.651295	4.54
EK-AFKL12	African Ledger 1.2m	48.42.651219	4.31
EK-AFKL09	African Ledger 0.9m	48.42.65900	3.36
EK-AFKL06	African Ledger 0.6m	48.42.65600	2.46

Compliance and Standards

African (South African) Kwikstage scaffolding is a specialized, heavy-duty modular system governed primarily by SANS 10085 and the Occupational Health and Safety Act (OHSACT) No. 85 of 1993.
