Australian Kwikstage Scaffolding Ledger

5 0 Reviews

Share to:

Length: 0.73 m to 3.07 m
Material: High-strength steel (48.3 mm outer diameter)
Surface treatment: Hot-dip galvanized (HDG)

Availability:

Quantity:



Inquire Add to Basket

Model:
Kwikstage Scaffolding
Brand:
EK Scaffolding
Code:
EK-AKL
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated

Product Description

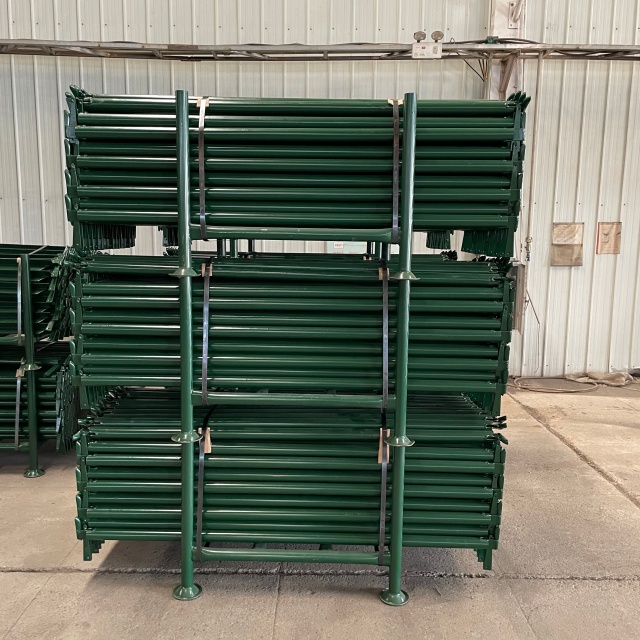

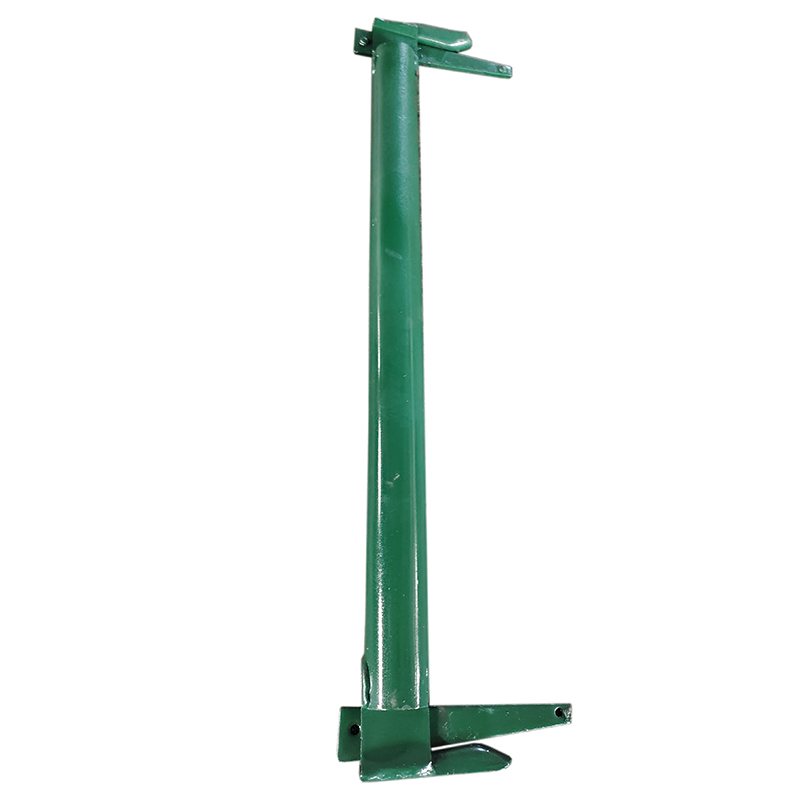

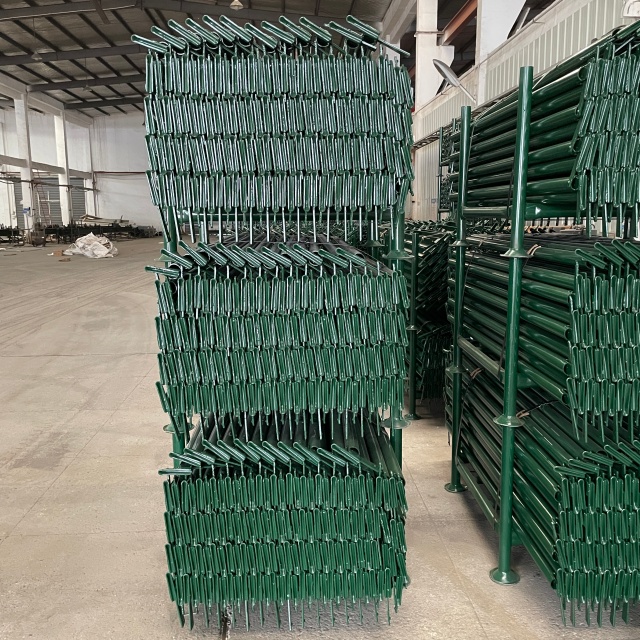

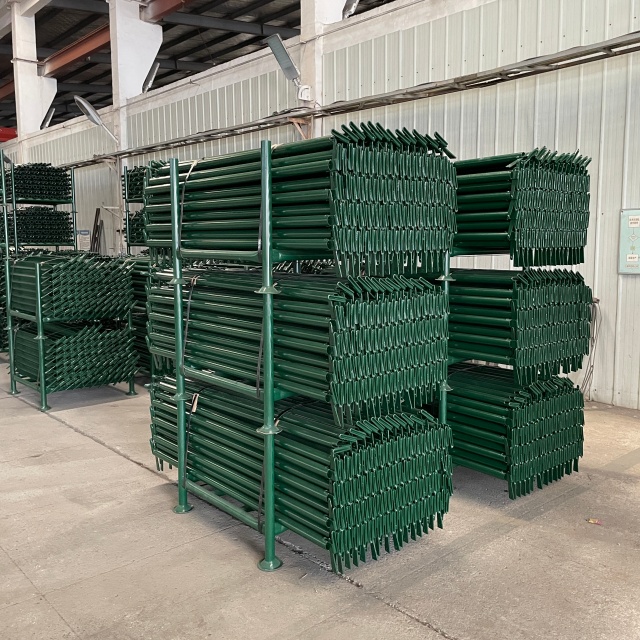

Australian Kwikstage Scaffolding Ledger / Horizontal

48.3 OD X 3.2 mm & 4 mm tubes.

An Australian Kwikstage scaffolding ledger is a horizontal structural component in kwikstage scaffolding. It used to define bay lengths and act as a guard rail. Made from high-strength 48.3 mm O.D. steel tube, it features wedge locks at both ends that drop into the V-pressings of Kwikstage standards to form rigid node connections.

Code	Item	Specification(mm)	Weight(Kg)
EK-AKL24	Australian Ledger 2.4m	48.33.02438	8.9
EK-AKL18	Australian Ledger 1.8m	48.33.01829	6.86
EK-AKL12	Australian Ledger 1.2m	48.33.01270	4.98
EK-AKL10	Australian Ledger 1.0m	48.33.01000	4.08
EK-AKL08	Australian Ledger 0.8m	48.33.0812	3.45
EK-AKL07	Australian Ledger 0.7m	48.33.0760	3.28
EK-AKL05	Australian Ledger 0.5m	48.33.0560	2.6

Compliance and Standards

Australian Type Kwikstage Ledgers are manufactured and tested to comply with strict Australian and international scaffolding standards to ensure safety and performance. These typically include:
AS/NZS 1576 (Australian/New Zealand Standards for Scaffolding)
BS 1139 (British Standard for Scaffolding)
EN74-1:2005 Class B (European Standard for Couplers, Clamps, and Baseplates for use in Temporary Works Equipment)
EN12810/EN12811 (European Standards for Scaffolds)
WorkSafe certification is also common in Australia.
